J5f174

File: /MZ/A/J05/D/I//MZ/A/J05/D/F/0174.HTM
Processed on 7-19-2021
The home for this page is J5

Labeling/Designation
category !! !! other features [Input File: !!]
definition (typological label) 2008-8-26 lH volumetrically defined layer [Input File: S914lH.j]
summary 2012-12-16 jW Undifferentiated soil excavated from the north edge of k100 and covering accumulation f169. [Input File: Wz16jW.j]
best image !! !!
v125
[Input File: !!]

Description/Count
description (summary) 2008-8-26 lH Volumetric material with trapezoidal shape includes the eastern lower part of k100. It start vertically from the bottom of the floor accumulation, f169, and goes up about three meters. Generally, it has a chunkey texture with brown color. This part of k100 used to be part of J1. Removing this feature was in order to build a staircase that leads from the plaza near the revetment wall in J1 to the additional revetment wall, f3, and the stone structures in J5. [Input File: S826lH.j]
best view 2008-9-22 lH v125 [Input File: S922lH.j]

Volumetric Localization
relays (applicable to elements) 2008-8-27 hB 806 (41698 46231 - 8940 / Relay location: W corner) [Input File: S828DL3R.J]
2008-8-27 hB 807 (41783 46265 - 8926 / Relay location: N corner) [Input File: S828DL3R.J]
2008-8-27 hB 808 (41560 46268 - 8913 / Relay location: S corner) [Input File: S828DL3R.J]
2008-8-27 hB 809 (41626 46298 - 8908 / Relay location: E corner) [Input File: S828DL3R.J]
2008-9-09 hb 961 (41880 46315 - 8925 / Relay location: sk43 # 96) [Input File: S909JW1R.J]
m#/elev @top 2008-8-26 lH m6009 [Input File: S914lH.j]
height @top 2008-8-26 lH 51 [Input File: S914lH.j]
h-eye @top 2008-8-26 lH 156 [Input File: S914lH.j]
m#/elev @bottom 2008-8-26 lH 8925 [Input File: S914lH.j]

Contact Association
type of contact: contemporary events/movable items 2008-8-27 lH q276 (pottery) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267 (p, b) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267.1 (bead (clay)) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267.2 (clay lump (and possible tablet)) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267.3 (figurine) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267-p1 (pottery) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267-p2 (pottery) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
2008-8-26 lH q267-p33 (pottery) sits in f174 (volumetrically defined layer) [Input File: S827dL.j]
type of contact: earliest events 2008-9-12 lH f174 (volumetrically defined layer) overlays f169 (accumulation A) [Input File: S915lH.j]
2008-9-12 lH f174 (volumetrically defined layer) overlays f204 (volumetrically defined layer) [Input File: S915lH.j]
inclusions !! !! frequencies of ceramic vessels and sherds included within feature [Input File: !!]

Time Sequencing
stratum (to which element belongs) 2012-10-16 jW s0J5B [Input File: Wx16jW.j]
phase (to which element belongs) 2012-10-16 jW h9sJ5B [Input File: Wx16jW.j]

Descriptive
ware or material 2008-8-26 lH so [Input File: S914lH.j]
color 2008-8-26 lH brown [Input File: S914lH.j]
color number (Munsell) 2008-8-26 lH 10 YR 5/3 [Input File: S914lH.j]
hardness, compaction 2008-8-26 lH >4.5 [Input File: S914lH.j]
texture, surface finish 2008-8-26 lH chunky [Input File: S914lH.j]

Analogical Record
view/drawing of features

v125
2008-9-22 / jW / [Input File:S922jW.j]

v125a
2008-9-22 / jW / [Input File:S922jW.j]

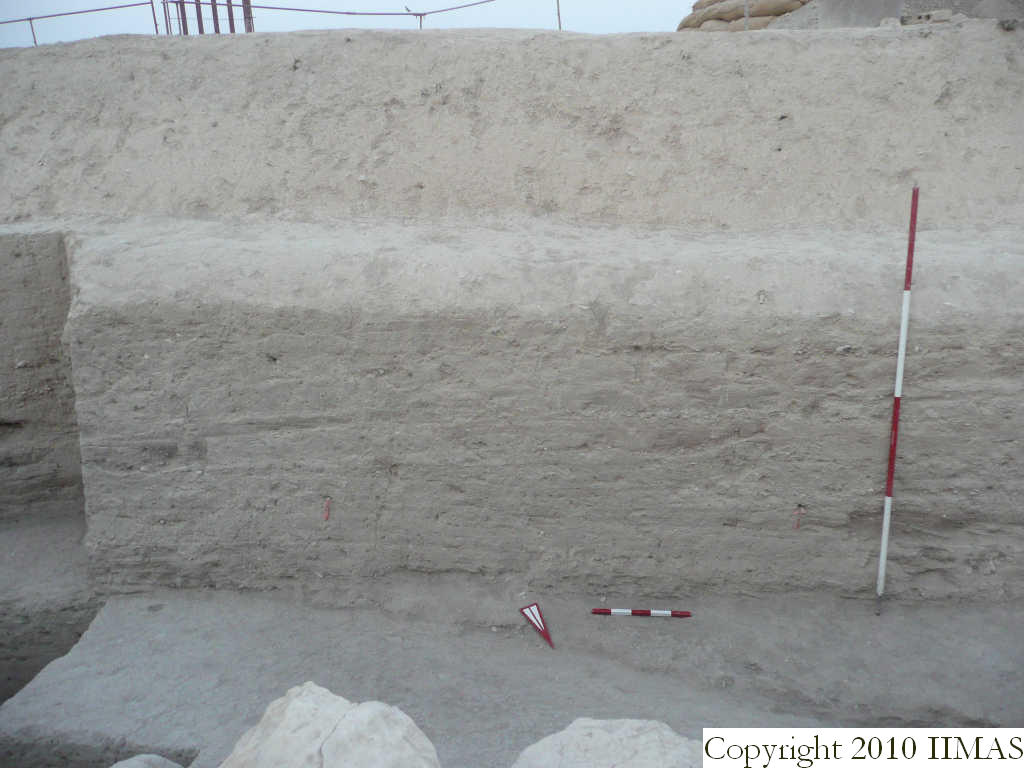

v125b
2008-9-22 / jW / [Input File:S922jW.j]

Disposition
removed, discarded, missing 2008-8-26 lH S826 [Input File: S914lH.j]
