Labeling/Designation

Description/Count
description (summary) 2009-3-18 jW This locus was excavated to explore the northern half of the eastern extension of the stone staircase installation, f21, and associated access to the BA temple. [Input File: T318jW1.j]
best view 2009-3-13 jW [Input File: T313jW.j]

Recovery/Assignment
daily notes 2008-8-05 lH After removing the soft chunky topsoil, f104, we found a hard crusted natural accumulation, 106. A big limestone sits in this new feature. The last mentioned stone is on the line of the stones of f14 in k24, even though it`s about 1 m higher. [Input File: S805lH.j]
2008-8-06 lH We continued excavating the hard crusted natural accumulation, f106, where we found two big limestones, f109, in the northwestern quadrant of this locus. In the next pick run we noticed that these two stones aren`t founded, but sits in f106. Also we found traces of another line of stones, f108, at the northern border of this locus on the line of the stones of f14 in k24, even though it`s about 1 m higher. [Input File: S806lH.j]
2008-8-06 jW At the beginning of the day, began to remove natural accumulation, f112, which was present throughout the locus and surrounded the stones of installation, f108. Uncovered a semi-circular arc of small stones, along the eastern baulk. [Input File: S807jW.j]
2008-8-09 jW Continued to excavate natural accumulation, f112, with large picks. Documented and removed an arc of stones, f119, along the eastern baulk. Uncovered a stone installation, f123, running NW to SE in the southeastern quadrant. [Input File: S809jW.j]
2008-8-14 jW We began to remove the safety baulk on the south side of the locus. We used features previously identified from excavation in the main part of the locus. One floor surface and what were probably crude walls associated with it were identifed near the end of the day. Features have not been assigned. The locus is filled with isolated limestone blocks and organized rows of stones which we have not been able to link with others nearby. [Input File: S814jW.j]
2008-8-14 jW We prepared and photographed, v80, a long view looking east and west across 4 loci (k14, k24, k34, k44) that documented the relationship between the portion of the temple mound which includes the staircase, f21, and various stone installations in k14 and k24; the mini-plaza to the west in k34; and the stonework in k44 which forms the western boundary of the mini-plaza. dL analyzed the open spaces between the various stoneworks in k14 and k24 to see if they had been paved. [Input File: S814jW.j]
2008-8-16 jW Took a series of photographs, v83, to document features excavated so far this season. [Input File: S816jW.j]

Volumetric Localization
space definition 2009-3-18 jW m4670 [Input File: T318jW1.j]
length of two sides 2009-3-18 jW 500N [Input File: T318jW1.j]
2009-3-18 jW 500E [Input File: T318jW1.j]
relays (applicable to elements) 2008-9-08 hB 868 (43665 46636 - 9276 / Relay location: sk43 #3) [Input File: S908JW-R.J]
2008-9-08 hB 869 (43490 47095 - 9276 / Relay location: sk43 #4) [Input File: S908JW-R.J]
2008-9-08 hB 870 (43024 46917 - 9271 / Relay location: sk43 #5) [Input File: S908JW-R.J]

Analogical Record
view/drawing of locus

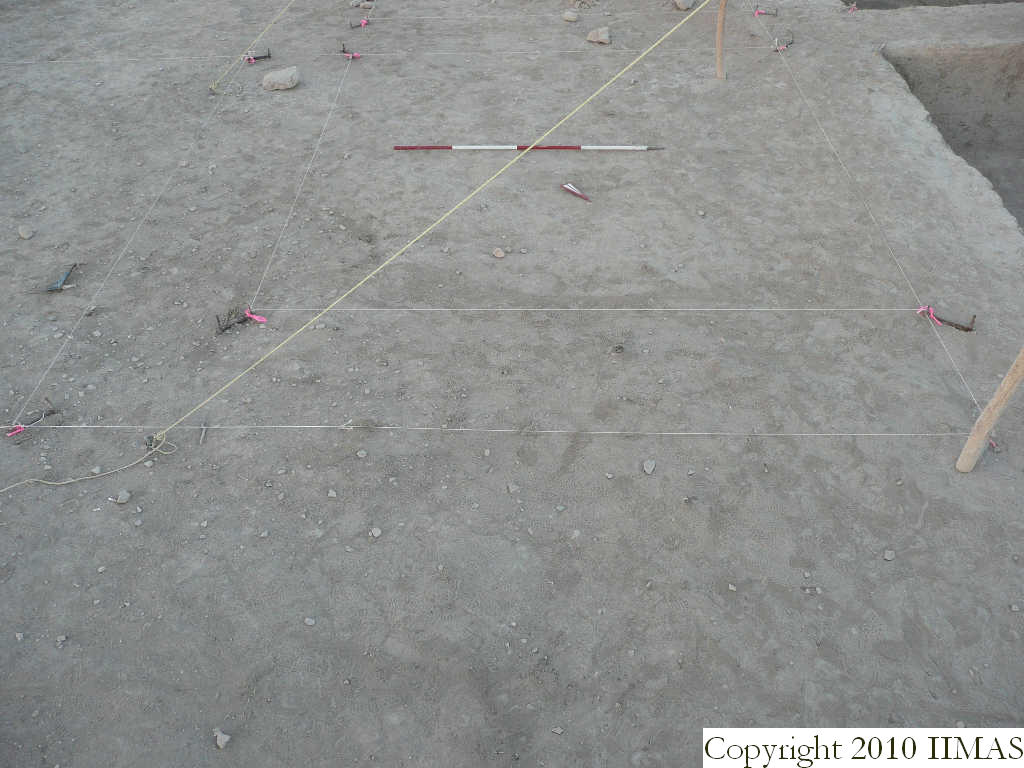

v59
2008-8-09 / lH / [Input File:S809lH.j]

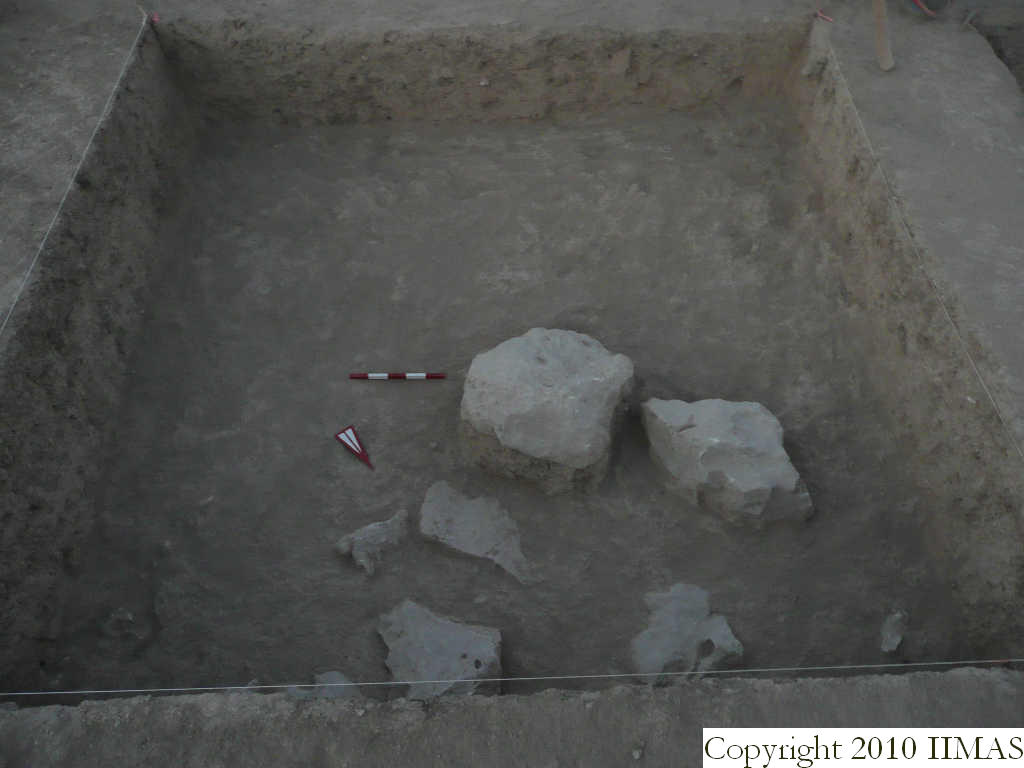

v65
2008-8-09 / lH / [Input File:S809lH.j]

v67
2008-8-09 / lH / [Input File:S809lH.j]

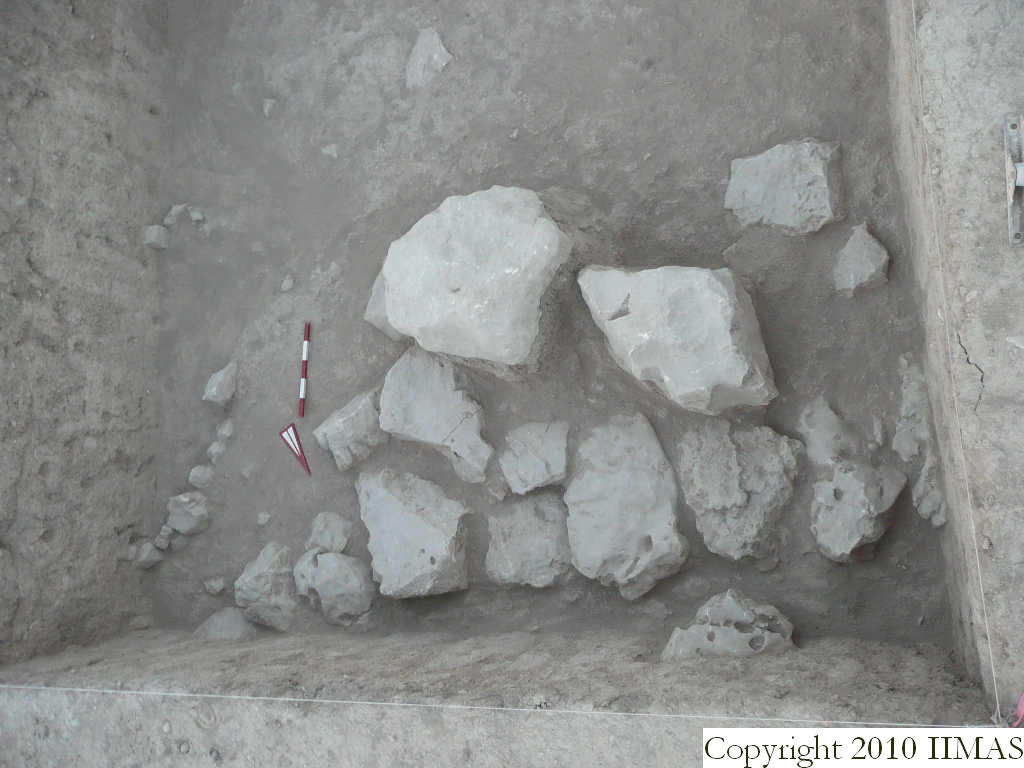

v67a
2008-8-09 / lH / [Input File:S809lH.j]

v67b
2008-8-09 / lH / [Input File:S809lH.j]

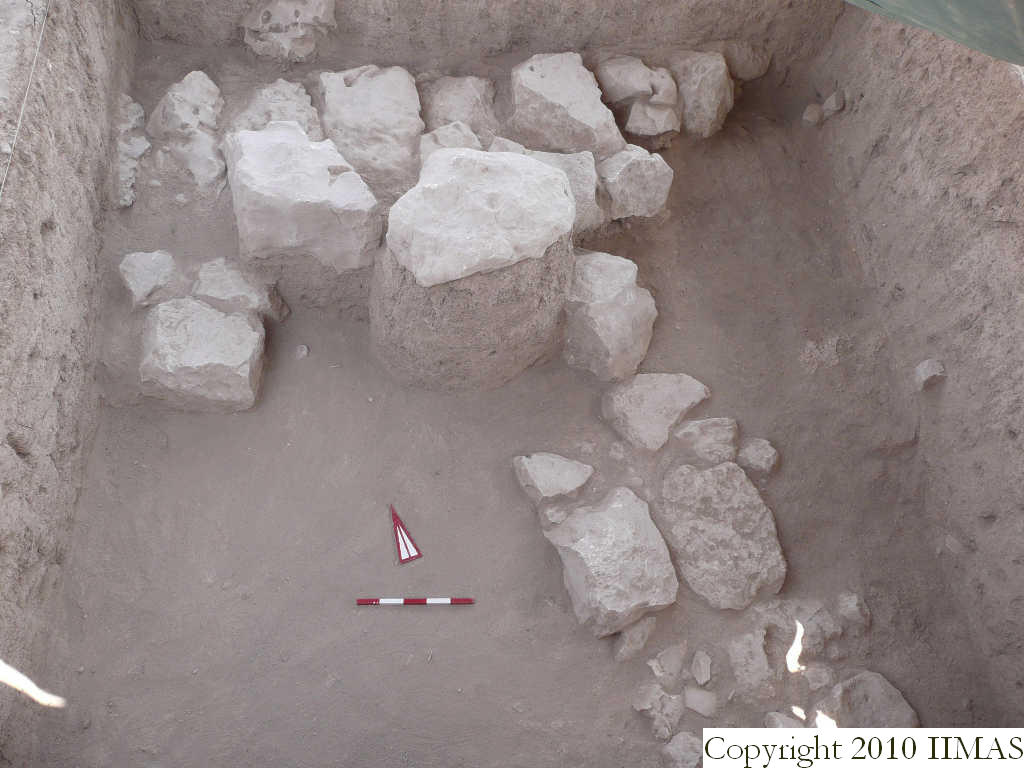

v70
2008-8-11 / lH / [Input File:S811lH.j]

v73a
2008-8-11 / lH / [Input File:S811lH.j]

v73b
2008-8-11 / lH / [Input File:S811lH.j]

v73
2008-8-11 / lH / [Input File:S811lH.j]

v80
2008-8-14 / jW / [Input File:S823jW.j]

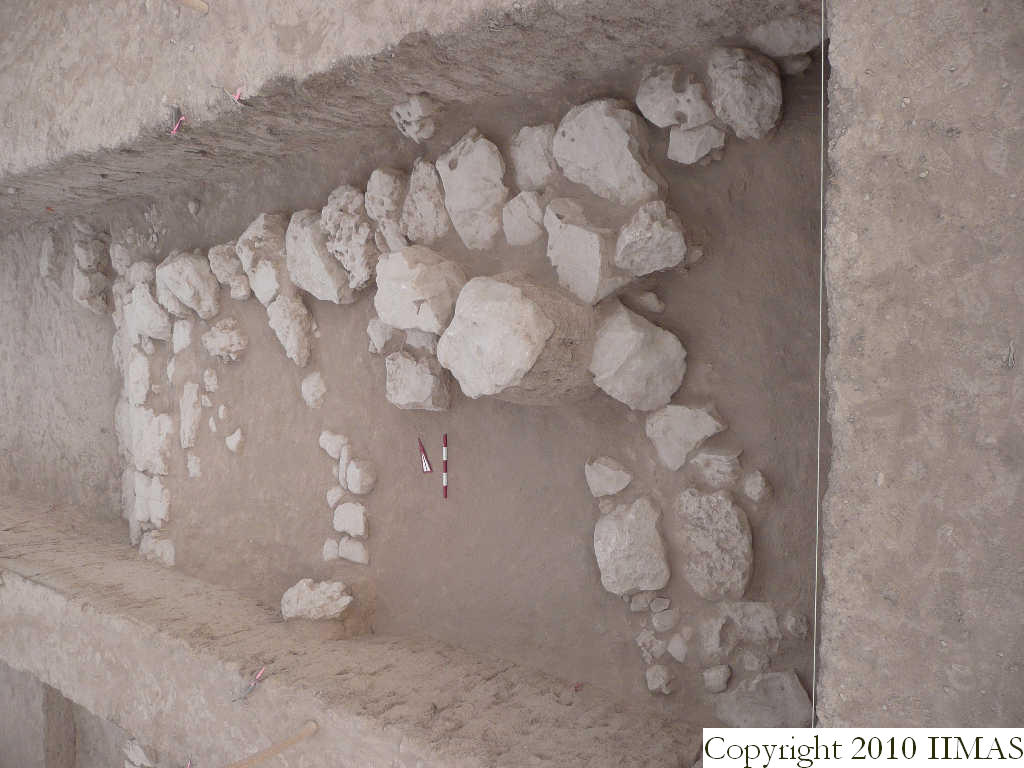

v83
2008-8-14 / jW / [Input File:S823jW.j]

v80a
2008-8-14 / jW / [Input File:S823jW.j]

v80b
2008-8-14 / jW / [Input File:S823jW.j]

v83a
2008-8-14 / jW / [Input File:S823jW.j]

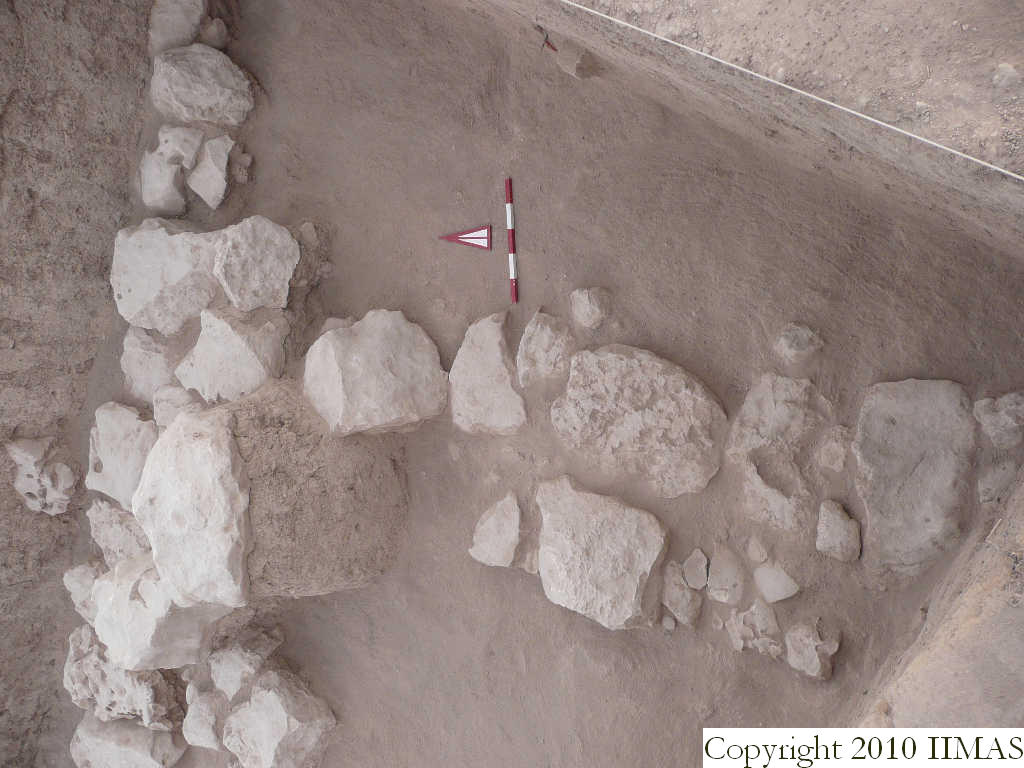

v83b
2008-8-14 / jW / [Input File:S823jW.j]

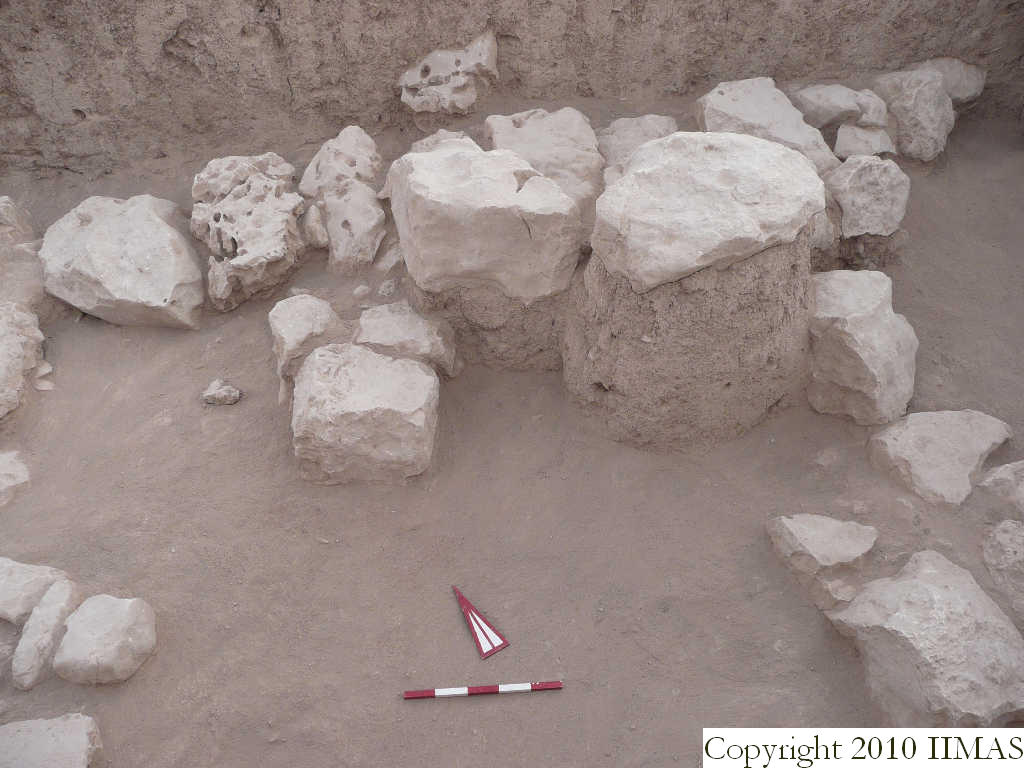

v83c
2008-8-14 / jW / [Input File:S823jW.j]

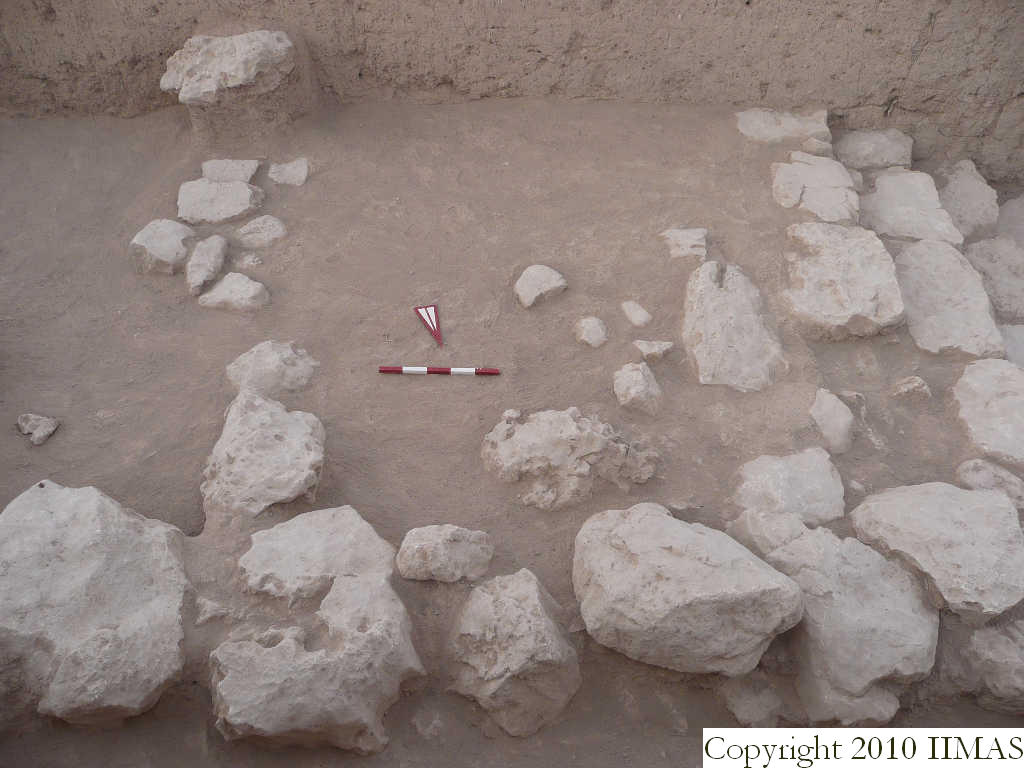

v83d
2008-8-14 / jW / [Input File:S823jW.j]

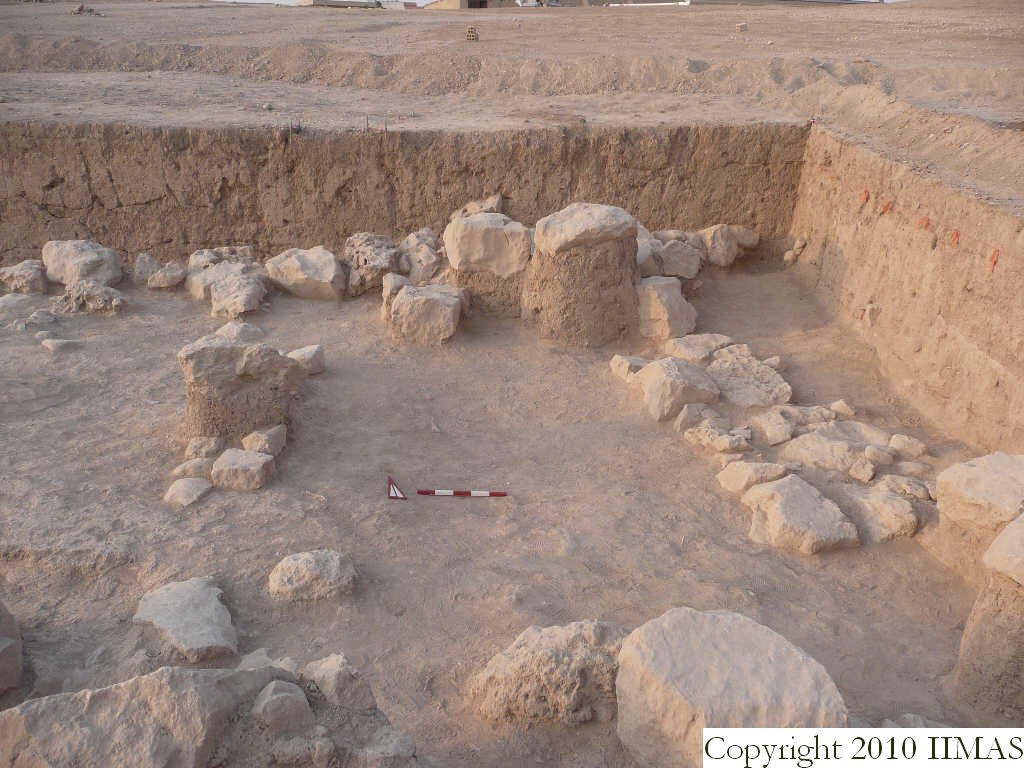

v119a
2008-9-19 / jW / [Input File:S919jW.j]

v119
2008-9-19 / jW / [Input File:S919jW.j]

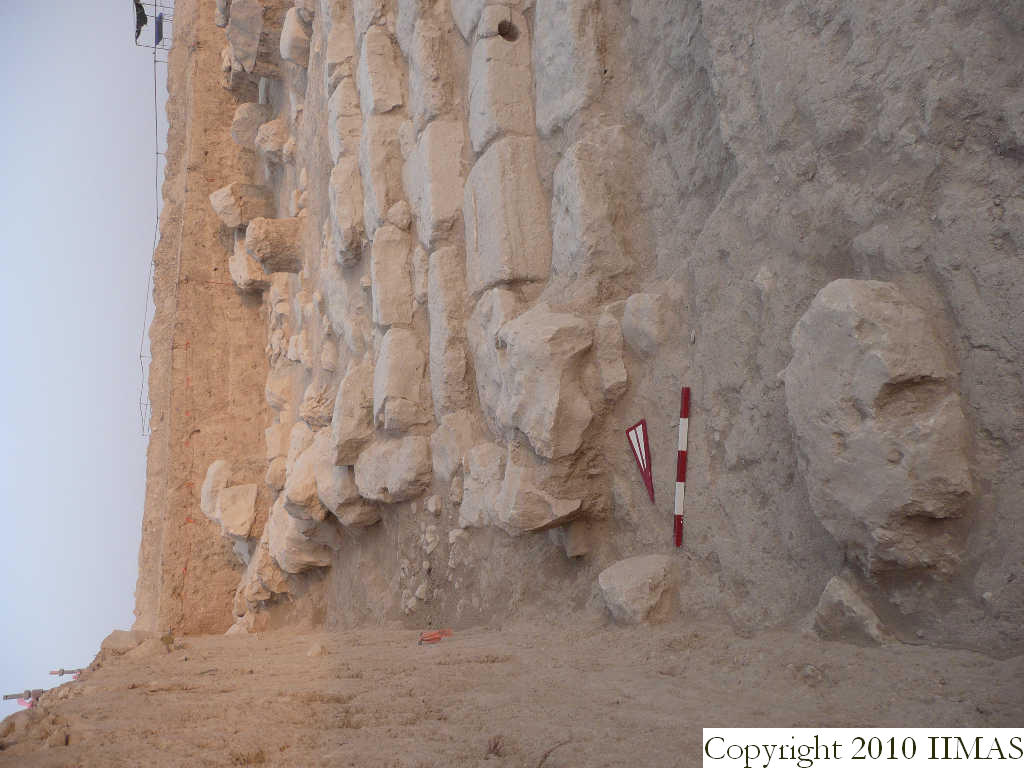

v120
2008-9-19 / jW / [Input File:S919jW.j]

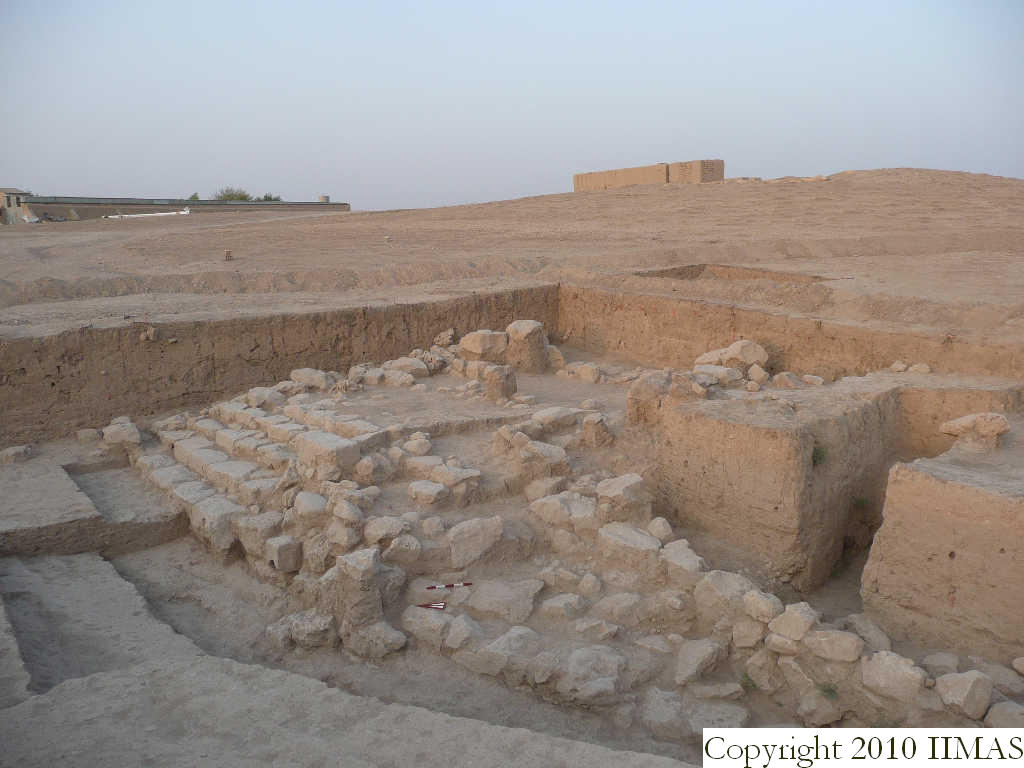

v121
2008-9-19 / jW / [Input File:S919jW.j]

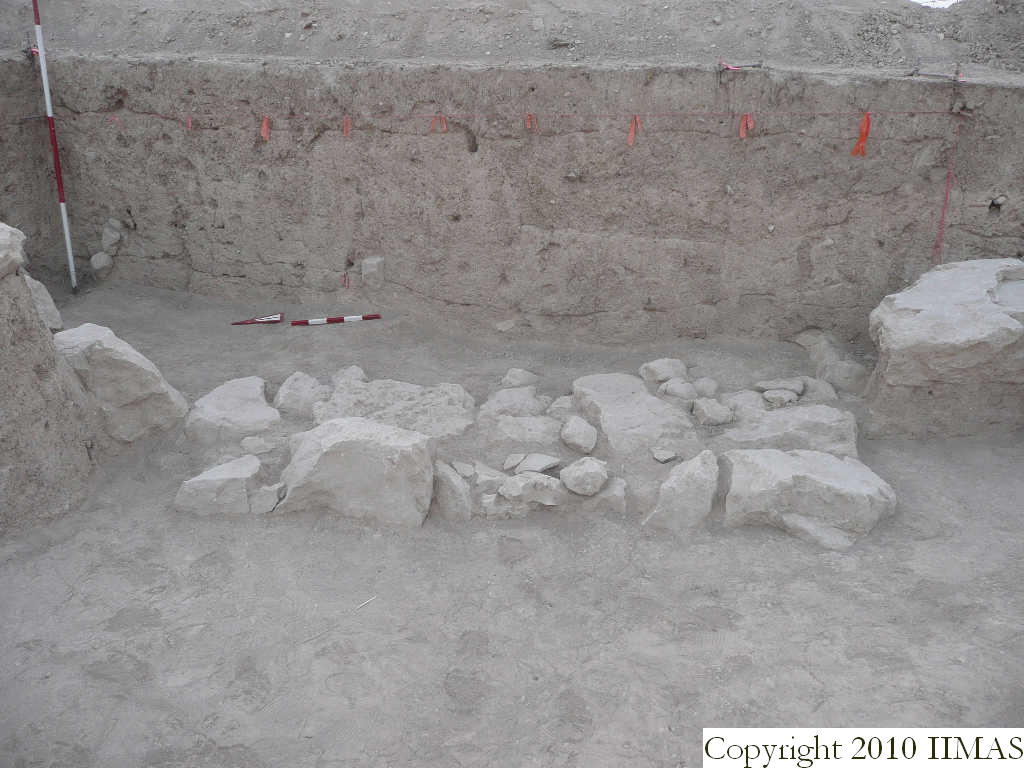

v127a
2008-9-22 / jW / [Input File:S922jW.j]

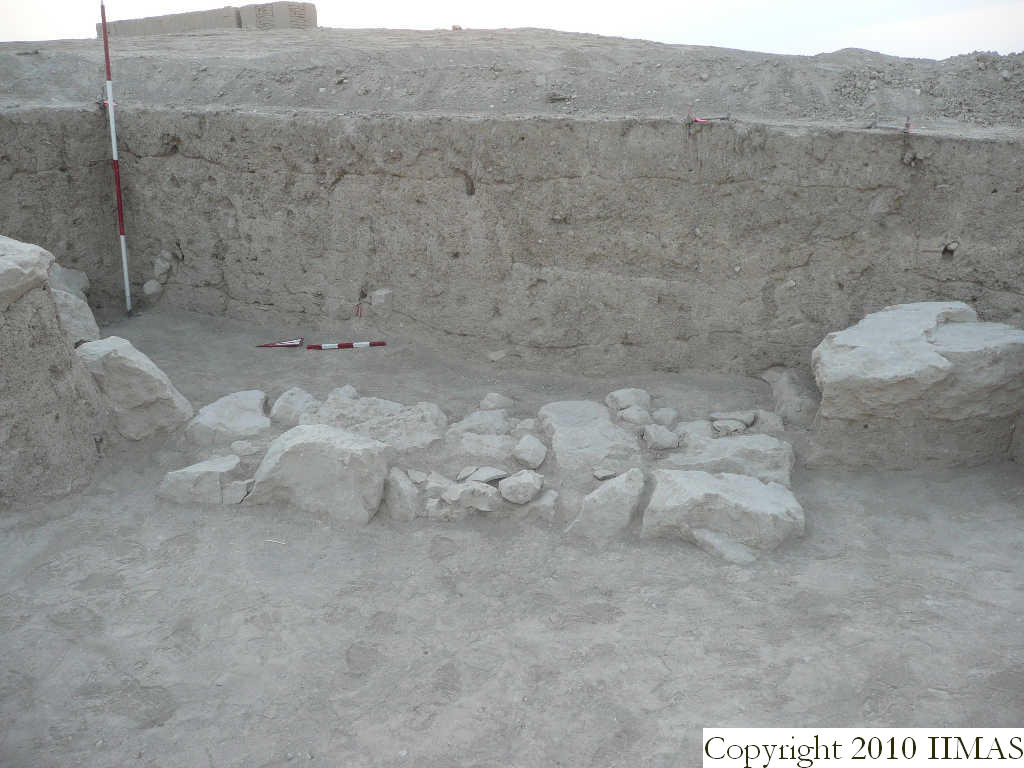

v127
2008-9-22 / jW / [Input File:S922jW.j]

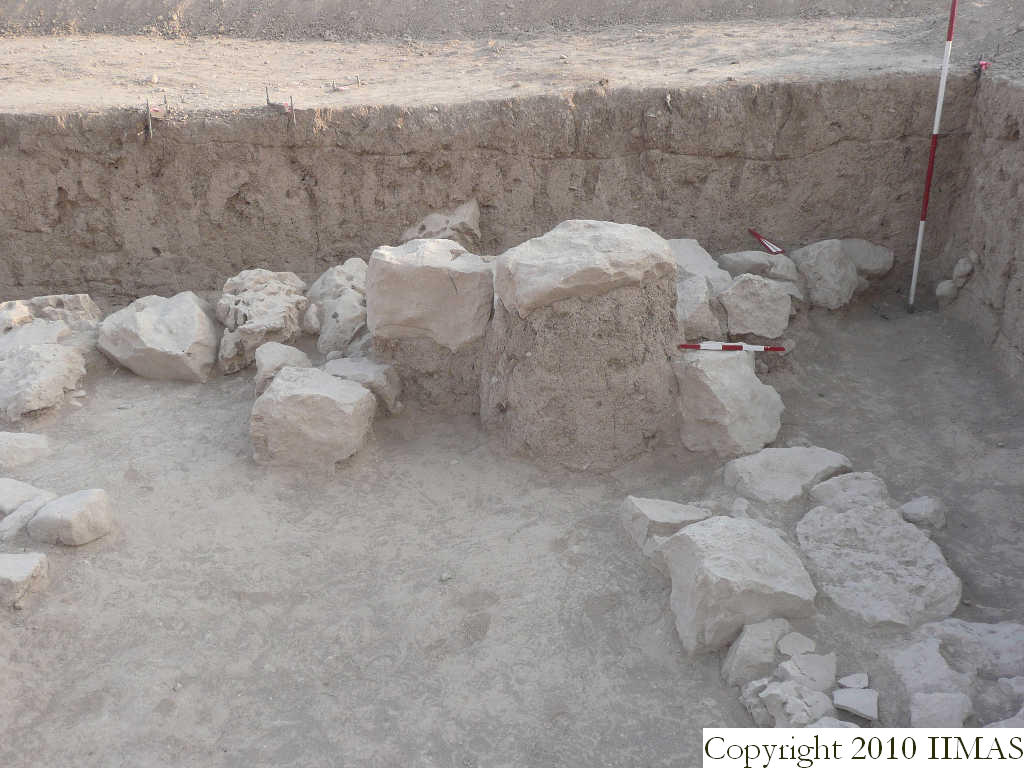

v134
2008-9-22 / jW / [Input File:S922jW.j]

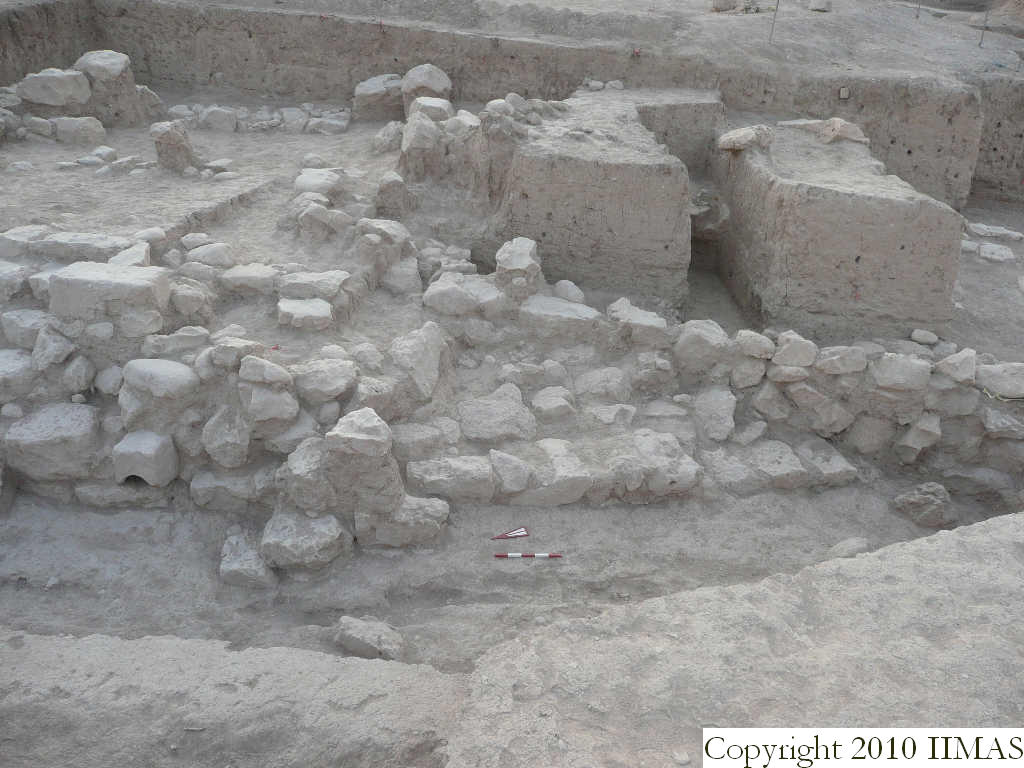

v129
2008-9-22 / jW / [Input File:S922jW.j]

v134a
2008-9-22 / jW / [Input File:S922jW.j]
p1
2009-3-23 / jW / [Input File:T323jW1.j]

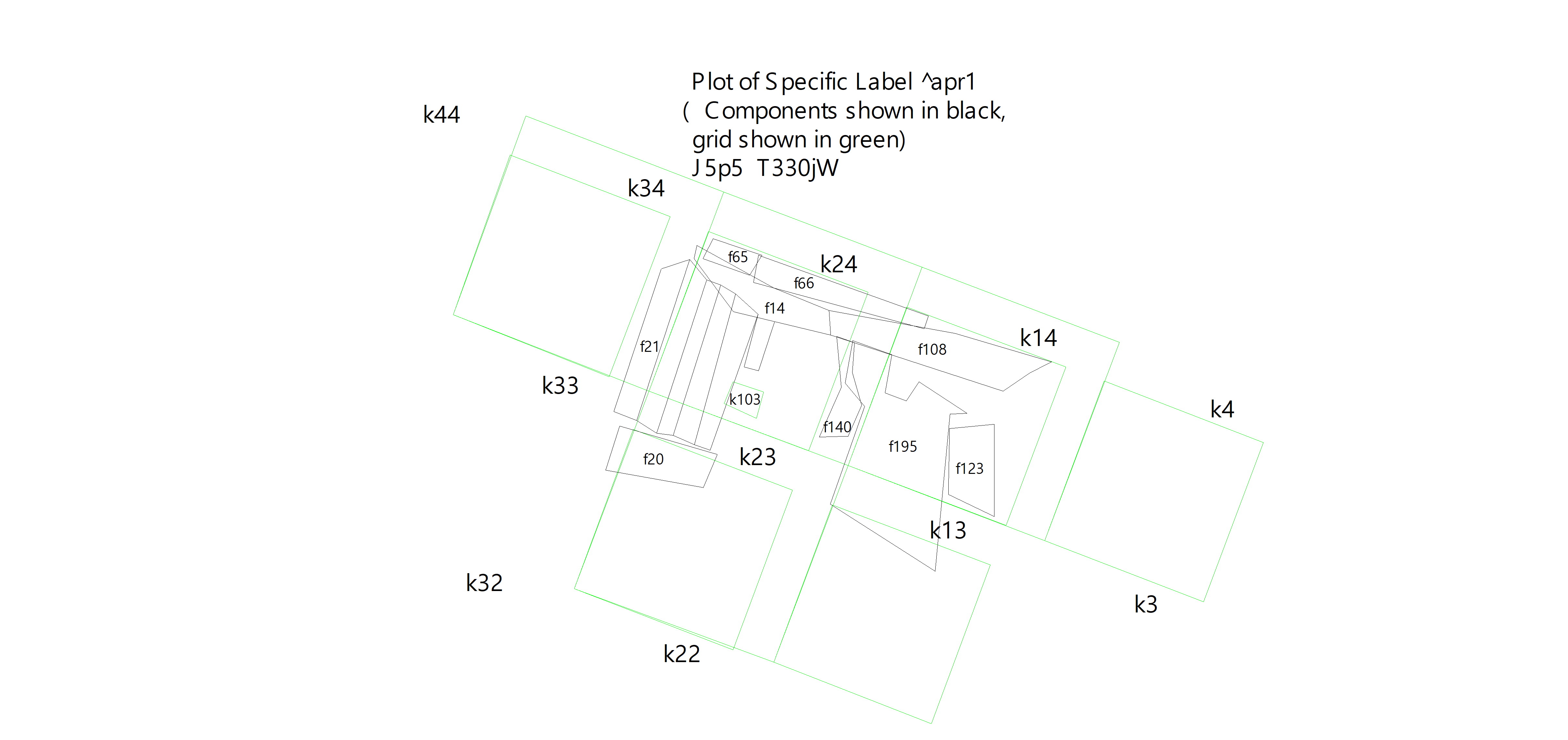

p5
2009-3-30 / jW / [Input File:T330jW1.j]

v224
2010-8-12 / jW / [Input File:U812jW.j]
