AP – The Palace

Conservation record of Palace walls

Room B1: Wall face B1-5

Authorship – August 2022
Drawing (date, author)
(Some pictures, dates and authors missing)
MZ 14
2001

2001-9-10
S. Bonetti

V14x0201
X05v49
MZ 15
2002

2002-9-16
S. Bonetti

V15x0201
X05v49
MZ 16
2003
missing
MZ 17
2004

2004-8-06
B. Mariani

V17x0201
X05v49
MZ 18
2005

2005-9-13
G. Gallacci

V18x0201
X05v49
MZ 19
2006

2006-9-05
B. Landini & M. Lorenzon

V19x0201
X05v49
MZ 20
2007

2007-7-19
B. Landini & M. Lorenzon

V20x0201
X05v49
MZ 21
2008

2008-7-20
C. Liuzza

V21x0201
X05v49
MZ 22
2009

2009-7-28
G. al-Hassan

V22x0201
Z11v49
MZ 23
2010

2010-8-24
M. Stangalini

V23x0201
AP^wfB1-5
The wall has lost most of its original outer surface, loss appears to be vertical spitting of outer edges, especially on the left side. Fine network of cracks are visible throughout, most of which were present in 2001 but which have increased in severity. There are large eroded areas on the right, possibly from a leak in the past. The surface is lightly crumbling throughout, mostly on areas of previous loss due to the absence of the outer surface. Many of the small stones in the center have been lost
(August 2010, E. Drolet)
MZ 23a
2011

2011-6-10
D. Mustapha

V24x0201
AP^wfB1-5
MZ 23b
2012

2012-11-8
D. Mustapha

V25x0201
AP^wfB1-5
MZ 23c
2013
missing
MZ 23d
2014

2014-20-2
D. Mustapha

V27x0201
AP^wfB1-5
MZ 23e
2015

2015-1-10
D. Mustapha

V28x0201
AP^wfB1-5

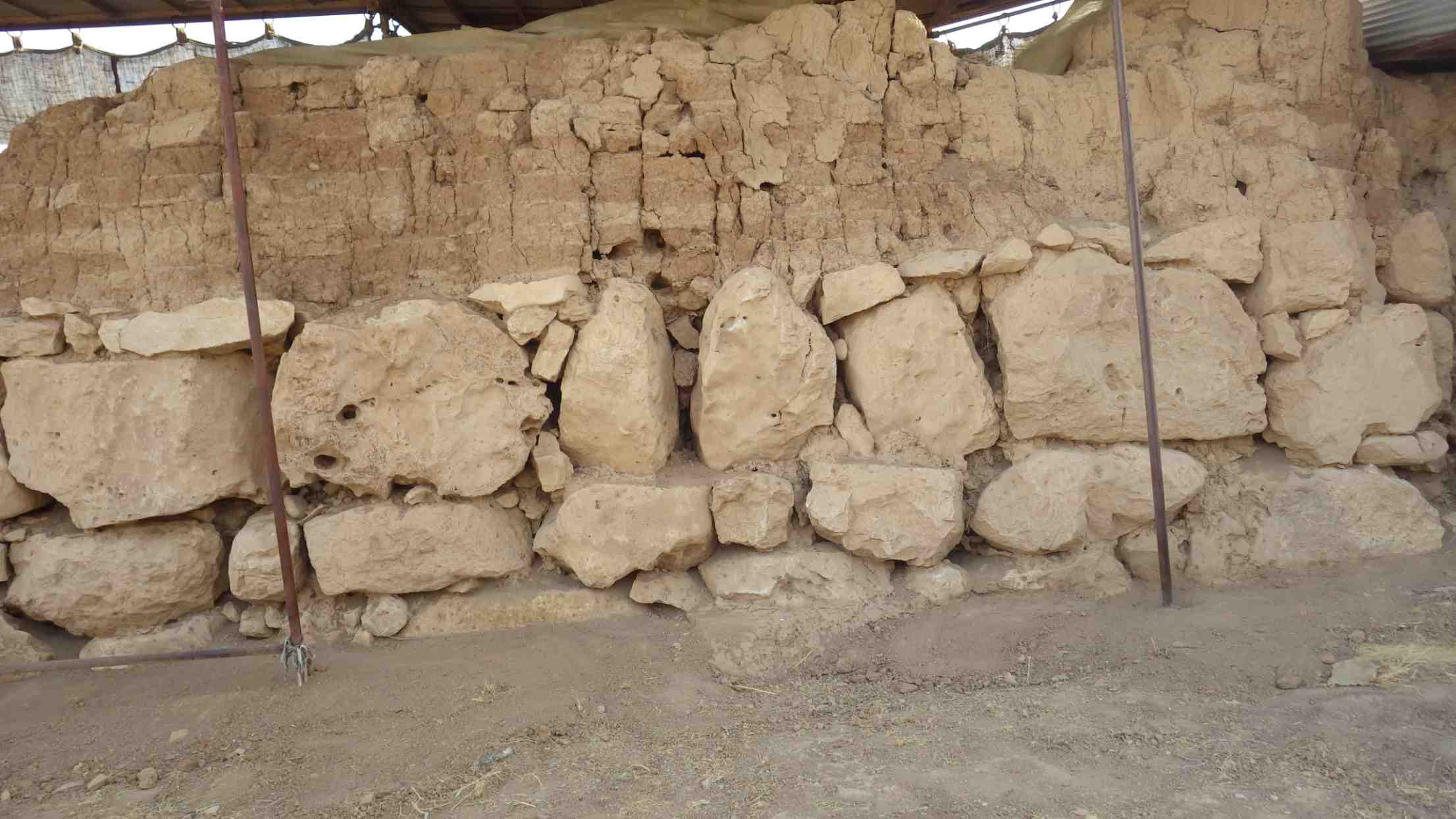

MZ 23f
2016

2016-7-09
I. Khellu

V29x0201
AP^wfB1-5
Stones are in a good shape. No additional losses in the small stones between the larger ones. The mud brick part seems to be slightly drier than it was in 2015. The plaster layer might be slightly frailer than before. In general, the wall is in good condition.
(2016 ,Y. Mahmoud)

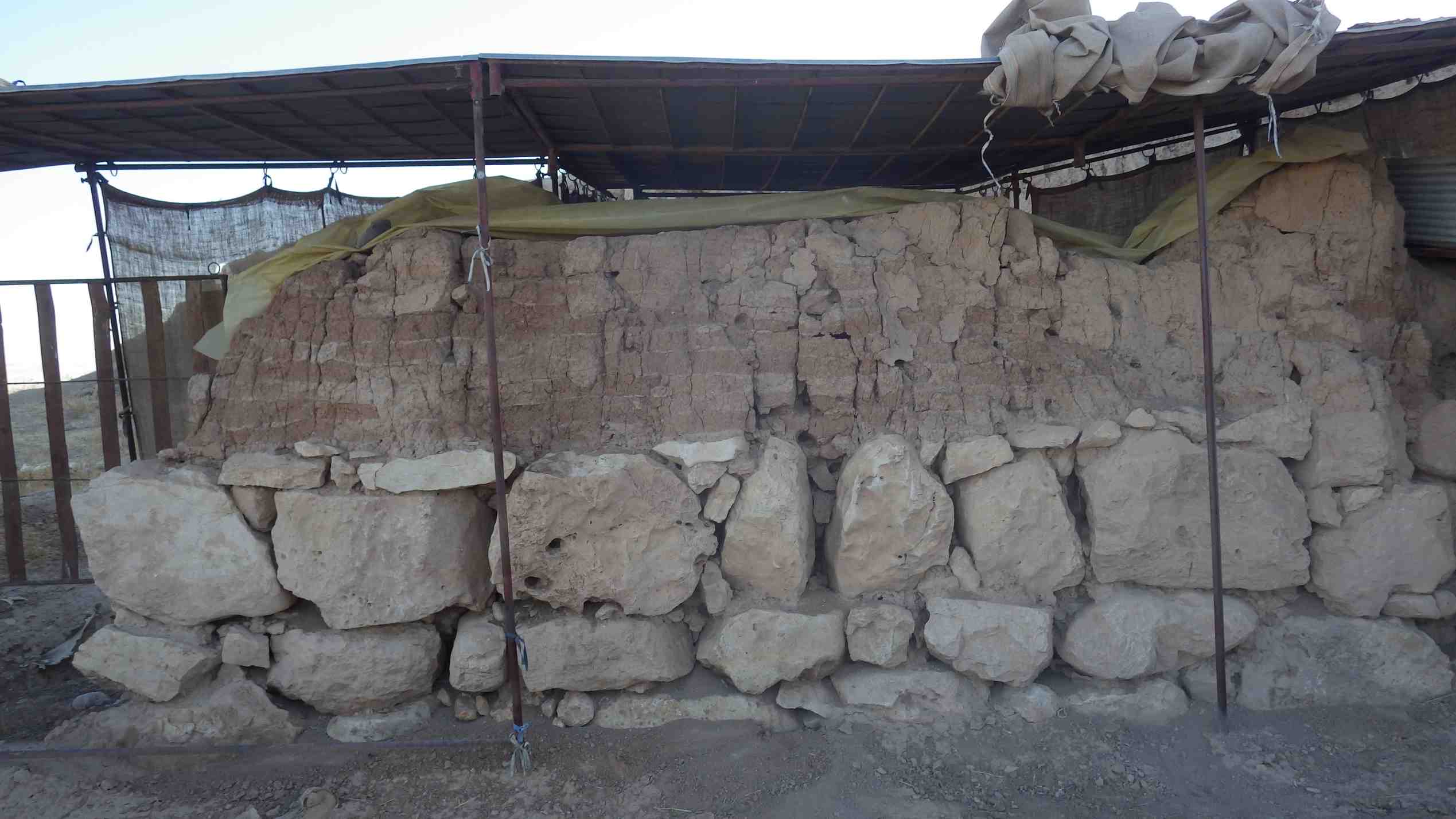

MZ 23g
2017

2017-8-15
I. Khellu

V30x0201
AP^wfB1-5
Stones are in a good shape. No additional losses in the small stones between the larger ones. The mud brick layer seems the same as it was in 2016. No increase in the size of the cracks and no new cracks are visible.
(January 2017, Y. Mahmoud)

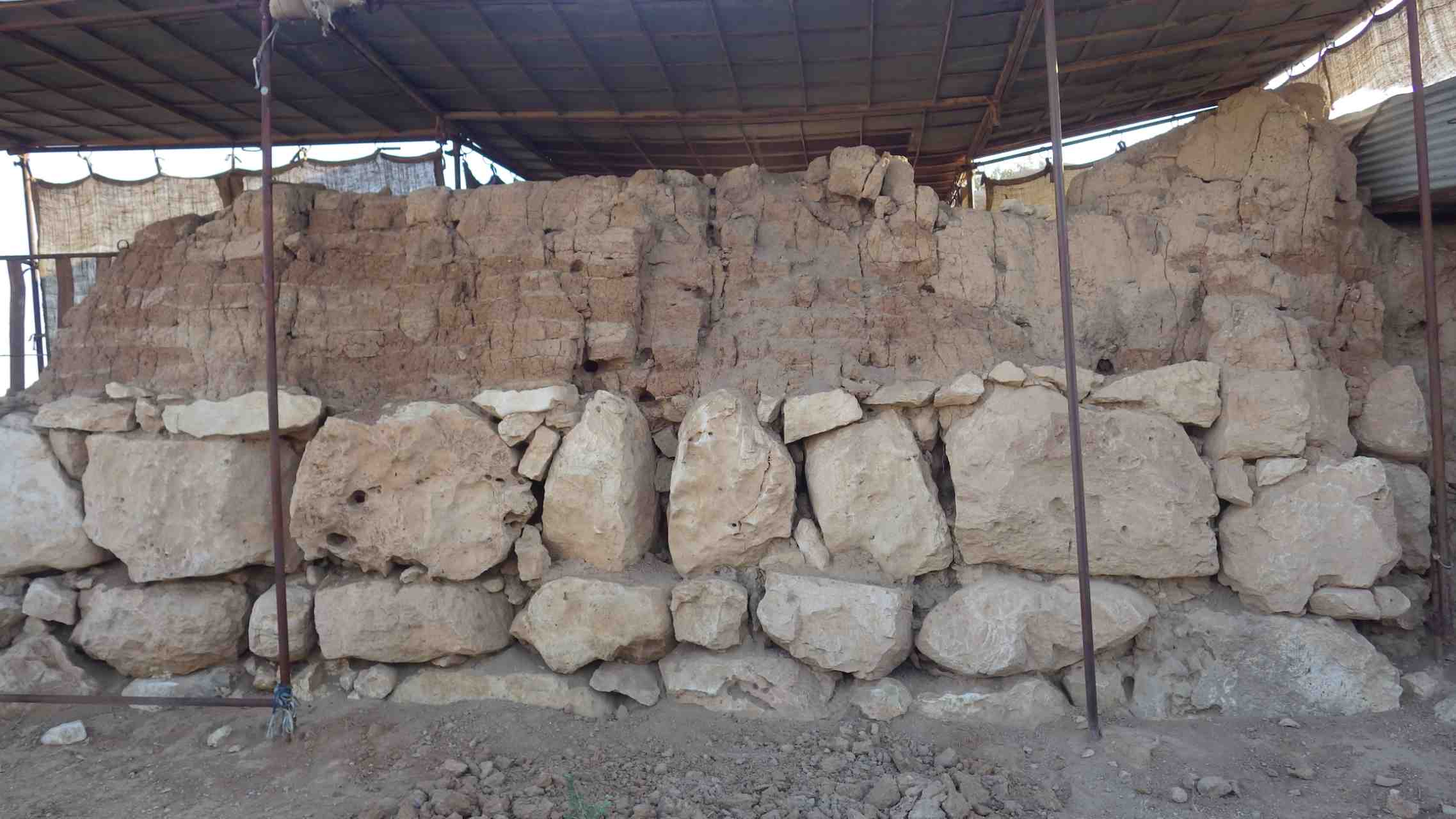

MZ 23h
2018

2018-6-07
I. Khellu

V31x0201
AP^wfB1-5
Stones are in a good shape. No additional losses in the small stones between the larger ones. The mud brick layer seems the same as it was in 2017, however, the plaster on the top part appears to be drier and flakier. No increase in the size of the cracks and no new cracks are visible.
(February 2018, Y. Mahmoud)

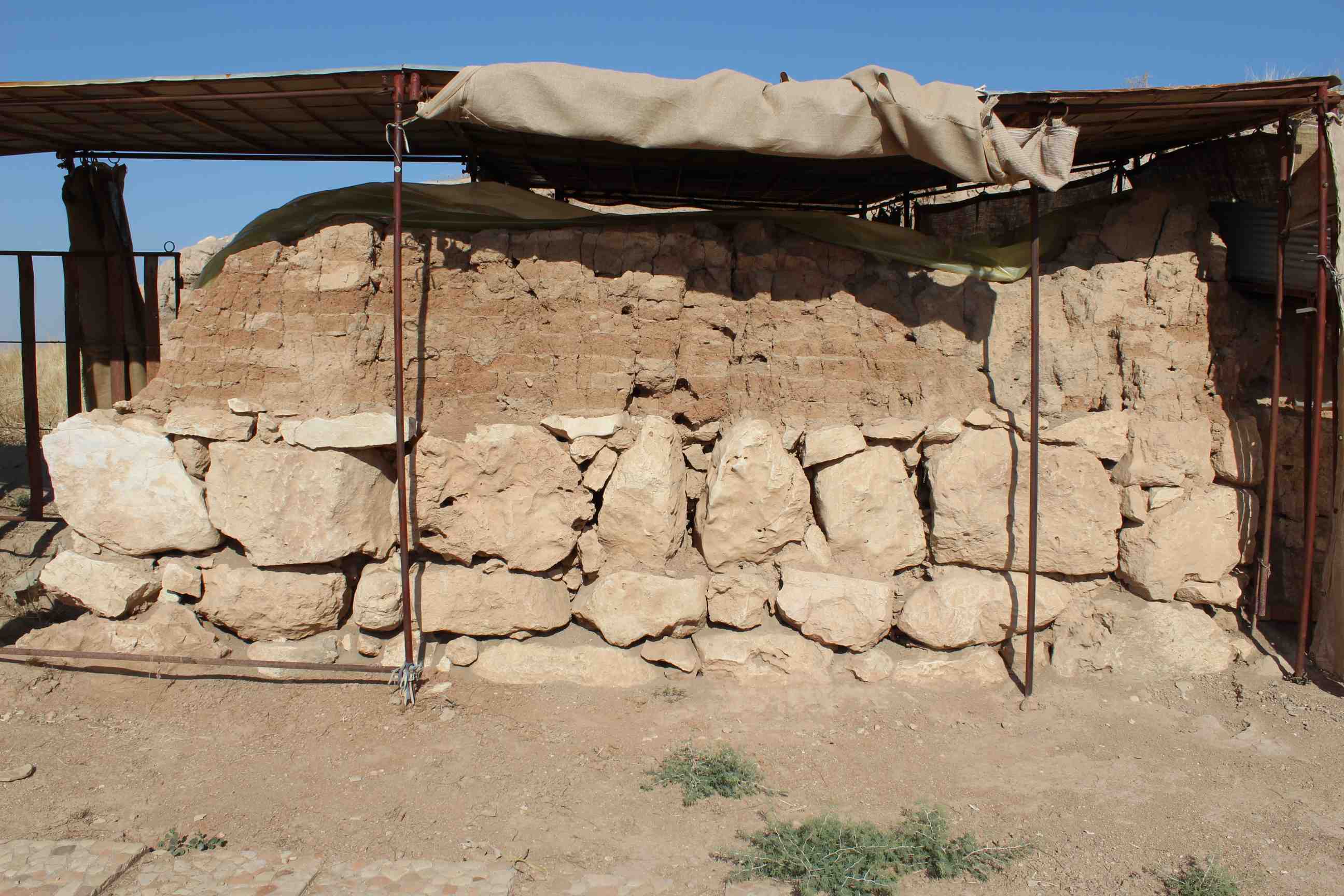

MZ 23i
2019

2019-2-20
I. Khellu

V32x0201
AP^wfB1-5
There are cracks and holes, the cracks seem wider on the right side of the wall in the top part. No loss in mud bricks and stones and no losses in the small stones between the larger ones.
(2019, A. Ahmad)

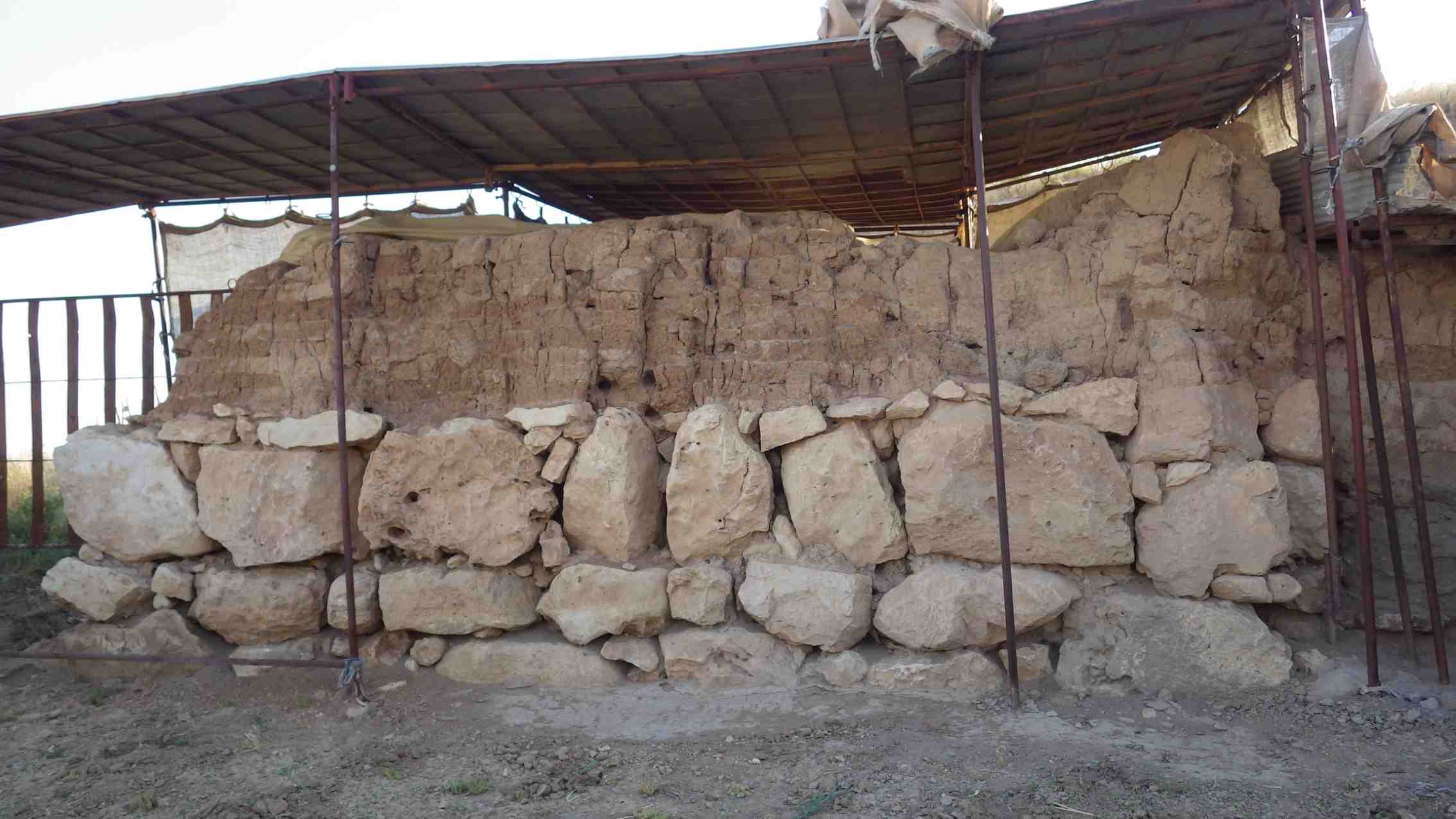

MZ 23j
2020

2020-6-11
I. Khellu

V33x0201
AP^wfB1-5
There are cracks and holes. The cracks seem wider in the right side of the wall in the top part. No loss in mud bricks and stones and no losses in the small stones between the larger ones. No visible changes.
(May 2020, Y. Mahmoud)

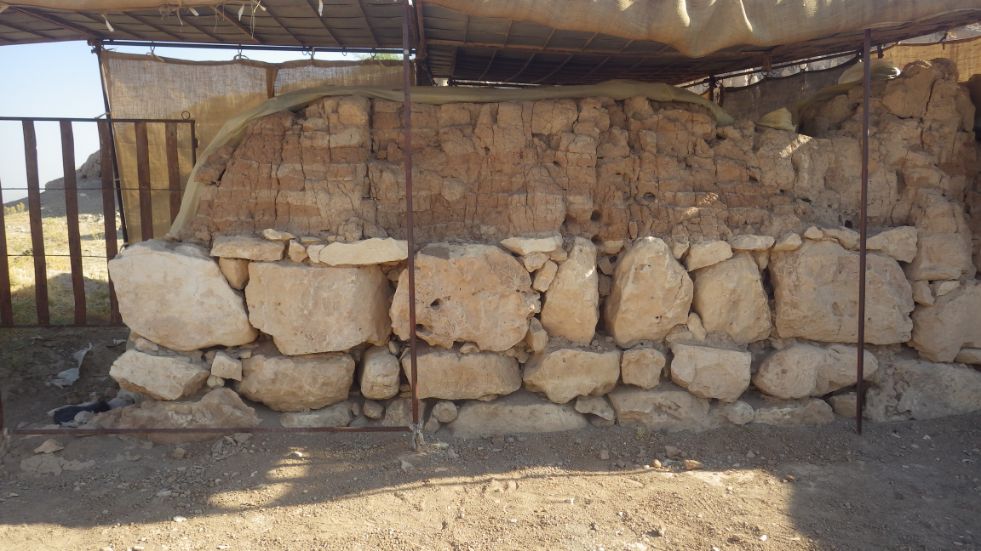

MZ 23k
2021

2021-8-05
I. Khellu

V34x0201
AP^wfB1-5
There are cracks and holes, the cracks seem wider in the wall at the top. No loss in stones and no losses in the small stones between the larger ones. The mud bricks have lost some parts in the top on the right side. The wall is very dry.
(March 2021, A. Ahmad)

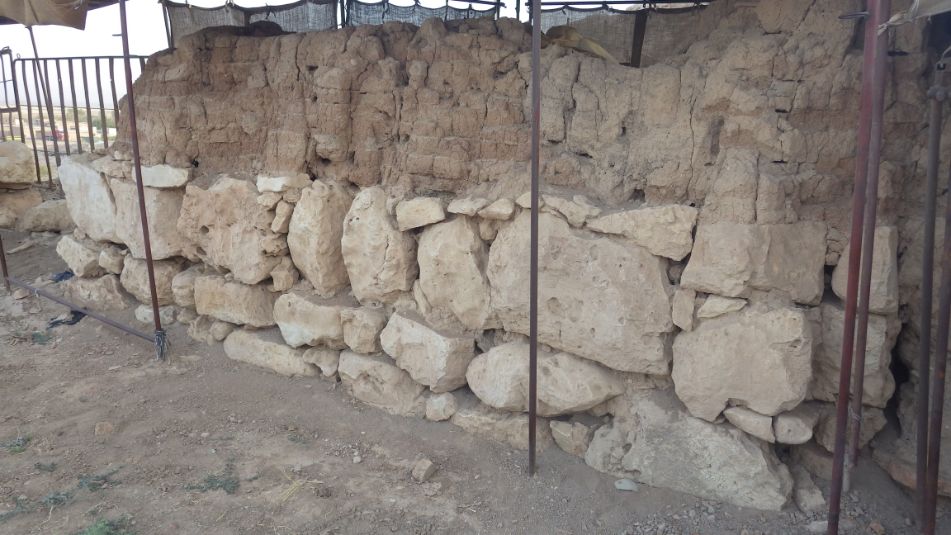

MZ 23l
2022

2022-8-05
I. Khellu

V35x0201
AP^wfB1-5
