https://urkesh.org/MZ/A/J04/D/F/0084.htm

Unit Book J4

J4f84

Processed on 2023-11-19

1. OVERVIEW

Roster Date Author Record
Category !! !! installation
Best definition 2010-01-19 !! wall [Input: U119SC.j]
Best image 2010-03-22 sC L_V19d3115 J4v57 Q903 dM [Input: U322SC2.j]

2. IDENTIFICATION

Designation

Roster Date Author Record
Definition 2010-01-19 sC wall [Input: U119SC.j]
Description (summary) 2010-01-19 sC f84 is a limestone wall running SW-NE in k62, as visible in v54. This wall consists (at present) of a single line of limestones, generally rectangular in shape. f84 seems to have the same type of construction as f10: the stones are embedded into mud mortar with small stones between the joints. The bigger stones are aprox. 50cmx40cm in size. [Input: U119SC.j]

3. STRATIGRAPHY

Recovery/Assignment

Roster Date Author Record

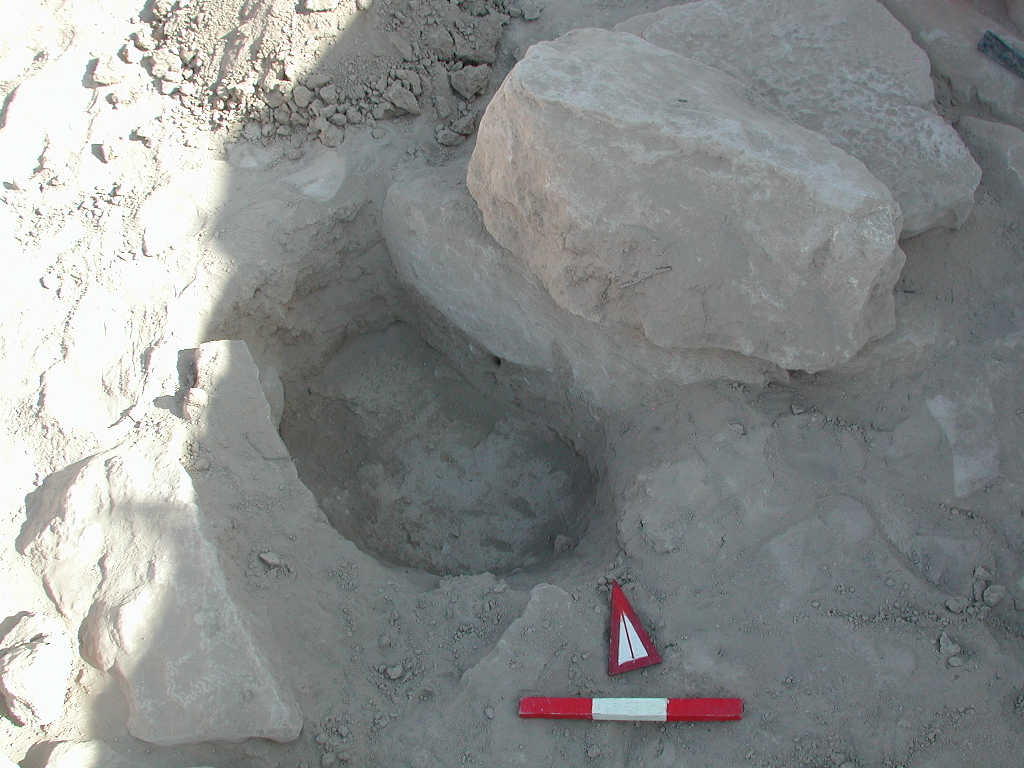

Notes on recovery 2010-01-19 sC In a first moment, when we found these stones we were thinking that they could belong to a drain, rather than a wall. For this reason, we decided to removed one of the stones and check what there was underneath. From this soundjng (v69 shows the sounding done below the 4th stone of wall f84), it appeared that f84 consists of a single line of limestones; however, the nature of this feature remains unclear, being formed by only one row of stones. [Input: U119SC.j]

Volumetric Localization

Roster Date Author Record
Locus 2006-09-02 sc k62 [Input: Q903PC3.j]
Relays (applicable to elements) 2006-09-11 vN r91 (39429 52760 - 4431 / Relay location: point) [Input: Q915VN-R.j]
2006-09-15 vN r140 (39576 53093 - 4461 / Relay location: point) [Input: Q915VN-R.j]
2006-09-15 vN r141 (39338 52606 - 4415 / Relay location: point) [Input: Q915VN-R.j]
2006-09-15 vN r142 (39301 52662 - 4428 / Relay location: point) [Input: Q915VN-R.j]
2006-09-15 vN r143 (39436 53037 - 4449 / Relay location: point) [Input: Q915VN-R.j]
Elevation 2010-01-20 sC not excavated@bottom [Input: U120SC.j]
M#/elev @top 2006-09-02 sc 9184 [Input: Q903PC3.j]

Contact Association

Roster Date Author Record
Type of contact: latest events 2006-10-08 sC f66 (accumulation B) covers f84 (wall) [Input: QX08SC.j]
Type of contact: earliest events 2006-10-08 sC f84 (wall) covers f120 [Input: QX08SC.j]
2010-03-22 sC f84 (wall) sits in f66 (accumulation B) [Input: U322SC.j]

Time Sequencing

Roster Date Author Record
Stratum (to which element belongs) 2010-02-14 sC s14cMZA (Rebuilding phase) [Input: U214SC2.j]
Phase (to which element belongs) 2010-02-14 !! h65MZA [Input: U214SC2.j]
Stratigraphic reasons of assignment 2010-03-10 sC Assignment based on nature and elevation of accumulation. f84 shares elevation of dateable features in adjacent loci (f93 and a2 in k73) [Input: U310SC.j]

4. TYPOLOGY

Morphology

Roster Date Author Record
Ware or Material, species 2010-01-19 sC limestone [Input: U119SC.j]
Color 2010-01-19 sC whitish [Input: U119SC.j]

6. REFERENCE

Analogical Record

Roster Date Author Record
View/drawing of features

v56
2010-03-21 sC [Input: U321SC2.j]

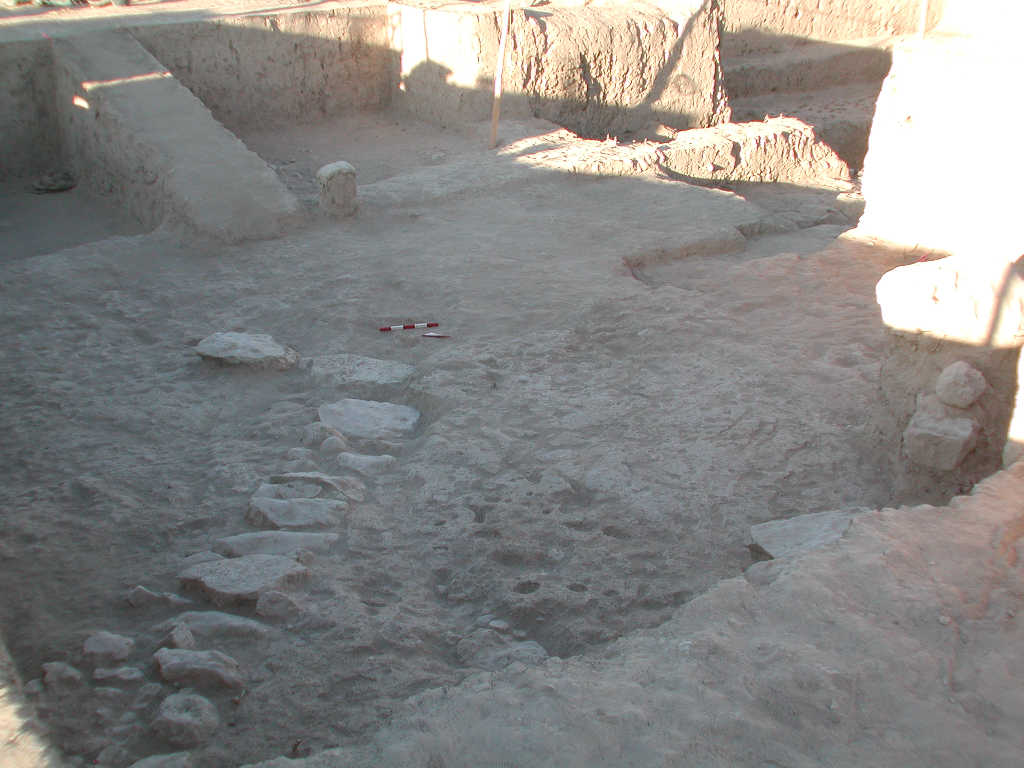

v56a
2010-03-21 sC [Input: U321SC2.j]

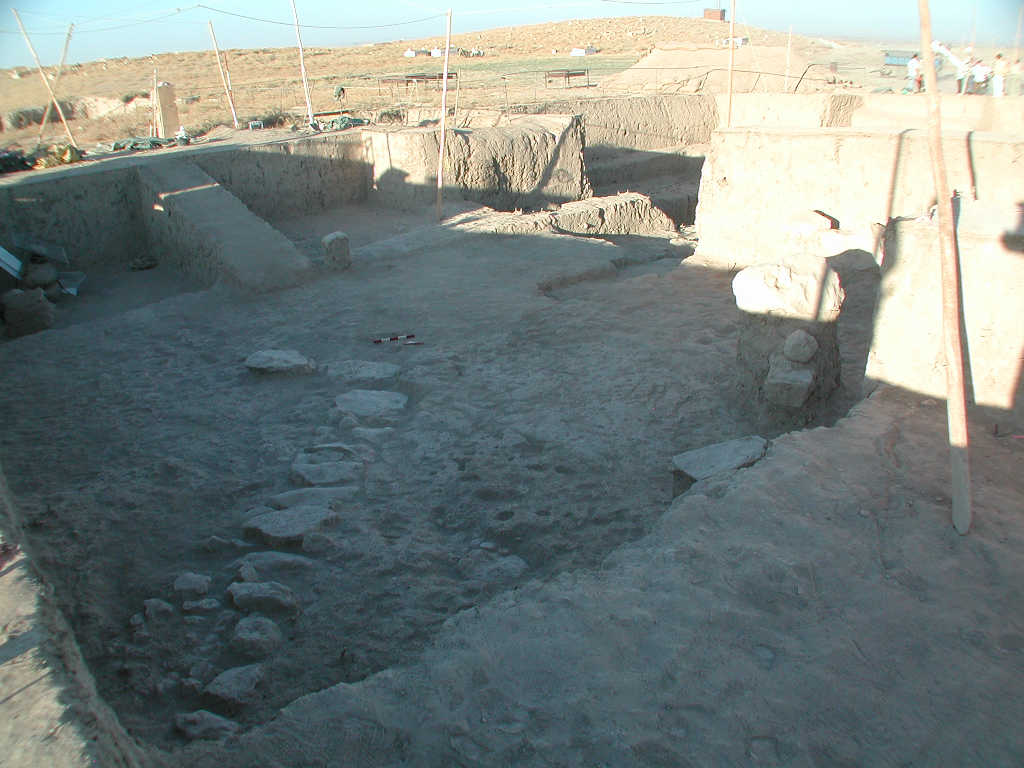

v56b
2010-03-21 sC [Input: U321SC2.j]

v57
2010-03-21 sC [Input: U321SC2.j]
v57a
2010-03-21 sC [Input: U321SC2.j]

v69
2010-03-21 sC [Input: U321SC3.j]

v69a
2010-03-21 sC [Input: U321SC3.j]

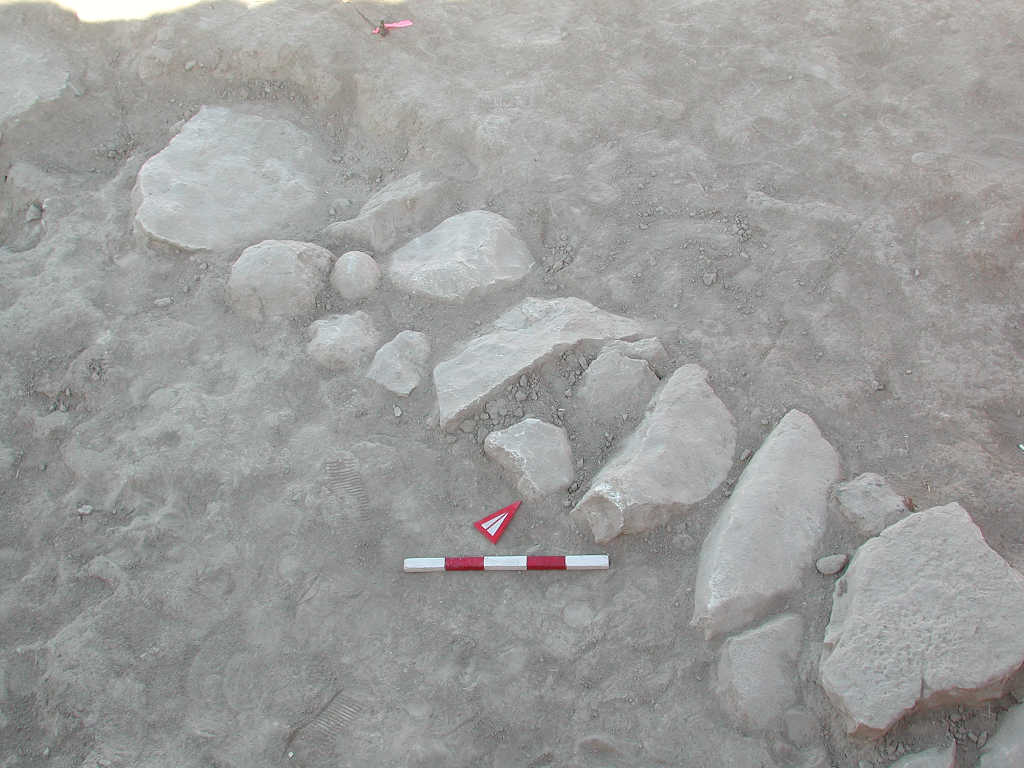

v69b
2010-03-21 sC [Input: U321SC3.j]

v69c
2010-03-21 sC [Input: U321SC3.j]

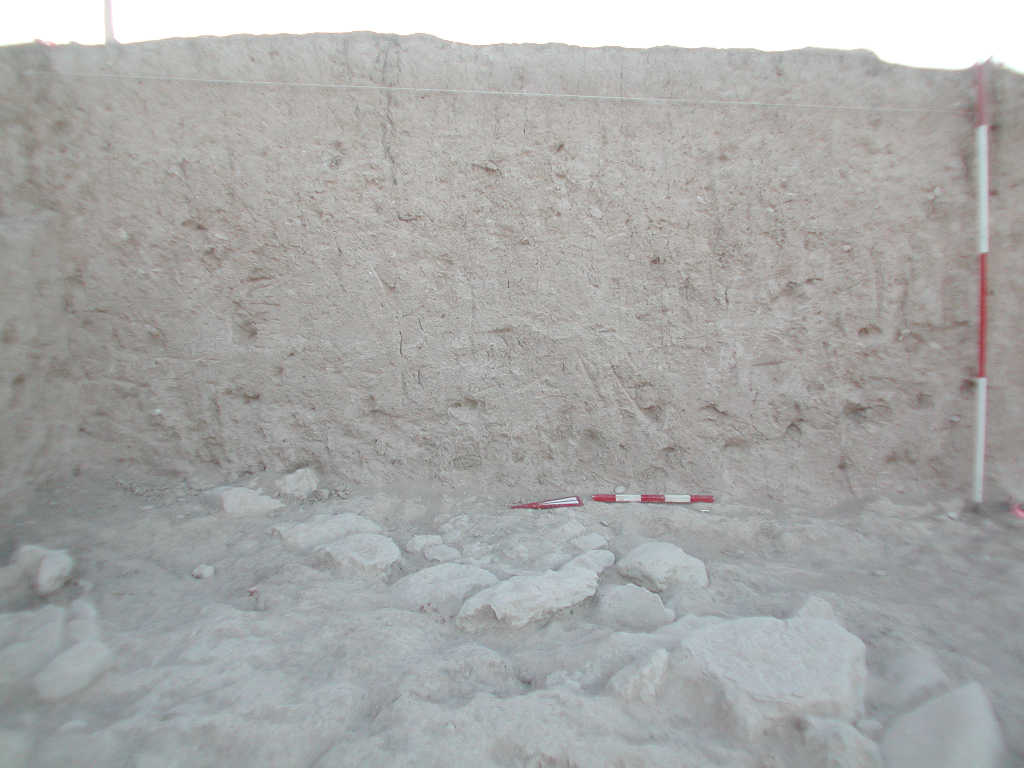

v88
2010-03-21 sC [Input: U321SC3.j]

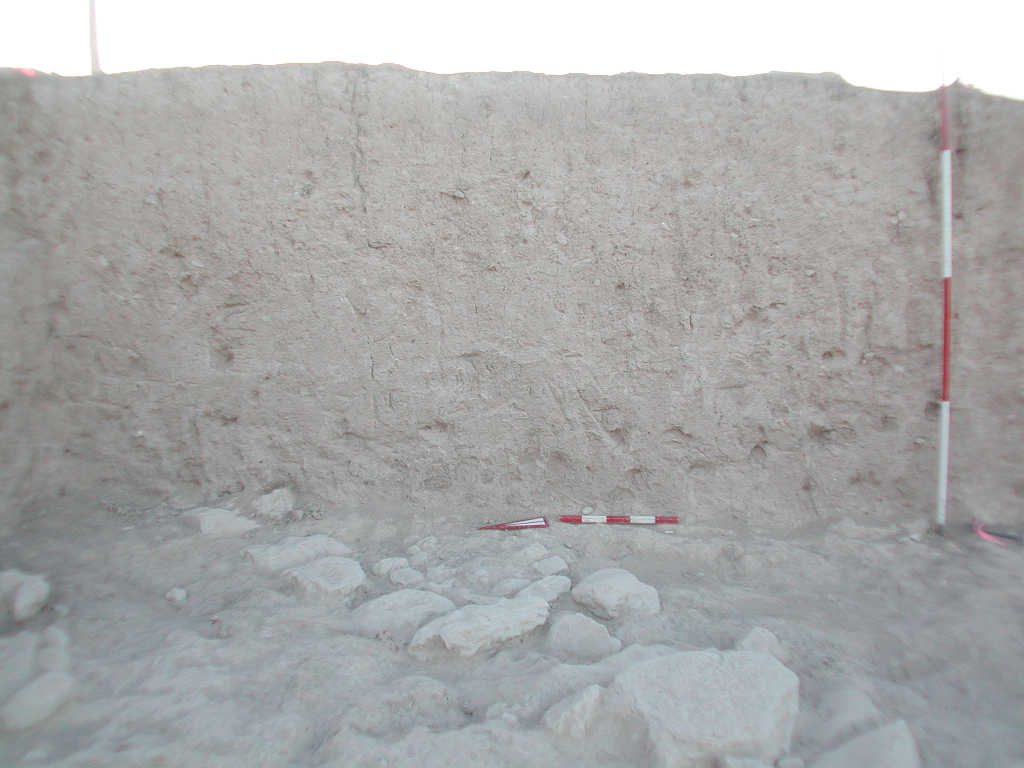

v88a
2010-03-21 sC [Input: U321SC3.j]

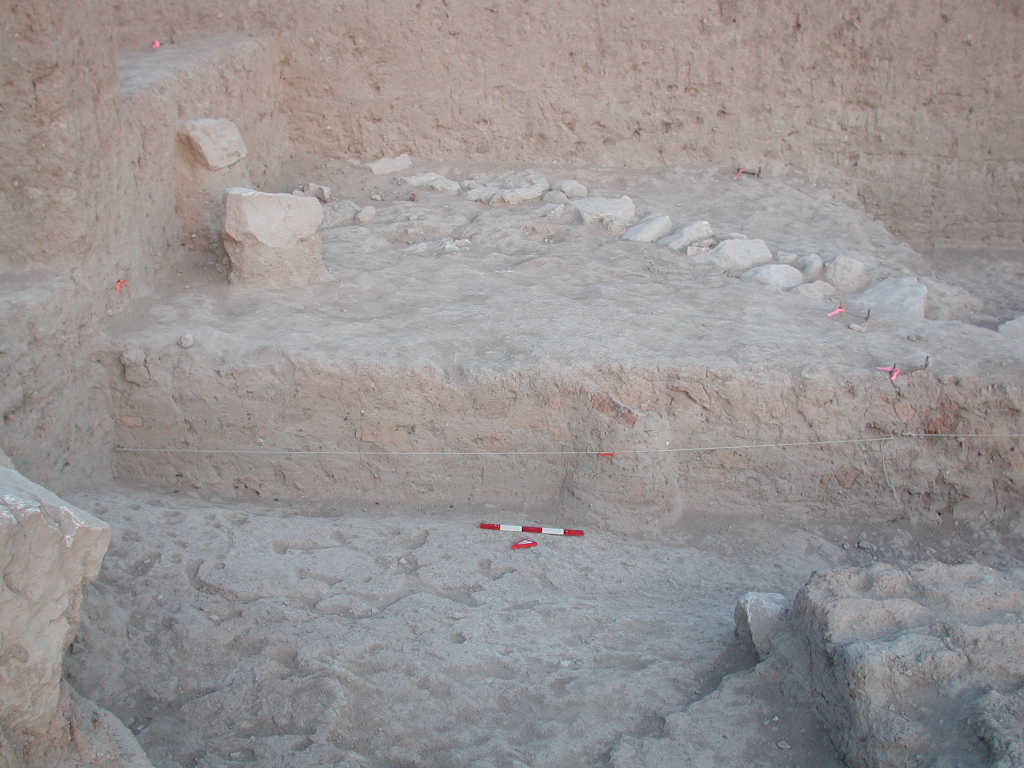

v100
2010-03-21 sC [Input: U321SC3.j]

v101
2010-03-21 sC [Input: U321SC3.j]

Disposition

Roster Date Author Record
Notes on disposition 2010-01-19 sC Not removed in 2006 excavation season [Input: U119SC.j]
