Drawing (date, author) (Pictures, dates and authors missing) |
| MZ 14 2001 2001-9-12 S. Bonetti V14x0329 X14v28 |
|
|
| MZ 15 2002 |
missing | |
| MZ 16 2003 |
missing | |
| MZ 17 2004 2004-8-11 B. Mariani V17x0328 X14v28 |
|
|
| MZ 18 2005 2005-9-3 G. Gallacci V18x0328 X14v28 |
|
|
| MZ 19 2006 2006-9-10 B. Landini & M. Lorenzon V19x0330 X14v28 |
|
|
| MZ 20 2007 2007-8-6 B. Landini & M. Lorenzon V20x0320 X14v28 |
|
|
| MZ 21 2008 2008-7-20 C. Liuzza V21x0320 X14v28 |
|
|
| MZ 22 2009 2009-7-27 G. al-Hassan V22x0320 Z11v28 |
|
|

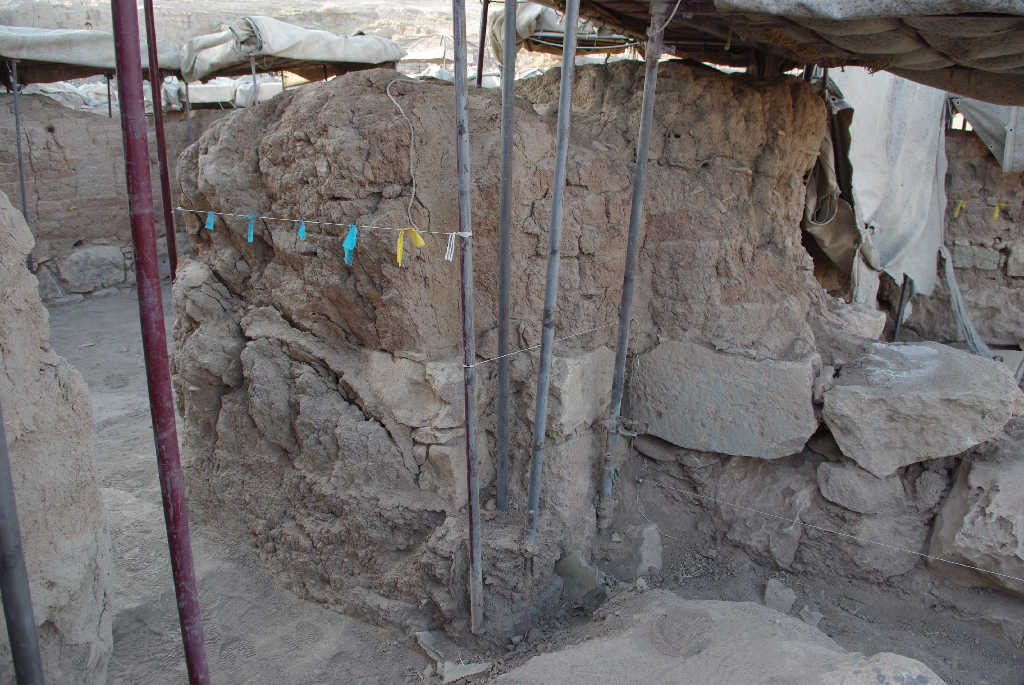

| MZ 23 2010 2010-8-23 M. Stangalini V23x0348 AP^wfC5-C7s |
|
There have been large losses to the south face of the doorway, with sections of the outer surface lost. The ancient plaster (wich narrows the doorway) is separating from the mud bricks, and a large portion has been lost. There is crumbling of the exposed inner surface of the bricks, especially in the areas most exposed to the elements (August 2010, E. Drolet) |
| MZ 23a 2011 |
missing | |
| MZ 23b 2012 |
missing | |
| MZ 23c 2013 |
missing | |
| MZ 23d 2014 |
missing | |

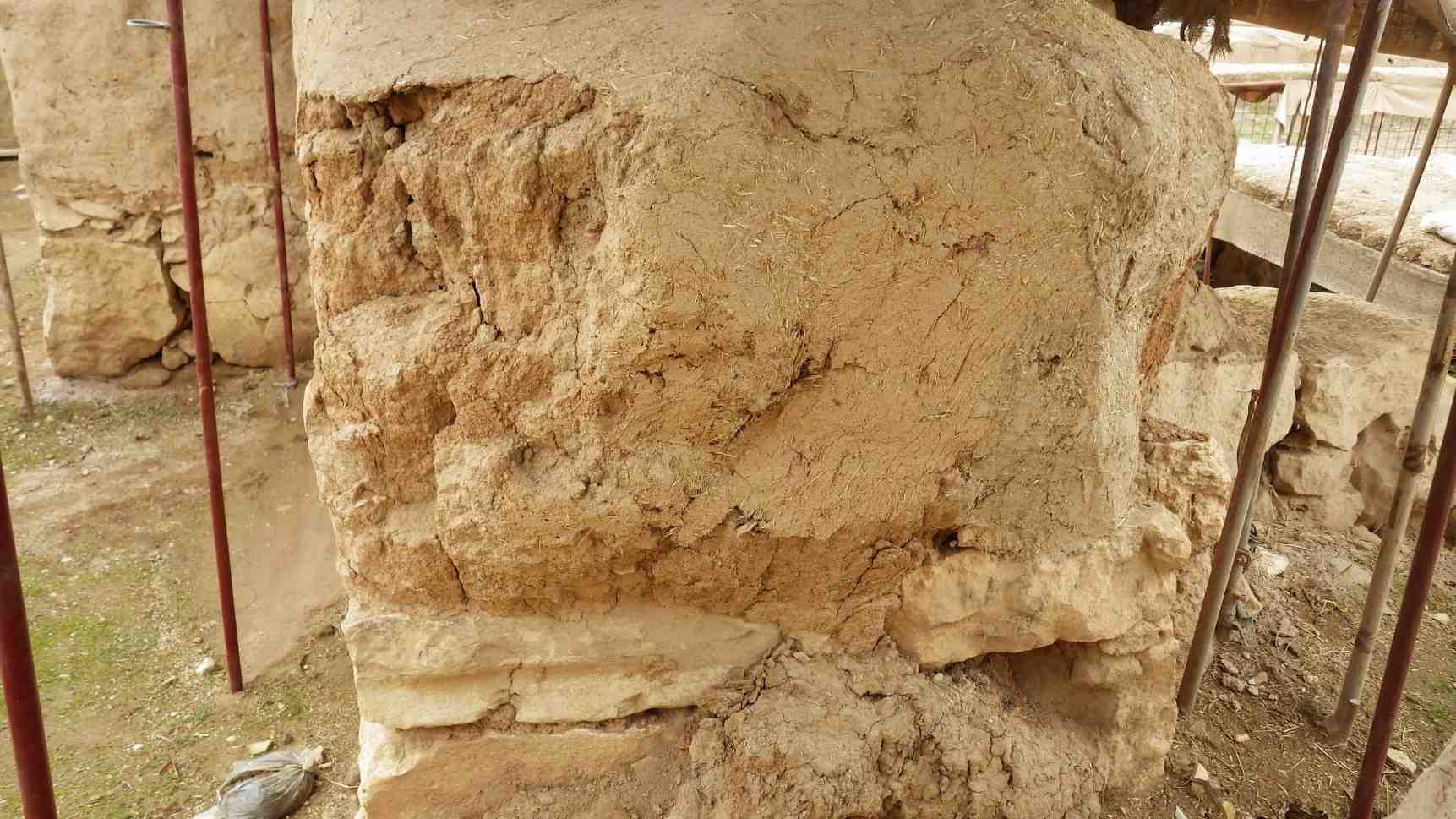

| MZ 23e 2015 2015-1-22 D. Mustapha V28x0348 AP^wfC5-C7s |
|
|
| MZ 23f 2016 |
missing | No visible changes. (2016 ,Y. Mahmoud) |
| MZ 23g 2017 |
missing | No visible changes. (January 2017, Y. Mahmoud) |

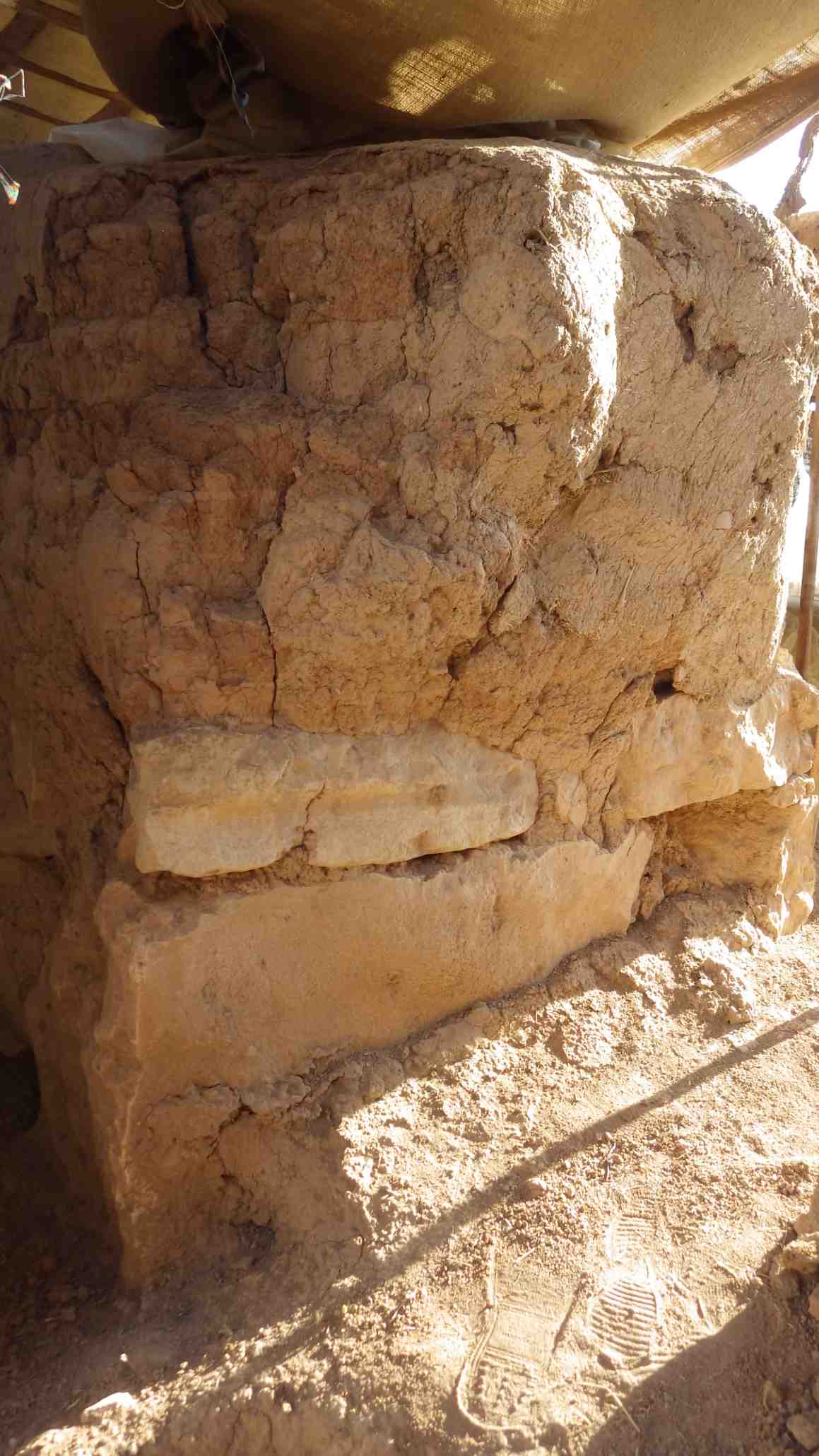

| MZ 23h 2018 2018-6-28 I. Khellu V31x0348 AP^wfC5-C7s |
 |
No visible changes. (February 2018, Y. Mahmoud) |

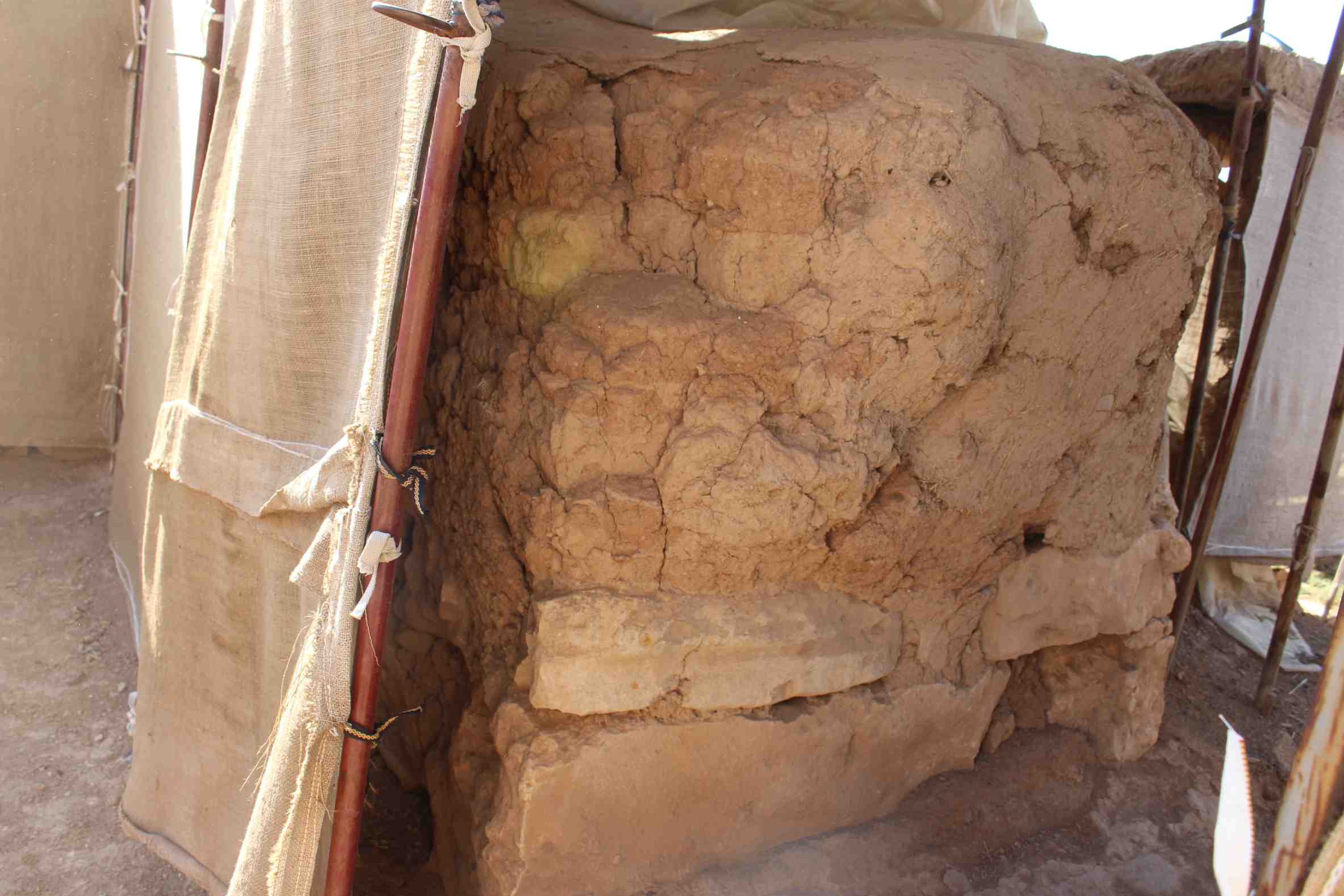

| MZ 23i 2019 2019-2-13 I. Khellu V32x0348 AP^wfC5-C7s |
|
No loss in stones, mud bricks or mortar, but the mud plaster has peeled off in some spots. The wall has slightly eroded in the top left part. (2019, A. Ahmad) |
| MZ 23j 2020 |
missing | No photographic documentation. (May 2020, Y. Mahmoud) |

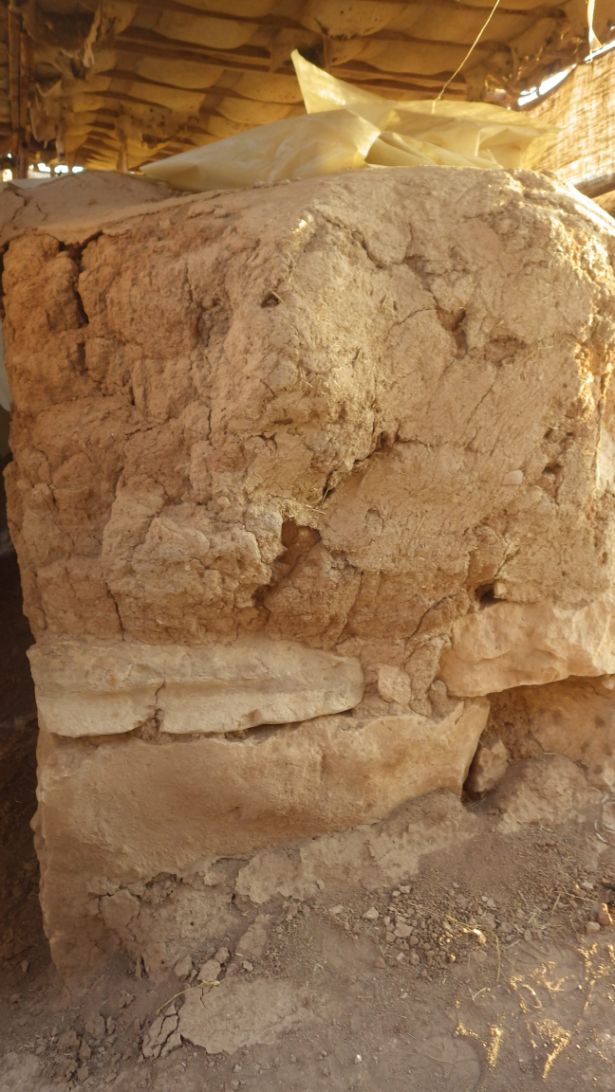

| MZ 23k 2021 2021-8-14 I. Khellu V34x0348 AP^wfC5-C7s |
 |
No visible changes. No increase in crack size or length. (March 2021, A. Ahmad) |

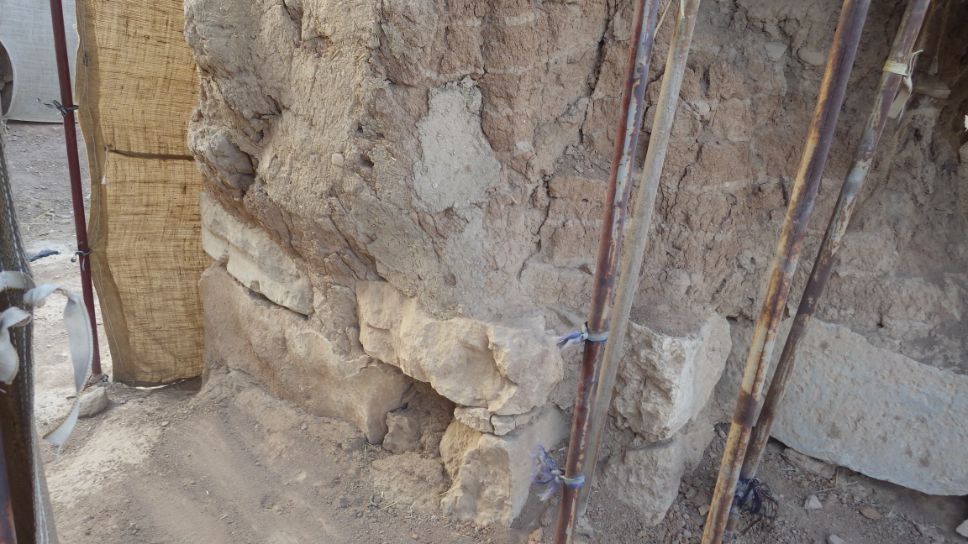

| MZ 23l 2022 2022-8-11 I. Khellu V35x0348 AP^wfC5-C7s |
 |
