AP – The Palace

Conservation record of Palace walls

Room C2: Doorjamb C2-C5w

Authorship – August 2022
Drawing (date, author)
(Pictures, dates and authors missing)
Drawing (Elizabeth Drolet and Stefania Ermidoro, 2010-8-09)

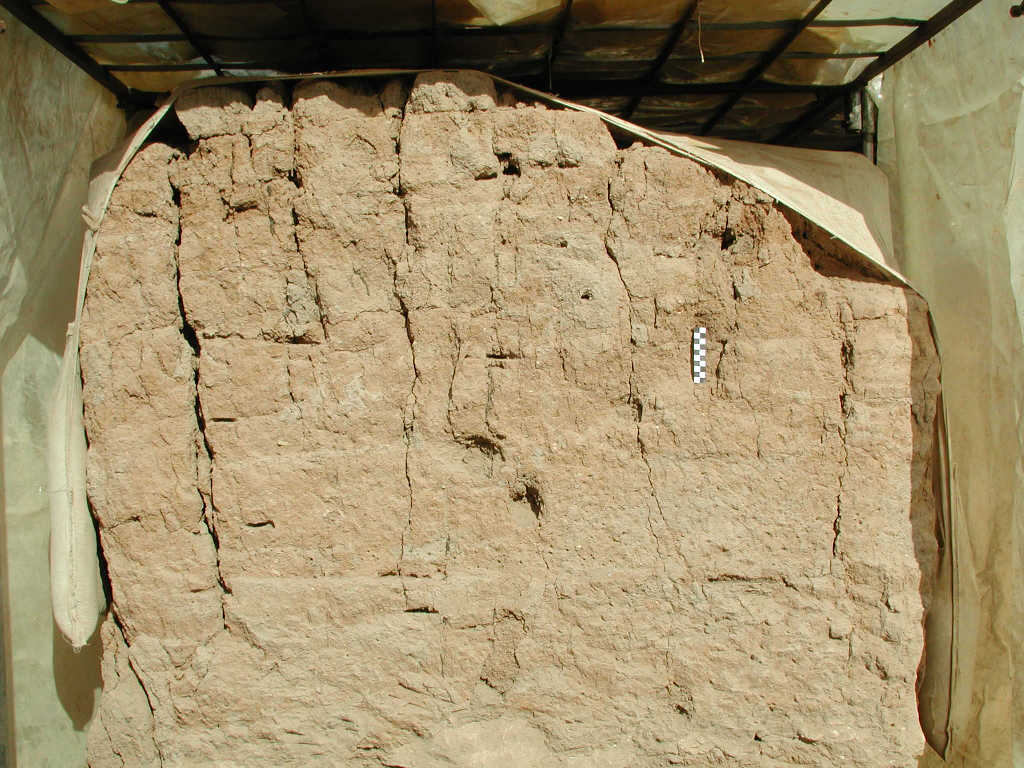

MZ 14
2001

2001-9-10
S. Bonetti

V14x0319
X12v22

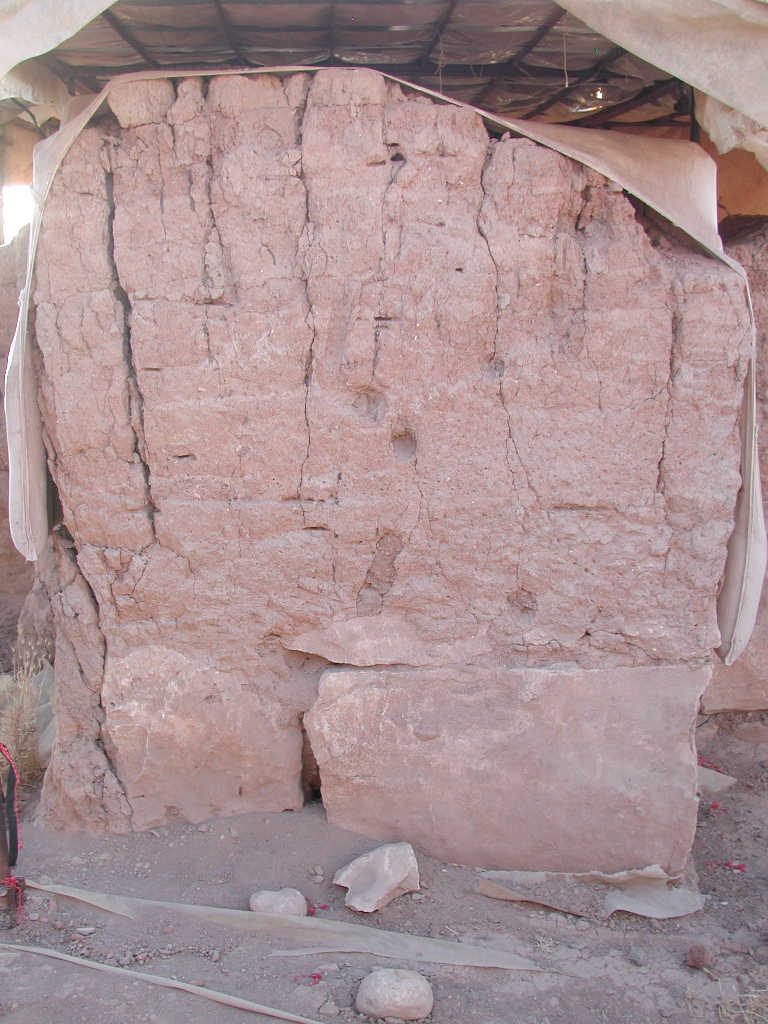

MZ 15
2002

2002-9-16
S. Bonetti

V15x0319
X12v22
MZ 16
2003
missing

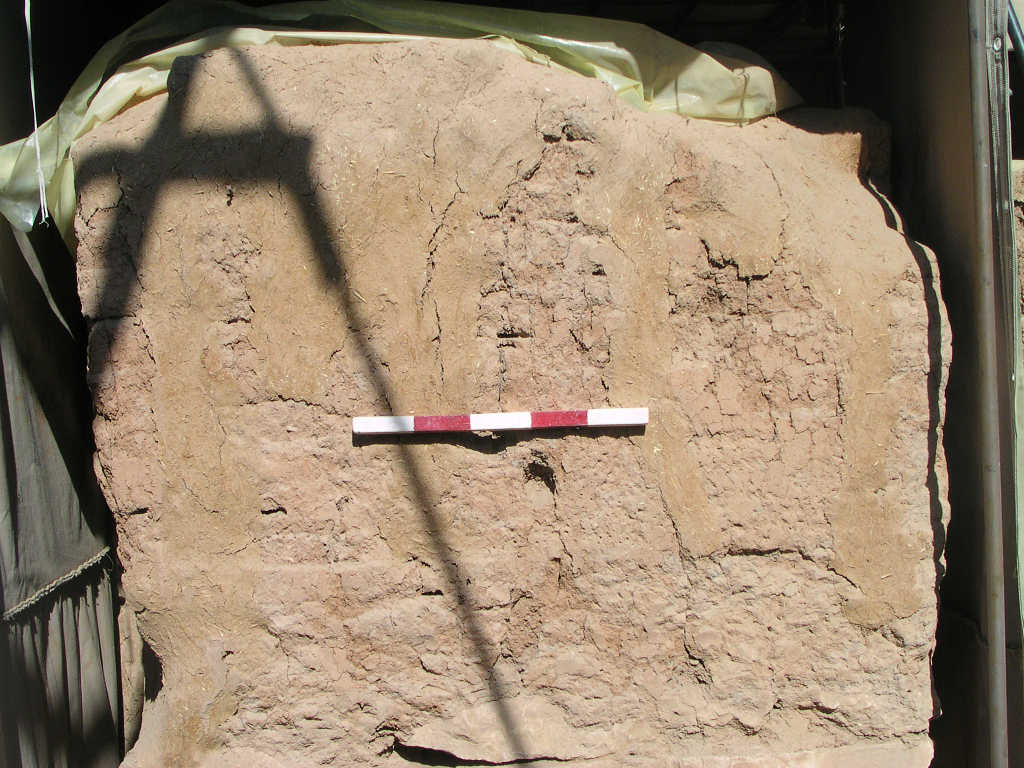

MZ 17
2004

2004-8-7
B. Mariani

V17x0319
X12v22

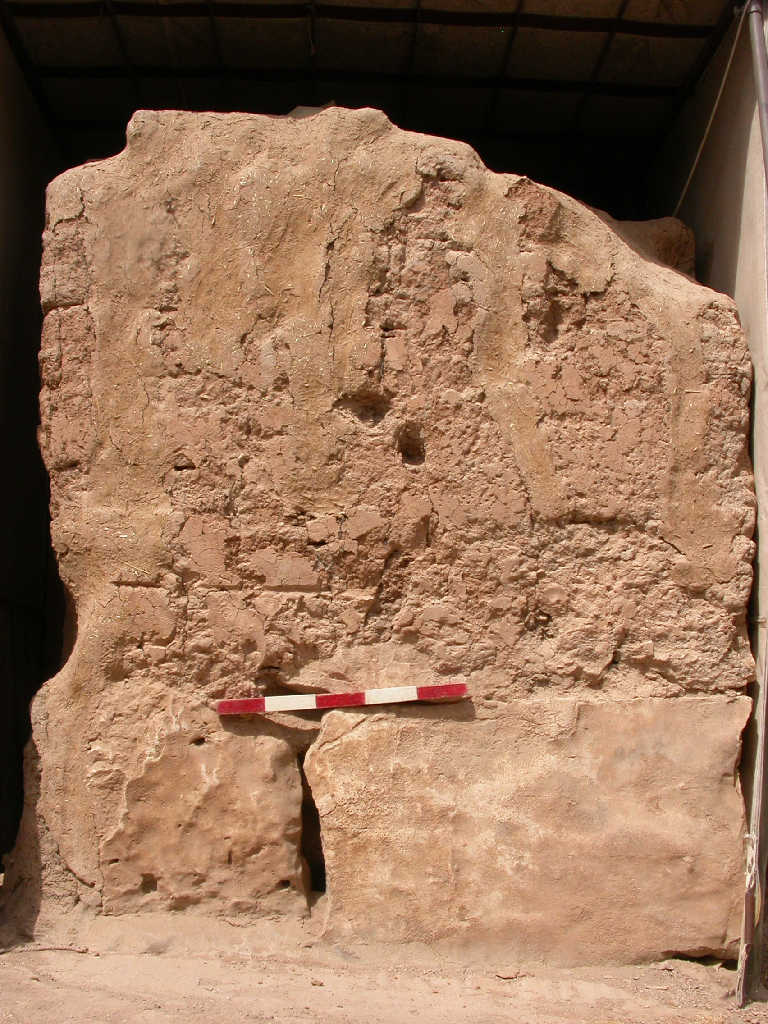

MZ 18
2005

2005-9-1
G. Gallacci

V18x0319
X12v22

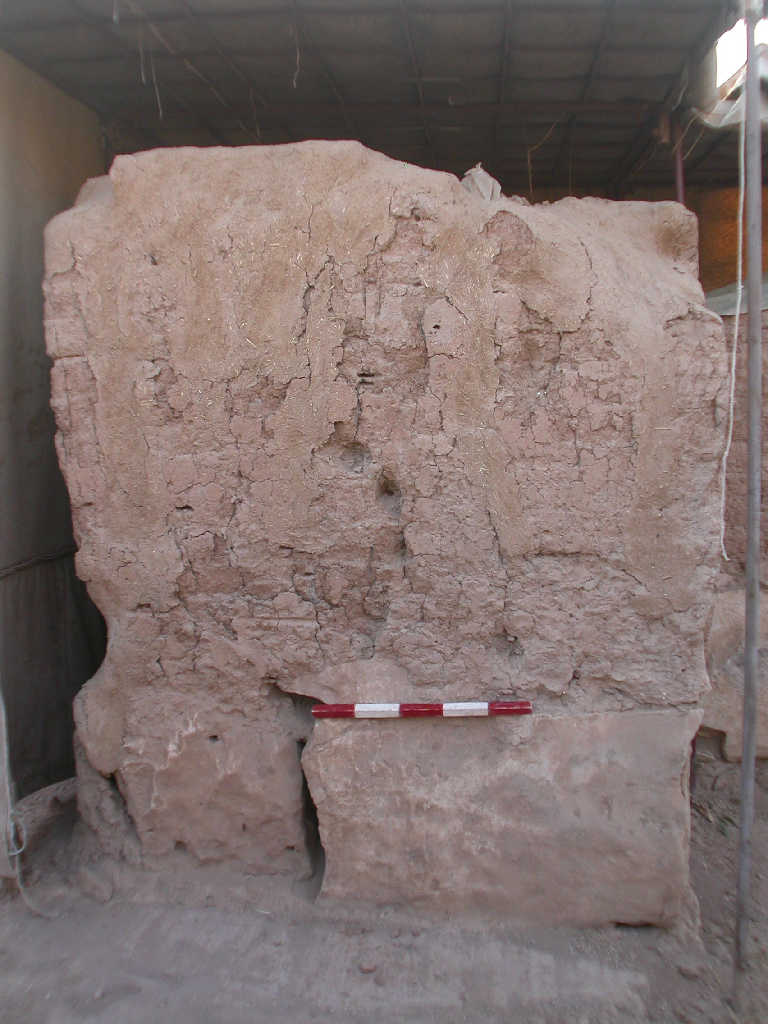

MZ 19
2006

2006-9-7
B. Landini & M. Lorenzon

V19x0320
X12v22

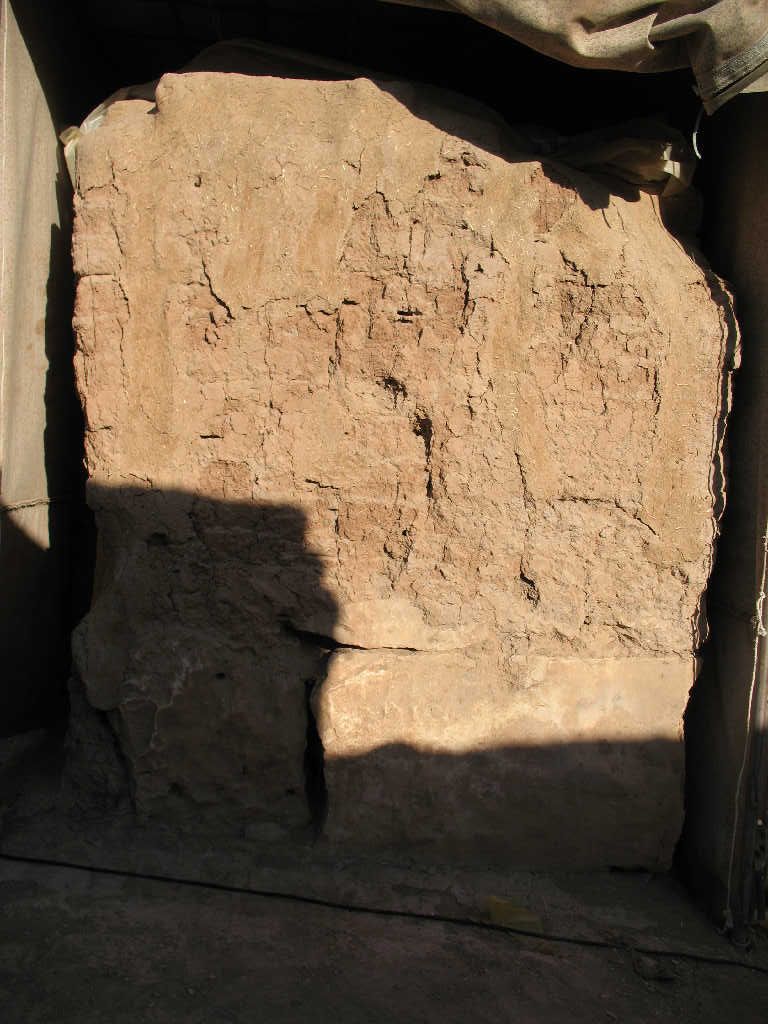

MZ 20
2007

2007-7-23
B. Landini & M. Lorenzon

V20x0308
X12v21

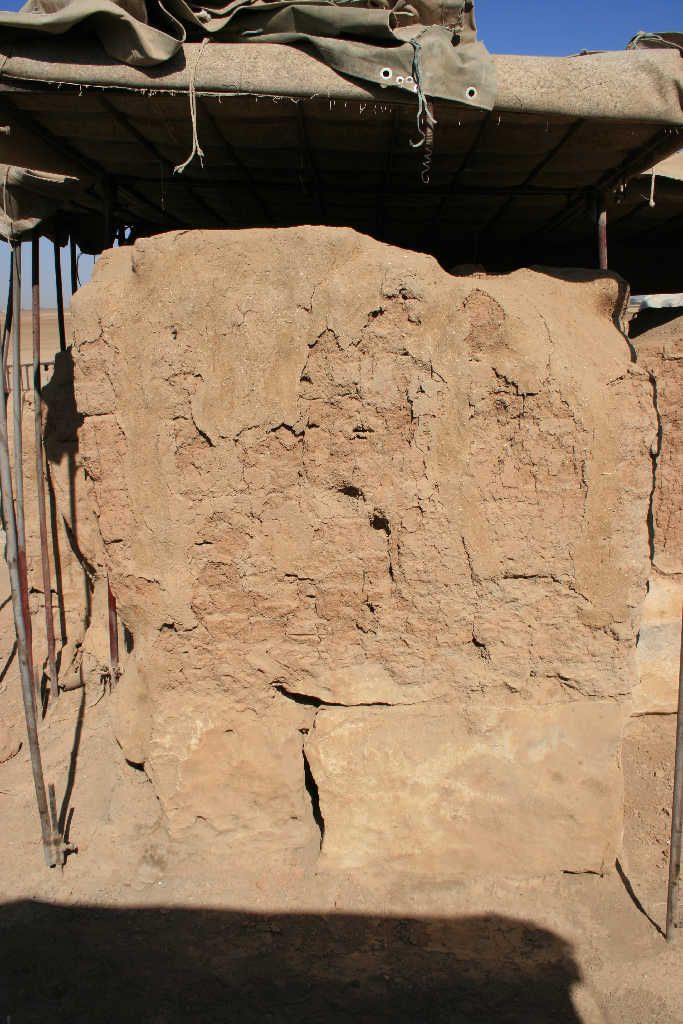

MZ 21
2008

2008-7-20
C. Liuzza

V21x0309
X12v22

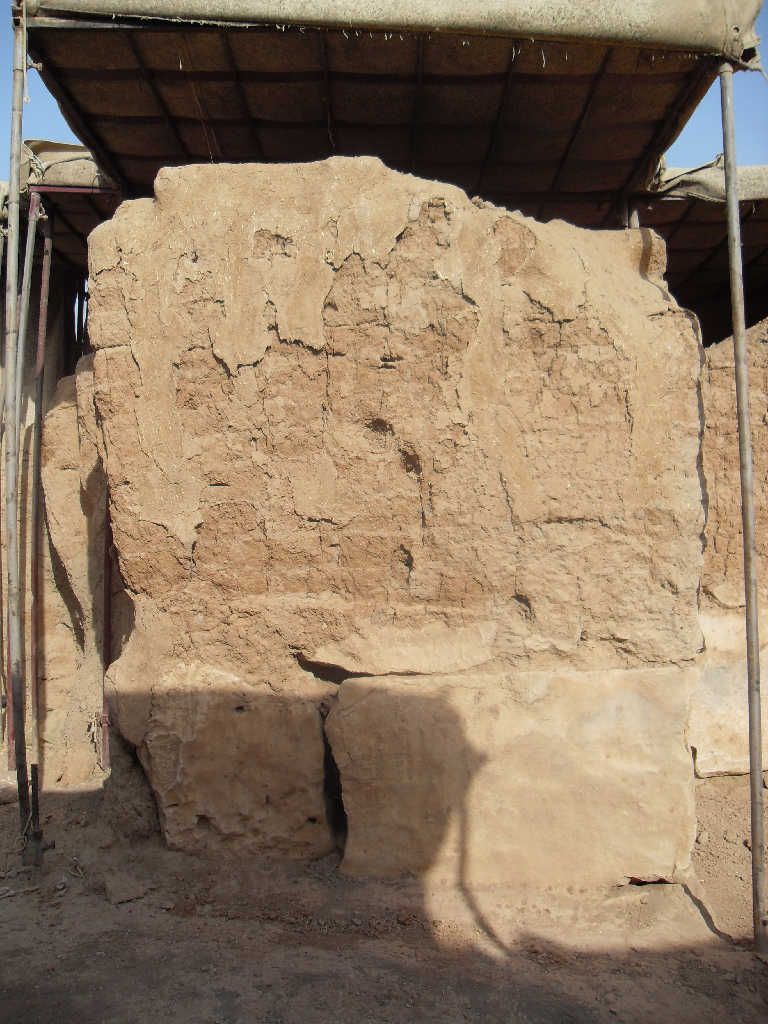

MZ 22
2009

2009-7-27
G. al-Hassan

V22x0309
Z11v22

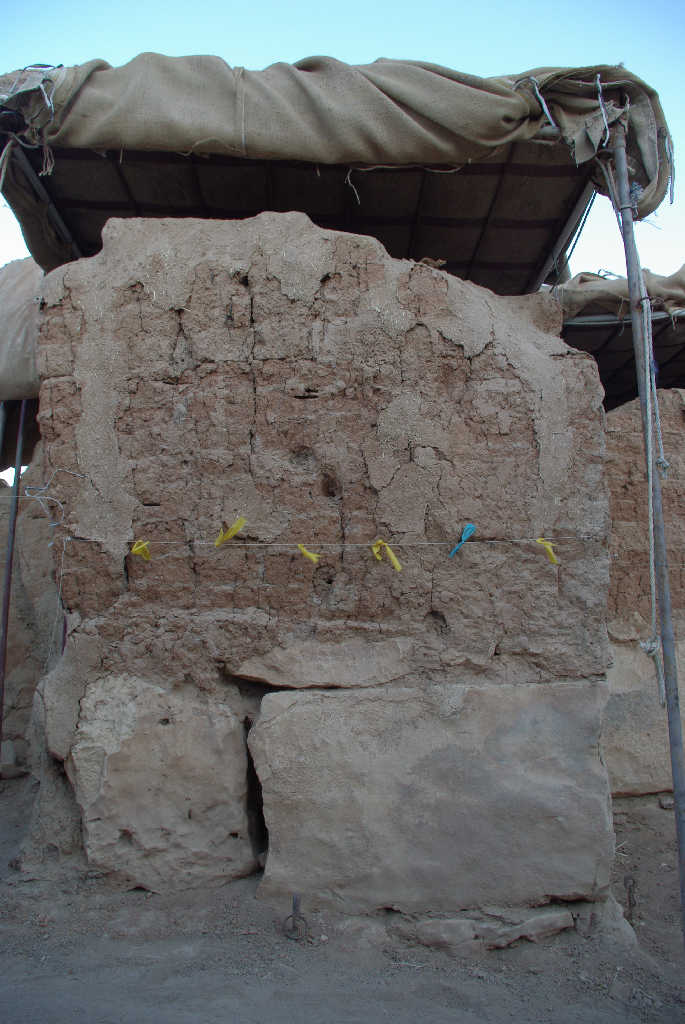

MZ 23
2010

2010-8-23
M. Stangalini

V23x0328
AP^wfC2-C5w
The previous repairs obscure much of the wall. Most of the outer surface has been lost, and appears to have eroded down, depositing at the top of the stones (August 2010, E. Drolet)

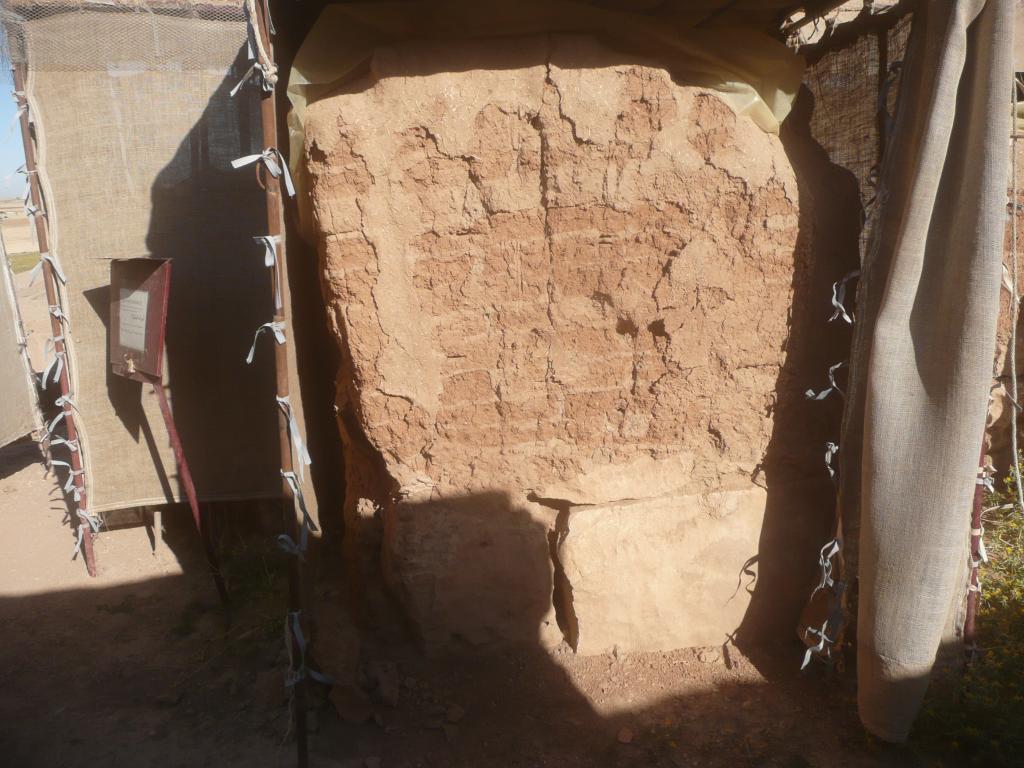

MZ 23a
2011

2011-6-10
D. Mustapha

V24x0328
AP^wfC2-C5w

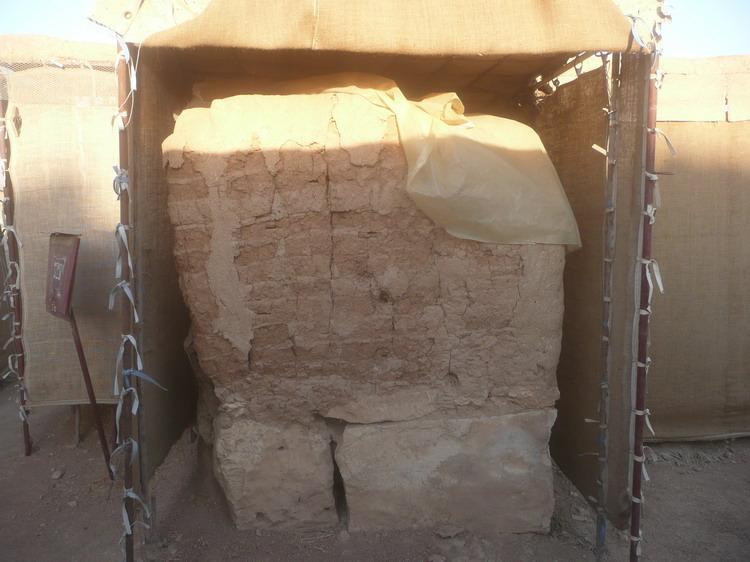

MZ 23b
2012

2012-9-24
D. Mustapha

V25x0328
AP^wfC2-C5w

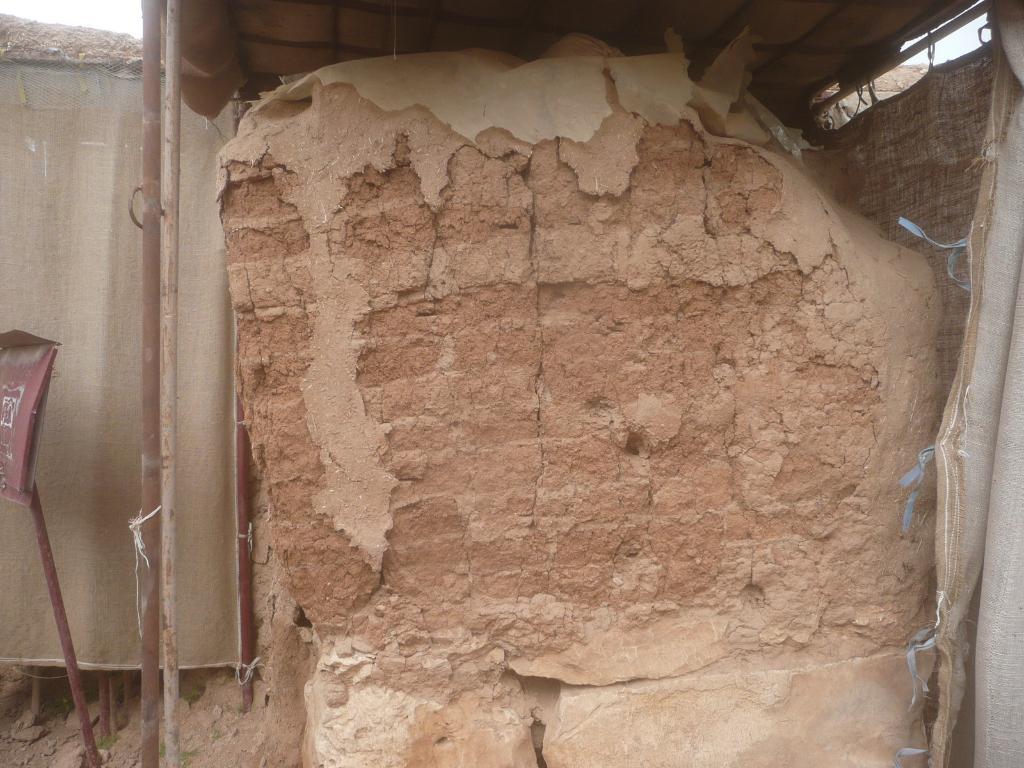

MZ 23c
2013

2013-4-08
D. Mustapha

V26x0328
AP^wfC2-C5w
MZ 23d
2014
missing

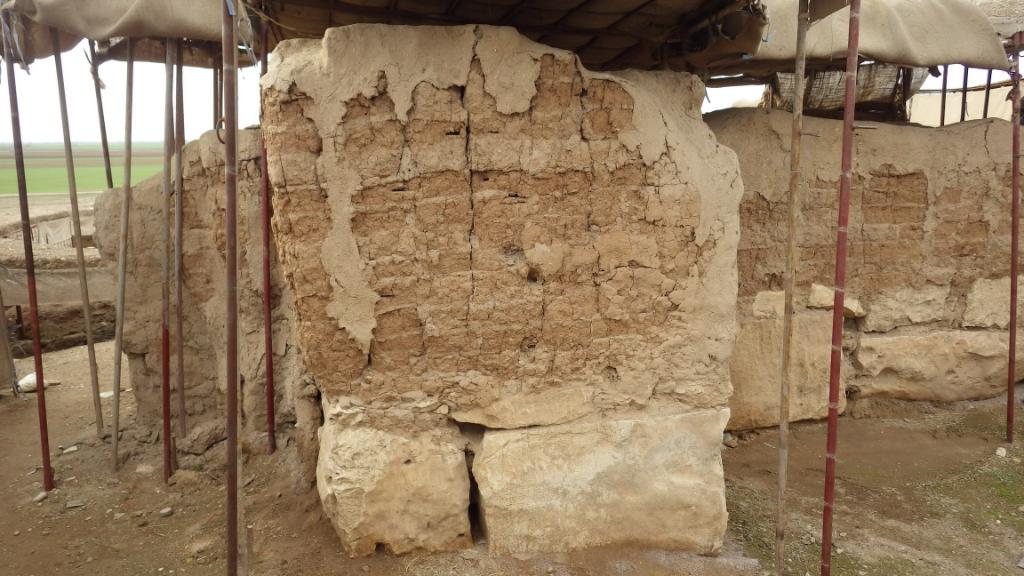

MZ 23e
2015

2015-1-20
D. Mustapha

V28x0328
AP^wfC2-C5w

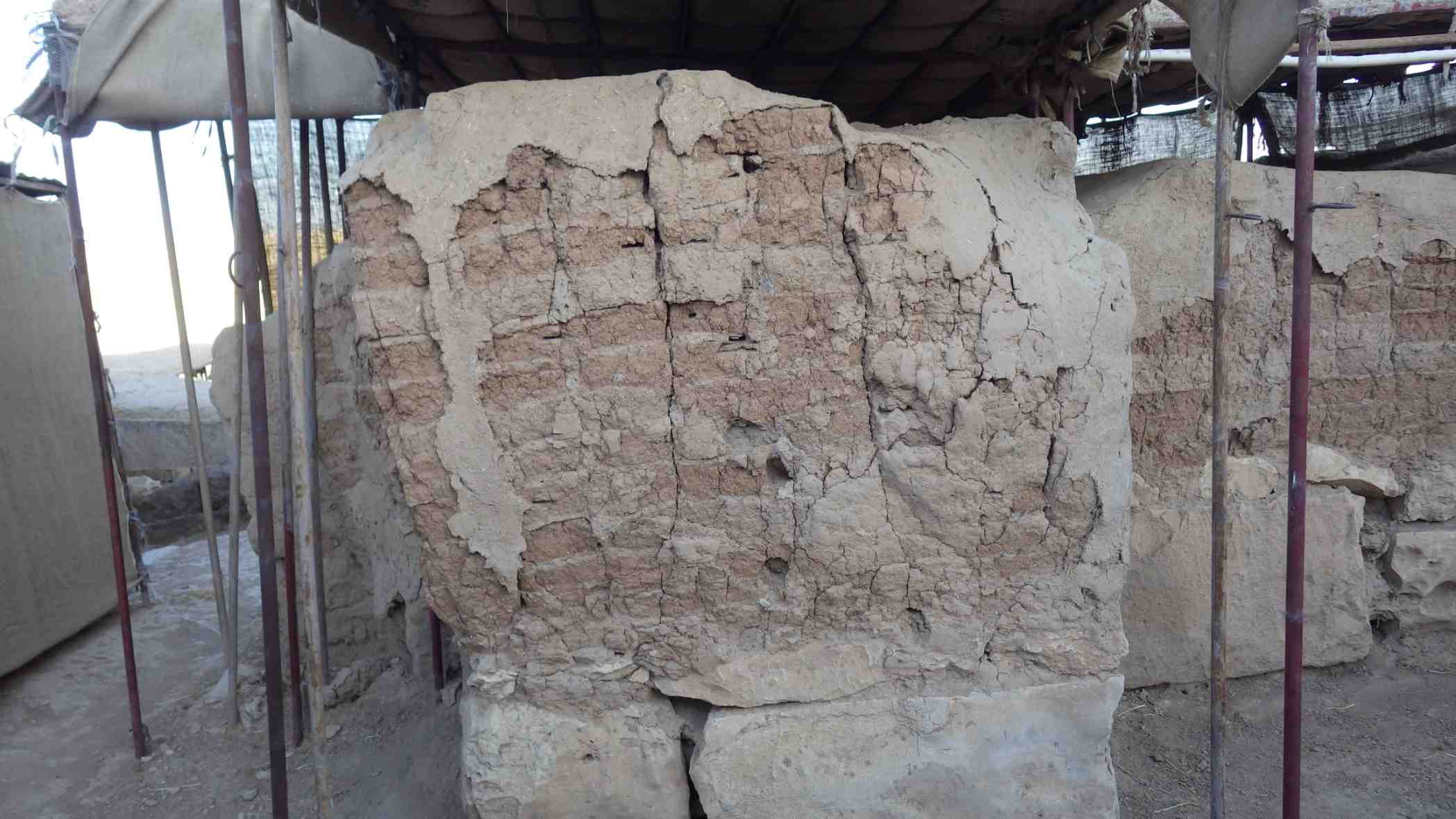

MZ 23f
2016

2016-7-15
I. Khellu

V29x0328
AP^wfC2-C5w
Face of the wall is dry and the mud plaster layer seems to be peeling and some portions did fall off, but nothing serious that would affect the integrity of the wall.
(2016 ,Y. Mahmoud)

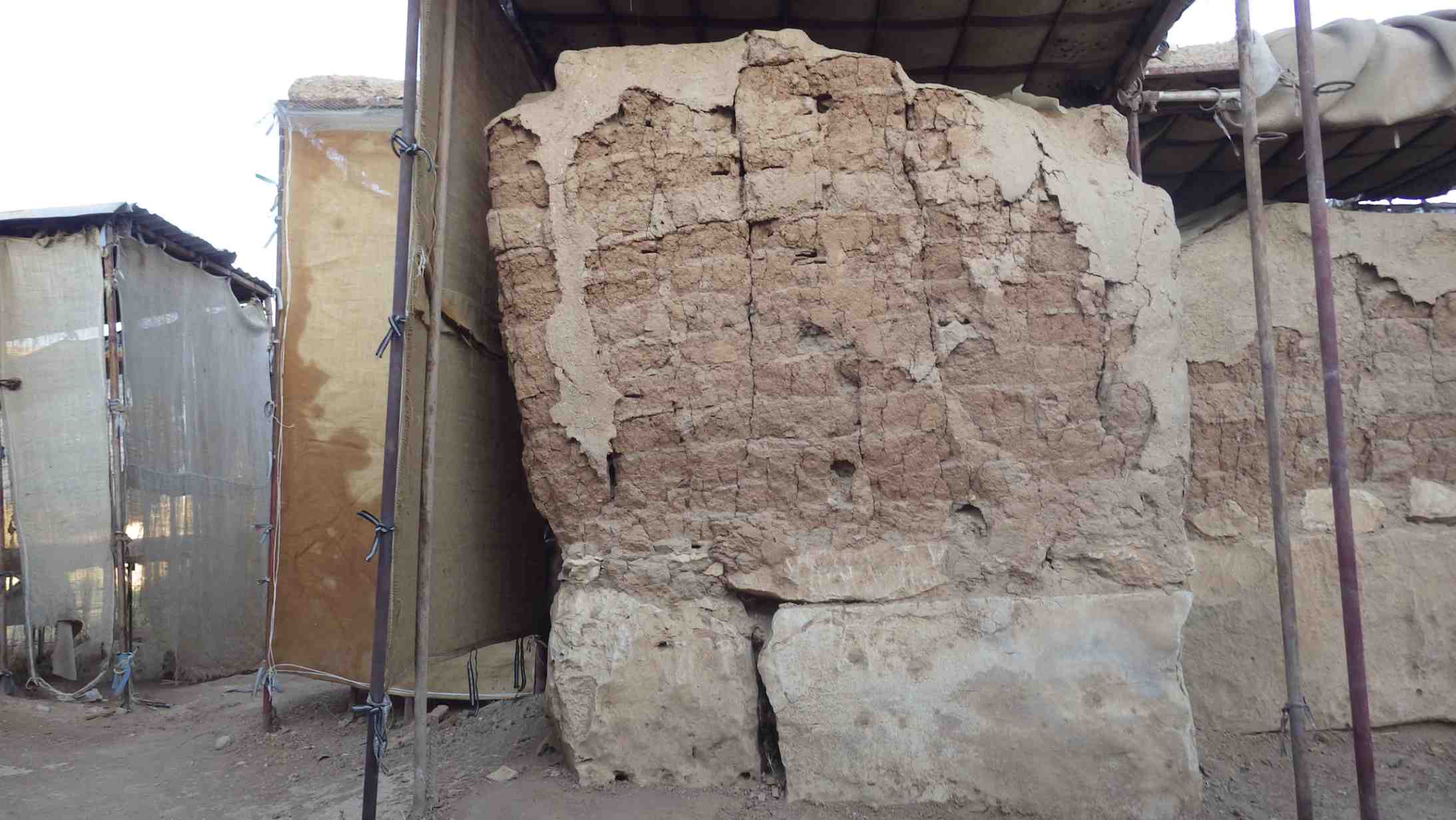

MZ 23g
2017

2017-8-21
I. Khellu

V30x0328
AP^wfC2-C5w
Face of the wall is dry and the mud plaster layer seems to be peeling and some portions did fall off, but nothing serious that would affect the integrity of the wall.
(January 2017, Y. Mahmoud)

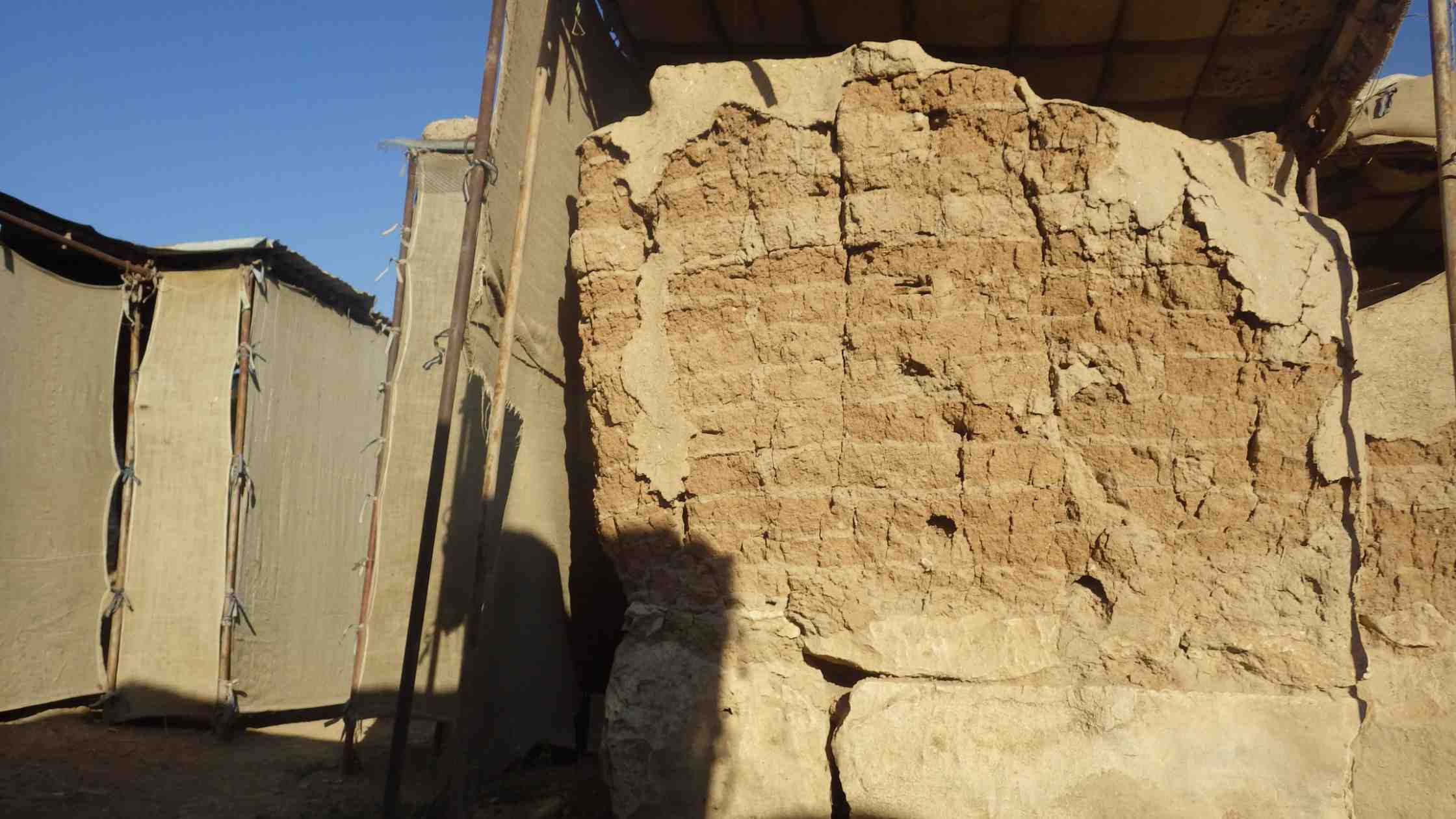

MZ 23h
2018

2018-6-19
I. Khellu

V31x0328
AP^wfC2-C5w
Face of the wall is dry and the mud plaster layer seems to be peeling and some portions did fall off, but nothing serious that would affect the integrity of the wall.
(February 2018, Y. Mahmoud)

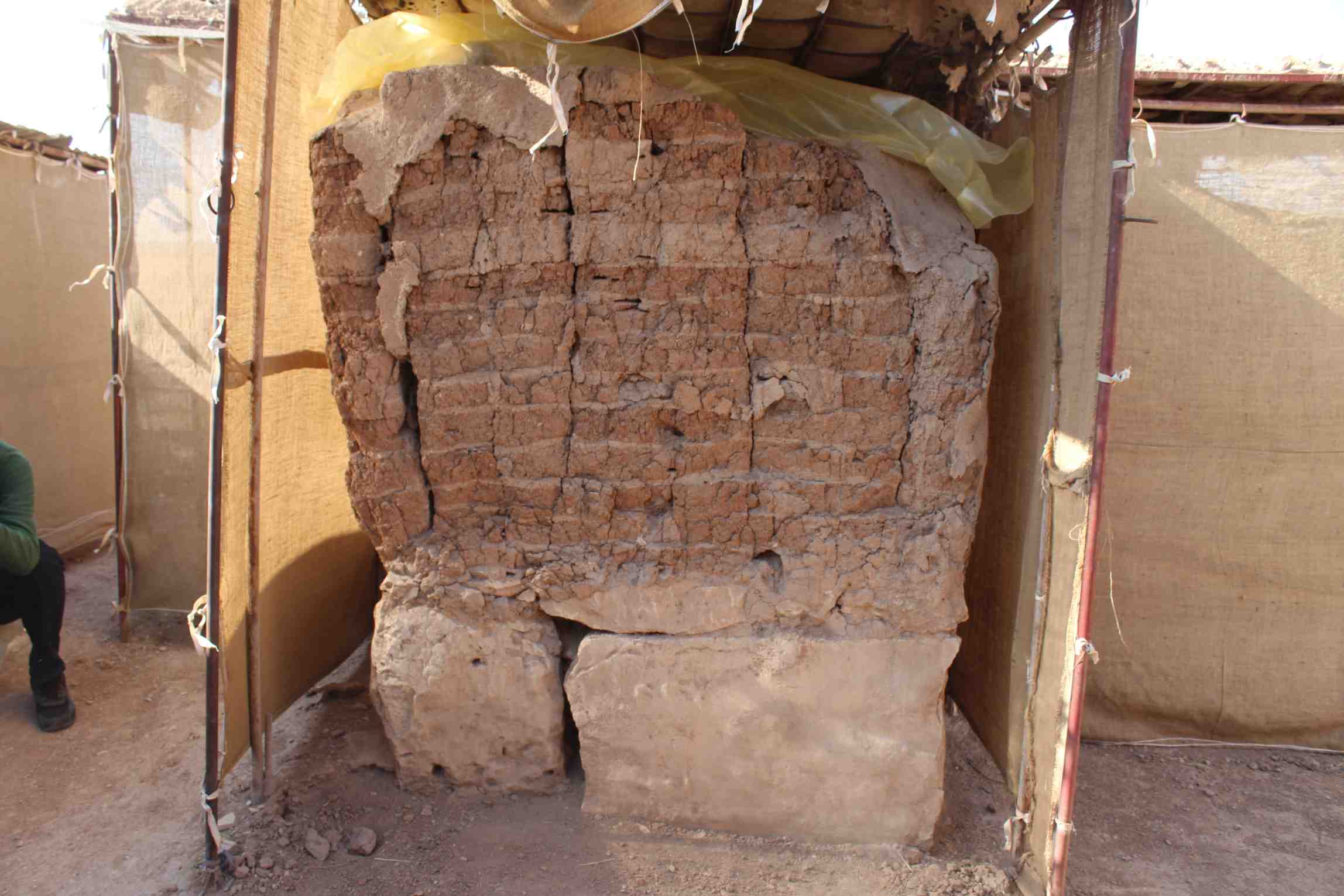

MZ 23i
2019

2019-2-12
I. Khellu

V32x0328
AP^wfC2-C5w
The mud plaster has peeled, there are cracks which may cause crumbling in the right side of the wall, the cracks seem wider than they were, no loss in mud bricks or mortar.
(2019, A. Ahmad)

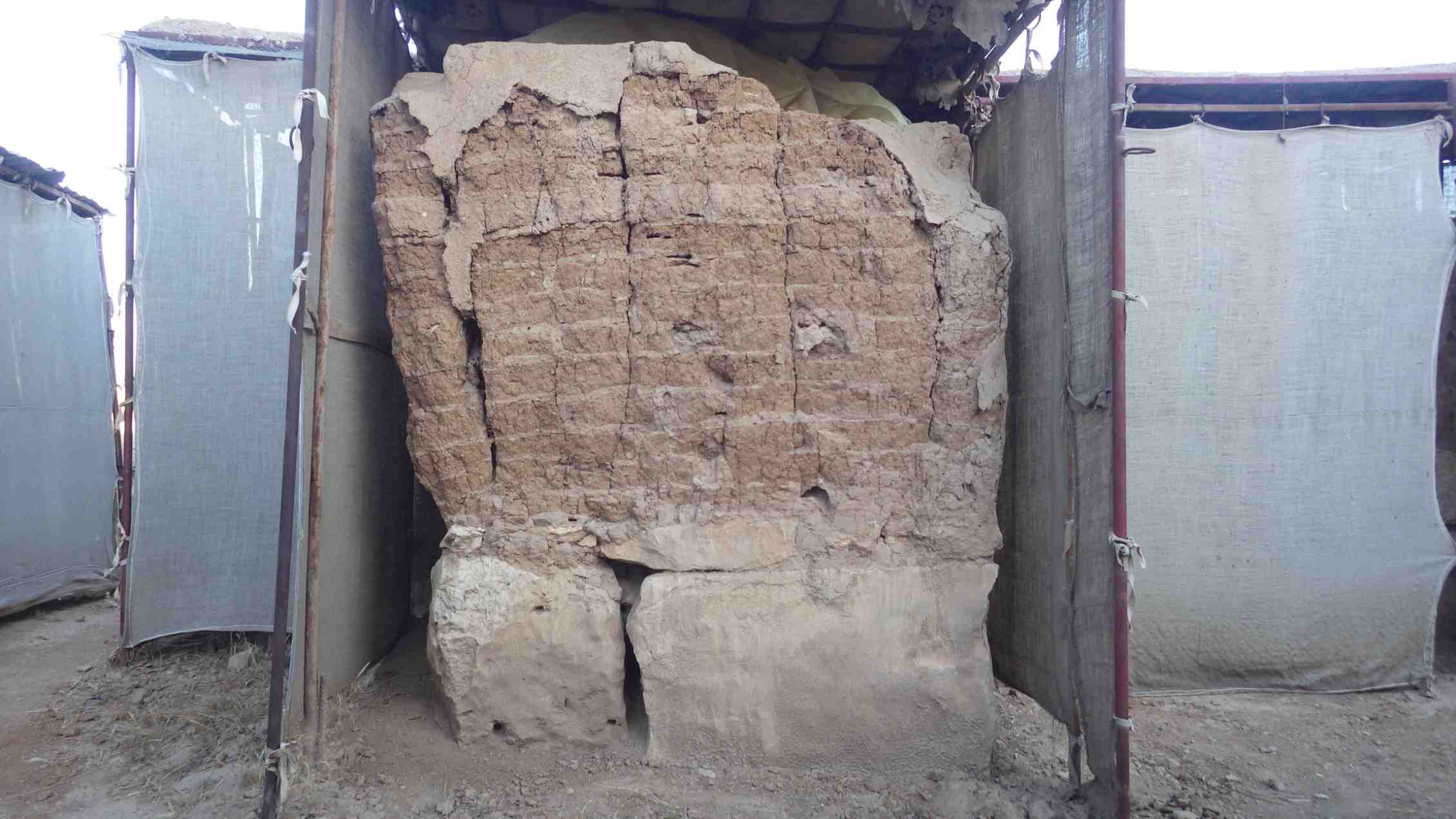

MZ 23j
2020

2020-6-15
I. Khellu

V33x0328
AP^wfC2-C5w
Overall, the wall is in a good condition. There are no visible changes compared to last year. The cracks and small holes are still the same size without any increase.
(May 2020, Y. Mahmoud)
MZ 23k
2021
missing The wall is frail on the left side. The cracks and small holes are still the same size without any increase. No other visible changes.
(March 2021, A. Ahmad)

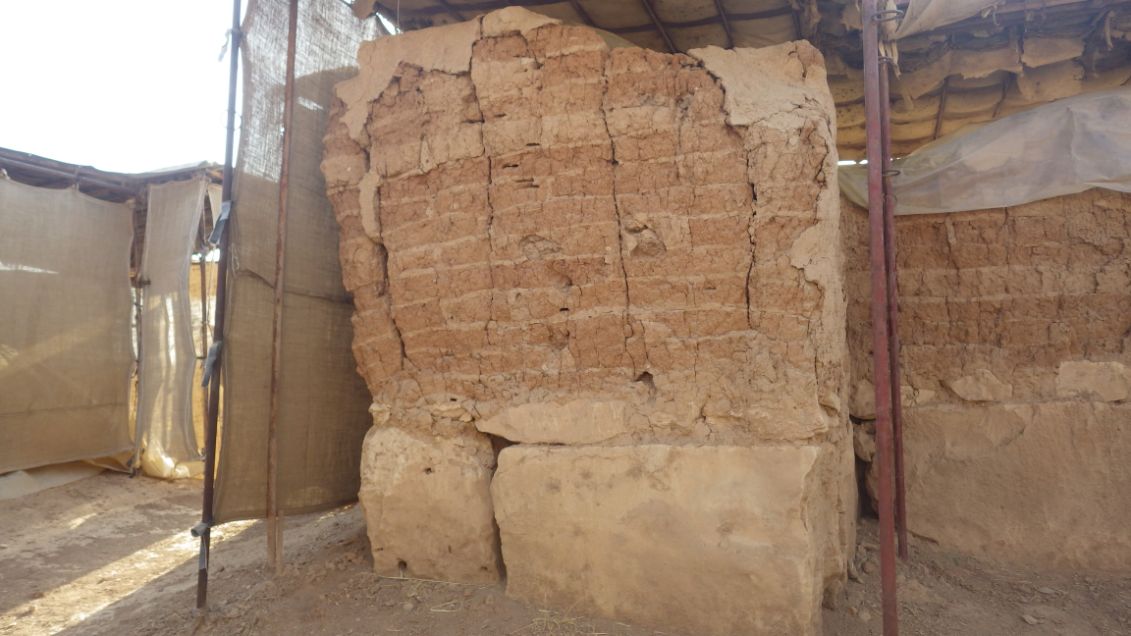

MZ 23l
2021

2021-8-11
I. Khellu

V35x0328
AP^wfC2-C5w
