https://urkesh.org/MZ/A/A16/D/F/0004.htm
← Previous: A16f3
Next: A16f5 →

Unit Book A16

The Courtyard of the Tupkish Palace (Version 2, Beta release)

A16f4

Processed on 2025-03-19

1. OVERVIEW

Roster Date Author Record
Category !! !! clay artifact
Best definition 2001-06-09 !! ^ wall [Input: F-L819.j]
Summary 2007-07-11 cJC Two course wide mudbrick wall which runs from the SE to the NW. It forms the eastern wall of structure a1 and is bonded with f142 (the southern wall of structure a1) as well as f7 (the northern wall of a1). The relationship with wall f5 is unclear but it appears the two are not bonded (see f5 description). f4 rests on the stone foundation, f172, only on the NE side. The wall is several courses of mudbrick in height. [Input: R711CJC.j]
Best image 2007-07-11 cJC
v43a [Input: R711CJC.j]

2. IDENTIFICATION

Designation

Roster Date Author Record
Definition 2001-06-09 fAB ^ wall [Input: F-L819.j]
Description (summary) 2001-07-07 lR Mudbrick wall running north to east measuring 90 cm in width (2 bricks and a half). The mudbricks are 40 x 40, 10 cm in thickness. Wall is not bonded with the adjacent walls and is only a few courses deep. [Input: L707LR.j]
2001-07-10 sV Eastern mud brick wall of structure a1 running SE to NW. The wall measures 90 cm in width and 5.30 m in length, consisting of two visible coarses of 40x40x10cm bricks. The wall appears to bond with the southern wall f142 and the northern wall f7, but does not show a clear bond with the "buttress" wall f5. There is no visible difference between the color of the bricks and the mortar, making it difficult to define the depth of the wall. It did appear that an accumulation lay below the two courses of bricks, but resulted in more bricks below. While removing the bricks of this wall, it was observed that two of the bricks appeared that they had a carving of a fish. This fish carving most likely was created naturally, and was found next to f5 and removed. This wall rests on the stone foundation f172 only in the NE side. [Input: L729_SV.j]

3. STRATIGRAPHY

Volumetric Localization

Roster Date Author Record
Locus 2001-06-09 fAB k5 [Input: F-L819.j]
Relays (applicable to elements) 2001-06-12 lr r5 (41623 37006 - 8867 / Relay location: see sketch 8) [Input: R7QFAB1R.j]
2001-06-12 lr r7 (41533 37108 - 8867 / Relay location: see sketch 8) [Input: R7QFAB1R.j]
2001-06-12 lr r8 (41492 37198 - 8867 / Relay location: see sketch 8) [Input: R7QFAB1R.j]
2001-06-12 lr r9 (41215 37162 - 8867 / Relay location: see sketch 8) [Input: R7QFAB1R.j]
M#/elev @top 2001-06-17 fAB 8867 [Input: L724LR.j]
M#/elev @bottom 2001-06-17 fAB 8800 [Input: L724LR.j]

Contact Association

Roster Date Author Record
Type of contact: latest events 2007-08-28 pC f7 (^ wall) abuts f4 (^ wall) [Input: R826PC.j]
2001-07-07 lR f12 (^ accumulation C) abuts f4 (^ wall) [Input: L707LR.j]
2007-08-28 pC f24 (^ accumulation B) abuts f4 (^ wall) [Input: R826PC.j]
2001-07-10 sV f25 (^ brickfall) abuts f4 (^ wall) [Input: L729_SV.j]
2001-07-07 lR f27 (^ brickfall) abuts f4 (^ wall) [Input: L707LR.j]
2007-08-28 pC f50 (^ accumulation A) abuts f4 (^ wall) [Input: R826PC.j]
2001-07-10 sV f51 (^ floor, type a) abuts f4 (^ wall) [Input: L729_SV.j]
2001-07-23 MISSING f101 (^ layer) abuts f4 (^ wall) [Input: L723LR2.j]
Type of contact: contemporary events/movable items 2001-07-23 lR f4 (^ wall) bonds with f142 (^ wall) [Input: L723LR2.j]
2001-06-18 !! q37.1 (^ kiln waste) sits in f4 (^ wall) [Input: N114LR.j]
2001-07-19 !! q328.1 (grinding stone) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370.1 (^ kiln waste) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370.2 (debitage) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370.3 (grinding stone) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592.1 (^mortar) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-06-12 cC q16 sits in f4 (^ wall) [Input: M730FAB.j]
2001-06-18 lR q37 sits in f4 (^ wall) [Input: N114LR.j]
2001-07-19 sV q328 sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 sV q370 sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 sV q592 sits in f4 (^ wall) [Input: -MX12-99.j]
2001-06-18 !! q37-p70 (body sherd) sits in f4 (^ wall) [Input: N114LR.j]
2001-06-18 !! q37-p71 (body sherd) sits in f4 (^ wall) [Input: N114LR.j]
2001-07-19 !! q328-p1 (jar) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p2 (pot) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p3 (jar) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p4 (xf) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p5 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p6 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p7 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p8 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p9 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p10 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p11 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p12 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p13 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p14 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p15 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p16 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p17 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p18 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p19 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p20 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-19 !! q328-p21 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p1 (bowl) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p2 (bowl) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p3 (r) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p4 (bowl) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p5 (xfc) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p6 (xdf) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p7 (xfc) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p8 (jar) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p9 (bowl) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p10 (i) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p11 (jar) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p12 (xf) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p13 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p14 (other shape sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p70 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p71 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p72 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p73 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p74 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p75 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p76 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p77 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-07-24 !! q370-p78 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p70 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p71 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p72 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p73 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p74 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p75 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p76 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
2001-08-01 !! q592-p77 (body sherd) sits in f4 (^ wall) [Input: -MX12-99.j]
Ceramic typological distribution !! !! frequencies of ceramic vessels and sherds included within feature

Spatial Aggregation

Roster Date Author Record
Aggregate (to which element belongs) 2000-12-18 !! a1 (^ structure) [Input: A-CUMUL.j]

Time Sequencing

Roster Date Author Record
Stratum (to which element belongs) 2015-05-20 cJC s246AAH [Input: ZA520CJC.j]
Phase (to which element belongs) 2015-05-20 !! h6hAAH [Input: ZA520CJC.j]
Notes on time sequencing 2005-11-13 mKB dated to Khabur, Phase 5 [Input: P902MKB.j]

4. TYPOLOGY

Measurements

Roster Date Author Record
Length 2001-07-07 lR 600 [Input: L707LR.j]

Morphology

Roster Date Author Record
Ware or Material, species 2001-06-09 fAB clay [Input: F-L819.j]
2001-06-09 lr brick [Input: L815LR.j]
2001-07-10 sV mudbrick, mortar, melted brick [Input: L729SV2.j]
Color 2001-06-09 lr light brown [Input: L815LR.j]
2001-07-10 sV reddish [Input: L729_SV.j]
Hardness, compaction 2001-06-09 fAB hard [Input: F-L819.j]

6. REFERENCE

Analogical Record

Roster Date Author Record
Photo of context (v view)

v2a
2001-06-14 lR [Input: -M726-A.j]

v3
2001-06-19 fAB [Input: -M726-A.j]

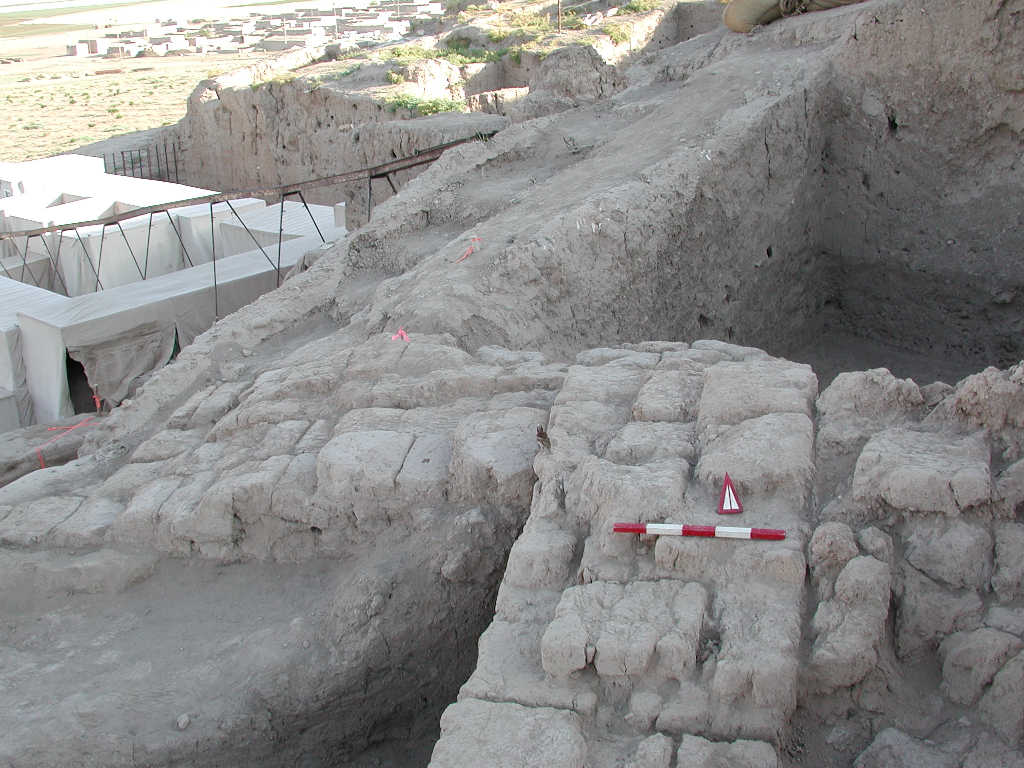

v3c
2001-06-19 fAB [Input: -M726-A.j]

v11
2001-06-26 lR [Input: -M726-A.j]

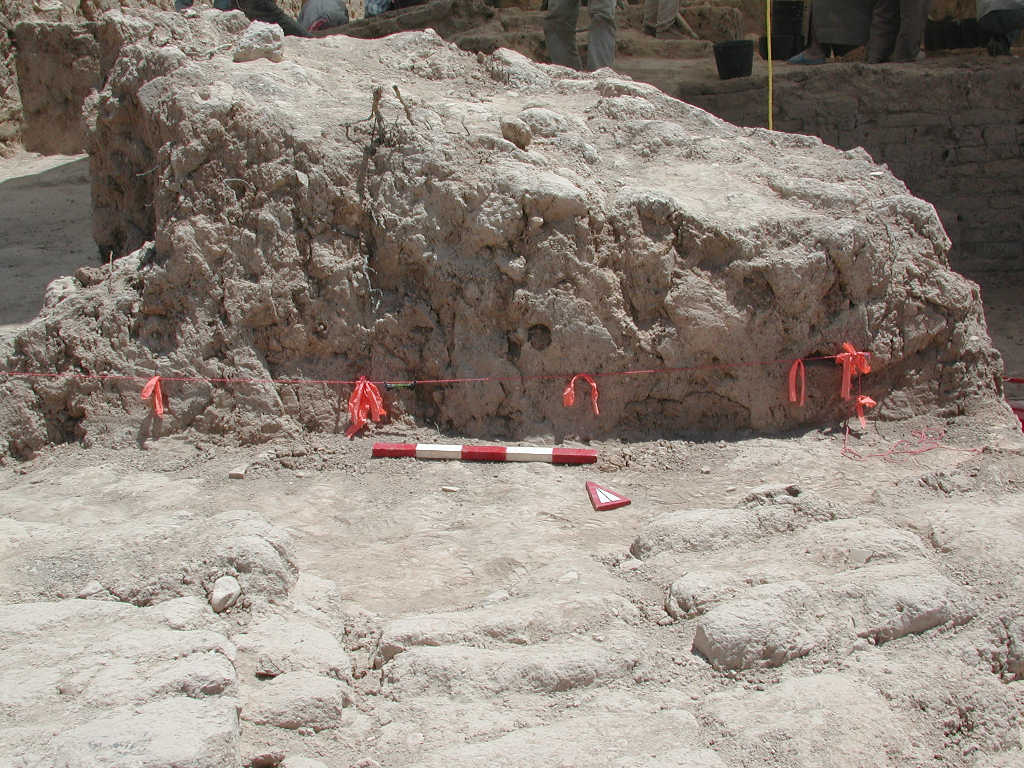

v27
2001-07-05 lR [Input: -M726-A.j]

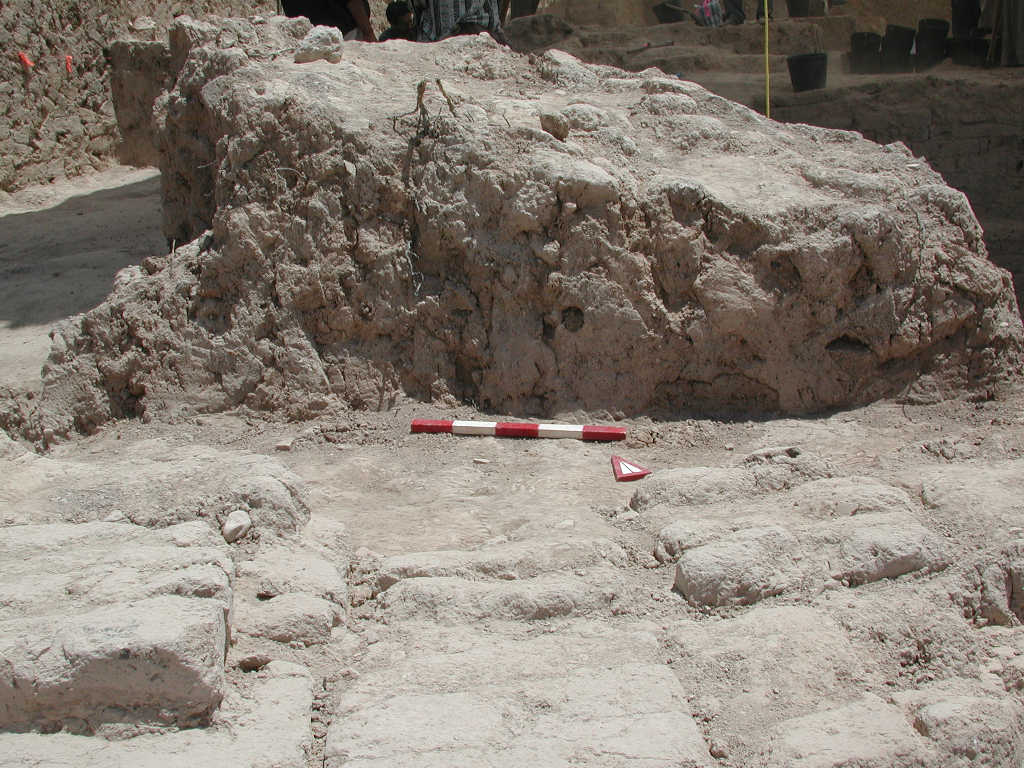

v27a
2001-07-05 lR [Input: -M726-A.j]

v43
2001-07-19 sV [Input: -M726-A.j]

v43a
2001-07-19 sV [Input: -M726-A.j]

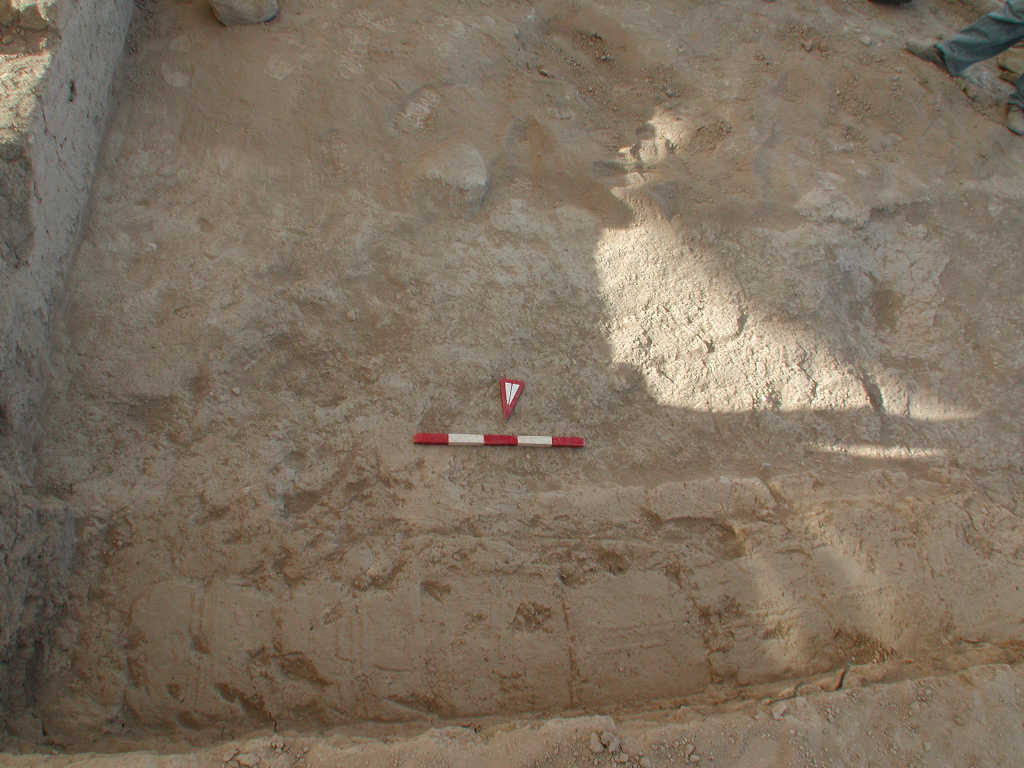

v47a
2001-07-22 tR [Input: -M726-A.j]

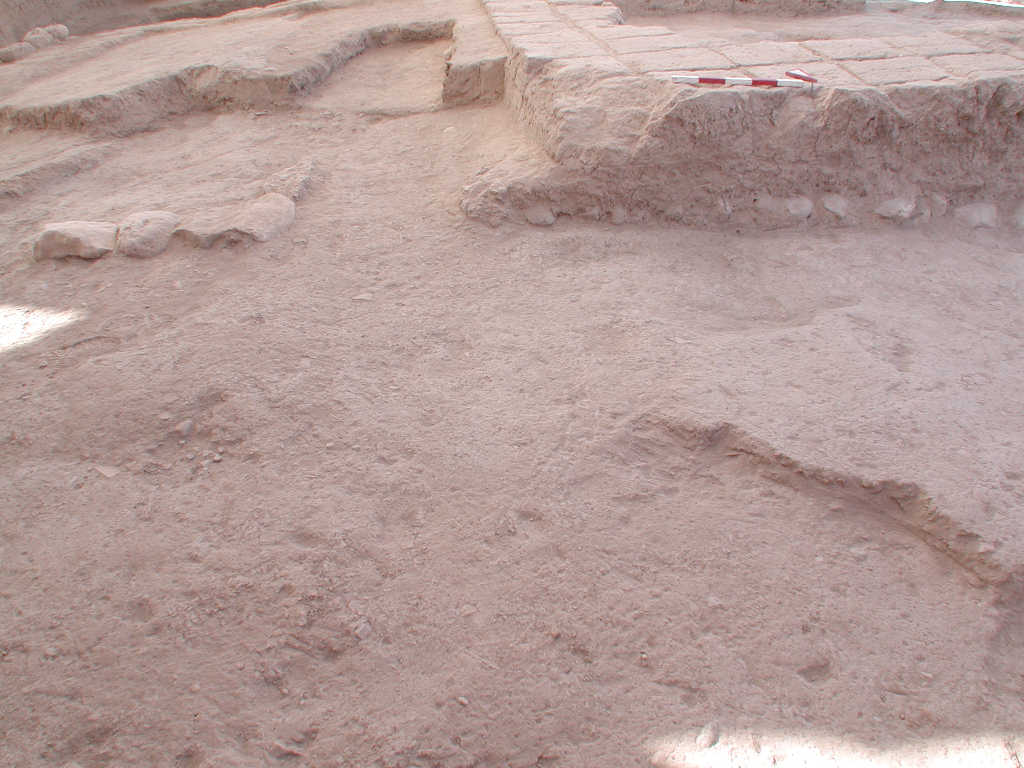

v57
2001-07-23 fAB [Input: -M726-A.j]

v58
2001-07-23 fAB [Input: -M726-A.j]

v5
2002-07-11 lR [Input: -M726-A.j]

v6
2002-07-11 lR [Input: -M726-A.j]

v6a
2002-07-11 lR [Input: -M726-A.j]

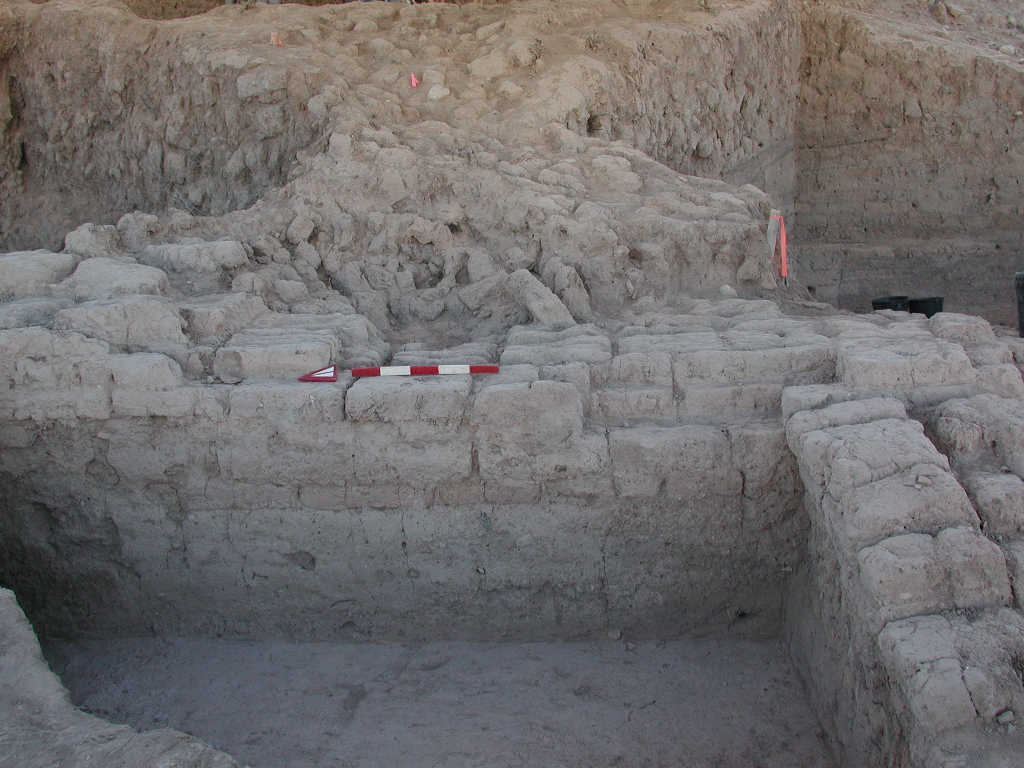

v7
2002-07-11 lR [Input: -M726-A.j]

Disposition

Roster Date Author Record
Removed (feature), discarded/missing (item) 2001-06-09 lr L724 [Input: L815LR.j]
