Drawing (date, author) (Pictures, dates and authors missing) |
| MZ 14 2001 |
missing | MZ 15 2002 |
missing | MZ 16 2003 |
missing | MZ 18 2005 |
missing | MZ 19 2006 |
missing |
| MZ 20 2007 |
missing | |
| MZ 21 2008 2008-7-20 C. Liuzza V21x0406 X16v39 |
|
MZ 22 2009 2009-7-28 G. al-Hassan V22x0405 Z11v38 |
|
| MZ 23 2010 2010-8-24 M. Stangalini V23x0405 AP^wfD1-2 |
|
This wall has suffered major losses to the lower (red brick) section. The upper (gray brick) section appears relatively stable and largely unchanged. There are areas of severe delamination, one large new crack and 2 expanded cracks in the upper portion of the eastern side. At the bottom of the wall there is a small amount of erosion from water flowing over it. The red bricks are clearly much more unstable than the grey, and the areas of loss to the red bricks are becoming increasingly unstable. Continued losses will undercut the top half, endangering the entire wall (August 2010, E. Drolet, M. Stangalini) |
| MZ 23a 2011 2011-6-10 D. Mustapha V24x0405 AP^wfD1-2 |
|
|
| MZ 23b 2012 |
missing | |
| MZ 23c 2013 2013-8-01 D. Mustapha V26x0404 AP^wfD1-2 |
|
|
| MZ 23d 2014 |
missing | |
| MZ 23e 2015 |
missing | |
| MZ 23f 2016 2016-7-04 I. Khellu V29x0404 AP^wfD1-2 |
|
There was a small erosion in the middle section of the wall (the right side) and therefore it was re-plastered. No significant changes in the top part and no increase in the cracks. (2016 ,Y. Mahmoud) |
| MZ 23g 2017 2017-8-14 I. Khellu V30x0404 AP^wfD1-2 |
|
There was a small erosion in the middle section of the wall (the right side) and therefore it was re-plastered. No significant changes in the top part and no increase in the cracks. (January 2017, Y. Mahmoud) |
| MZ 23h 2018 2018-6-02 I. Khellu V31x0404 AP^wfD1-2 |
|
There was a small erosion in the middle section of the wall (the right side) and therefore it was re-plastered. No significant changes in the top part and no increase in the cracks. (February 2018, Y. Mahmoud) |
| MZ 23i 2019 2019-2-20 I. Khellu V32x0404 AP^wfD1-2 |
|

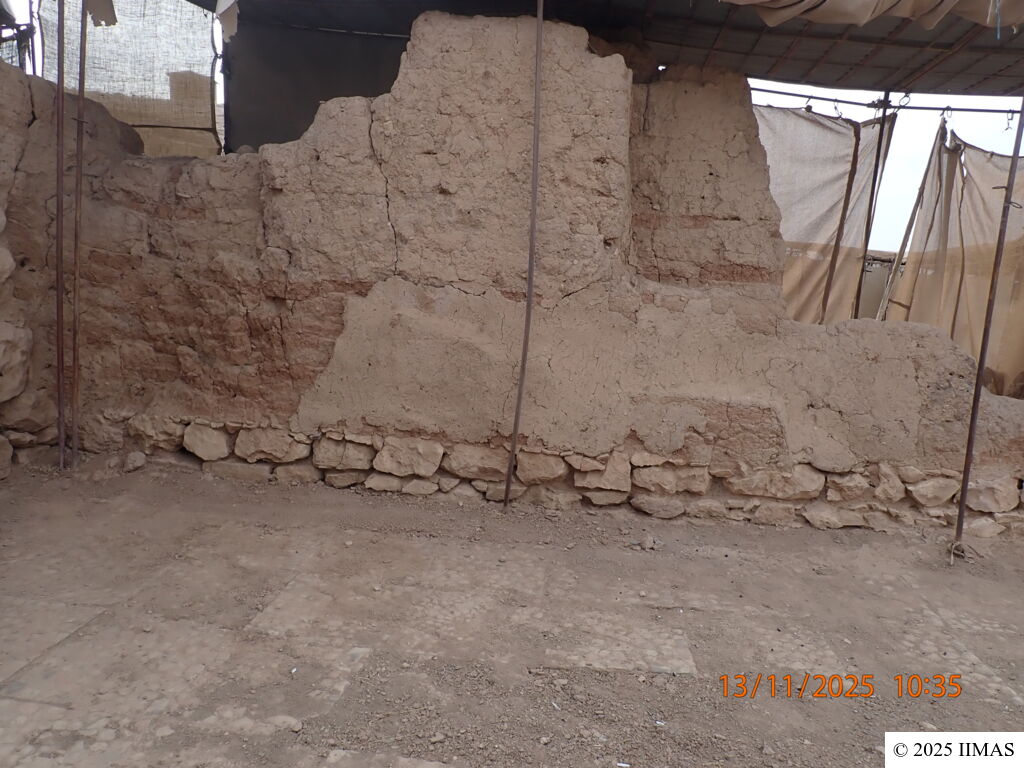

No loss in mud bricks, but there are cracks and slight erosion specifically in the right side of wall. The stones are in good condition. Generally, the wall is in good condition. (2019, A. Ahmad) |
| MZ 23j 2020 2020-6-08 I. Khellu V33x0404 AP^wfD1-2 |
|
No loss in mud bricks, there are cracks and slight erosion specifically in the right side of the wall, the stones are in good condition. The cracks became wider than last year. (May 2020, Y. Mahmoud) |
| MZ 23k 2021 2021-8-09 I. Khellu V34x0404 AP^wfD1-2 |
|
No loss in stones, the stones are in good condition. There are cracks and slight erosion especially on the right side of the wall, the wall is dry and frail on the right and left corners with a slight loss in the mud plaster. The wall has lost part of the mud-brick on the top left side. No other visible changes. (March 2021, A. Ahmad) |
| MZ 23l 2022 2022-8-08 I. Khellu V35x0404 AP^wfD1-2 |
|
