Drawing (date, author) (Pictures, dates and authors missing) |

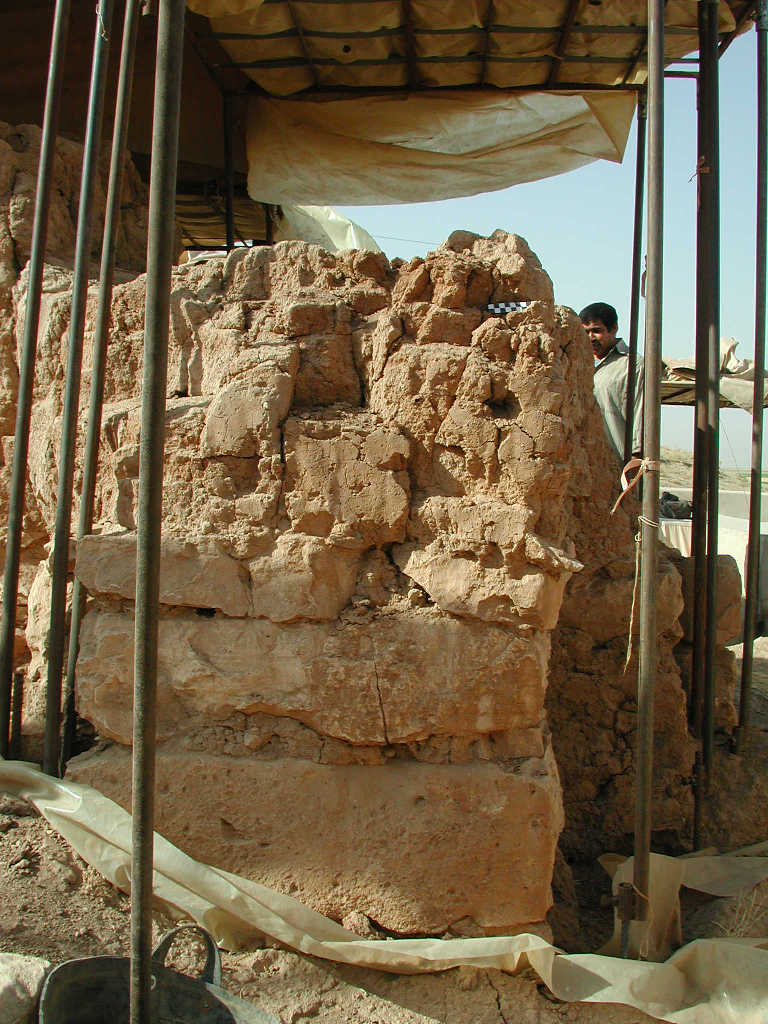

| MZ 14 2001 2001-9-17 S. Bonetti V14x0411 X17v32 |
 |
MZ 15 2002 |
missing | MZ 16 2003 |

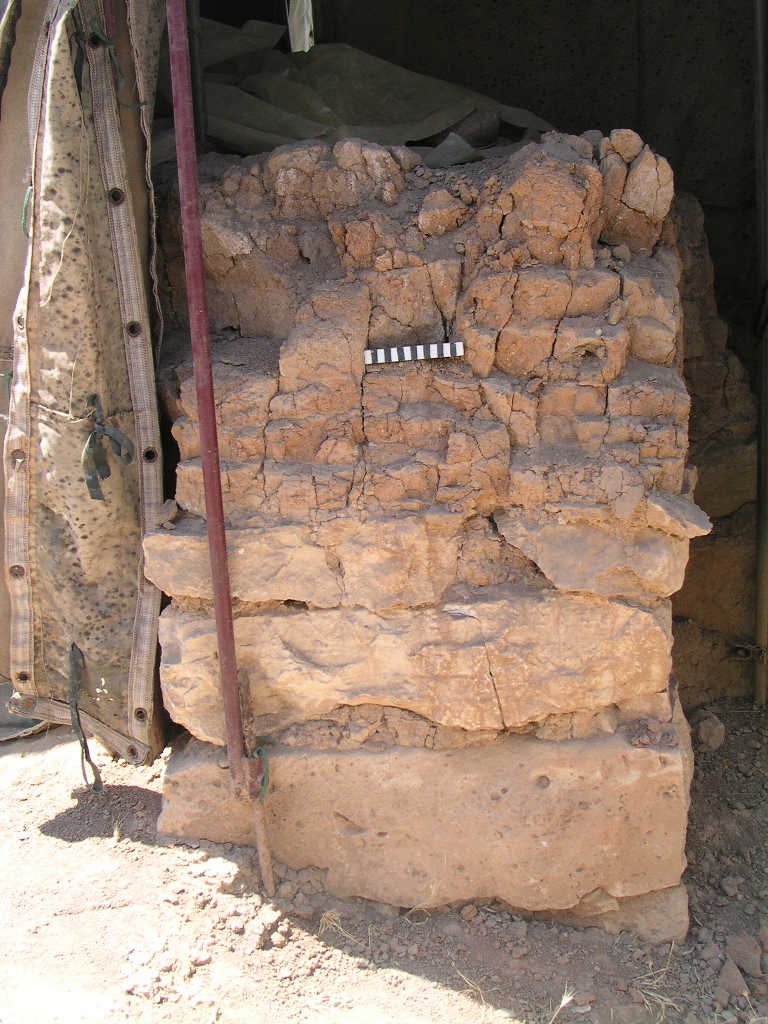

missing | MZ 17 2004 2004-8-13 B. Mariani V17x0411 X17v32 |
 |

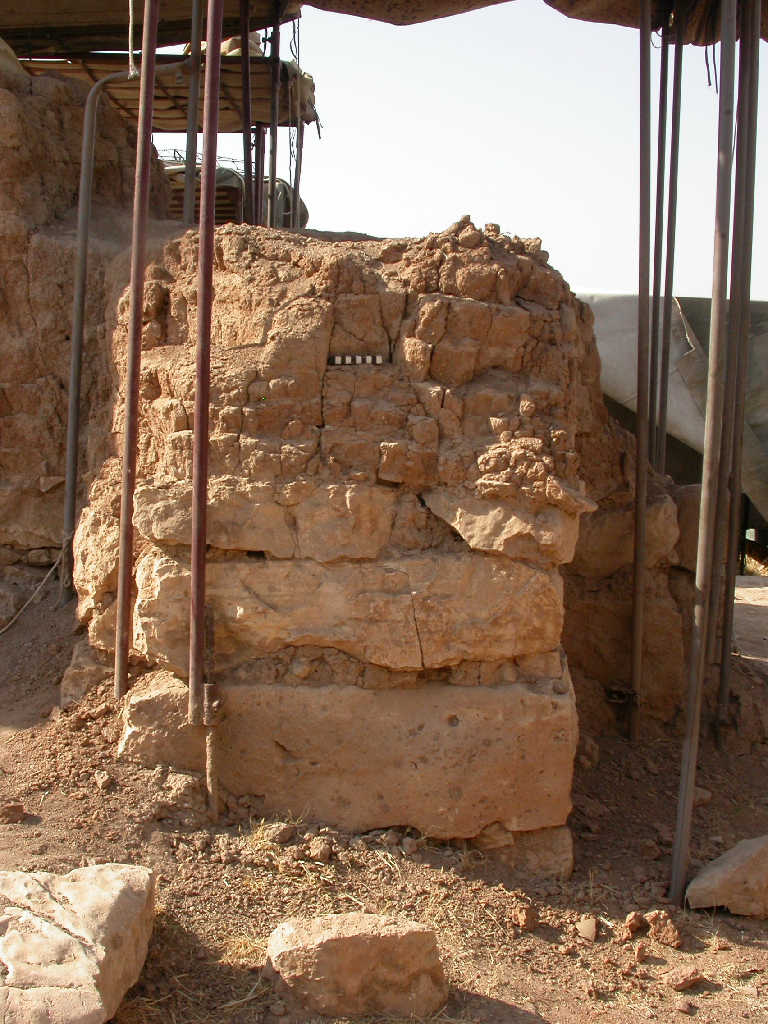

MZ 18 2005 2005-9-04 G. Gallacci V18x0410 X17v32 |
 |

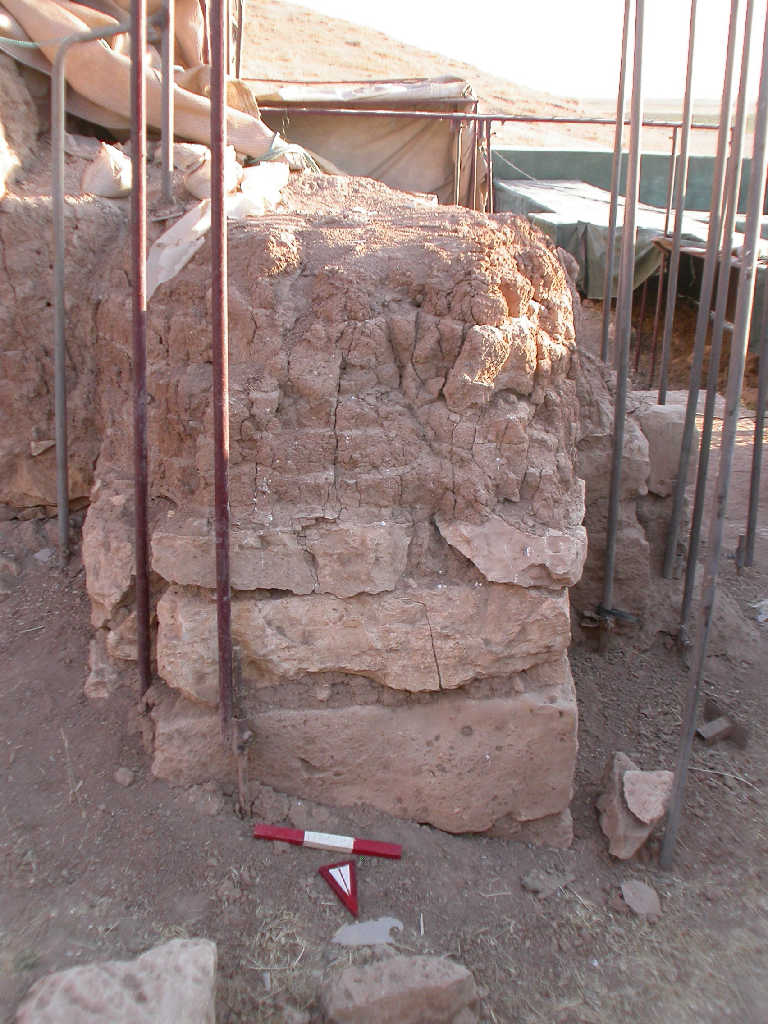

MZ 19 2006 2006-9-12 B. Landini & M. Lorenzon V19x0411 X17v32 |
 |

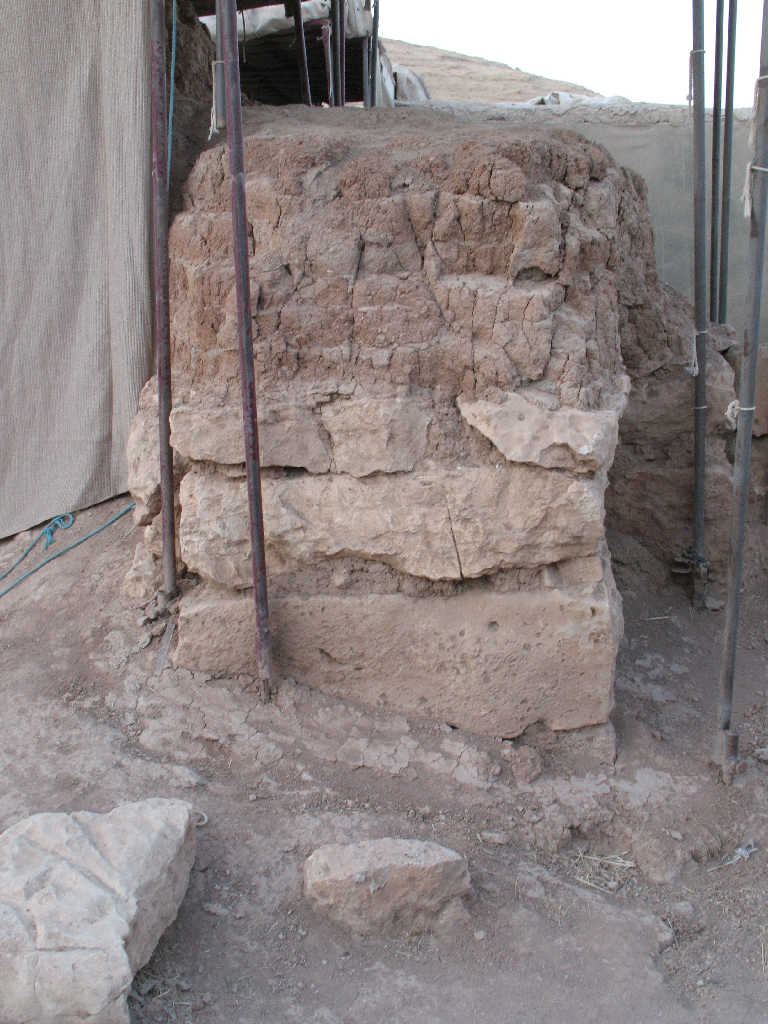

| MZ 20 2007 2007-8-06 B. Landini & M. Lorenzon V20x0411 X18v32 |
 |
|
| MZ 21 2008 2008-7-20 C. Liuzza V21x0411 X18v32 |
 |

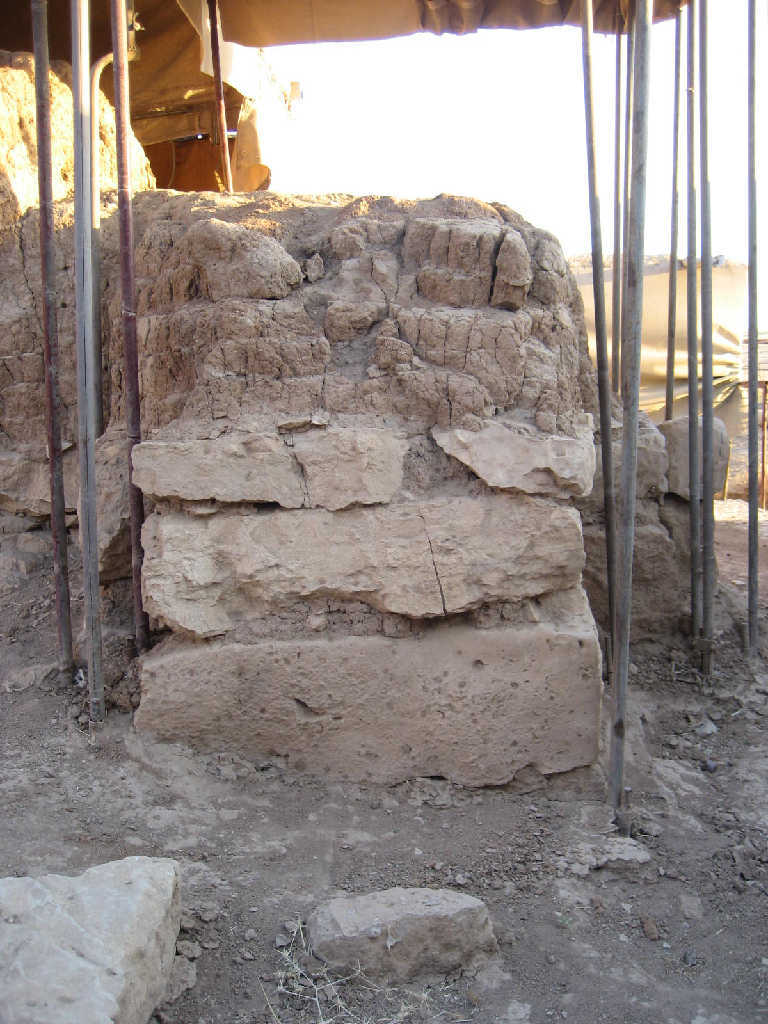

MZ 22 2009 2009-7-27 G. al-Hassan V22x0411 Z11v32 |
 |

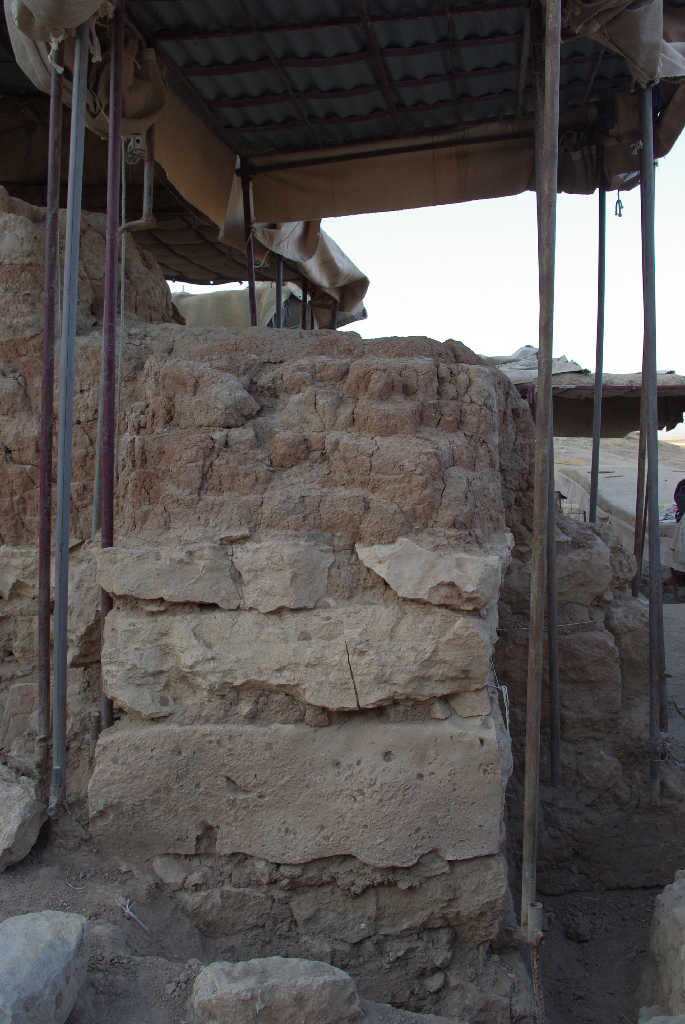

| MZ 23 2010 2010-8-24 M. Stangalini V23x0417 AP^wfD1-D2s |
 |
The top surface has been lost and the remaining sections are crumbling heavily. There has been heavy erosion in the center, possibly due to a leak in the roof. A large section has separated on the left (August 2010, E. Drolet) |

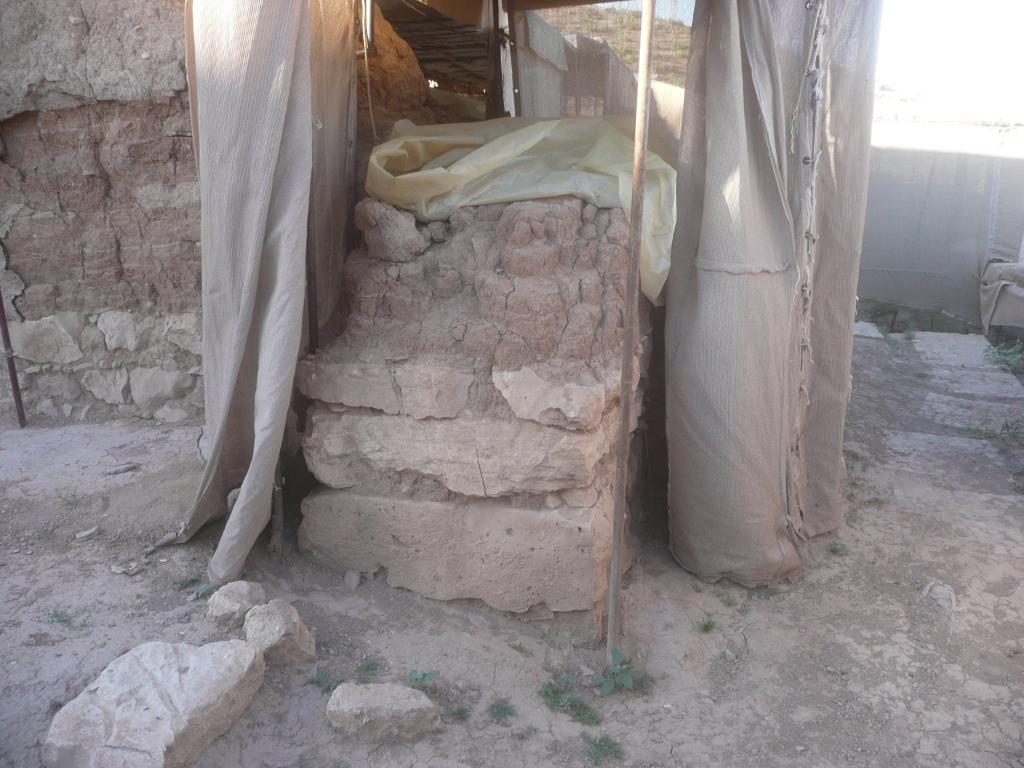

| MZ 23a 2011 2011-6-10 D. Mustapha V24x0417 AP^wfD1-D2s |
|
|

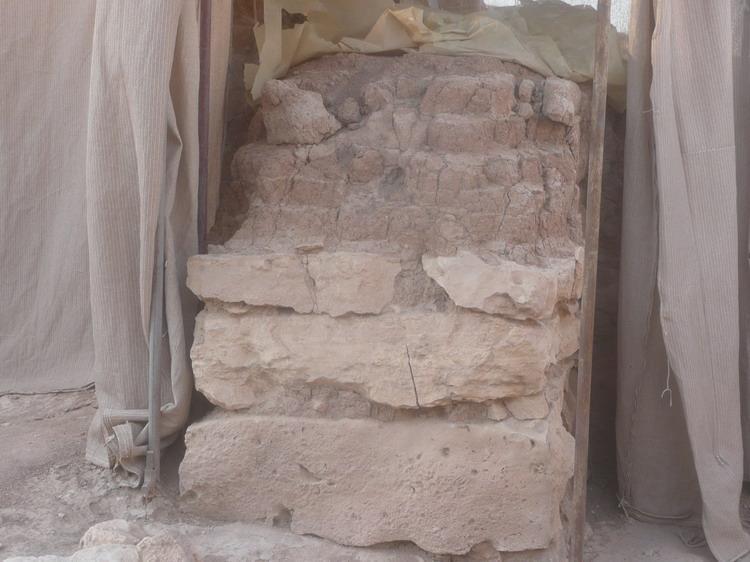

| MZ 23b 2012 2012-9-20 D. Mustapha V25x0417 AP^wfD2-D1s |
|
|
| MZ 23c 2013 |
missing | |
| MZ 23d 2014 |
missing | |

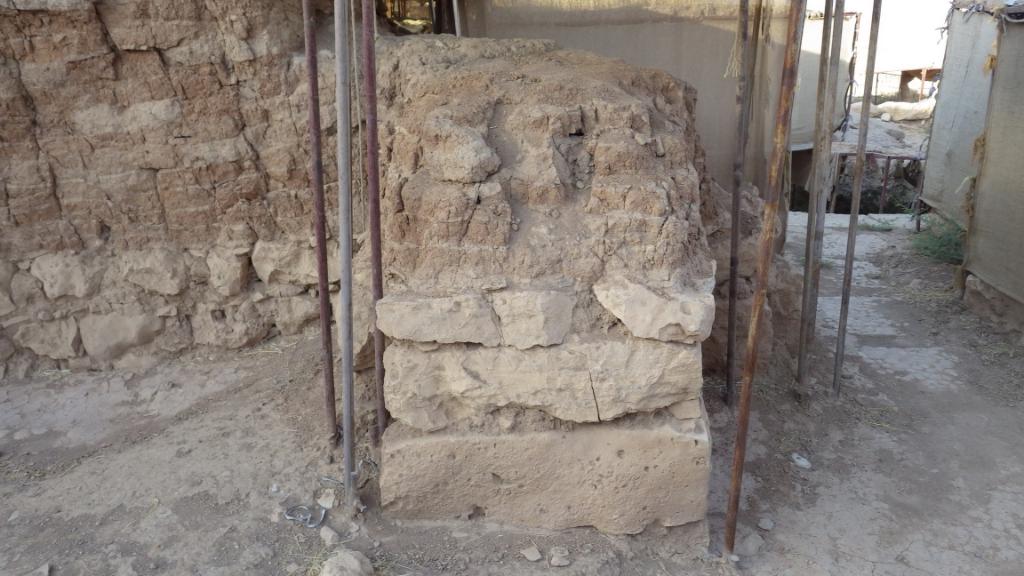

| MZ 23e 2015 2015-8-08 D. Mustapha V28x0417 AP^wfD1-D2s |
|
|
| MZ 23f 2016 2016-7-14 I. Khellu V29x0417 AP^wfD1-D2s |
|
There appear to be some losses in the top rows of mud bricks especially the left side. Other than that, the wall is in a good condition. (2016 ,Y. Mahmoud) |

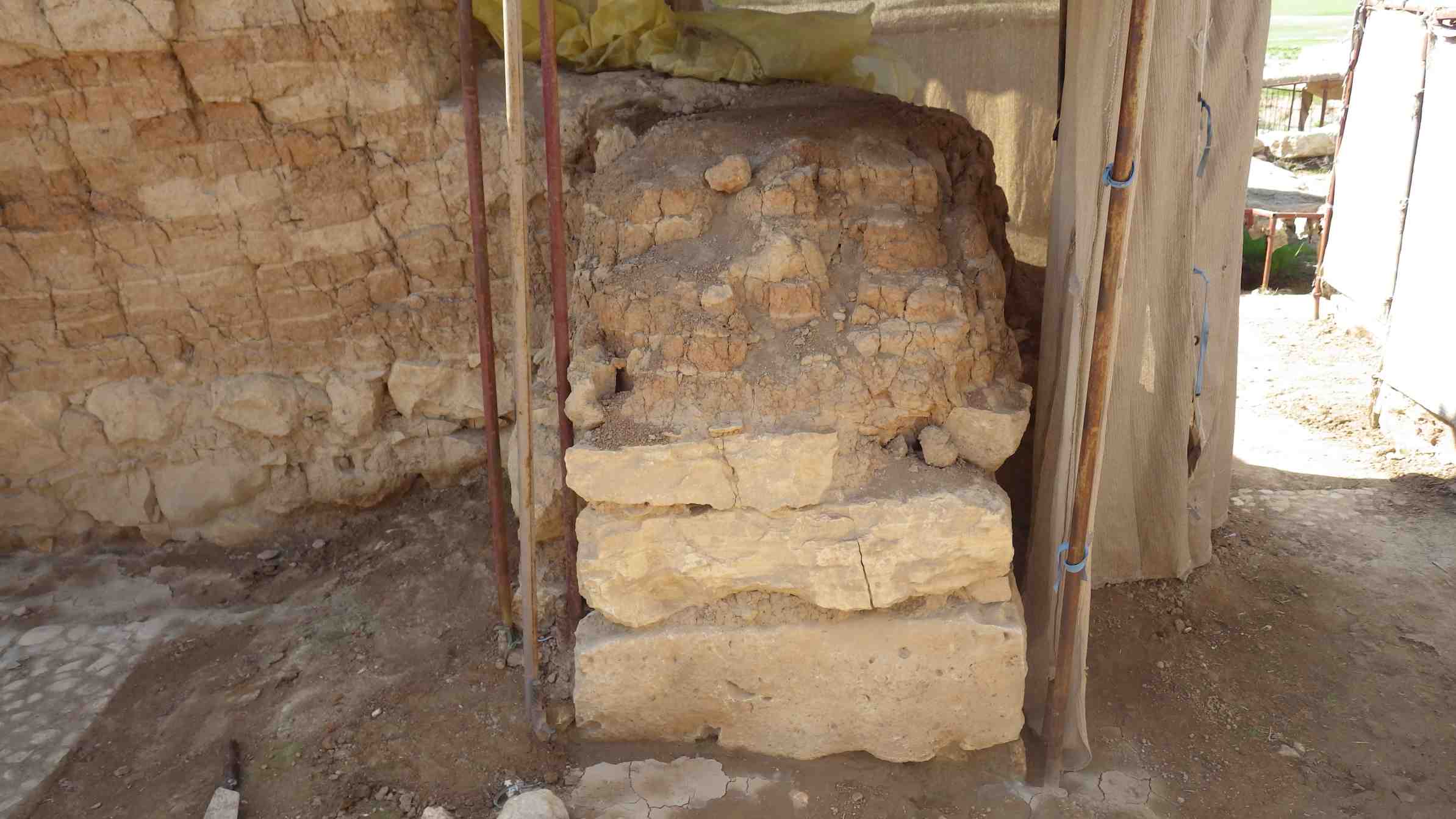

| MZ 23g 2017 2017-8-12 I. Khellu V30x0417 AP^wfD1-D2s |
|
There appear to be some losses in the top rows of mud bricks especially the left side. Other than that, the wall is in a good condition. (January 2017, Y. Mahmoud) |

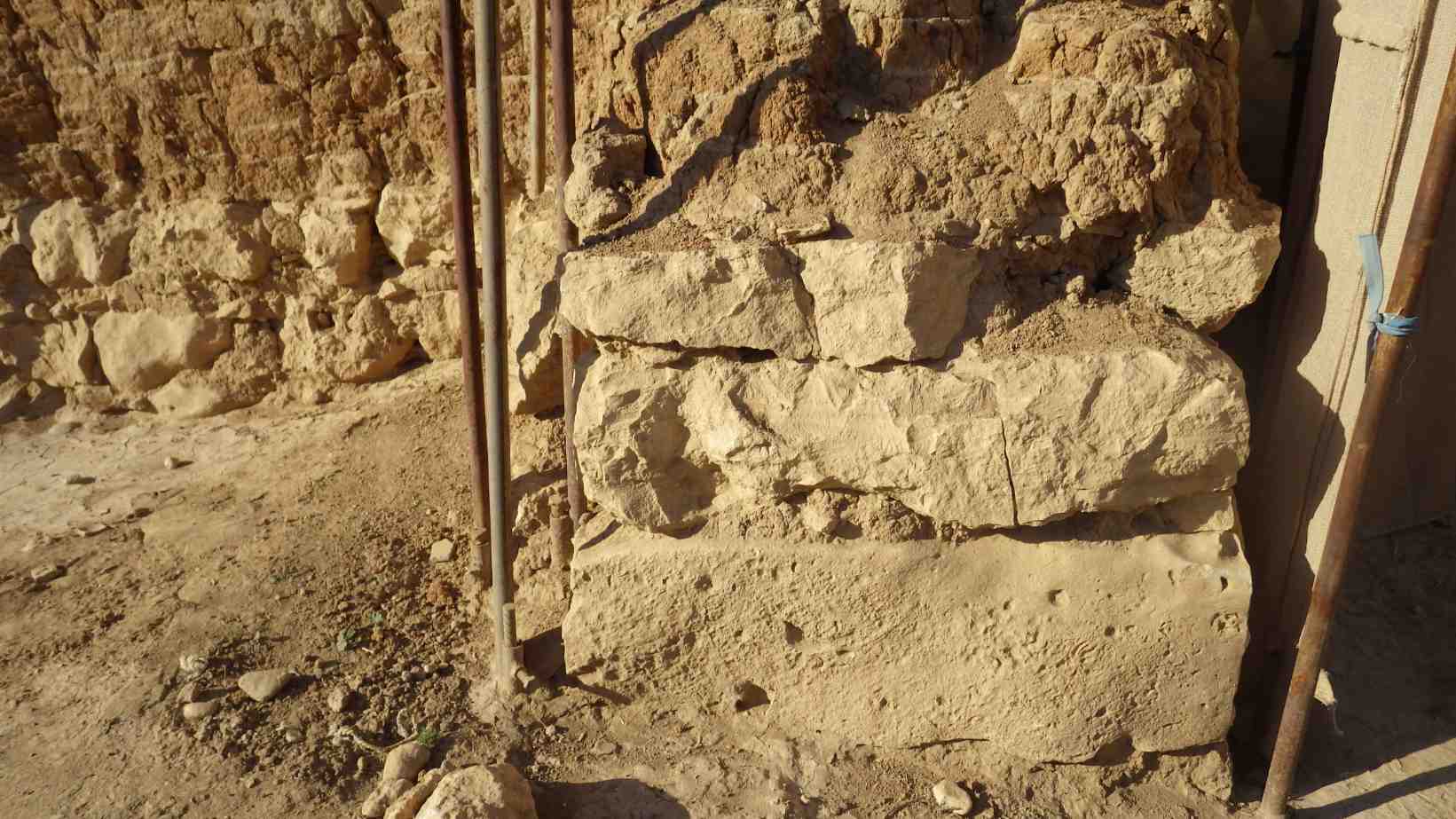

| MZ 23h 2018 2018-6-02 I. Khellu V31x0417 AP^wfD1-D2s |
|
The wall is in a good condition; however, the mudbrick layer seems very friable and not defined. (February 2018, Y. Mahmoud) |

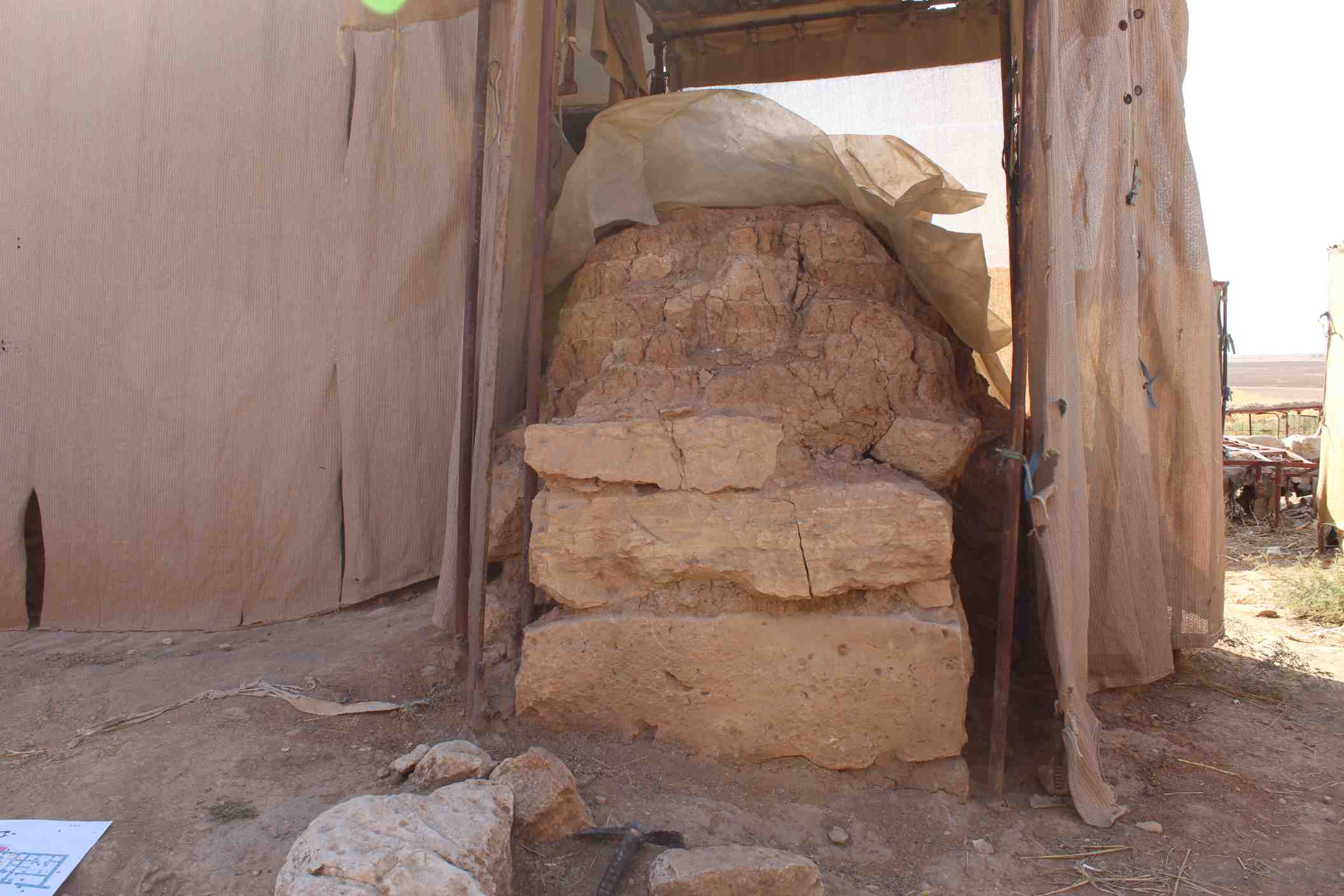

| MZ 23i 2019 2019-2-20 I. Khellu V32x0417 AP^wfD1-D2s |
|
The wall is frail and dry from the top part, in addition to slight cracks, the stones are in good shape, except the crack in the middle one. (2019, A. Ahmad) |

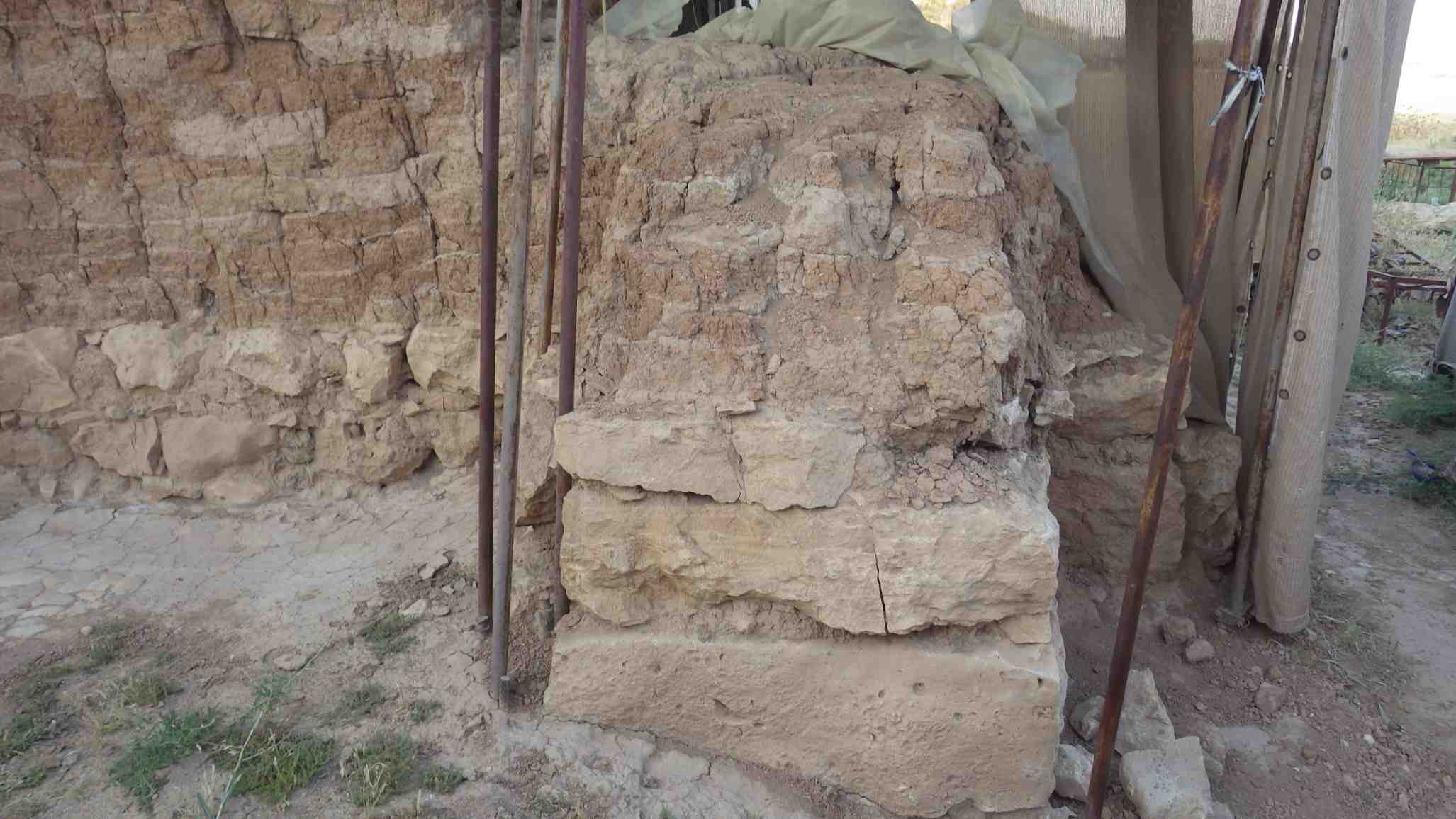

| MZ 23j 2020 2020-6-08 I. Khellu V33x0417 AP^wfD1-D2s |
|
The mud brick is more frail and drier than it was last year, with additional small cracks. The stones are in good shape, except the crack in the middle one. A small stone that was located on the top right part, is now lost. (May 2020, Y. Mahmoud) |

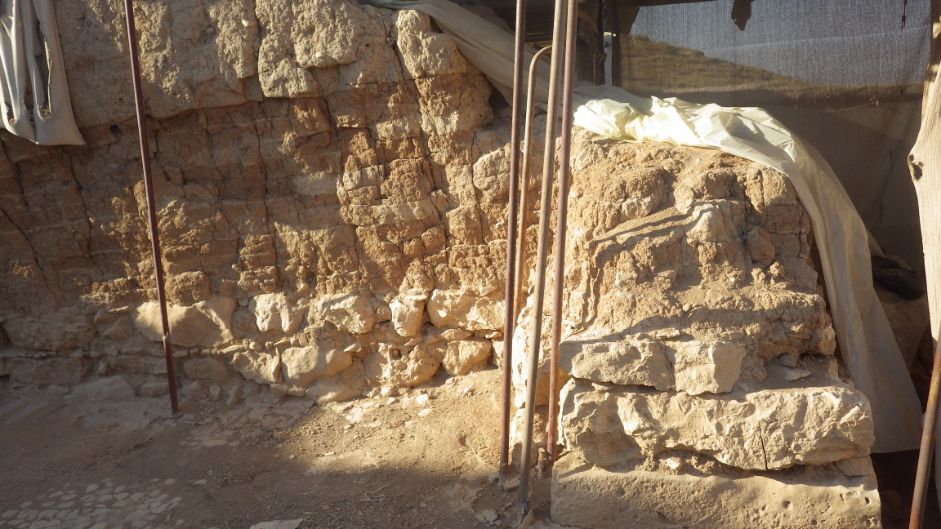

| MZ 23k 2021 2021-8-09 I. Khellu V34x0417 AP^wfD1-D2s |
|
The mud-brick is frail and dry, in addition to slight cracks, the wall eroded in the right side of the mud-brick part and lost parts of the mud-brick. The stones are in good shape, with no visible changes in the stone part in comparison with last year. (March 2021, A. Ahmad) |
| MZ 23l 2022 2022-8-11 I. Khellu V35x0417 AP^wfD1-D2s |
 |
