Drawing (date, author) (Pictures, dates and authors missing) |

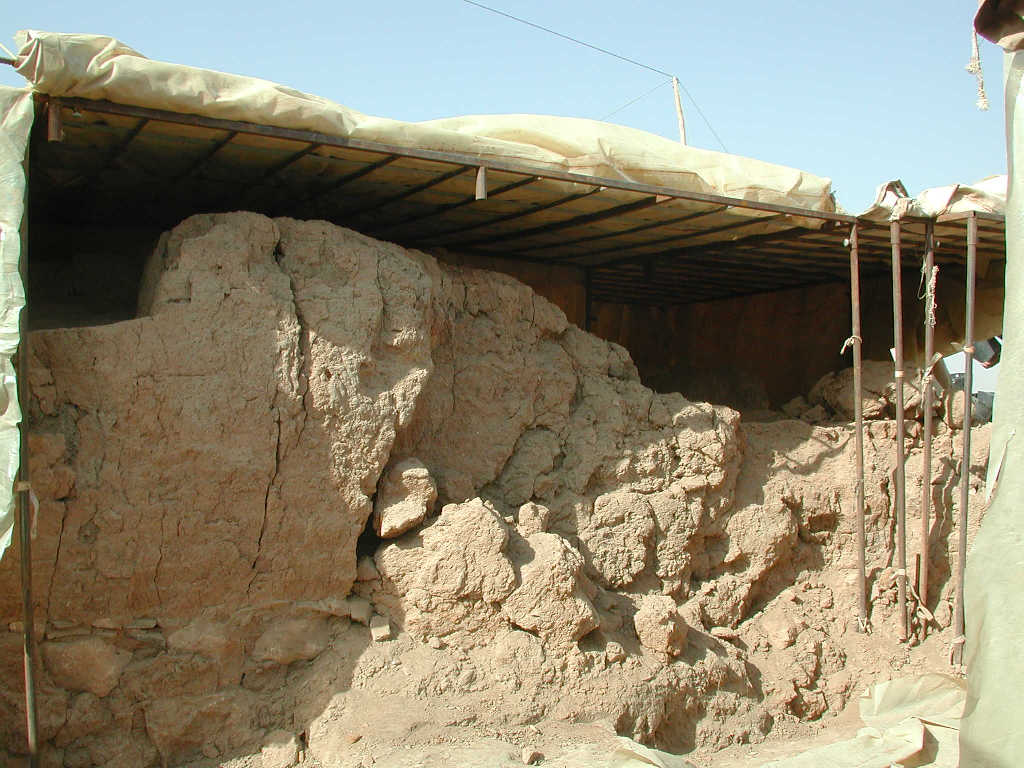

| MZ 14 2001 2001-9-10 S. Bonetti V14x0308 X09v33 |
|
MZ 15 2002 |
missing | MZ 16 2003 |

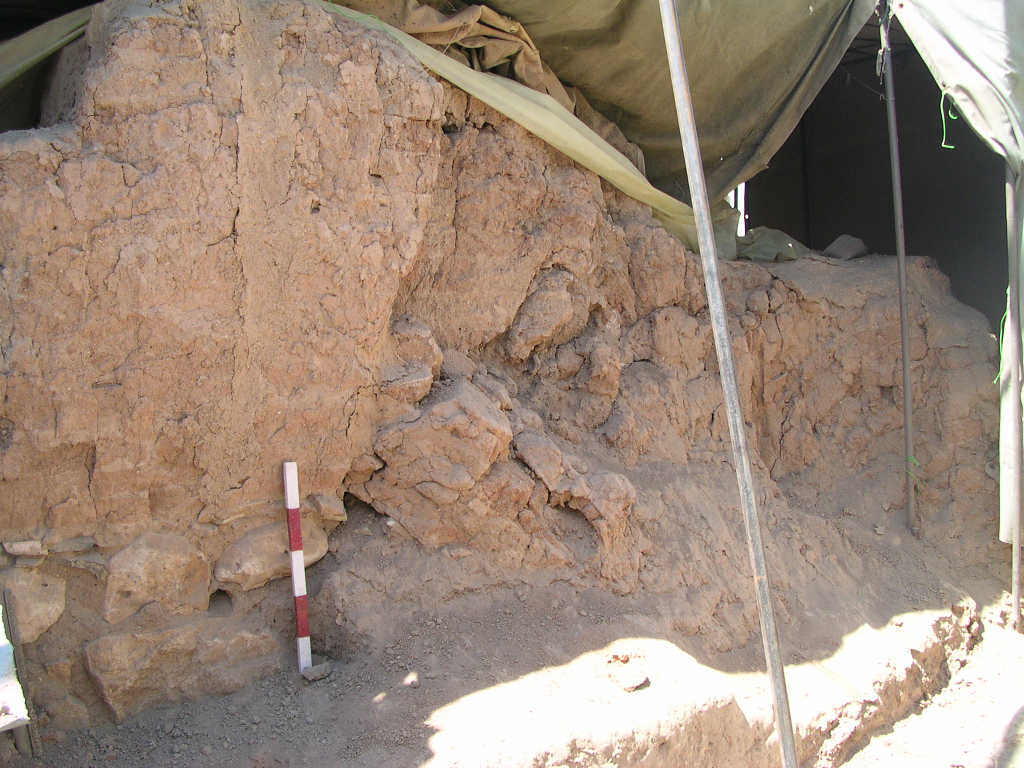

missing | MZ 17 2004 2004-8-06 B. Mariani V17x0308 X09v33 |
|

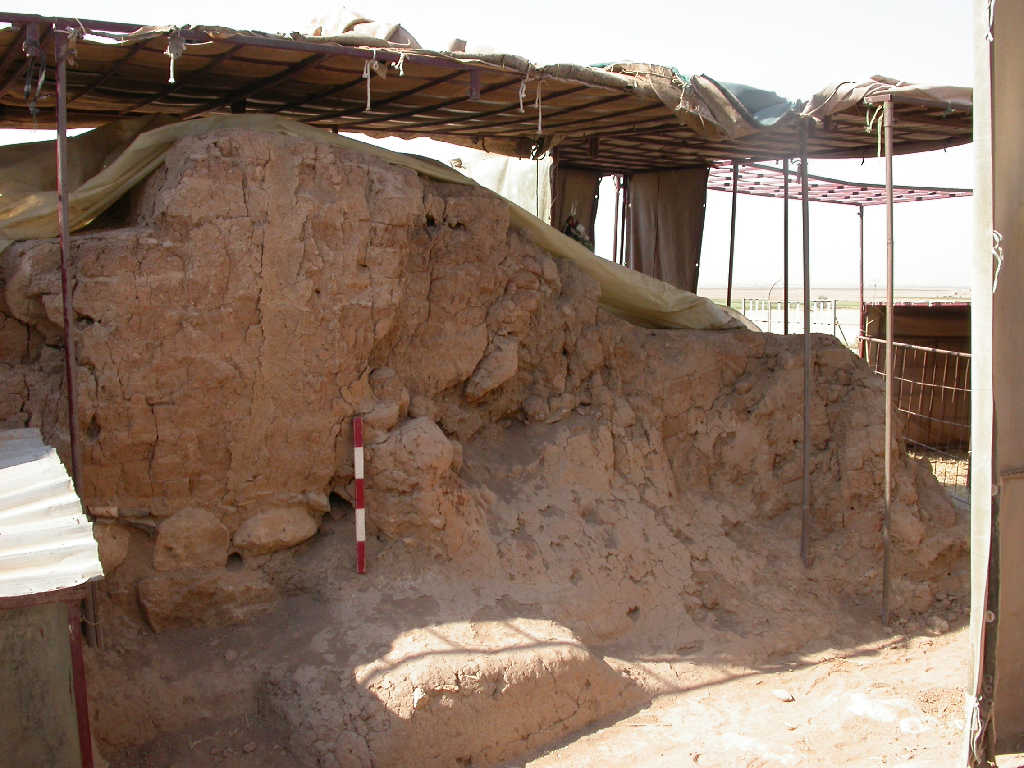

MZ 18 2005 2005-9-13 G. Gallacci V18x0308 X09v33 |
|

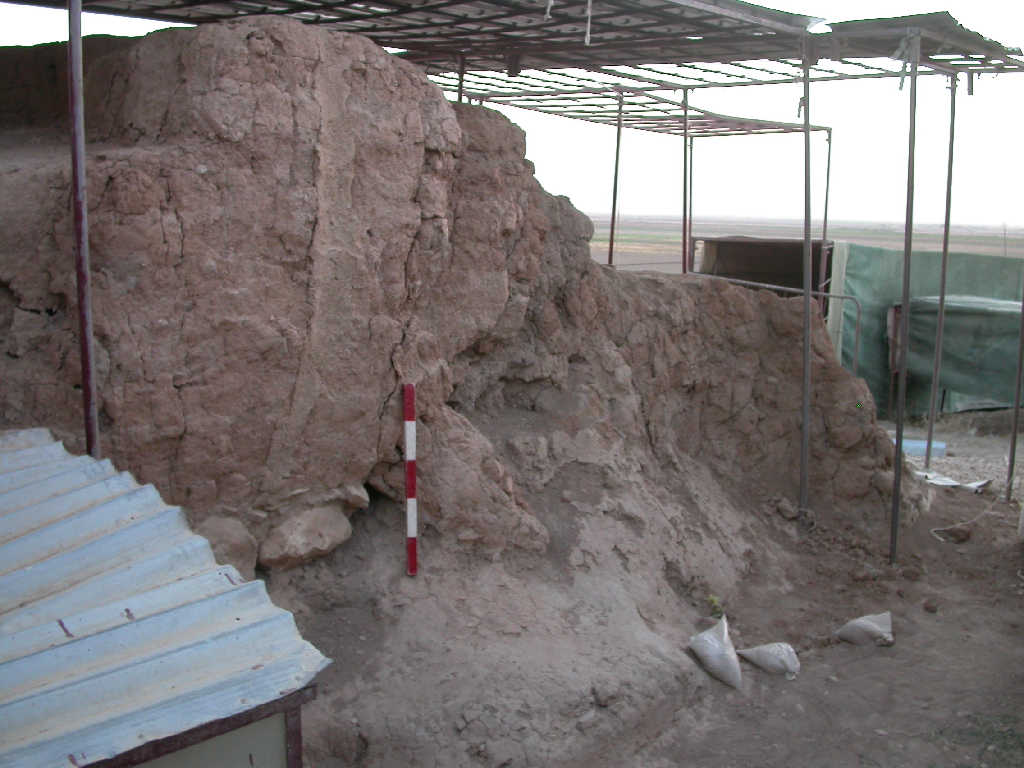

MZ 19 2006 2006-9-05 B. Landini & M. Lorenzon V19x0308 X09v33 |
|

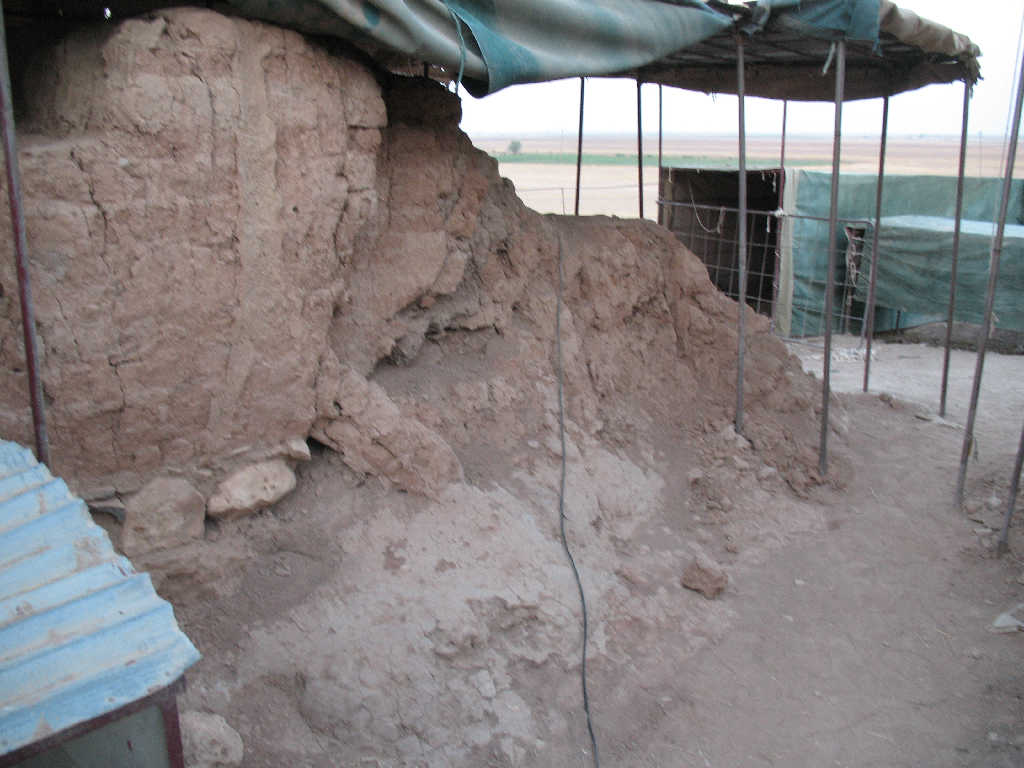

| MZ 20 2007 2007-8-06 B. Landini & M. Lorenzon V20x0325 X09v33 |
|
|

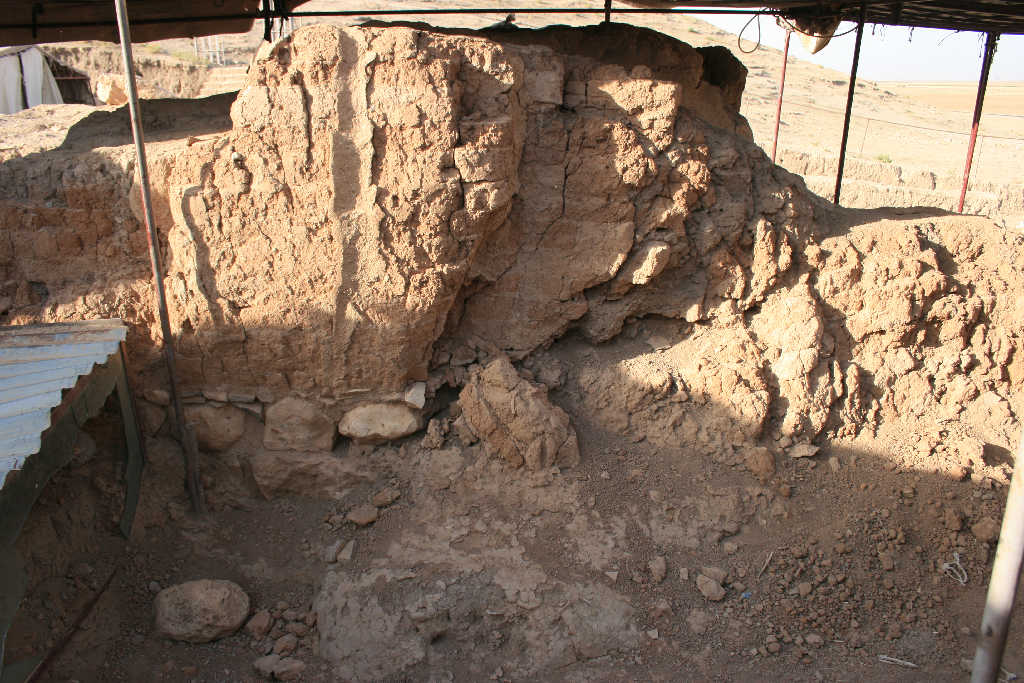

| MZ 21 2008 2008-7-21 C. Liuzza V21x0325 X09v33 |
|

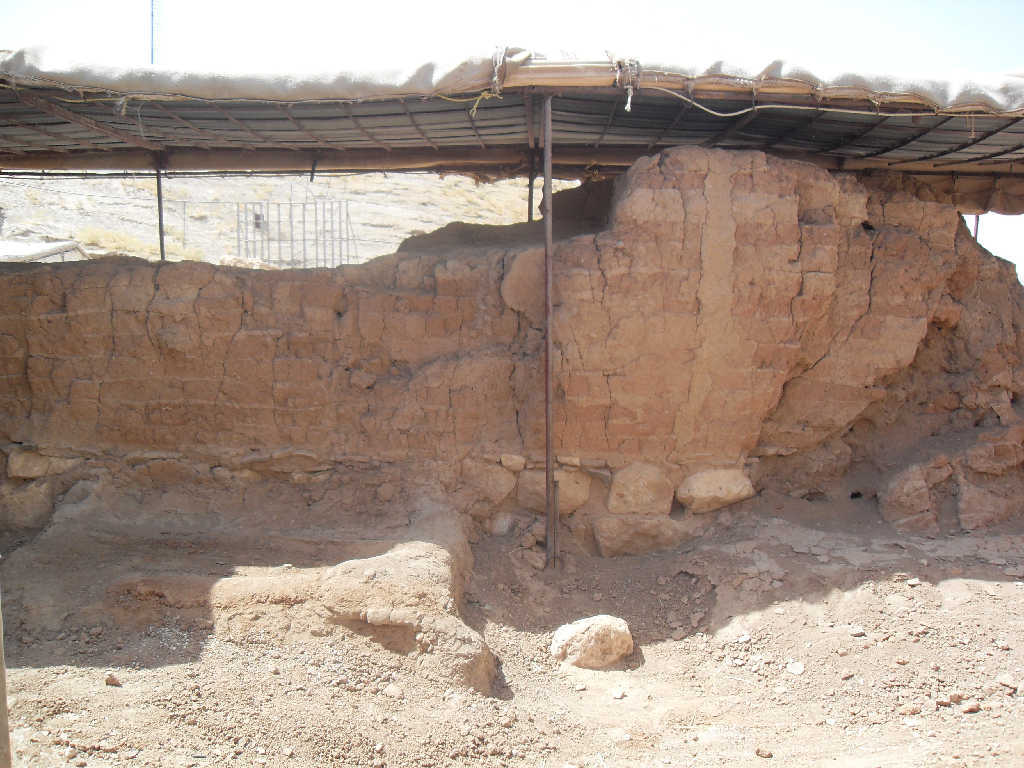

MZ 22 2009 2009-7-26 G. al-Hassan V22x0326 Z11v33a |
|
| MZ 23 2010 2010-8-23 M. Stangalini V23x0319 AP^wf C2-3 |
|
This wall was severely damaged when excavated, and has suffered major losses since that time. The right portion has largely been lost, large cracks have formed, and the surface is generally crumbling and loose. This wall will likely continue to lose major portions, as the previous losses have left many sections undercut and unstable. The bin remains unprotected, and is seriously eroded: along the drip line of the covering, and along all the edges (August 2010, E. Drolet) |

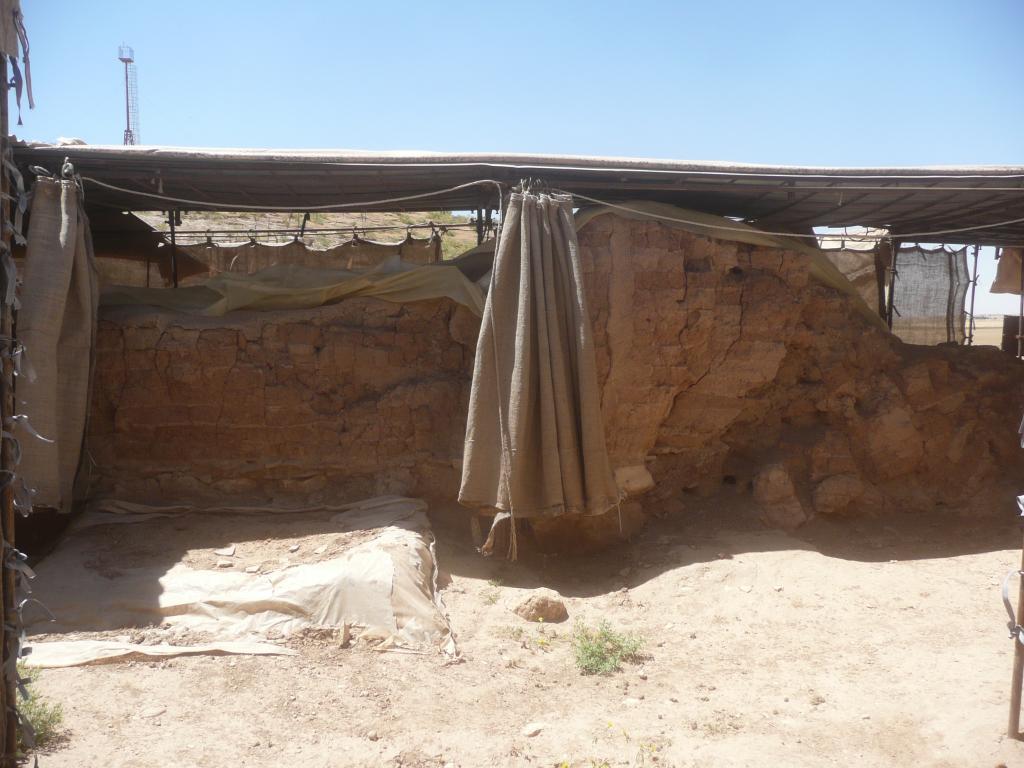

| MZ 23a 2011 2011-6-10 D. Mustapha V24x0319 AP^wfC2-3 |
|
|

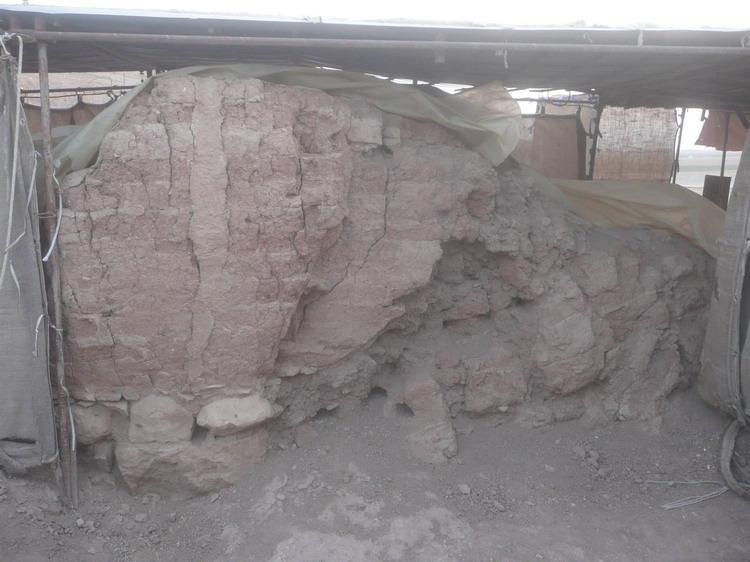

| MZ 23b 2012 2012-9-25 D. Mustapha V25x0319 AP^wfC2-3 |
|
|

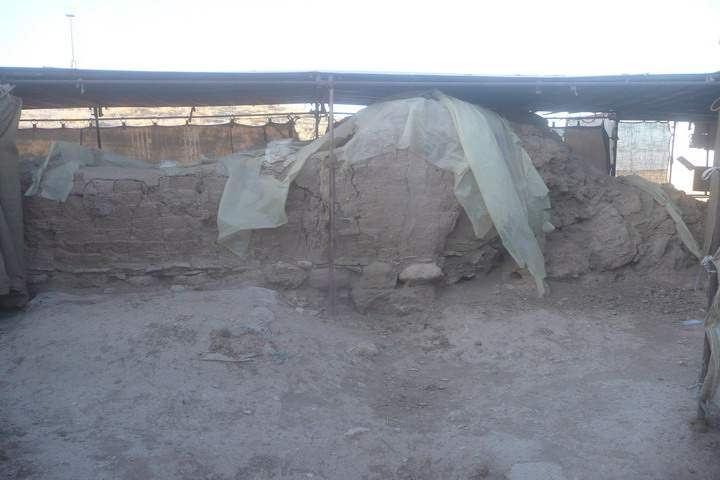

| MZ 23c 2013 2013-8-03 D. Mustapha V26x0319 AP^wfC2-3 |
|
|
| MZ 23d 2014 |
missing | |

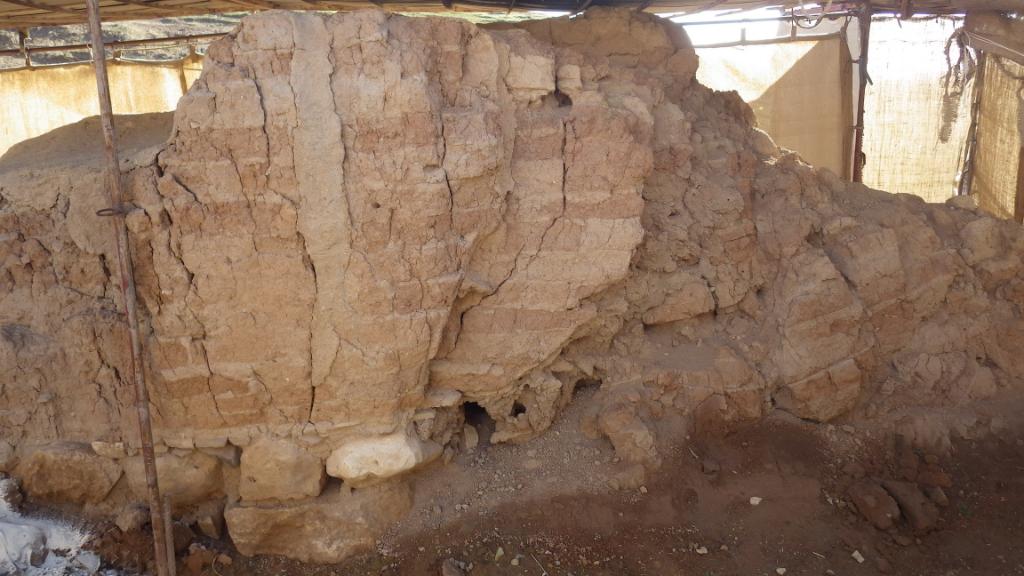

| MZ 23e 2015 2015-1-16 D. Mustapha V28x0319 AP^wfC2-3 |
|
|

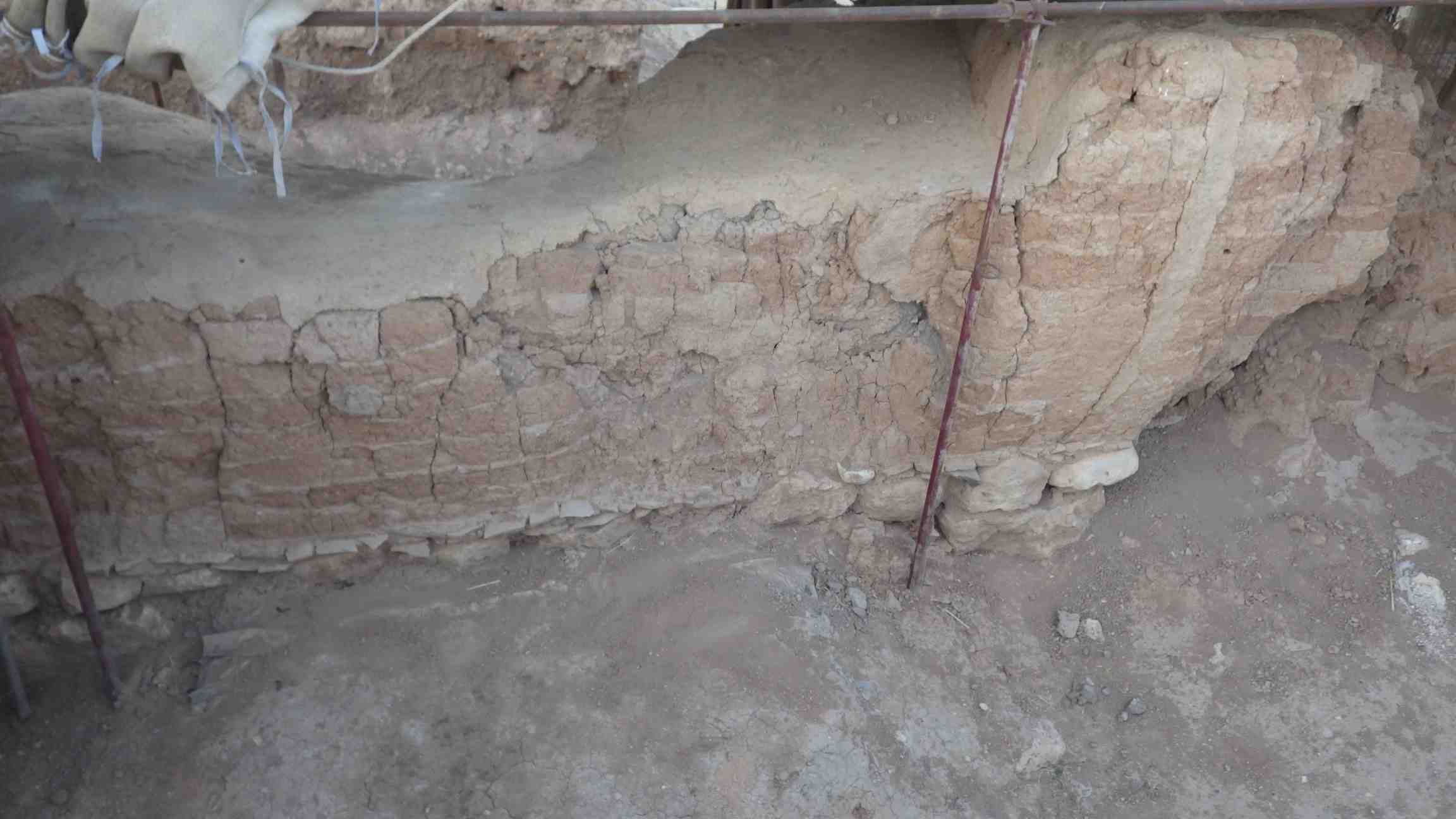

| MZ 23f 2016 2016-7-17 I. Khellu V29x0319 AP^wfC2-3 |
|
The wall is still in a good condition (considering its previous state). And although the right side of the wall is eroded, no further erosions happened in the past year. Crack's condition is still the same. (2016 ,Y. Mahmoud) |
| MZ 23g 2017 2017-3-20 I. Khellu V30x0319 AP^wfC2-3 |
|
The wall still in a good condition (considering its previous state). And although the right side of the wall is eroded, no further erosions happened in the past year. Crack's condition is still the same. (January 2017, Y. Mahmoud) |

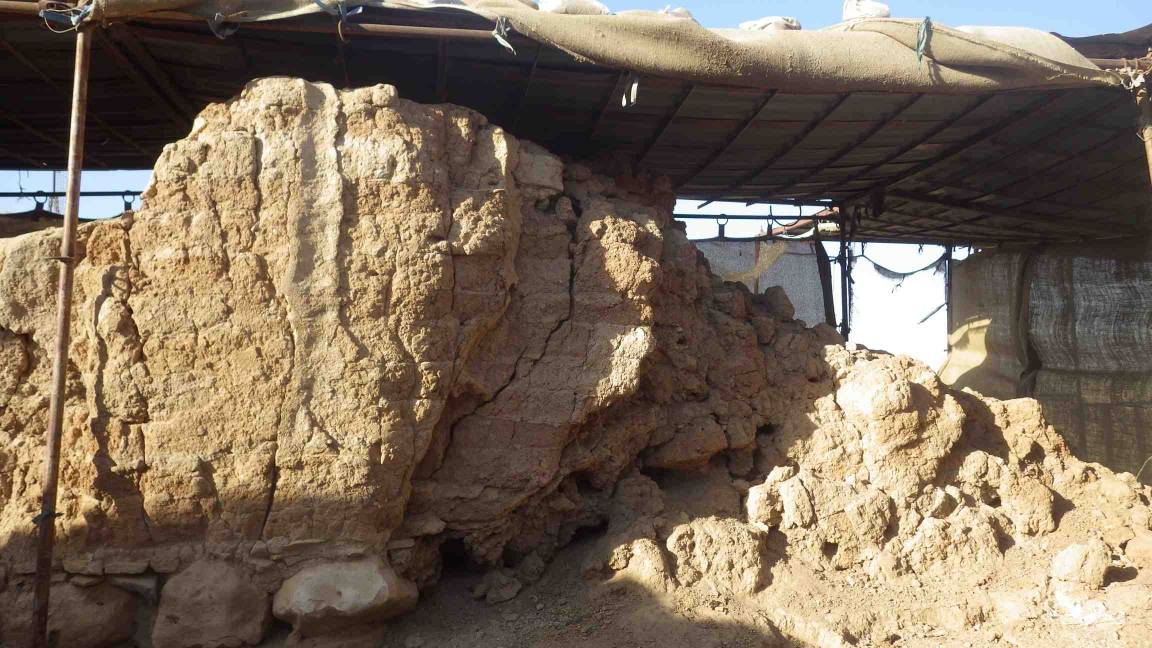

| MZ 23h 2018 2018-6-19 I. Khellu V31x0319 AP^wfC2-3 |
|
The wall is still in a good condition (considering its previous state). And although the right side of the wall is eroded, no further erosions happened in the past year. However, the eroded part appears to be drier. Crack's condition is still the same. (February 2018, Y. Mahmoud) |

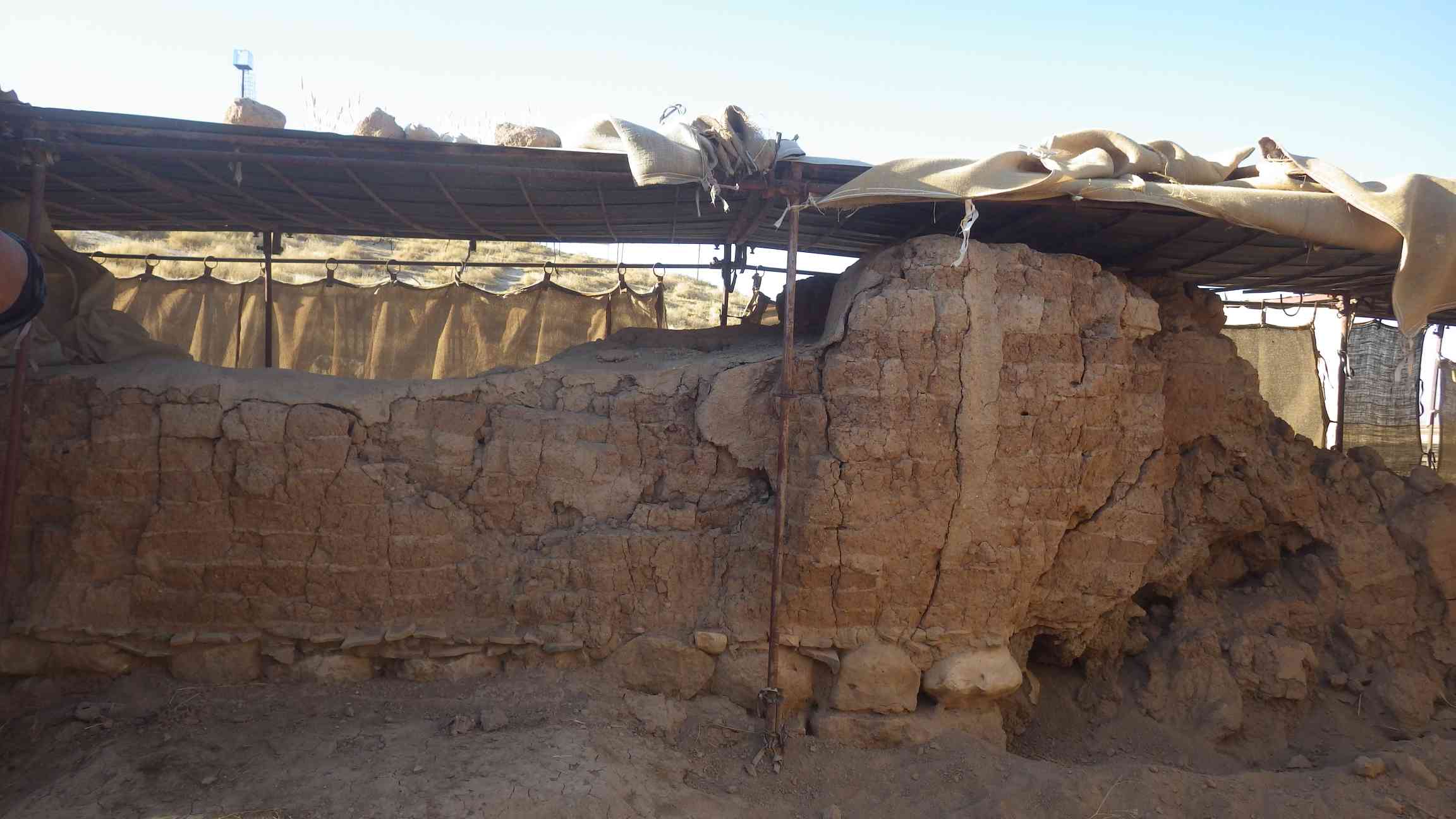

| MZ 23i 2019 2019-2-12 I. Khellu V32x0319 AP^wfC2-3 |
|
The wall has eroded and is very fragile on the right side. As for the rest of the wall there are cracks but most of mud bricks and the stones are still stable. (2019, A. Ahmad) |
| MZ 23j 2020 2020-6-14 I. Khellu V33x0319 AP^wfC2-3 |
|
The right side has completely eroded, which compromises the remaining section especially the parts closest to the eroded ones because of the way the erosion happened (diagonally). As for the rest of the wall there are cracks but most of mud bricks and the stones are still stable. (May 2020, Y. Mahmoud) |
| MZ 23k 2021 2021-8-08 I. Khellu V34x0319 AP^wfC2-3 |
|
The right side has completely eroded, which compromises the remaining section, especially the parts closest to the eroded ones because of the way the erosion happened (diagonally). As for the rest of the wall, there are cracks but most of the mud bricks and the stones are still stable. No visible changes in the stone part. (March 2021, A. Ahmad) |

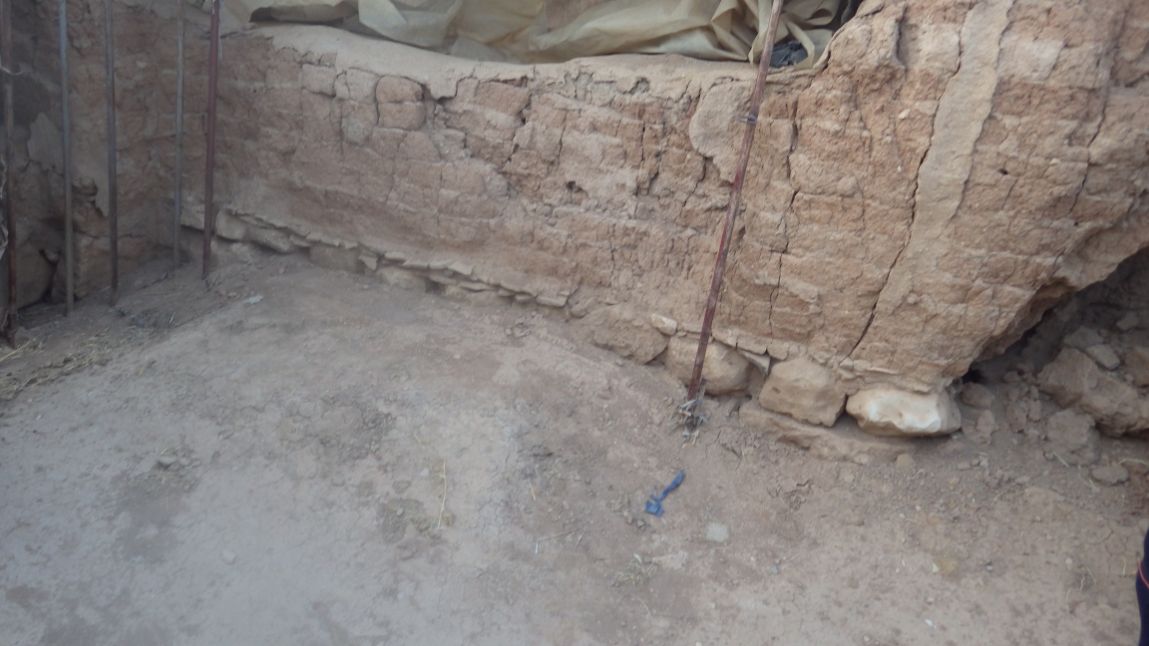

| MZ 23l 2022 2022-8-18 I. Khellu V35x0319 AP^wfC2-3 |
|
