Unit Book B7

B7f2

Processed on 2025-11-27

1. OVERVIEW

Roster Date Author Record
Category !! !! installation
Best definition 2010-09-13 pC wall [Input: U913PC.J]
Best image 2010-09-12 !!
v1 [Input: U928PC.J]

2. IDENTIFICATION

Designation

Roster Date Author Record
Definition 2010-09-27 pC wall [Input: U912PC1.J]
Description (summary) 2010-09-27 pC Stone wall running east-west starting in k101 and continuing in k200. It is 250 cm wide and 1 to 3 stones high. The western portion turns for ca. 20 cm toward south and then continues to the west. It is damaged in the central exposed portion, while some stones are missing. It is built on top of bricks f10 and is partly covered by pavement f9. The stones undressed and are irregular in form and dimentions. The stones componets were carefully choosed for building this wall, while they have almost flat sides. To the south the wall shows a face, almost flat. Here is clearly visible that it is built on top of bricks f10. [Input: U912PC1.J]

3. STRATIGRAPHY

Volumetric Localization

Roster Date Author Record
Locus 2010-09-13 pC k100 [Input: U913PC.J]
Relays (applicable to elements) 2010-09-18 pC r4 (42674 51753 - 9633 / Relay location: top) [Input: U918PC-R.J]
2010-09-18 pC r5 (42603 52025 - 9635 / Relay location: top) [Input: U918PC-R.J]
2010-09-18 pC r6 (42459 51992 - 9617 / Relay location: top) [Input: U918PC-R.J]
2010-09-18 pC r7 (42484 51705 - 9621 / Relay location: top) [Input: U918PC-R.J]
M#/elev @top 2010-09-13 pC m1818 [Input: U913PC.J]

Contact Association

Roster Date Author Record
Type of contact: latest events 2010-09-15 pC f13 (accumulation D) abuts f2 (wall) [Input: U912PC1.J]
2010-09-14 pC f6 (topsoil) covers f2 (wall) [Input: U912PC1.J]
2010-09-14 pC f8 (collapse) covers f2 (wall) [Input: U912PC1.J]
2010-09-15 pC f9 (pavement, type c) caps f2 (wall) [Input: U912PC1.J]
Type of contact: earliest events 2010-09-27 pC f2 (wall) overlays f10 (glacis) [Input: U912PC1.J]
2010-09-27 pC f2 (wall) overlays f20 (glacis) [Input: U912PC1.J]

Deposition

Roster Date Author Record
Notes on deposition 2010-09-27 pC wall f2 is built on top of f10. It could be contemporary or later than f10. I think that comes after f1 and f10: 1) The orientation is slightly different than f1. 2) It is built on top of f10 3) If it is a path it leads south of the temple BA and it should bend toward north. [Input: U912PC1.J]

6. REFERENCE

Analogical Record

Roster Date Author Record
View/drawing of features

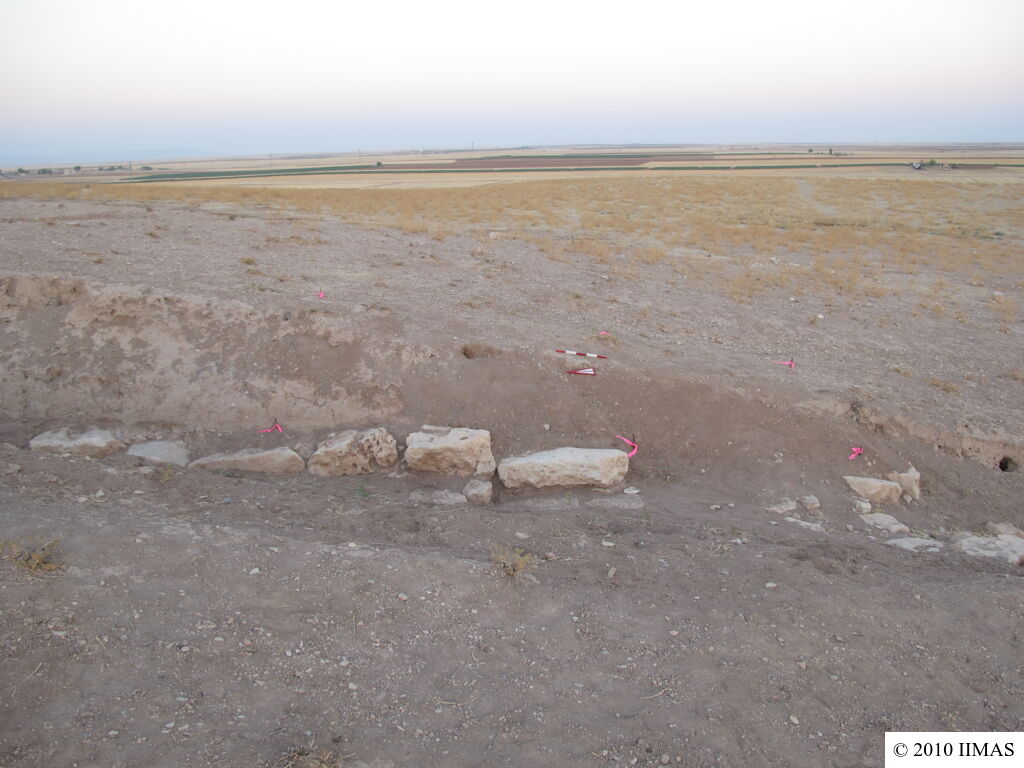

v1
2010-09-12 pC [Input: U928PC.J]

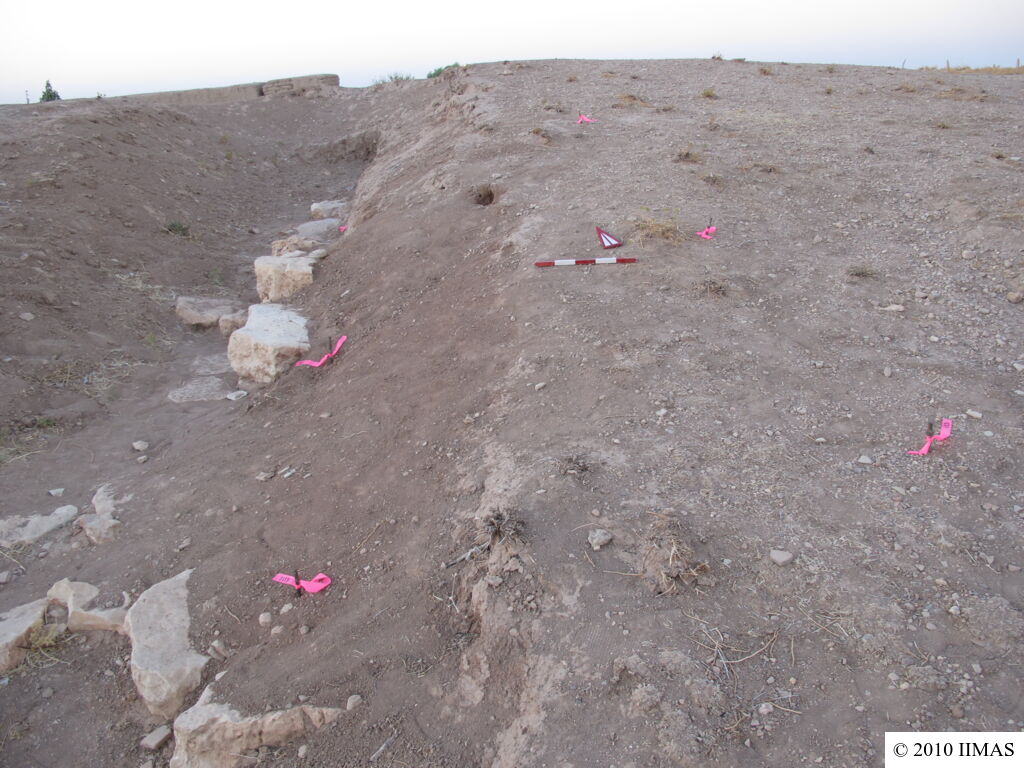

v2
2010-09-12 pC [Input: U928PC.J]

v5
2010-09-15 pC [Input: U928PC.J]

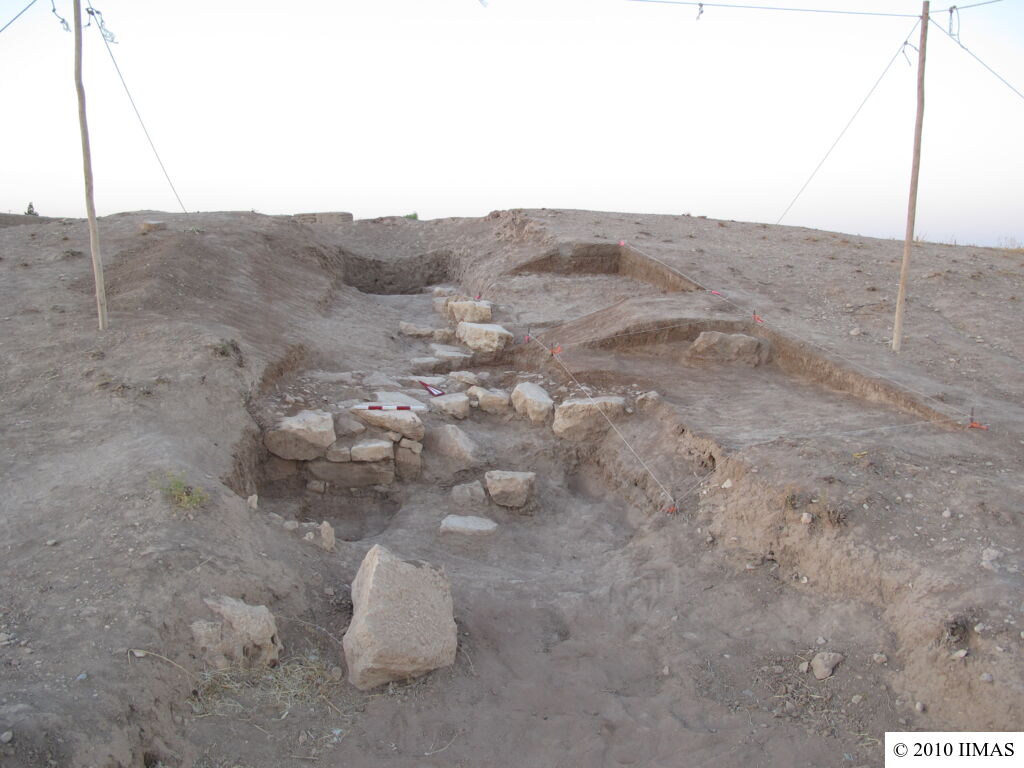

v6
2010-09-15 pC [Input: U928PC.J]

v7
2010-09-15 pC [Input: U928PC.J]

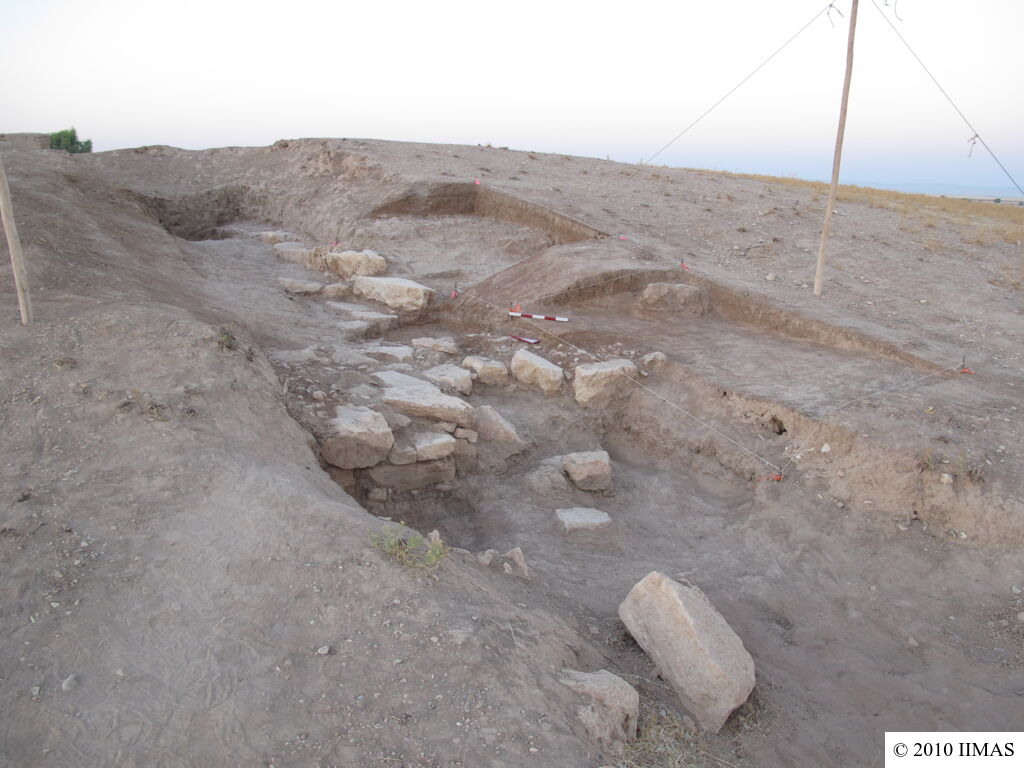

v8
2010-09-15 pC [Input: U928PC.J]

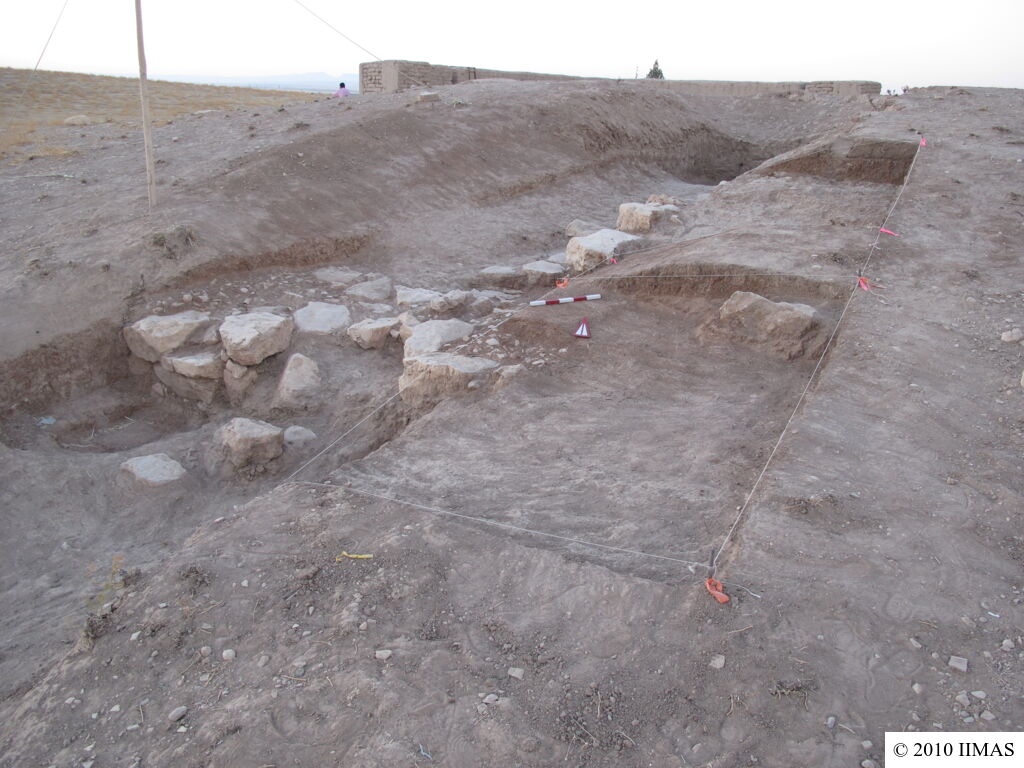

v9
2010-09-15 pC [Input: U928PC.J]

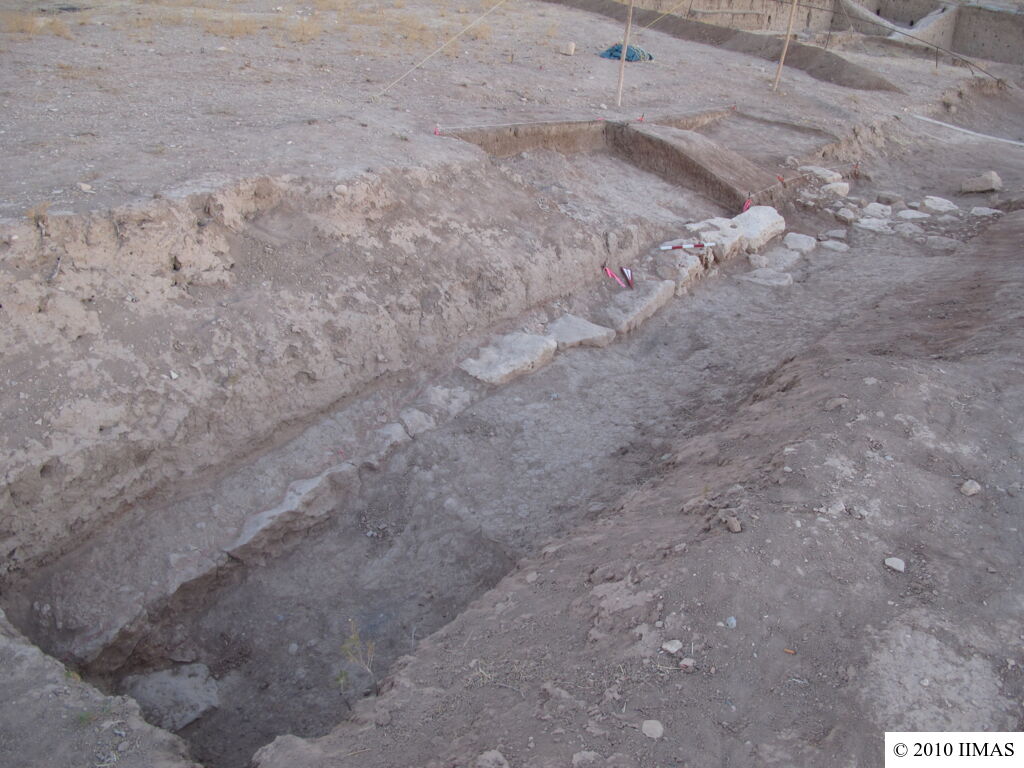

v10
2010-09-15 pC [Input: U928PC.J]

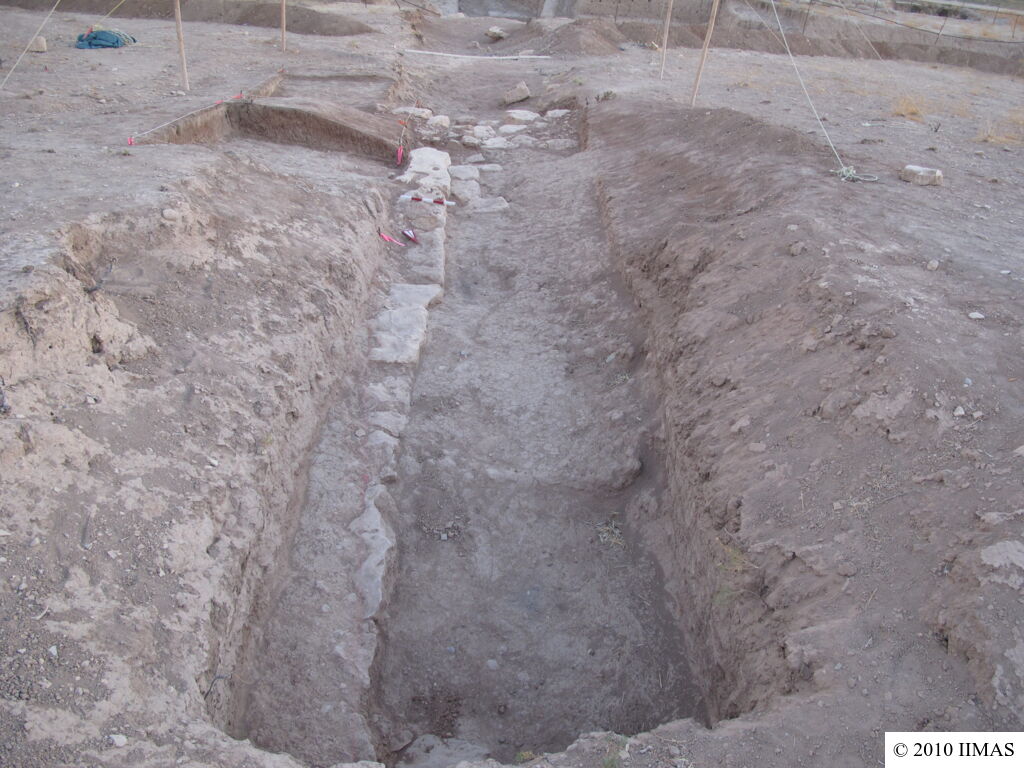

v10a
2010-09-15 pC [Input: U928PC.J]

v10b
2010-09-15 pC [Input: U928PC.J]

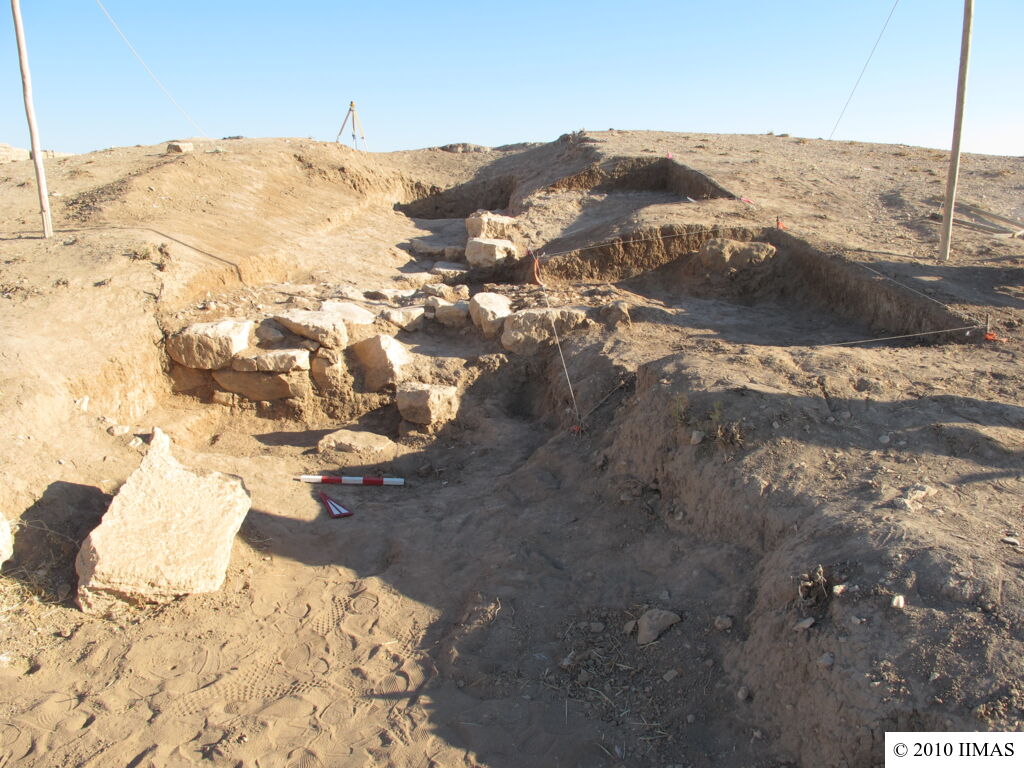

v11
2010-09-16 pC [Input: U928PC.J]

v12
2010-09-18 pC [Input: U928PC.J]

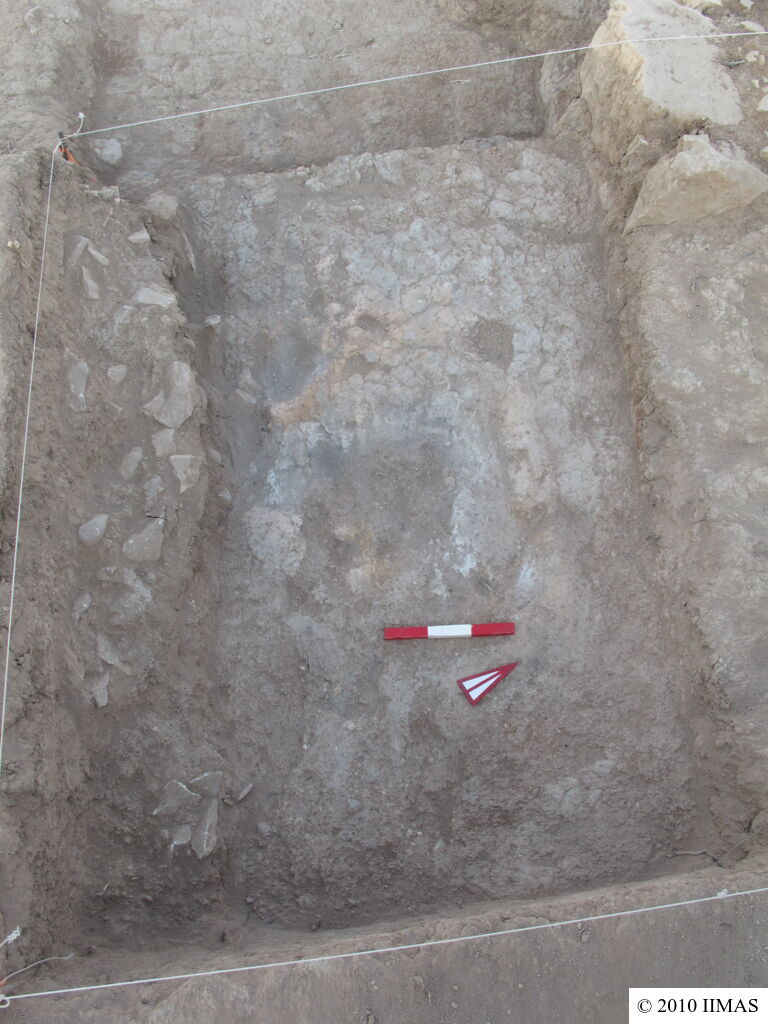

v12a
2010-09-18 pC [Input: U928PC.J]

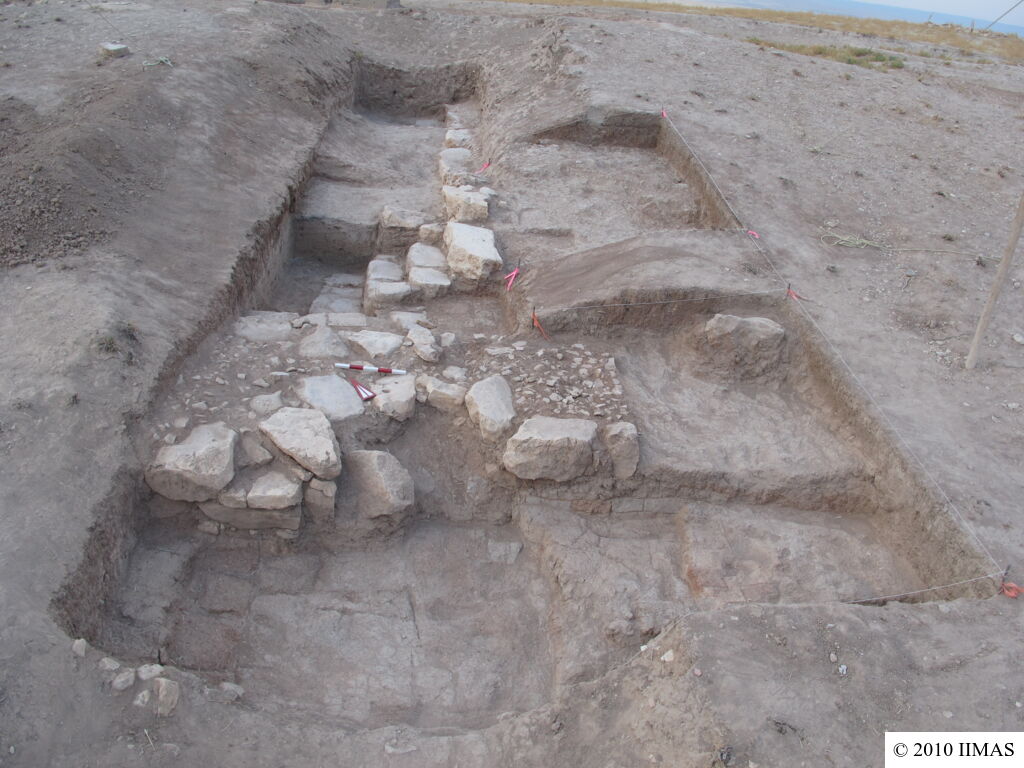

v13
2010-09-18 pC [Input: U928PC.J]

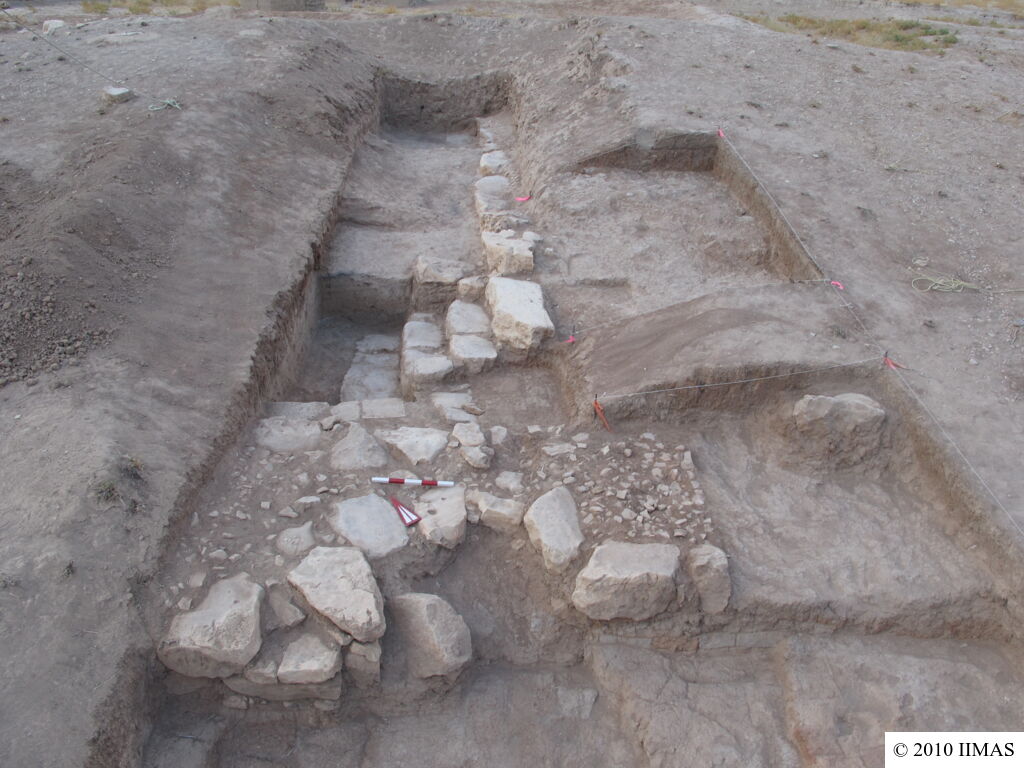

v13a
2010-09-18 pC [Input: U928PC.J]

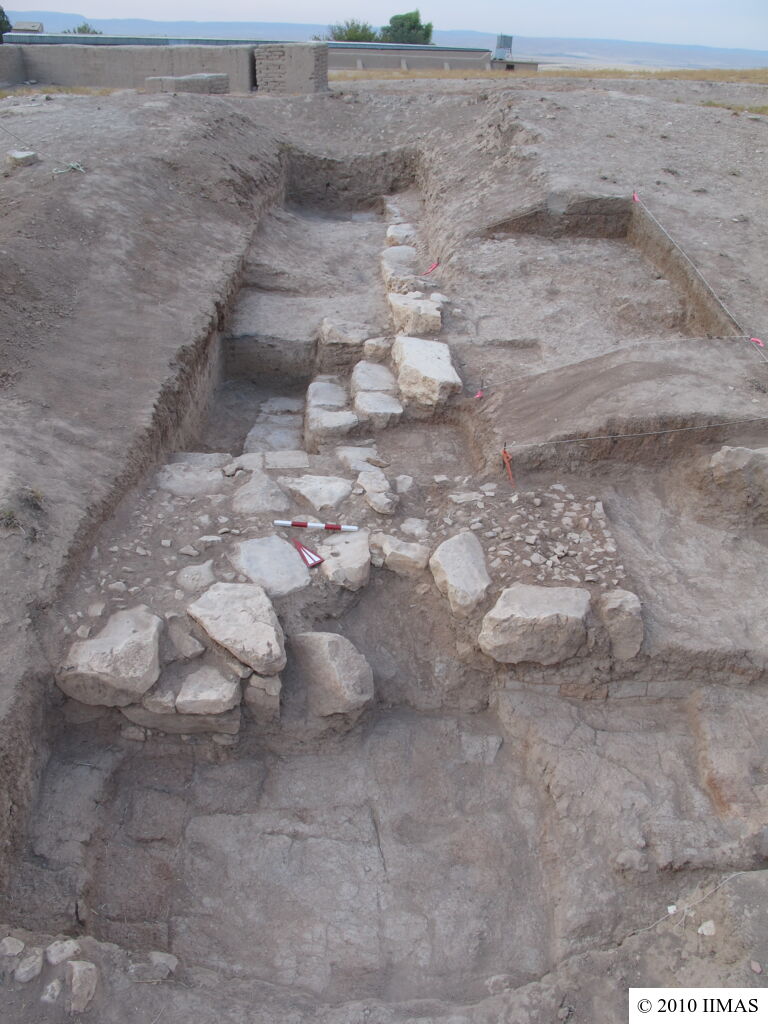

v13b
2010-09-18 pC [Input: U928PC.J]

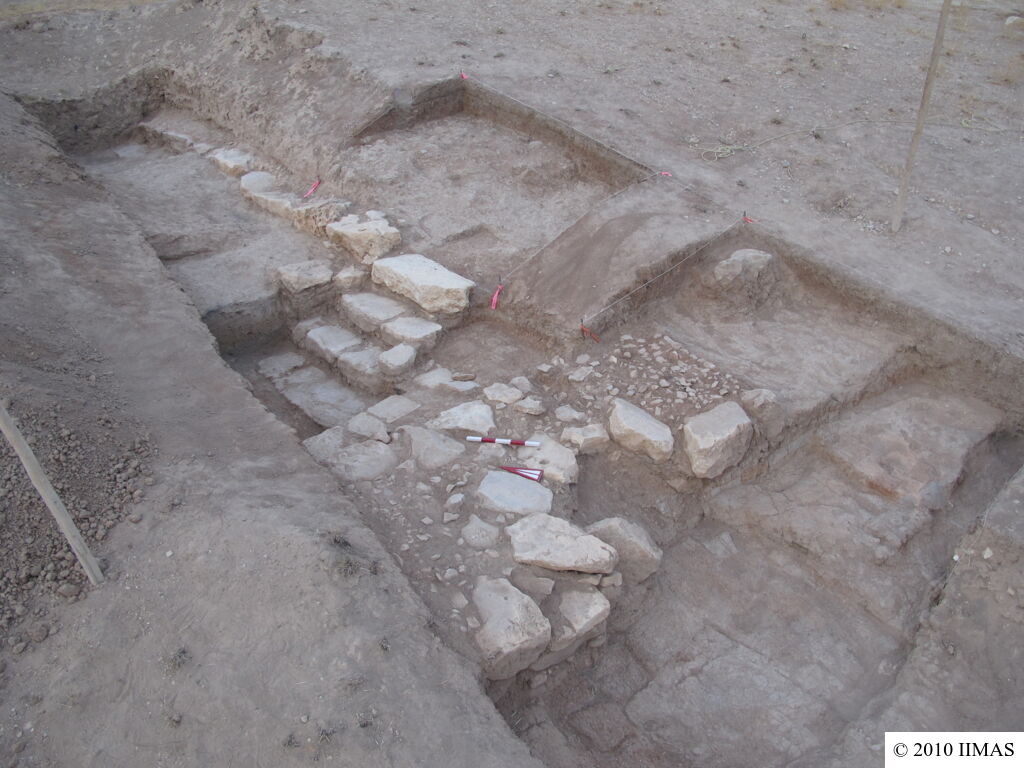

v14
2010-09-18 pC [Input: U928PC.J]

v15
2010-09-18 pC [Input: U928PC.J]

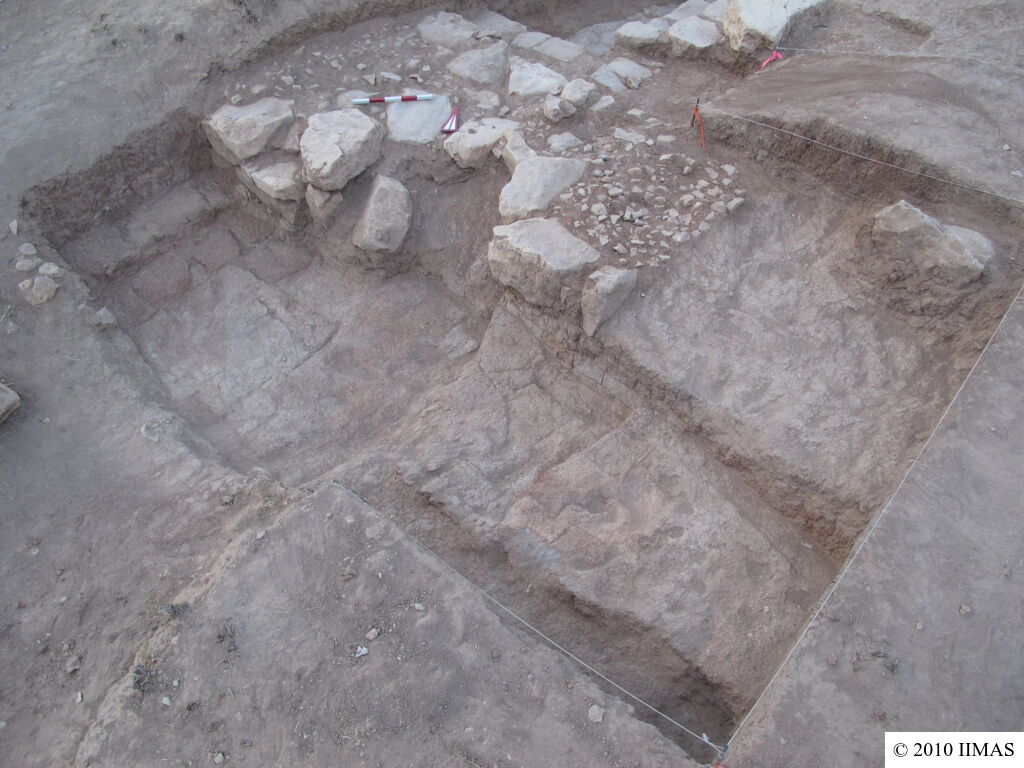

v15a
2010-09-18 pC [Input: U928PC.J]

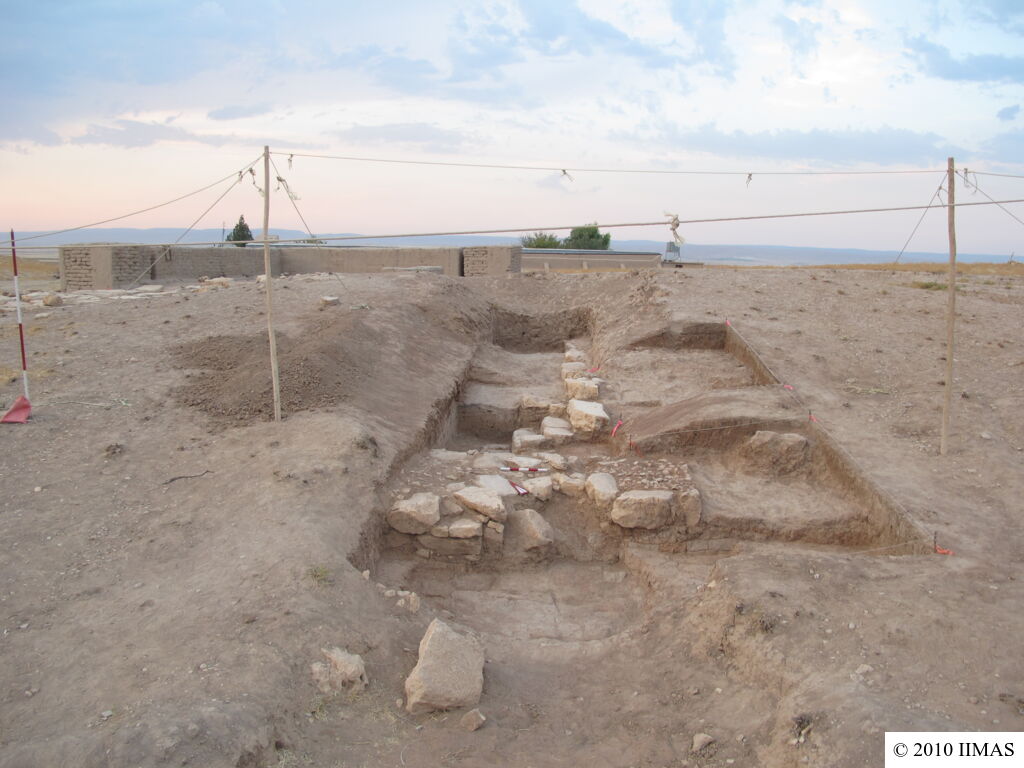

v16
2010-09-18 pC [Input: U928PC.J]

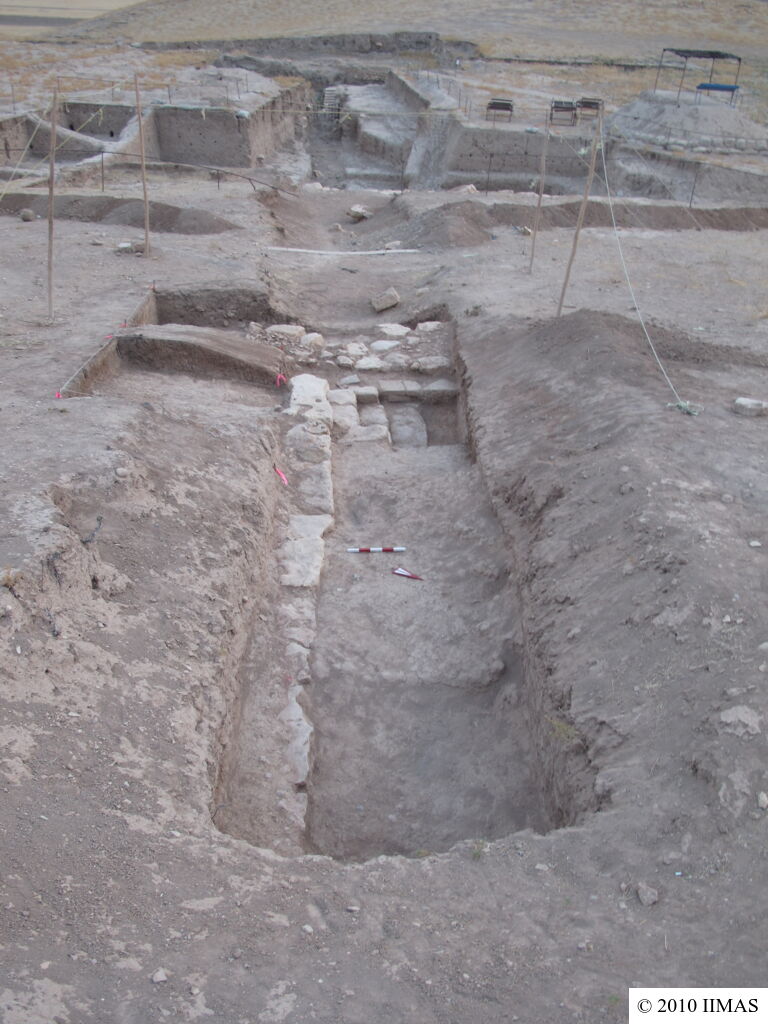

v17
2010-09-18 pC [Input: U928PC.J]
