Unit Book J5

The Mittani Staircase - Version 1a

J5f16

Processed on 2024-11-03

1. OVERVIEW
2. IDENTIFICATION
- Designation
3. STRATIGRAPHY
4. TYPOLOGY
- Morphology
6. REFERENCE
- Analogical Record
- Disposition

Back to top: J5f16

1. OVERVIEW

Roster	Date	Author	Record
Included in other label	2011-06-10	jW	a702 (accumulation D) [Input: V610JW.j]
Included in other label	2022-08-21	jW	a16 (conflation of layers) [Input: ZG821jW1.j]
Category	!!	!!	buildup
Best definition	2008-07-16	mO	accumulation D [Input: S914LH.j]
Summary	2012-12-16	jW	Natural accumulation in k23 under accumulation f9 atop accumulation f30 and abutting f23. [Input: WZ16JW.j]

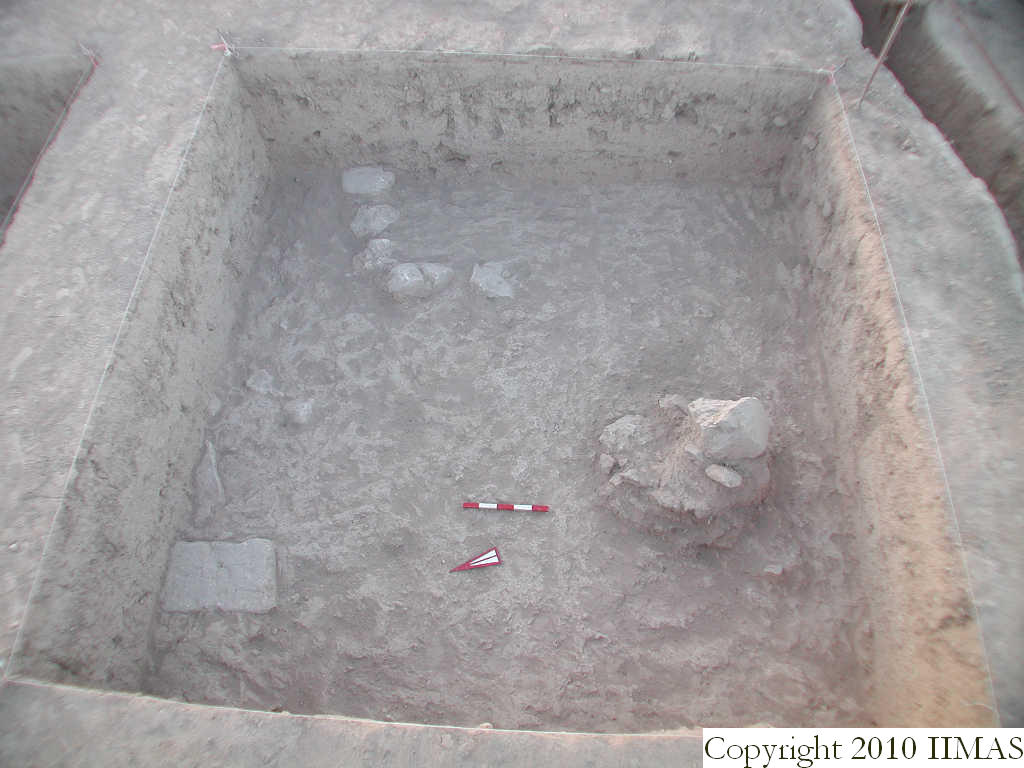

Best image	2008-09-22	lH	v11 [Input: S922LH.j]

Back to top: J5f16

2. IDENTIFICATION

Designation

Roster	Date	Author	Record
Description (summary)	2008-07-16	lH	soft powdry soil accumulated naturally, with pale brown color in k23. It looks like f13 in k24. [Input: S716LH1.j]
Description (summary)	2008-07-18	lH	Natural accumulation with pale brown color and compact clay texture(hd 3), with two lines of stones among it, f19 running from the northeast toward the southwest, and f20 running along the north baulk in k23. [Input: S718LH.j]

Back to top: J5f16

3. STRATIGRAPHY

Volumetric Localization

Roster	Date	Author	Record
Locus	2008-07-16	mO	k23 [Input: S914LH.j]
Relays (applicable to elements)	2008-07-16	mO	r100 (##### ##### - ##### / Relay location: NW corner) [Input: S716DL.R]
	2008-07-16	mO	r101 (##### ##### - ##### / Relay location: NE corner) [Input: S716DL.R]
	2008-07-16	mO	r102 (##### ##### - ##### / Relay location: SE corner) [Input: S716DL.R]
	2008-07-16	mO	r103 (##### ##### - ##### / Relay location: SW corner) [Input: S716DL.R]
	2008-07-17	dl	r108 (##### ##### - ##### / Relay location: NE corner) [Input: S719MO3.R]
	2008-07-17	dl	r109 (##### ##### - ##### / Relay location: SE corner) [Input: S719MO3.R]
	2008-07-17	dl	r110 (##### ##### - ##### / Relay location: SW corner) [Input: S719MO3.R]
Elevation	2010-08-17	jW	9145 @bottom (corrected) [Input: U817JW.j]
	2010-08-17	jW	9169 @top (corrected) [Input: U817JW.j]
	2010-08-19	mM1	9161 @top (corrected) 9145 @ bottom (corrected) [Input: U819MM1.j]
M#/elev @top	2008-07-16	mO	m4425 [Input: S914LH.j]
M#/elev @bottom	2008-07-16	mO	m4675 [Input: S914LH.j]
Notes on volumetric localization	2010-08-07	mM1	The measured bottom elevation (9169) exceeds the top (9145), which is impossible. The feature f9, which covers f16, has a bottom elevation of 9169. Therefore I conclude that the elevation of the top and the bottom are probably reversed. While the top should be 9169, the bottom should have a measurement of 9145. [Input: U807MM1.j]

Contact Association

Roster	Date	Author	Record
Type of contact: latest events	2008-07-27	lH	f9 (accumulation D) covers f16 (accumulation D) [Input: S727LH.j]
Type of contact: latest events	2008-07-27	lH	f22 (accumulation D) sits in f16 (accumulation D) [Input: S727LH.j]
Type of contact: contemporary events/movable items	2008-07-16	mO	q22 (pottery) sits in f16 (accumulation D) [Input: S716MO2.j]
Type of contact: earliest events	2008-07-27	lH	f16 (accumulation D) abuts f23 (accumulation D) [Input: S727LH.j]
	2008-07-27	lH	f16 (accumulation D) covers f19 (isolated stone) [Input: S727LH.j]
	2008-07-27	lH	f16 (accumulation D) covers f20 (stone installation) [Input: S727LH.j]
	2008-07-27	lH	f16 (accumulation D) covers f30 (accumulation D) [Input: S727LH.j]

Time Sequencing

Roster	Date	Author	Record
Stratum (to which element belongs)	2012-10-16	jW	s50^J5B [Input: WX16JW.j]
Phase (to which element belongs)	2012-10-16	!!	h9c^J5B [Input: WX16JW.j]

Back to top: J5f16

4. TYPOLOGY

Morphology

Roster	Date	Author	Record
Ware or Material, species	2008-07-16	mO	soil [Input: S914LH.j]
Color	2008-07-16	mO	pale brown [Input: S914LH.j]
Color number (Munsell)	2008-07-16	mO	10YR 6/3 [Input: S914LH.j]
Hardness, compaction	2008-07-16	mO	3 [Input: S914LH.j]
Texture, surface finish	2008-07-16	mO	medium soft clay [Input: S914LH.j]

Back to top: J5f16

6. REFERENCE

Analogical Record

Roster	Date	Author	Record

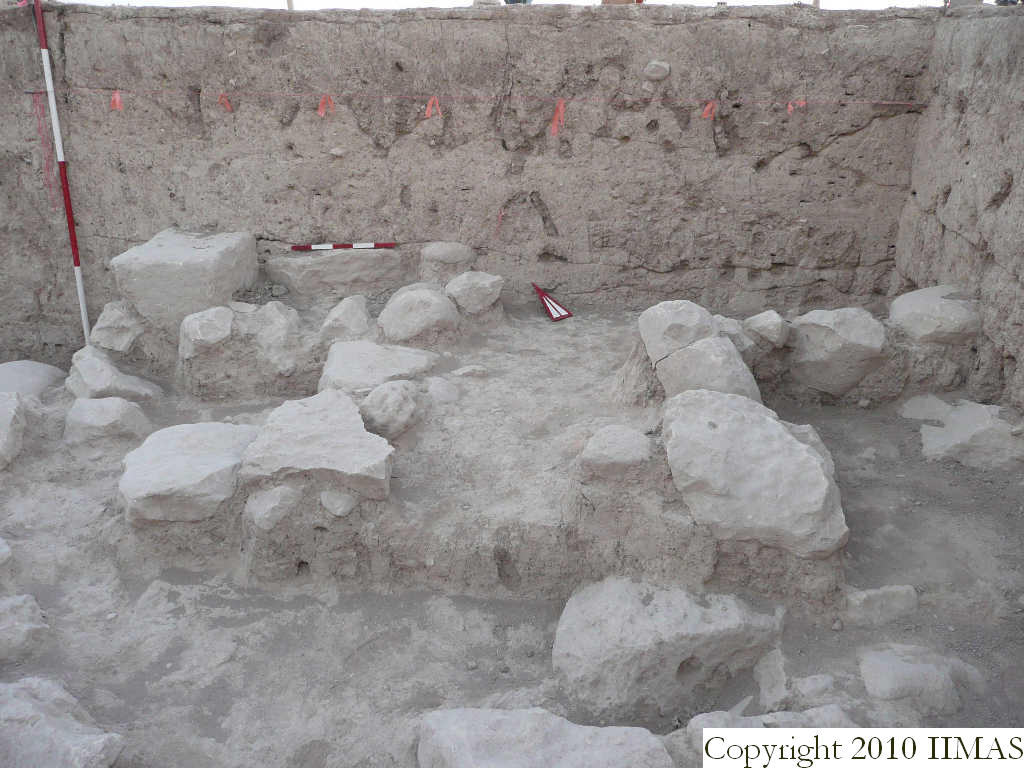

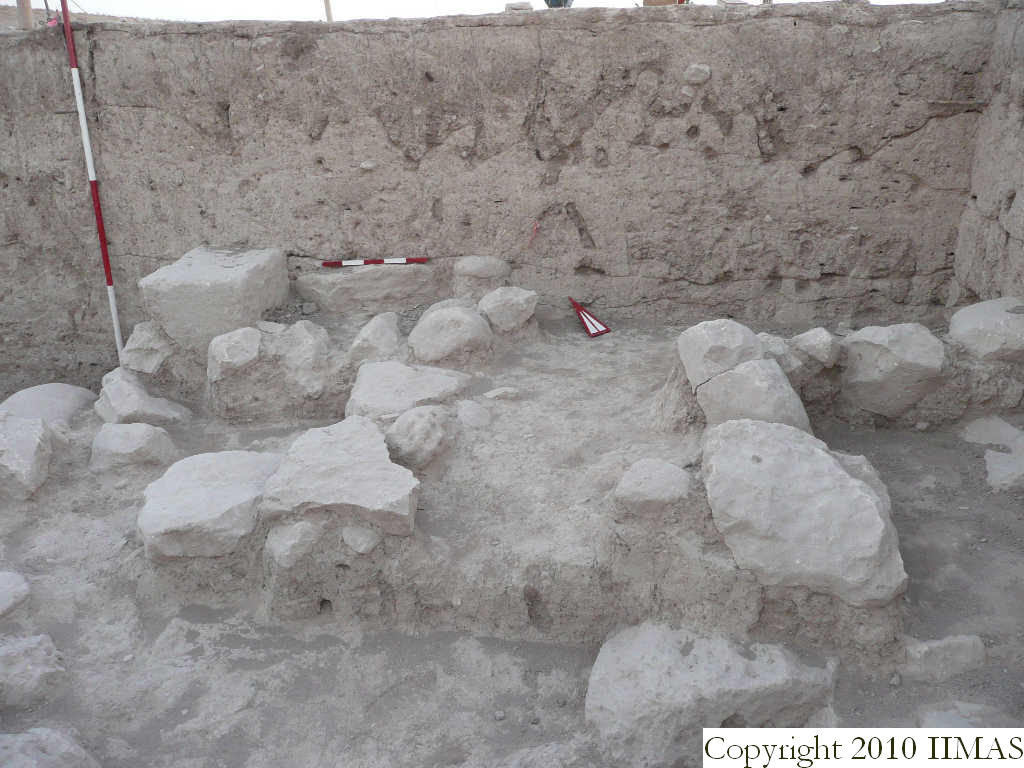

View/drawing of features	v11 2008-07-22 lH [Input: S722LH.j] v13 2008-07-22 lH [Input: S722LH.j] w11 2008-08-11 sNP [Input: S819DL2.j] w12 2008-08-11 sNP [Input: S819DL2.j] v76 2008-08-13 sNP [Input: S813DL4.j] v76a 2008-08-13 sNP [Input: S813DL4.j] v77 2008-08-13 sNP [Input: S813DL4.j] v77a 2008-08-13 sNP [Input: S813DL4.j]

Disposition

Roster	Date	Author	Record
Removed (feature), discarded/missing (item)	2008-07-16	mO	S717 [Input: S914LH.j]
