Unit Book J5

The Mittani Staircase - Version 1a

J5f265

Processed on 2024-11-03

1. OVERVIEW

Roster Date Author Record
Included in other label 2009-08-11 sE a711 (escarpment) [Input: T811SE1.j]
2009-09-17 jW a716 (stone installation) [Input: T917JW.j]
2022-08-21 jW a30 (stone installation) [Input: ZG821jW.j]
2022-09-22 jW a25 (escarpment) [Input: ZG822W.j]
Category !! !! installation
Best definition 2009-08-13 sE escarpment [Input: T901SE.j]
Summary 2012-12-16 jW Line of cut stones in k105 that abut the stones of f267 and that forms one of the ranks of stone escarpment ^esc1. [Input: WZ16JW.j]

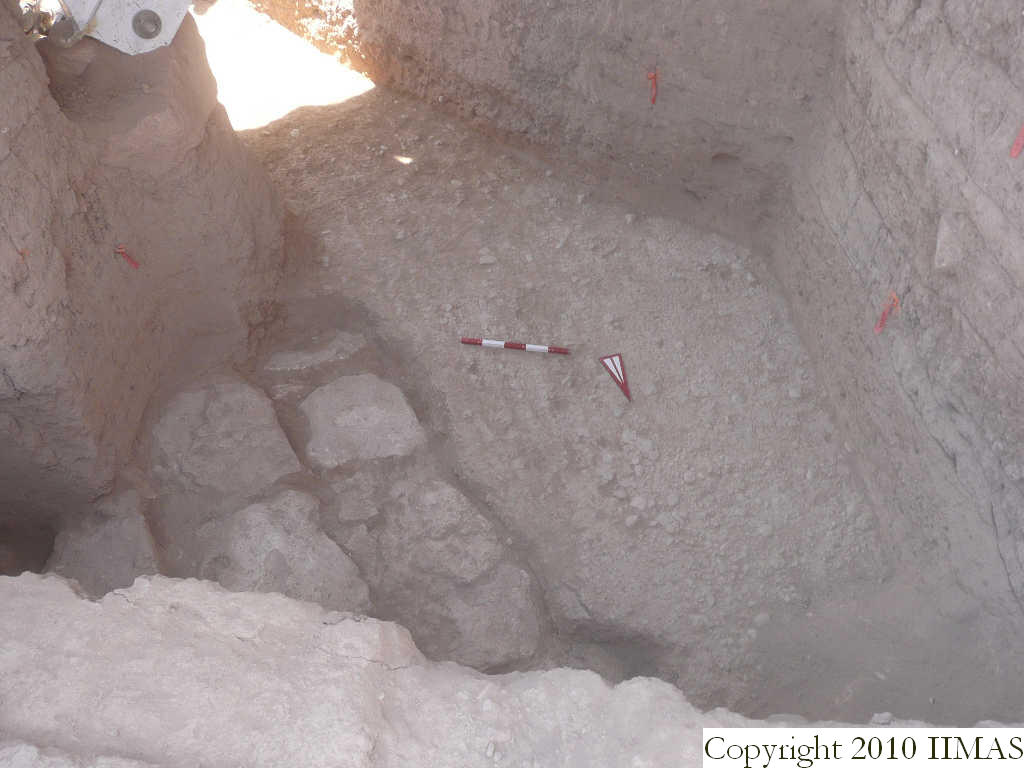

Best image 2009-08-23 jN
v204 [Input: T823JN.j]

2. IDENTIFICATION

Designation

Roster Date Author Record
Description (summary) 2009-08-15 jW Two large, flat stones in the middle east of k105, oriented northwest to southeast, approximatedly in line with the stones of stone escarpment, ^esc1. They are about 40cm to the northwest of the base of stone wall, f41, and separated from it by a layer of broken limestones, f267. [Input: T815JW.j]

3. STRATIGRAPHY

Recovery/Assignment

Roster Date Author Record
Daily notes about recovery of elements 2009-08-26 jW ACTION: We finished removing wall, f255, its foundation, f277, and the soil beneath down to the level of the stones of ^esc1, f265, and the pebble floor abutting it to the west, f288.
RESULT: It is clear that all of the large, cut stones that we exposed belong to f265 and that there is no pavement of these large stone extending to the west in the north corner of k105. [Input: T826JW.j]
Strategy (projected or implemented) 2009-08-24 jW PRPOPOSED ACTION: We must remove the remaining western part of wall, a11, namely f255 and f260 and excavate the accumulations underneath to the level of ^esc1.
PURPOSE: To determine what happens to the first escarpment, f265, as it follows wall, f41, to the north. Is it similar to f225 and f184 or does it change to a stone pavement extending to the west from f41? [Input: T824JW.j]

Volumetric Localization

Roster Date Author Record
Locus 2009-08-13 sE k105 [Input: T901SE.j]
Relays (applicable to elements) 2009-09-01 aAJ r1639 (42572 46001 - 8788 / Relay location: W point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1640 (42567 45978 - 8792 / Relay location: S point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1641 (42649 45937 - 8794 / Relay location: N point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1642 (42664 45886 - 8780 / Relay location: NW point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1643 (42747 45909 - 8790 / Relay location: NW corner, first row) [Input: T903sE.r]
2009-09-01 aAJ r1644 (42645 45998 - 8794 / Relay location: NE point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1645 (42430 45976 - 8773 / Relay location: W point, second row) [Input: T903sE.r]
2009-09-01 aAJ r1646 (42667 45842 - 8785 / Relay location: N point, second row) [Input: T903sE.r]
2009-09-01 aAJ r1647 (42788 45820 - 8795 / Relay location: NW corner, second row) [Input: T903sE.r]
2009-09-01 aAJ r1648 (42458 45897 - 8761 / Relay location: W point, third row) [Input: T903sE.r]
2009-09-01 aAJ r1649 (42680 45800 - 8778 / Relay location: N point, third row) [Input: T903sE.r]
2009-09-01 aAJ r1650 (42779 45791 - 8777 / Relay location: NW corner, third row) [Input: T903sE.r]
2009-09-01 aAJ r1651 (42371 45877 - 8739 / Relay location: W point, fourth row) [Input: T903sE.r]
2009-09-01 aAJ r1652 (42782 45751 - 8752 / Relay location: NW corner, fourth row) [Input: T903sE.r]
2009-09-01 aAJ r1653 (42528 45794 - 8730 / Relay location: S corner, fifht row) [Input: T903sE.r]
2009-09-01 aAJ r1654 (42743 45693 - 8723 / Relay location: N point, fifth row) [Input: T903sE.r]
M#/elev @top 2009-08-13 sE 8783 [Input: T901SE.j]

Contact Association

Roster Date Author Record
Type of contact: latest events 2012-12-31 jW f267 (stone installation) abuts f265 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f288 (pavement, type c) abuts f265 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f293 (escarpment) abuts f265 (escarpment) [Input: WZ31JW.j]
2011-10-04 jW z2 (stone installation) abuts f265 (escarpment) [Input: VX04JW.j]
2012-12-31 jW f263 (accumulation D) covers f265 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f278 (pavement, type c) covers f265 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f289 (volumetric material) covers f265 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f294 (volumetric material) overlays f265 (escarpment) [Input: WZ31JW.j]
Type of contact: earliest events 2012-12-31 jW f265 (escarpment) abuts f225 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f265 (escarpment) abuts f267 (stone installation) [Input: WZ31JW.j]

Time Sequencing

Roster Date Author Record
Stratum (to which element belongs) 2012-10-16 jW s720J5B [Input: WX16JW.j]
Phase (to which element belongs) 2012-10-16 !! h3dJ5B [Input: WX16JW.j]

4. TYPOLOGY

Morphology

Roster Date Author Record
Ware or Material, species 2009-08-13 sE lithic [Input: T901SE.j]

6. REFERENCE

Analogical Record

Roster Date Author Record
View/drawing of features

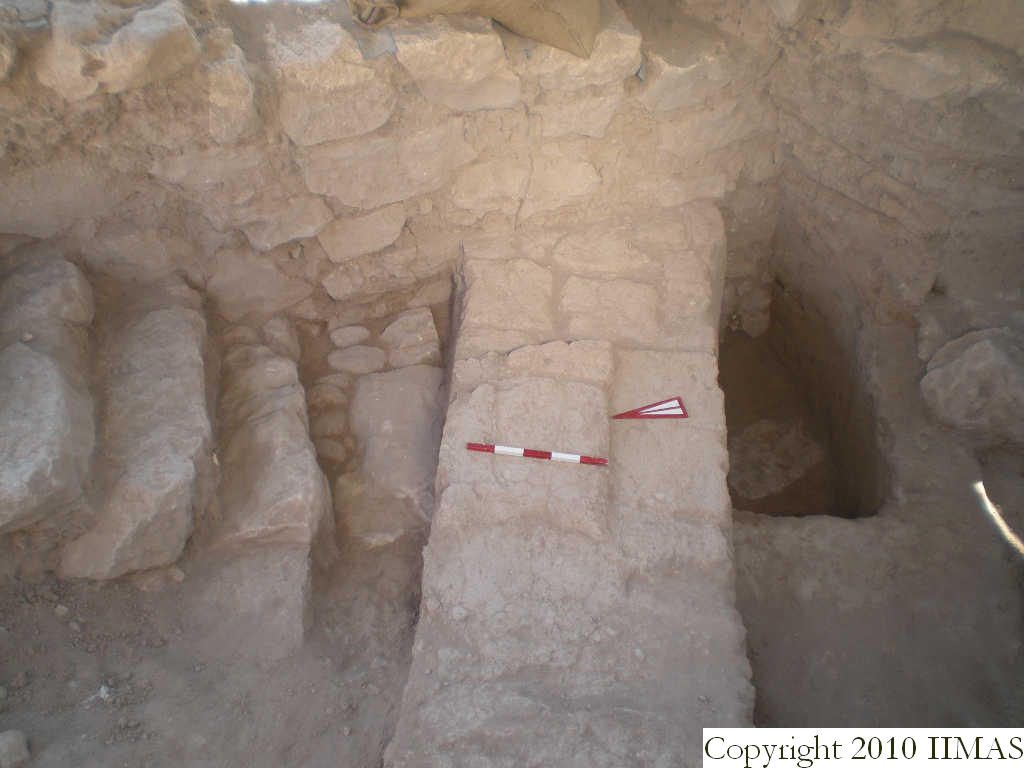

v194
2009-08-13 jN [Input: T819JN.j]

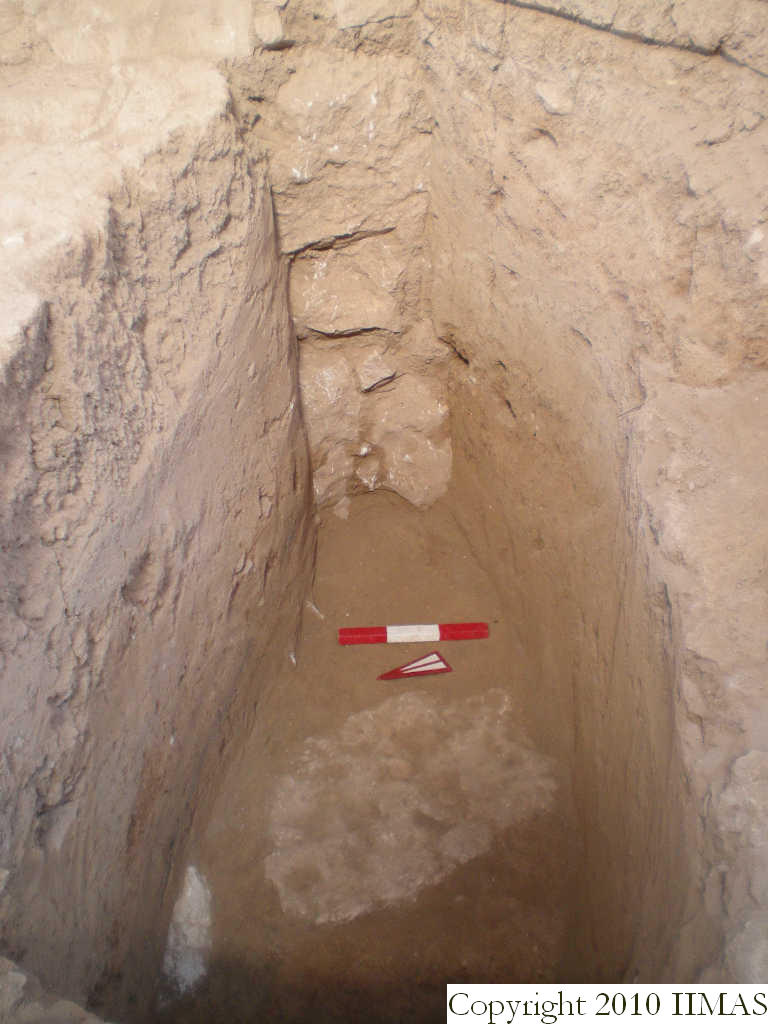

v194a
2009-08-13 jN [Input: T819JN.j]

v204
2009-08-18 jN [Input: T819JN.j]

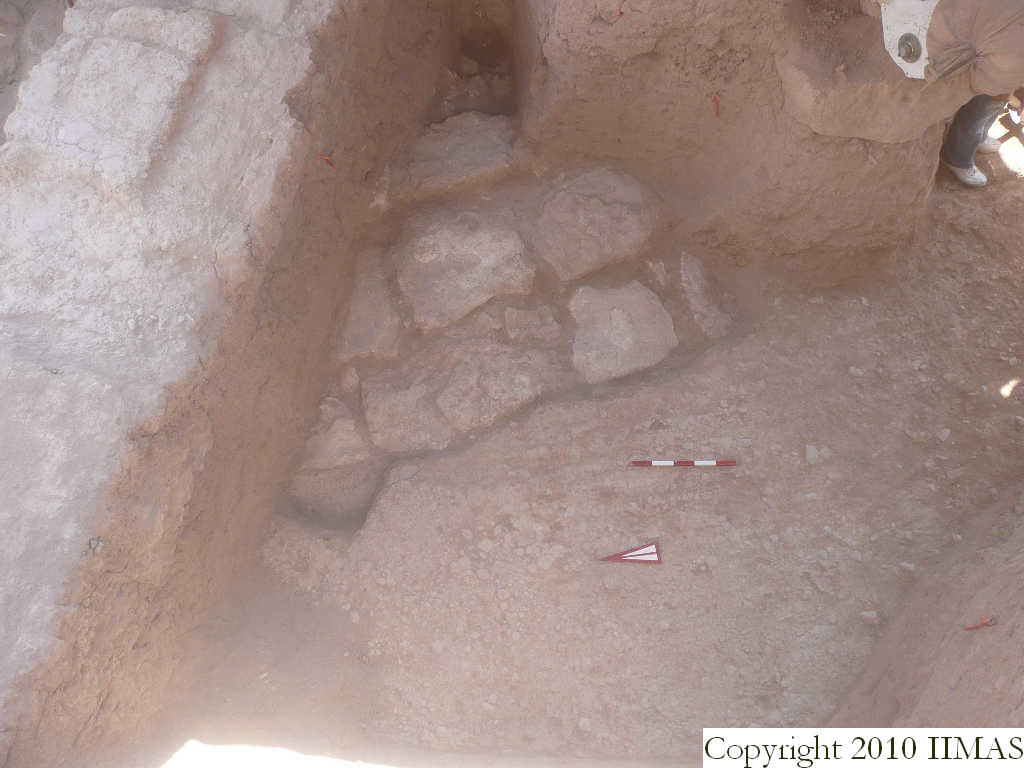

v204a
2009-08-18 jN [Input: T819JN.j]

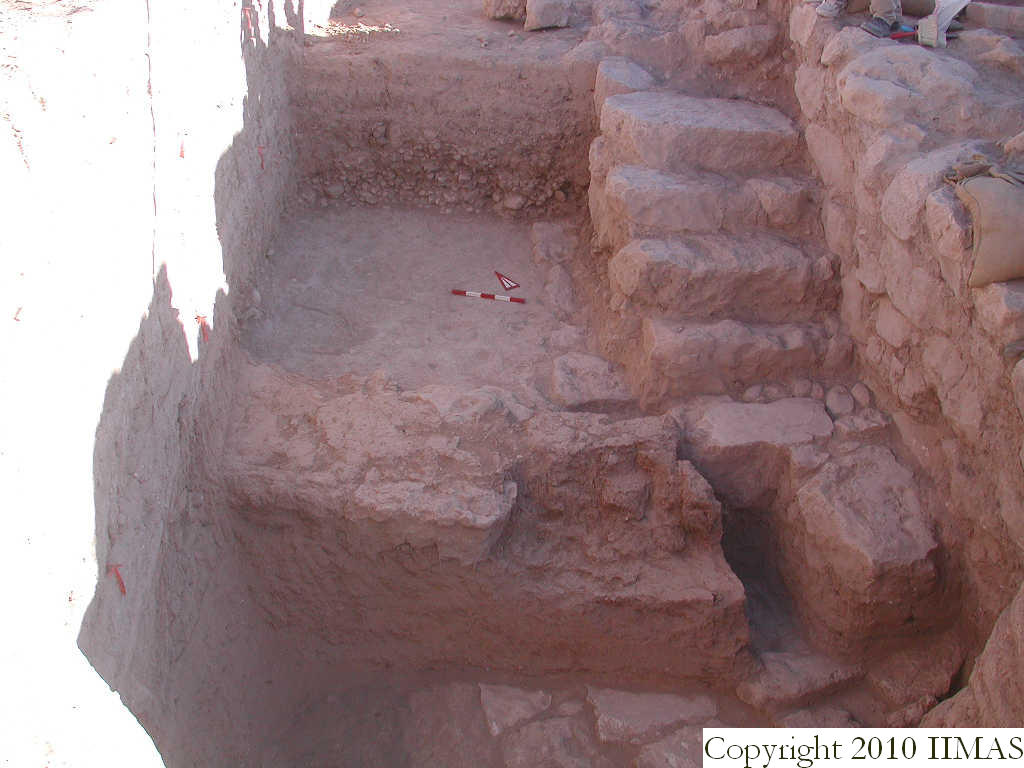

v205
2009-08-24 jN [Input: T830JN.j]

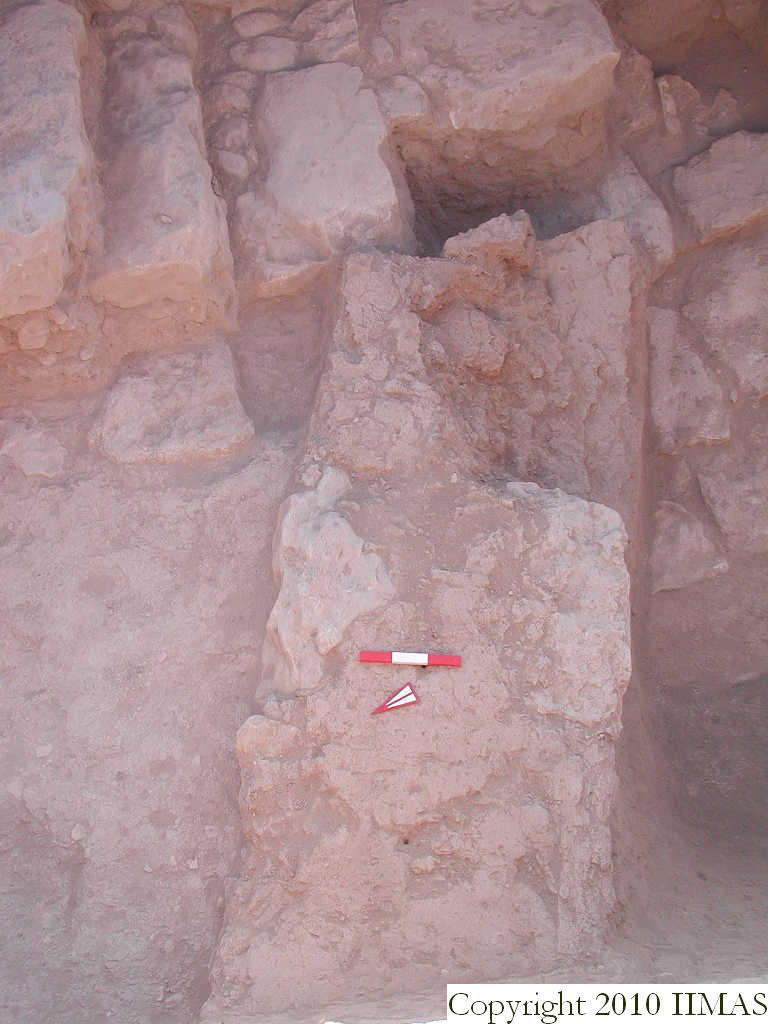

v205b
2009-08-24 jN [Input: T830JN.j]

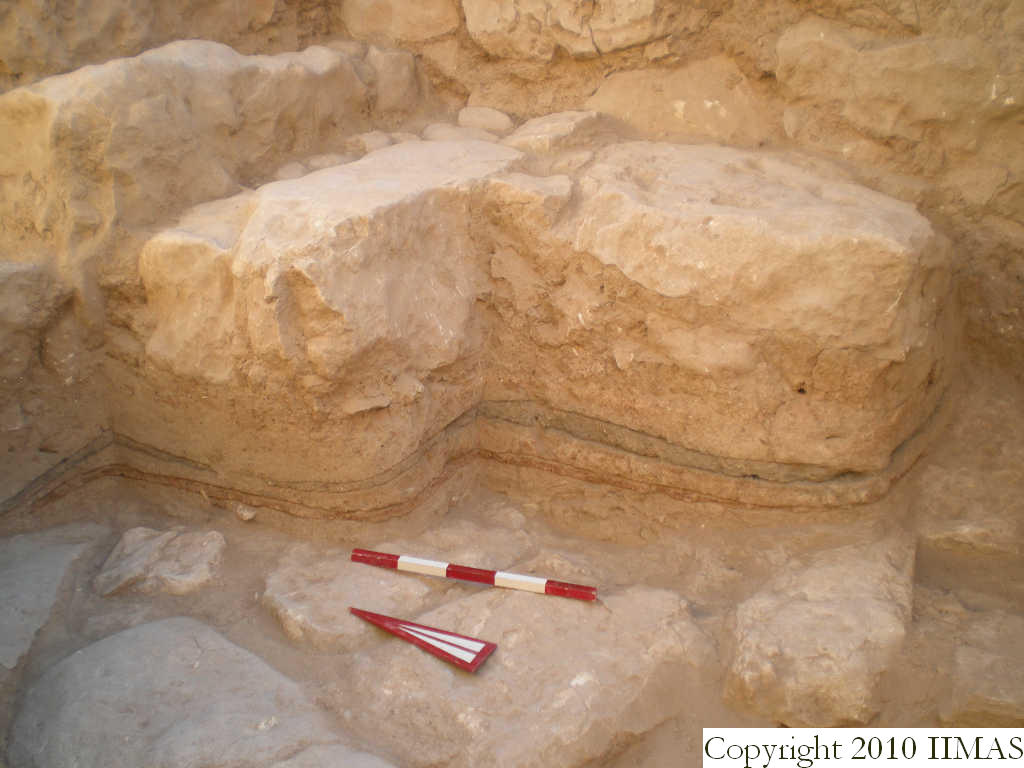

v209
2009-08-25 jN [Input: T830JN.j]

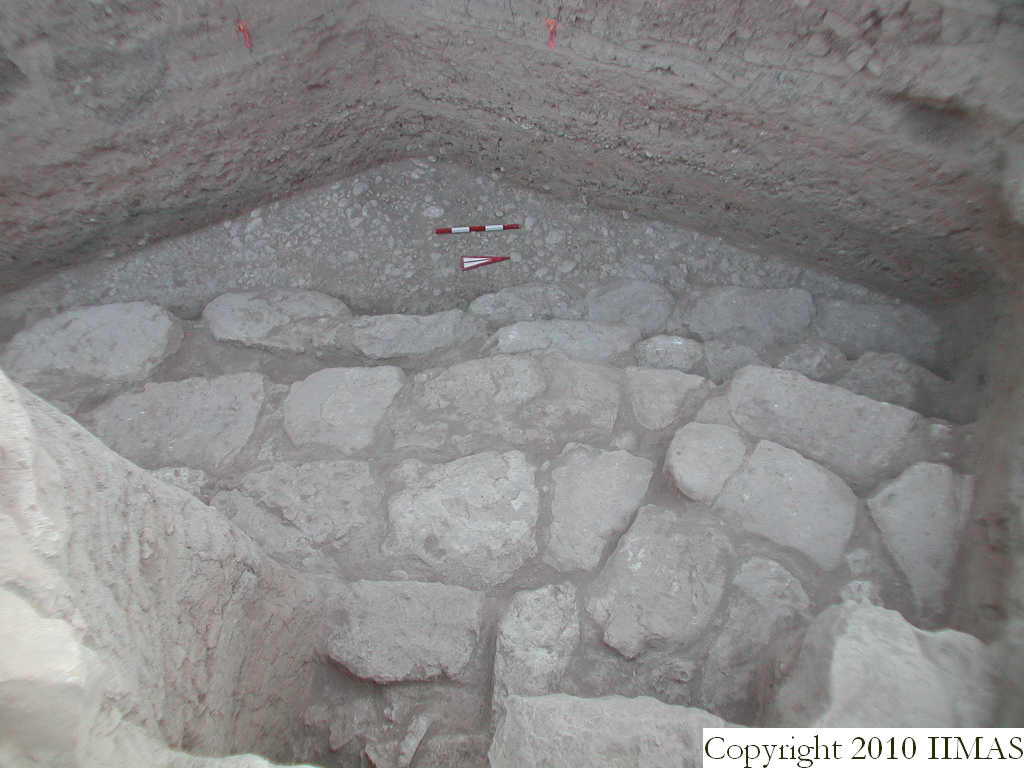

v212
2009-08-26 jN [Input: T901JN.j]

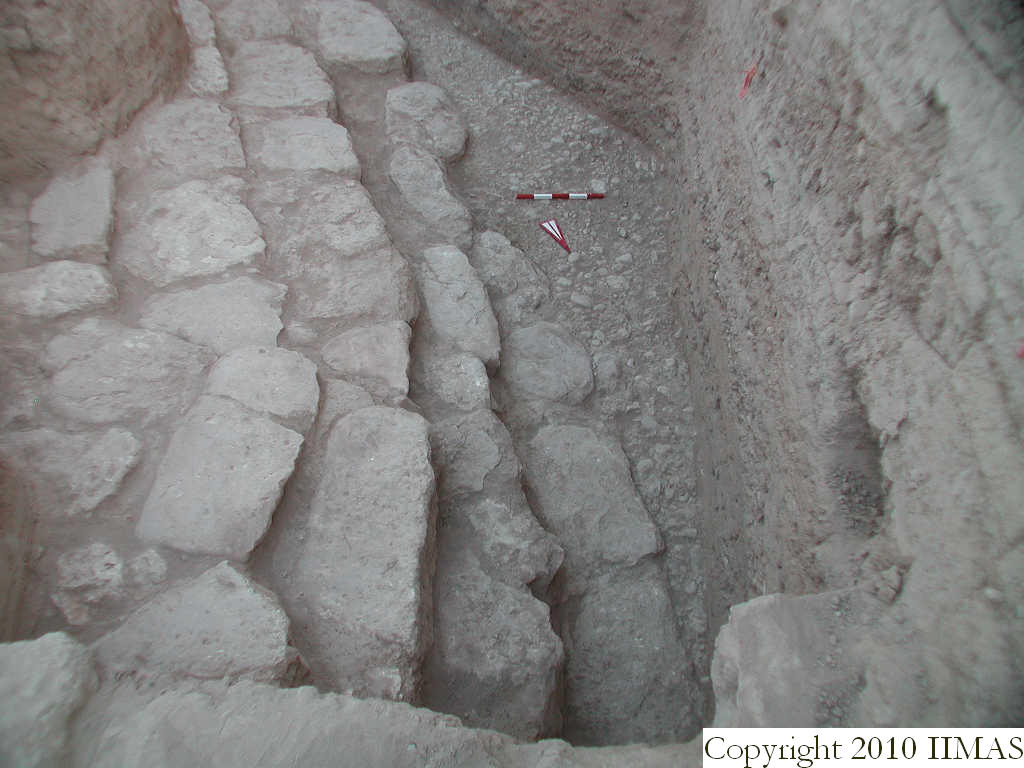

v212a
2009-08-26 jN [Input: T901JN.j]

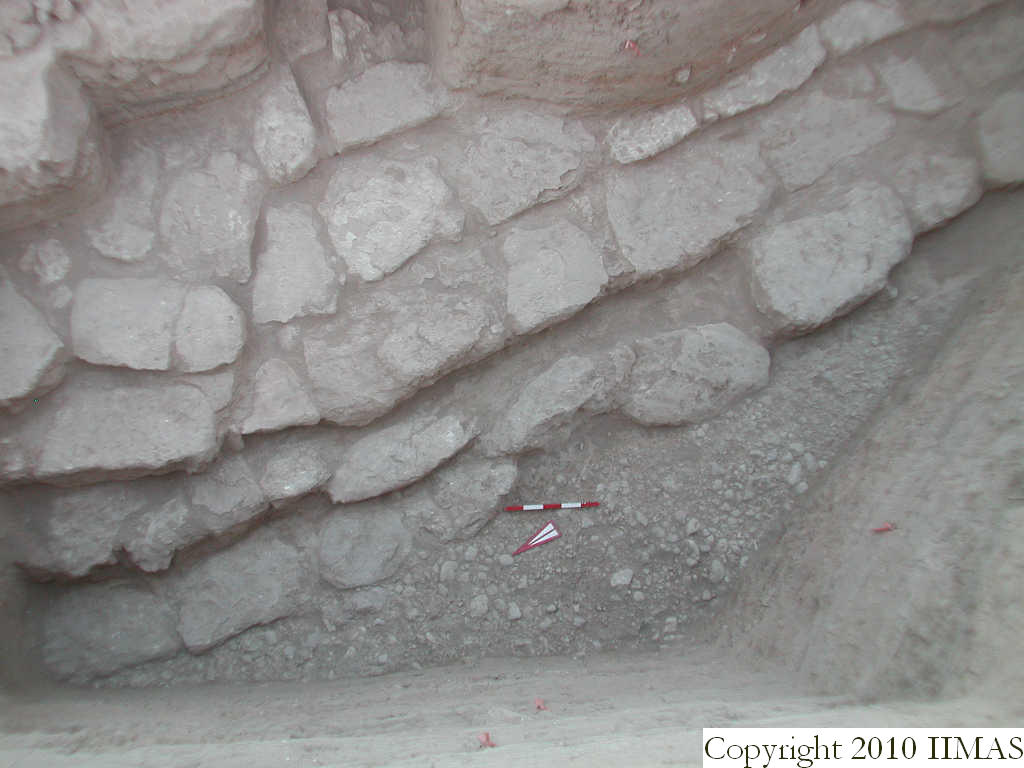

v212b
2009-08-26 jN [Input: T901JN.j]

v214
2009-08-30 jN [Input: T901JN.j]

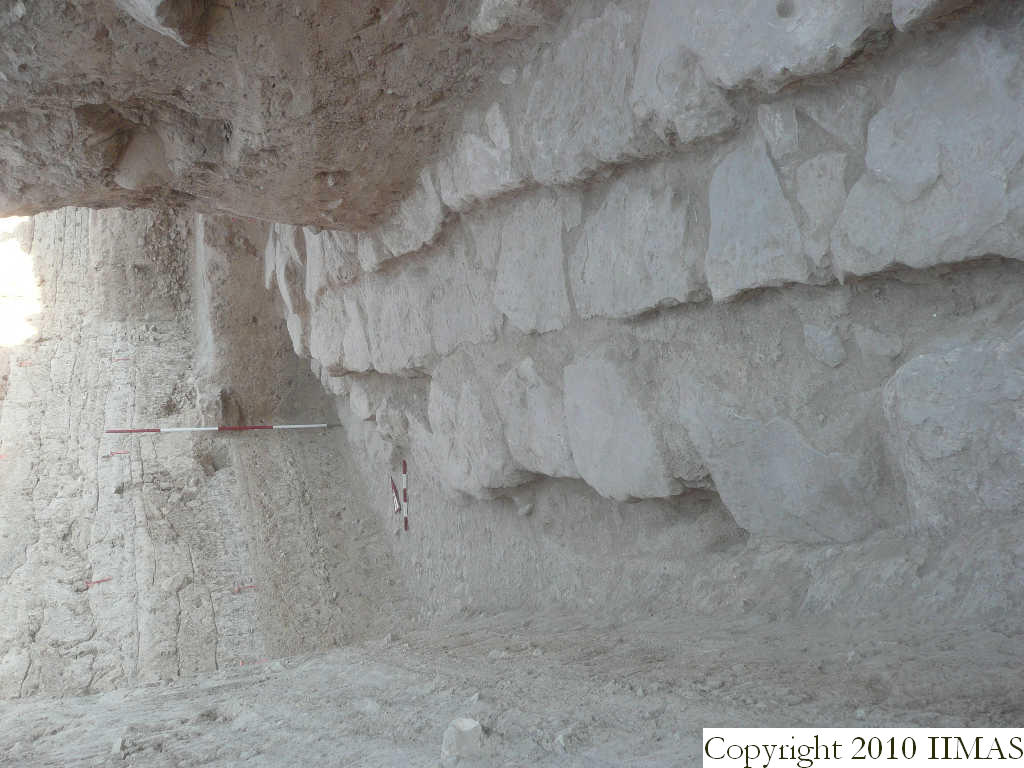

v215
2009-08-30 jN [Input: T901JN.j]

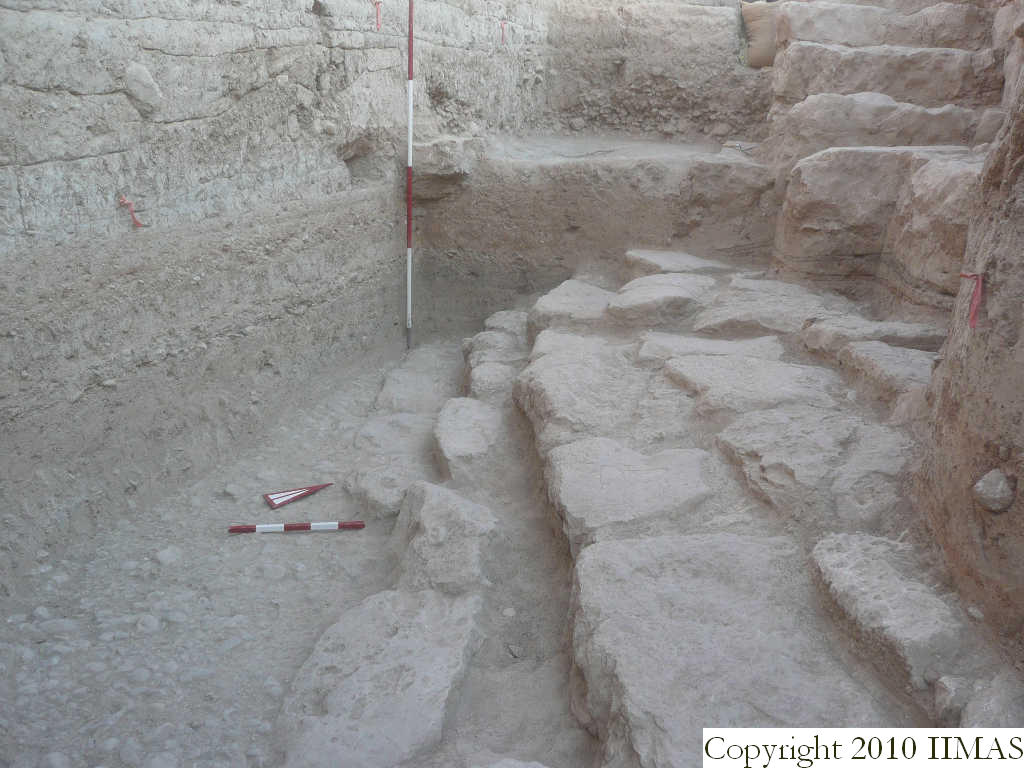

v215a
2009-08-30 jN [Input: T901JN.j]

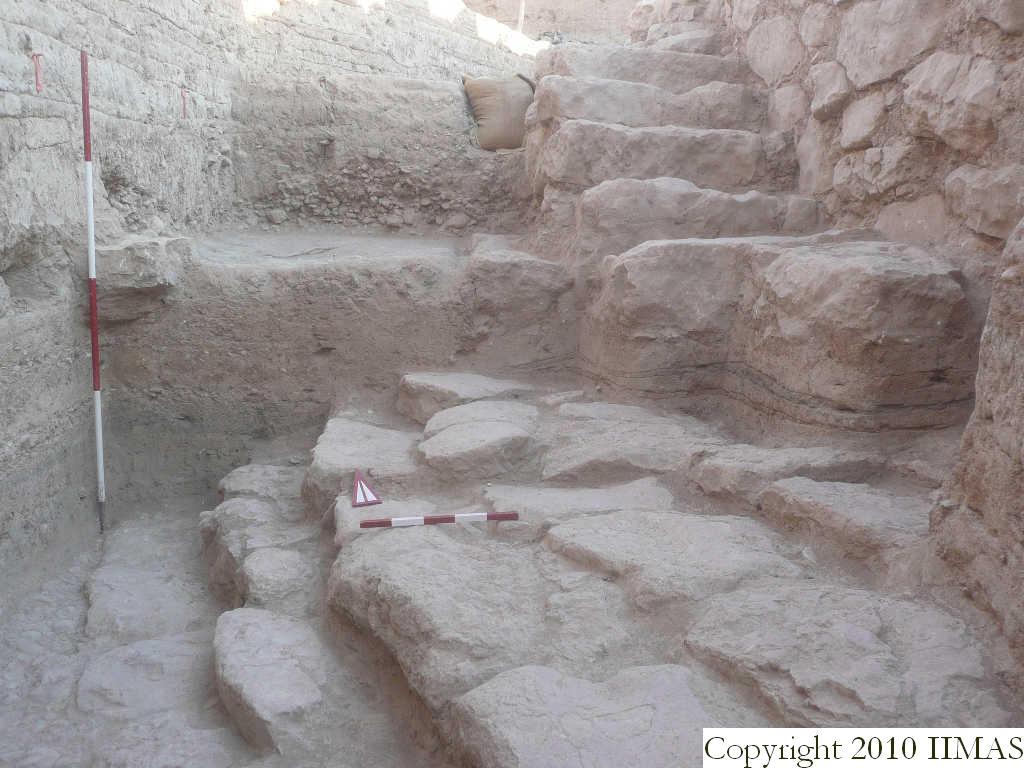

v215b
2009-08-30 jN [Input: T901JN.j]

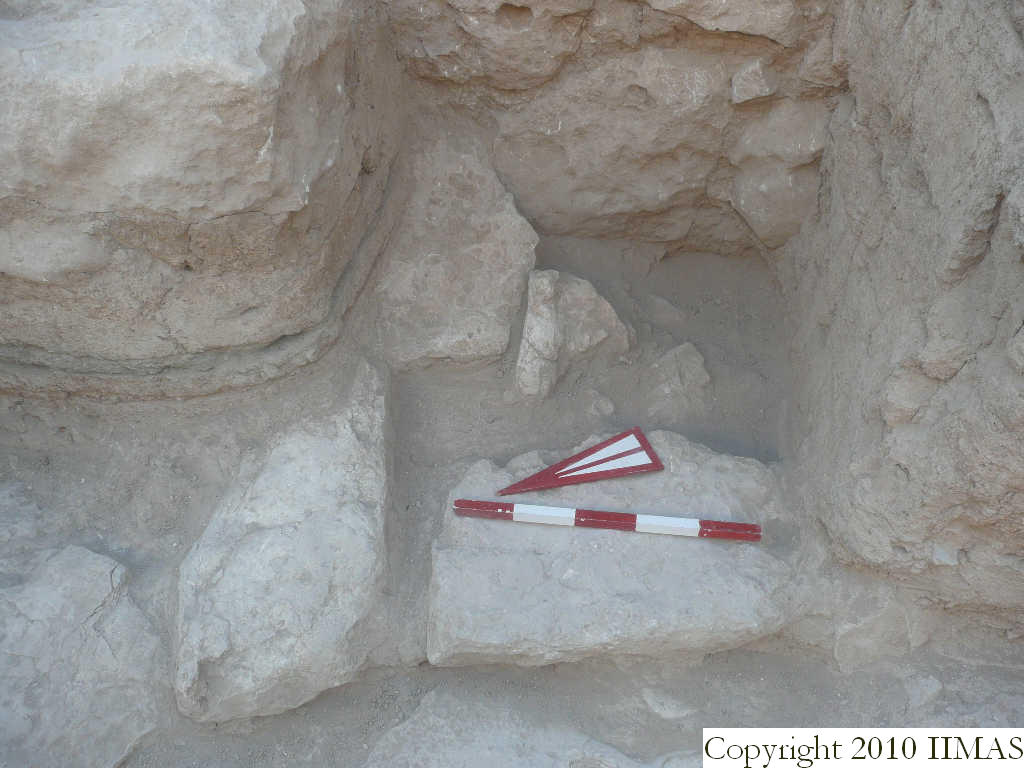

v216
2009-08-30 jN [Input: T901JN.j]

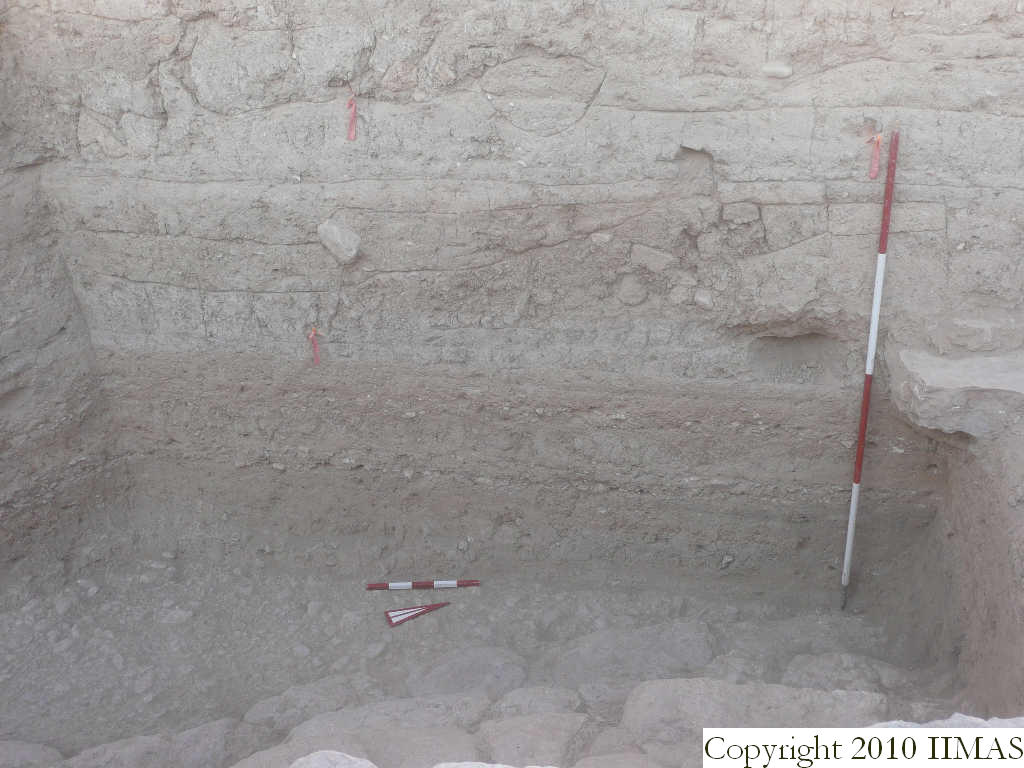

v217
2009-08-30 jN [Input: T901JN.j]

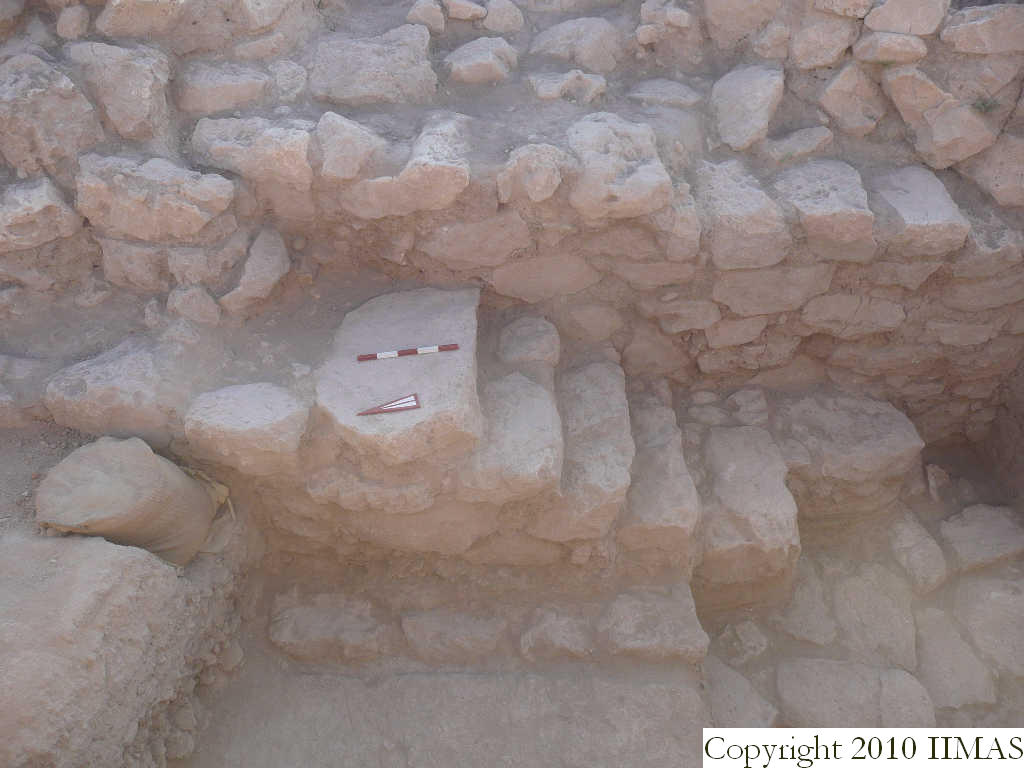

v218
2009-08-30 jN [Input: T901JN.j]

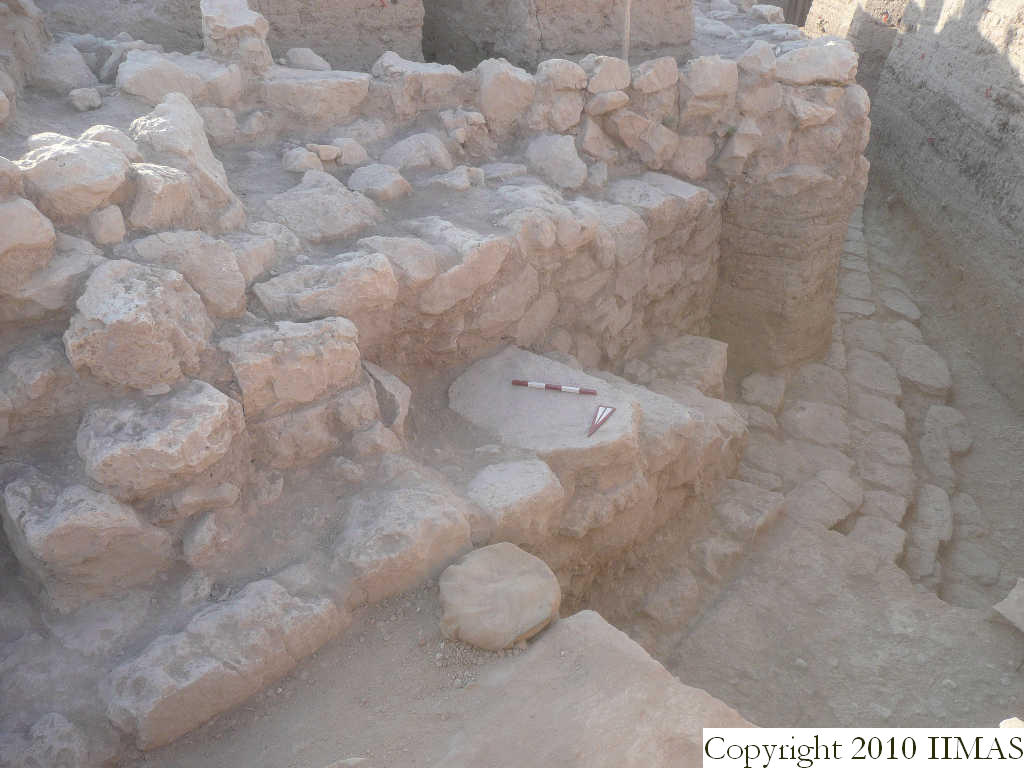

v218a
2009-08-30 jN [Input: T901JN.j]

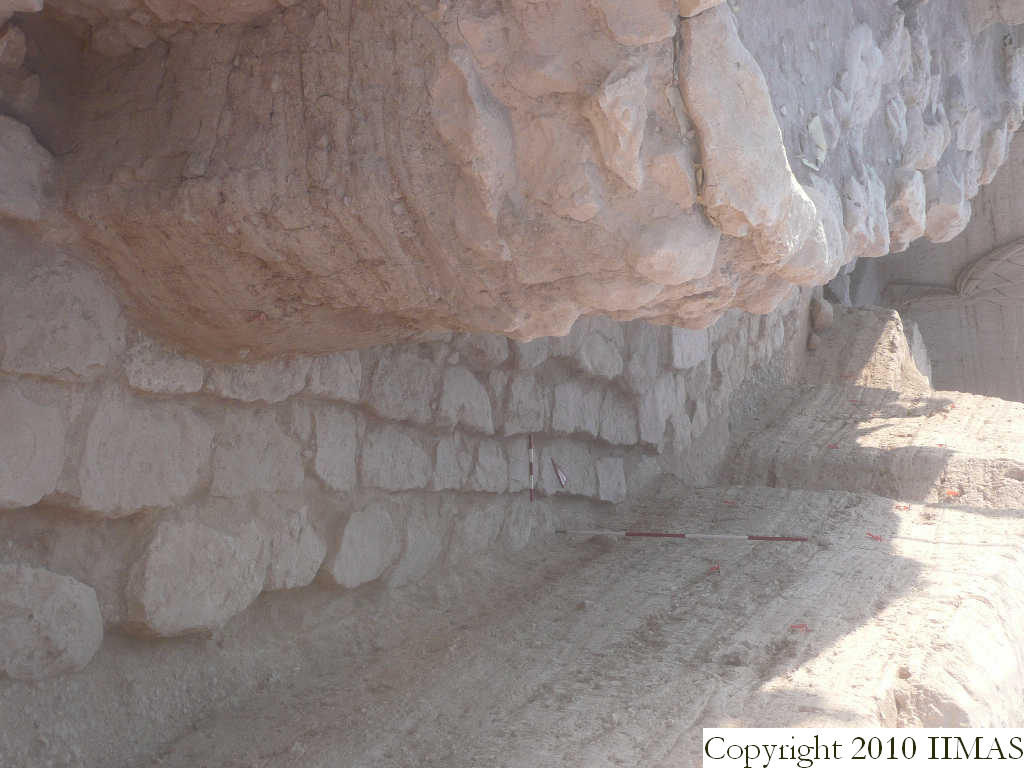

v219
2009-08-30 jN [Input: T901JN.j]

v222
2010-08-12 jW [Input: U812JW.j]

v223
2010-08-12 jW [Input: U812JW.j]

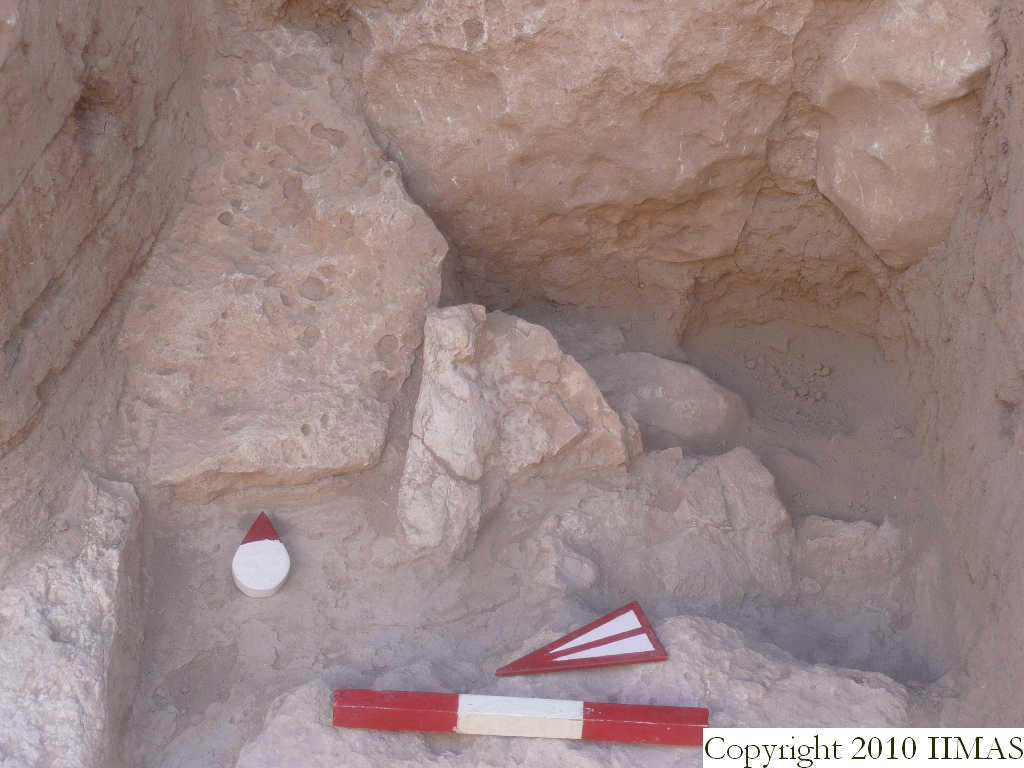

v223a
2010-08-12 jW [Input: U812JW.j]

v224
2010-08-12 jW [Input: U812JW.j]

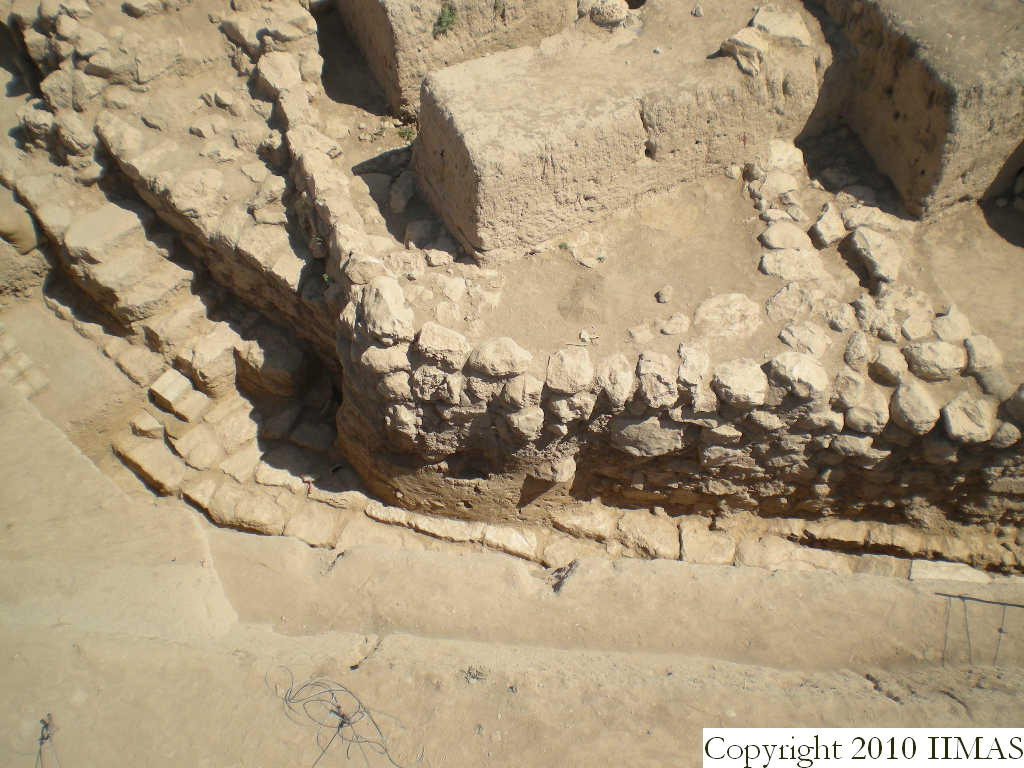

v224a
2010-08-12 jW [Input: U812JW.j]

v226
2010-08-12 jW [Input: U812JW.j]

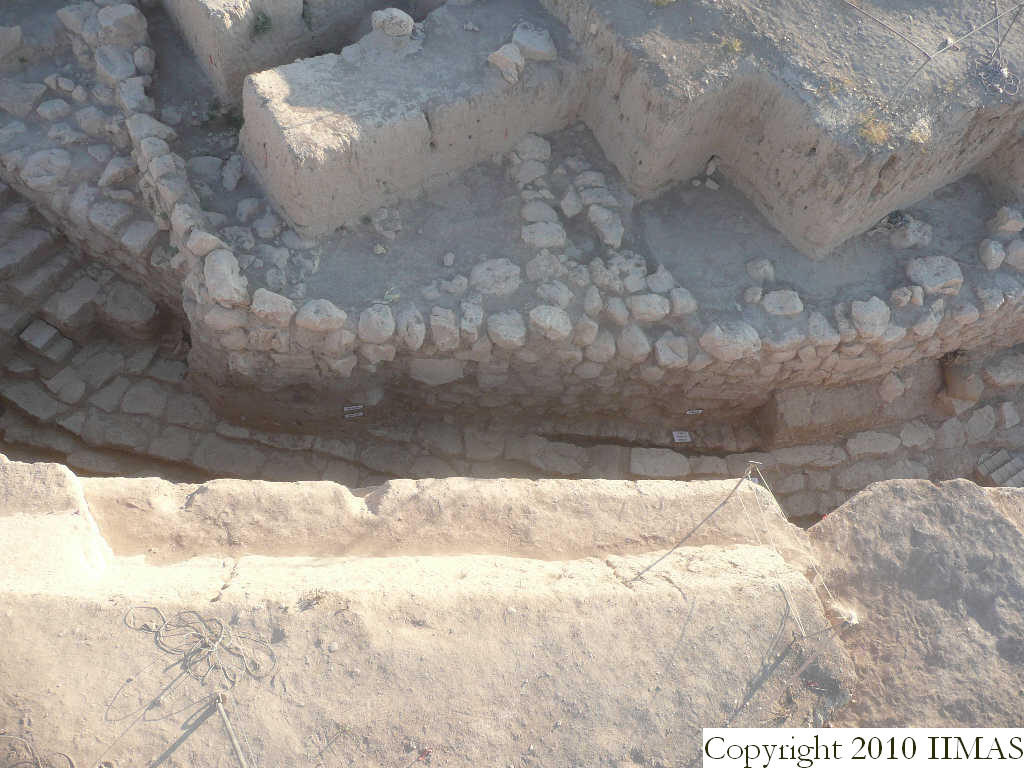

v226b
2010-08-12 jW [Input: U812JW.j]
