Brief Overview
The cross-horizon typology of rim types found on this page is designed to illustrate the variations in rim types during all periods at Mozan. Rim codes are assigned when the preserved portion of the sherd is insufficient to assign a shape, or in cases when the rim is used to further define or explain a particular shape. The lexicon gives the complete listing of rim codes and their associated definition. In addition, a list of shape codes including rims is further defined on the shapes-codes page. The selected examples here were chosen based on their ability to represent the specific rim types, rather than to indicate the complete chronological distribution of types.
The assigned types are general overarching categories that may embody variation although they share general characteristics. For example, within the category of beaked rim (----b) the beaked portion can be more or less pronounced. Within the simple rims (----s) there is also a variation from extremely simple rims, to those that are slightly rounded but still quite simple when compared to the range of other rims. In contrast, some rim codes were used relatively rarely and the range of variation within the type is not illustrated. Sometimes the variation within types leads to overlap of types. The handmade nature of the ceramics often leads to situations where the sherd is somewhere on the spectrum between two different shapes and the ceramics specialist, in these cases, must make their own best judgement as to type, creating some blurred edges among the categories.
Back to top: Rims
Rims
Back to top: Rims
Beaked rims
| ----b (Akk) |
|
| ----b (Mt) |
|
| ----b (MA) |
|
Back to top: Rims
Collared Rims
Back to top: Rims
Plain collared rims
| ----c (Ur III) |
|
Back to top: Rims
Collared-grooved rims
| ----cg (Ur III) |
|
| ----cg (Mt) |
|
Back to top: Rims
Collared-incised rims
| ----ci (Ur III) |
|
Back to top: Rims
Divided rims
| ----d (LC 3) |
 |
Back to top: Rims
Double Strand Rims
Back to top: Rims
Double strand lower pointed rims
| ----dp (Ur III) |
|
| ----dp (MA) |
|
Back to top: Rims

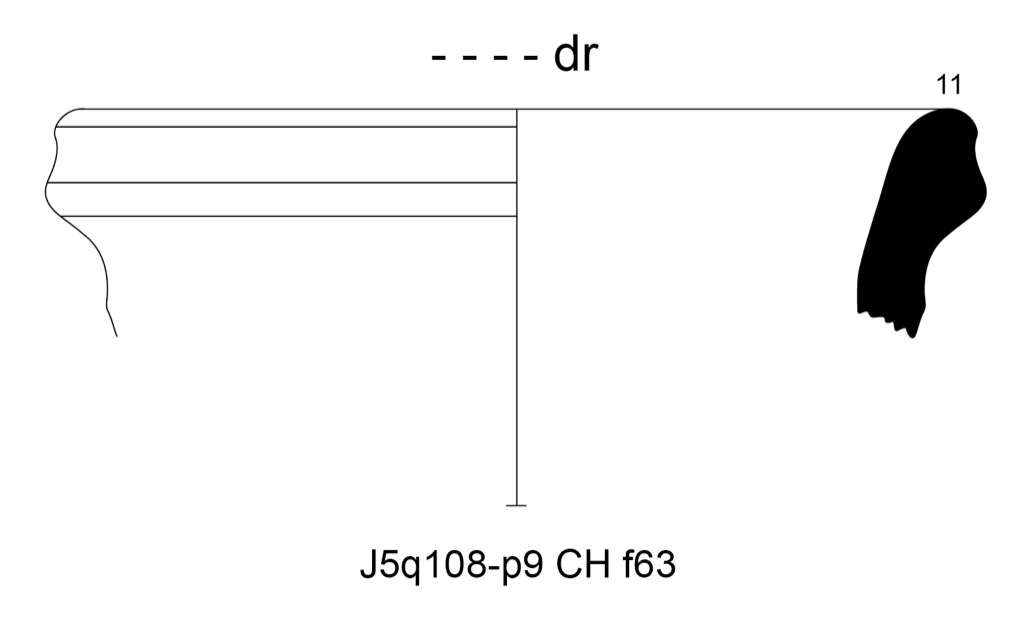

Double strand lower rounded rims
| ----dr (Akk) |

|
| ----dr (MA) |
|
Back to top: Rims
Extended rims
| ----e (LC 3) |
 |
Back to top: Rims
Rims extended toward the interior
| ----ei (ED III) |
|
Back to top: Rims
Rims extended towards interior and exterior
| ----eie (Mt) |
|
Back to top: Rims
Rims with exterior extension
| ----ee (LC 3) |
|
Back to top: Rims
Flat rims
| ----f (Akk) |
|
| ----f (Kh) |
|
| ----f (Mt) |
|
| ----f (MA) |
|
Back to top: Rims
Flat wide rims
| ----fw (ED III) |
|
Back to top: Rims
Flat wide rims inclined to exterior
| ----fwe (Mt) |
|
Back to top: Rims
Folded rims
| ----fd (ED III) |
|
Back to top: Rims
Flaring rims
| ----fl (LC 3) |
|
| ----fl (ED III) |
|
Back to top: Rims
Flaring rims with slight interior lip
| ----fli (ED III) |
|
Back to top: Rims
Flaring rims with rib below rim
| ----flr (ED III) |
|
Back to top: Rims
Interior groove
Back to top: Rims
Interior groove or ledge rims
| ----i (Akk) |
|
| ----i (Ur III) |
|
Back to top: Rims
Folded rims with interior groove
| ----gf (ED III) |
|
Back to top: Rims
Rims with deep interior groove
| ----gd (ED III) |
 |
Back to top: Rims
Rims with interior groove and rib below rim
| ----gr (ED III) |
|
Back to top: Rims
Rims with groove on top
| ----gt (ED III) |
|
Back to top: Rims
Rims with slight indentation
| ----in (ED III) |
|
Back to top: Rims
Internal projection to hold lid
| ----ip (LC 3) |
|
Back to top: Rims
Rims with interior lip
| ----li (LC 3) |
|
Back to top: Rims
Inturned rims
| ----it (Akk) |
|
Back to top: Rims
Outturned rims
| ----ro (Akk) |
|
Back to top: Rims
Notched rims
| ----n (Akk) |
|
Back to top: Rims
Pinched rims
| ----pn (ED III) |
|
Back to top: Rims
Pointed rims
| ----p (Akk) |
|
| ----p (Mt) |
|
Back to top: Rims
Pointed rims slanted toward exterior
| ----pse (LC 3) |
 |
Back to top: Rims
Pointed rims slanted toward interior
| ----psi (LC 3) |
 |
Back to top: Rims
Rims curved toward exterior
| ----rc (ED II) |
|
Back to top: Rims
Ribbed Rims
Back to top: Rims
Ribbed rims, top and exterior of rim
| ----rb (Ur III) |
|
Back to top: Rims
Ribbed rims, top of rim only
| ----ri (Ur III) |
|
| ----ri (Kh) |
|
| ----ri (Mt) |
|
Back to top: Rims
Slightly restricted rims
| ----re (ED III) |
 |
Back to top: Rims

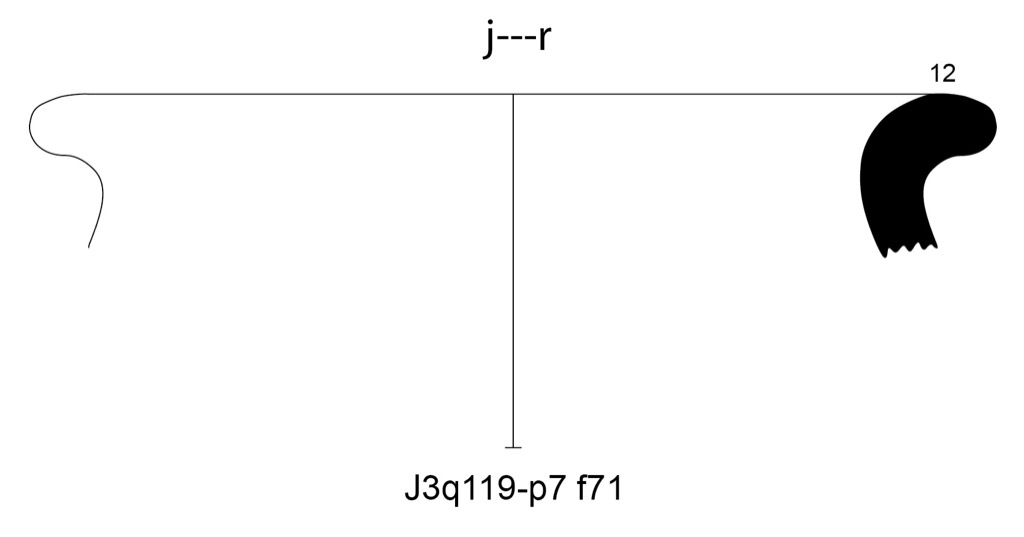

Rounded rims
| ----r (LC 3) |
 |
| ----r (ED III) |
|
| ----r (Akk) |
|
| ----r (Mt) |
|
Back to top: Rims

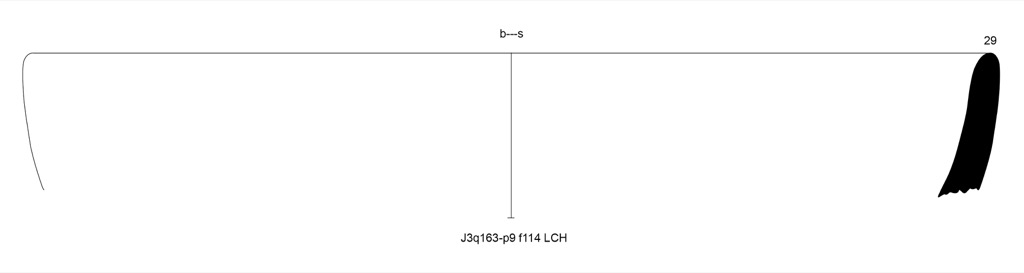

Simple rims
| ----s (LC 3) |
|
| ----s (ED II) |
|
| ----s (Akk) |
|
| ----s (Mt) |
|
Back to top: Rims
Simple rims with horseshoe shaped handle
| ----sh (LC 3) |
|
Back to top: Rims
Slanted rims
| ----sl (LC 3) |
 |
Back to top: Rims
Rims slanted to exterior
| ----sle (Mt) |
 |
Back to top: Rims
Rims slanted to interior
| ----sli (ED II) |
|
Back to top: Rims
Square rims
| ----sq (Akk) |
|
| ----sq (Ur III) |
|
| ----sq (Mt) |
|
| ----sq (MA) |
|
Back to top: Rims
Square rims on exterior edge, slightly restricted
| ----sqer (LC 3) |
 |
Back to top: Rims
Thickened rims
| ----rt (ED III) |
 |
Back to top: Rims
Externally thickened rims
| ----et (ED II) |
|
