Unit Book J5 (Version 1a)

J5f188

Processed on 2024-12-13

1. OVERVIEW

Roster Date Author Record
Included in other label 2009-08-11 sE a711 (escarpment) [Input: T811SE1.j]
2009-09-17 jW a716 (stone installation) [Input: T917JW.j]
2022-08-21 jW a30 (stone installation) [Input: ZG821jW.j]
2022-09-22 jW a25 (escarpment) [Input: ZG822W.j]
Category !! !! installation
Best definition 2008-08-27 lH escarpment [Input: S914LH.j]
Summary 2012-12-16 jW Row of cut limestone blocks in k2 that form a part of stone escarpment ^esc1. [Input: WZ16JW.j]
Best image 2008-09-22 lH
v132 [Input: S922LH.j]

2. IDENTIFICATION

Designation

Roster Date Author Record
Description (summary) 2008-09-04 jW A row of dressed limestone blocks with flat tops laid horizontally in the eastern part of locus k2. They are seen in a narrow trench running east to west that was dug to assist in tracing escarpment f184 from J1 into J5. We cannot yet see the bottom of the revetment wall, f189, in this area, but the stones of f188 are considerably lower and better cut than the part we can see. Although pottery above this feature has not been analyzed, these stones were probably cut and placed during the Late Chalcolithic period. [Input: S904JW.j]

3. STRATIGRAPHY

Recovery/Assignment

Roster Date Author Record
Evolution 2009-07-30 sE Last year this line of big, flat stones have been defined as wall, but after the excavations of this year the definition has changed because we can say that they are part of the stone escarpment, ^esc1. [Input: T830SE2.j]

Volumetric Localization

Roster Date Author Record
Locus 2008-08-27 lH k2 [Input: S914LH.j]
Relays (applicable to elements) 2008-09-11 hB r1123 (41706 46527 - 8780 / Relay location: sk44 # 258) [Input: S911JW1.R]
2008-09-11 hB r1124 (41648 46581 - 8781 / Relay location: sk44 # 259) [Input: S911JW1.R]
2008-09-11 hB r1125 (41598 46657 - 8781 / Relay location: sk44 # 260) [Input: S911JW1.R]
2008-09-11 hB r1126 (41412 46919 - 8764 / Relay location: sk44 # 261) [Input: S911JW1.R]
2008-09-11 hB r1127 (41430 46949 - 8770 / Relay location: sk44 # 262) [Input: S911JW1.R]
2008-09-11 hB r1128 (41562 46785 - 8776 / Relay location: sk44 # 263) [Input: S911JW1.R]
2008-09-11 hB r1129 (41526 46761 - 8773 / Relay location: sk44 # 264) [Input: S911JW1.R]
2009-08-18 eA r1498 (##### ##### - ##### / Relay location: NE corner) [Input: T819sE.r]
2009-08-18 eA r1499 (##### ##### - ##### / Relay location: SE corner) [Input: T819sE.r]
2009-08-18 eA r1500 (##### ##### - ##### / Relay location: S corner) [Input: T819sE.r]
2009-08-18 eA r1501 (##### ##### - ##### / Relay location: SW corner) [Input: T819sE.r]
2009-08-18 eA r1502 (##### ##### - ##### / Relay location: NW corner) [Input: T819sE.r]
2009-08-18 eA r1503 (##### ##### - ##### / Relay location: N corner) [Input: T819sE.r]
2009-09-01 aAJ r1616 (41523 46761 - 8759 / Relay location: SE corner, first row) [Input: T903sE.r]
2009-09-01 aAJ r1617 (41728 46504 - 8770 / Relay location: E point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1618 (41851 46375 - 8786 / Relay location: E point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1619 (41952 46274 - 8770 / Relay location: E point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1620 (42144 46174 - 8773 / Relay location: middle point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1621 (42277 46112 - 8772 / Relay location: W point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1622 (42181 46214 - 8768 / Relay location: NW point (corner), first row) [Input: T903sE.r]
2009-09-01 aAJ r1623 (41867 46403 - 8786 / Relay location: N middle point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1624 (41656 46621 - 8766 / Relay location: NE point, first row) [Input: T903sE.r]
2009-09-01 aAJ r1625 (41548 46779 - 8763 / Relay location: NE corner, first row) [Input: T903sE.r]
2009-09-01 aAJ r1626 (41498 46692 - 8740 / Relay location: SE corner, second row) [Input: T903sE.r]
M#/elev @top 2008-08-27 lH 8781 [Input: S914LH.j]

Contact Association

Roster Date Author Record
Type of contact: latest events 2012-12-31 jW f225 (escarpment) abuts f188 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f287 (accumulation D) abuts f188 (escarpment) [Input: WZ31JW.j]
2011-10-04 jW z1 (stone installation) abuts f188 (escarpment) [Input: VX04JW.j]
2012-12-31 jW f242 (escarpment) covers f188 (escarpment) [Input: WZ31JW.j]
2012-12-31 jW f268 (accumulation C) covers f188 (escarpment) [Input: WZ31JW.j]
Type of contact: earliest events 2008-09-12 lH f188 (escarpment) abuts f225 (escarpment) [Input: S915LH.j]

Time Sequencing

Roster Date Author Record
Stratum (to which element belongs) 2012-10-16 jW s720J5B [Input: WX16JW.j]
Phase (to which element belongs) 2012-10-16 !! h3dJ5B [Input: WX16JW.j]

4. TYPOLOGY

Morphology

Roster Date Author Record
Ware or Material, species 2008-08-27 lH lithic [Input: S914LH.j]
Color 2008-08-27 lH light gray [Input: S914LH.j]

6. REFERENCE

Analogical Record

Roster Date Author Record
View/drawing of features

v115
2008-09-19 jW [Input: S919JW.j]

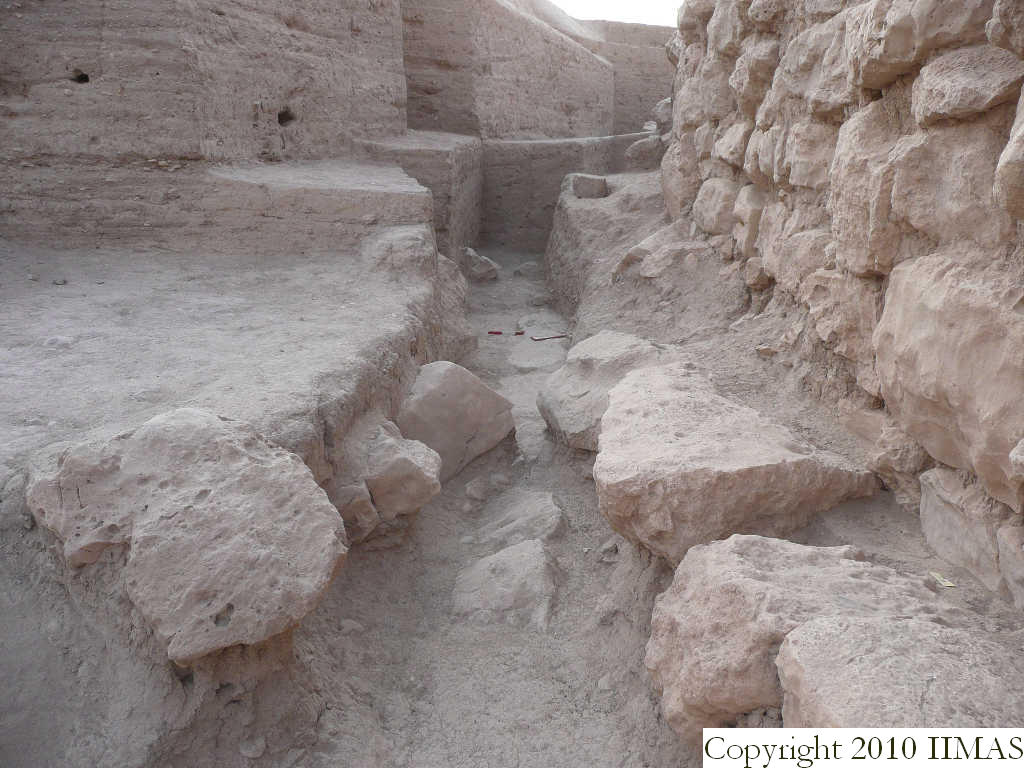

v115a
2008-09-19 jW [Input: S919JW.j]

v115b
2008-09-19 jW [Input: S919JW.j]

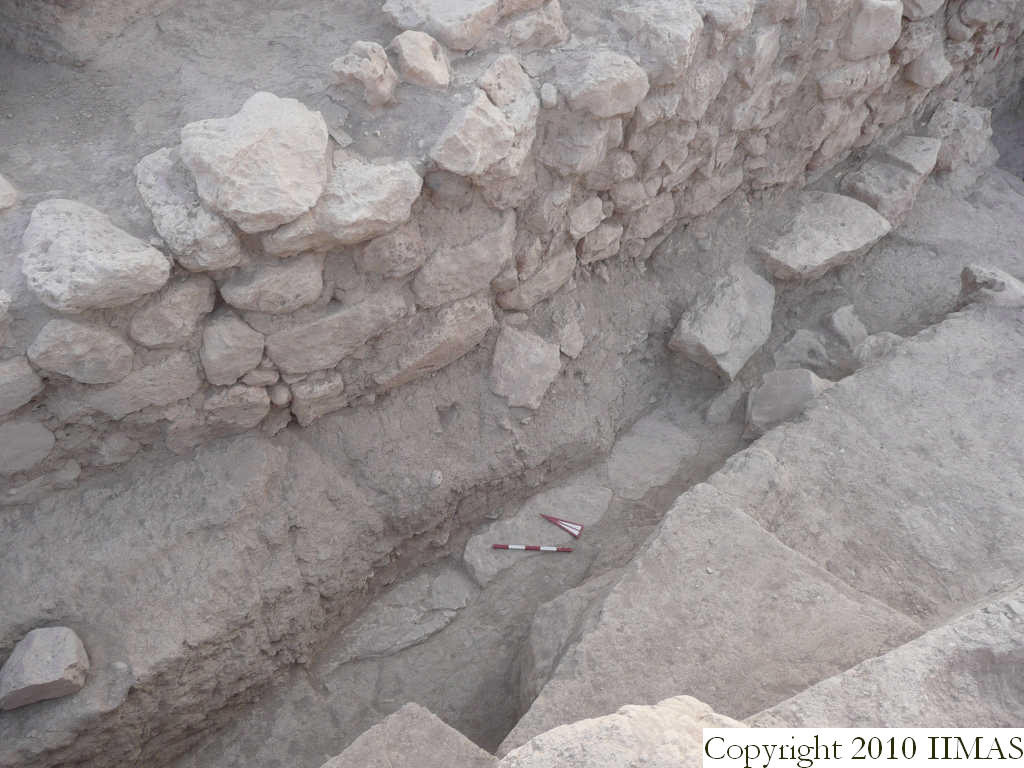

v132
2008-09-22 jW [Input: S922JW.j]

v160
2009-07-28 sE [Input: T729SE.j]

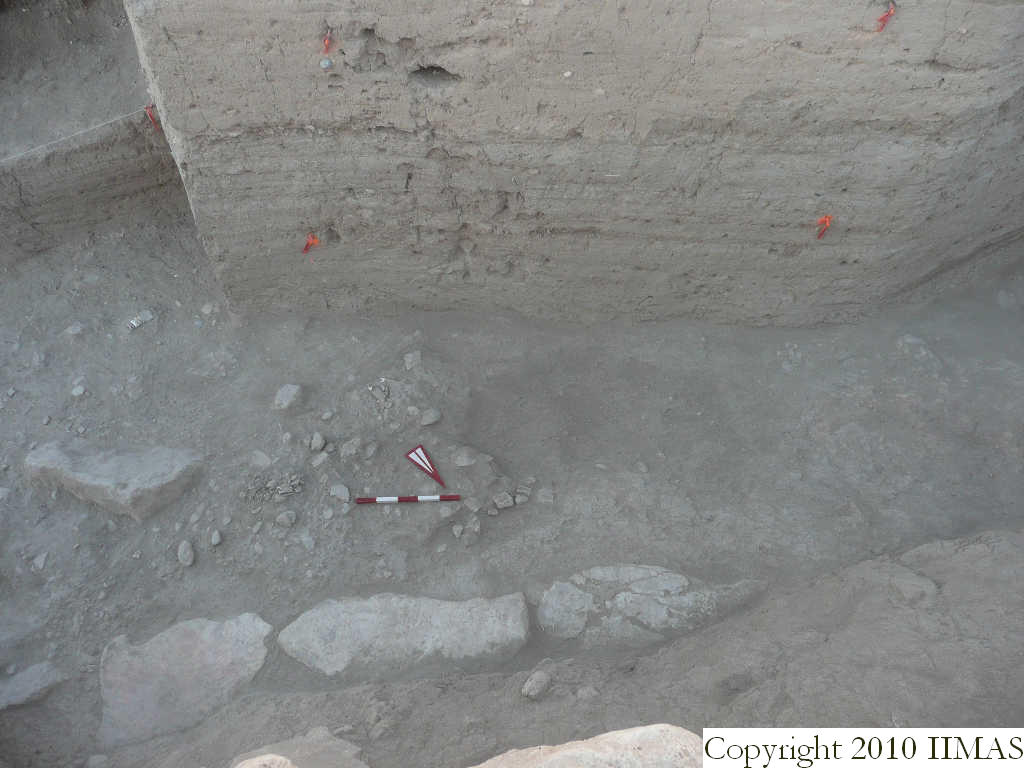

v161
2009-07-30 sE [Input: T804SE.j]

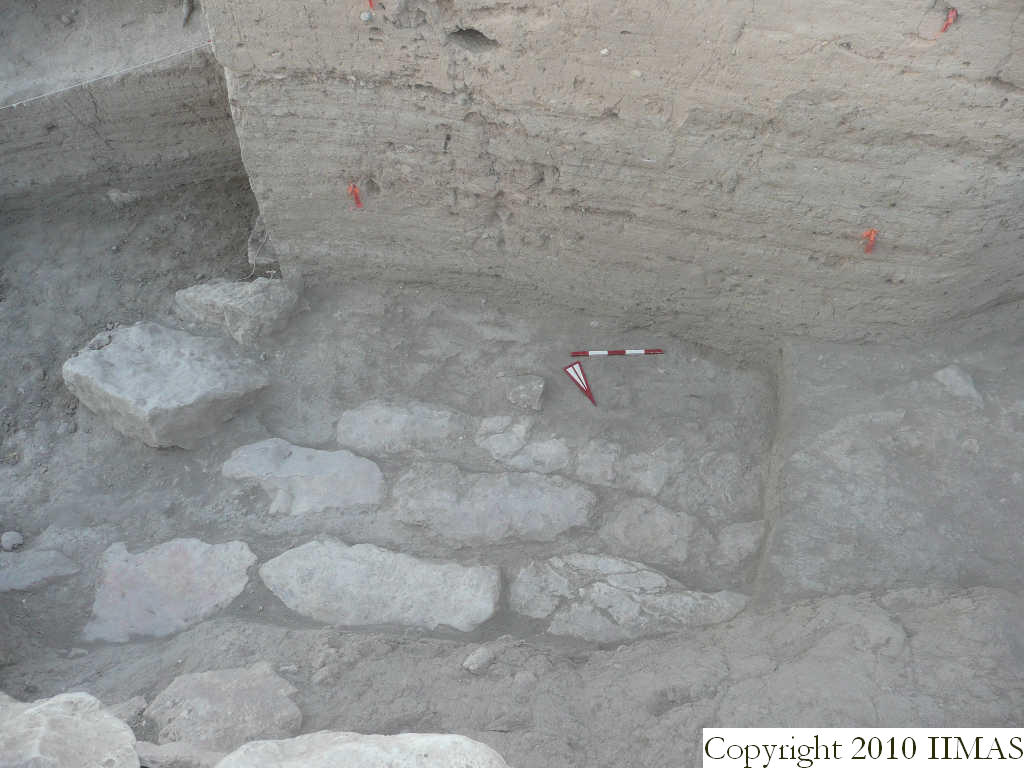

v166
2009-08-01 sE [Input: T804SE.j]

v174
2009-08-05 sE [Input: T810SE1.j]

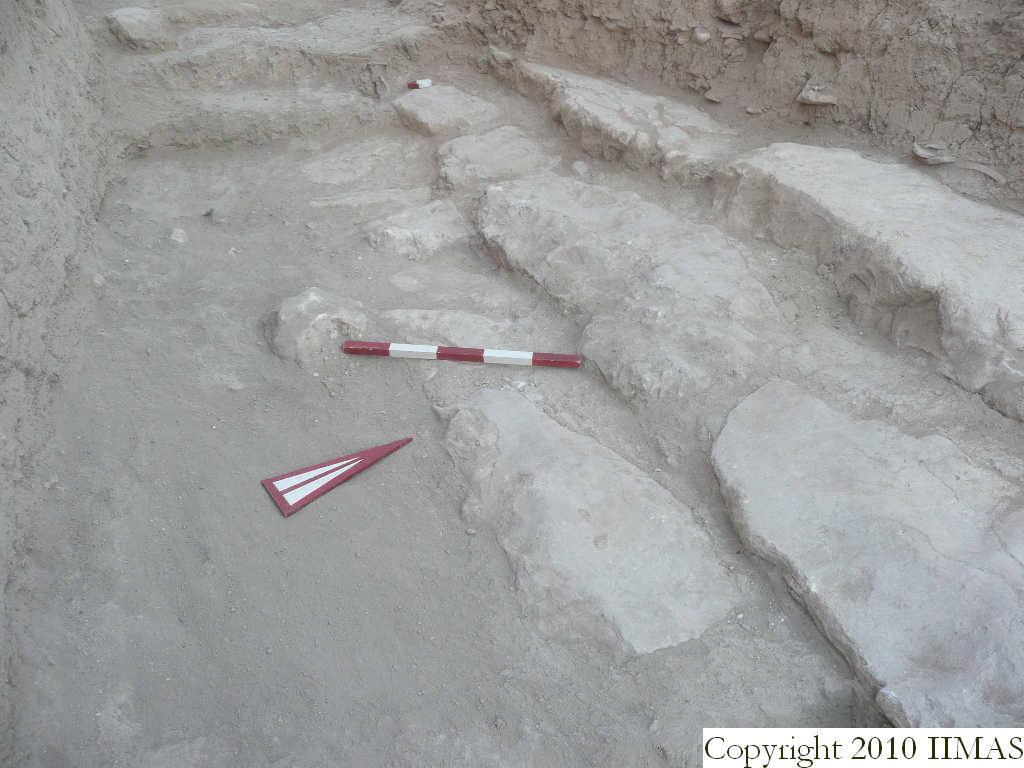

v175a
2009-08-06 jN [Input: T810SE1.j]

v179
2009-08-06 jN [Input: T810SE1.j]

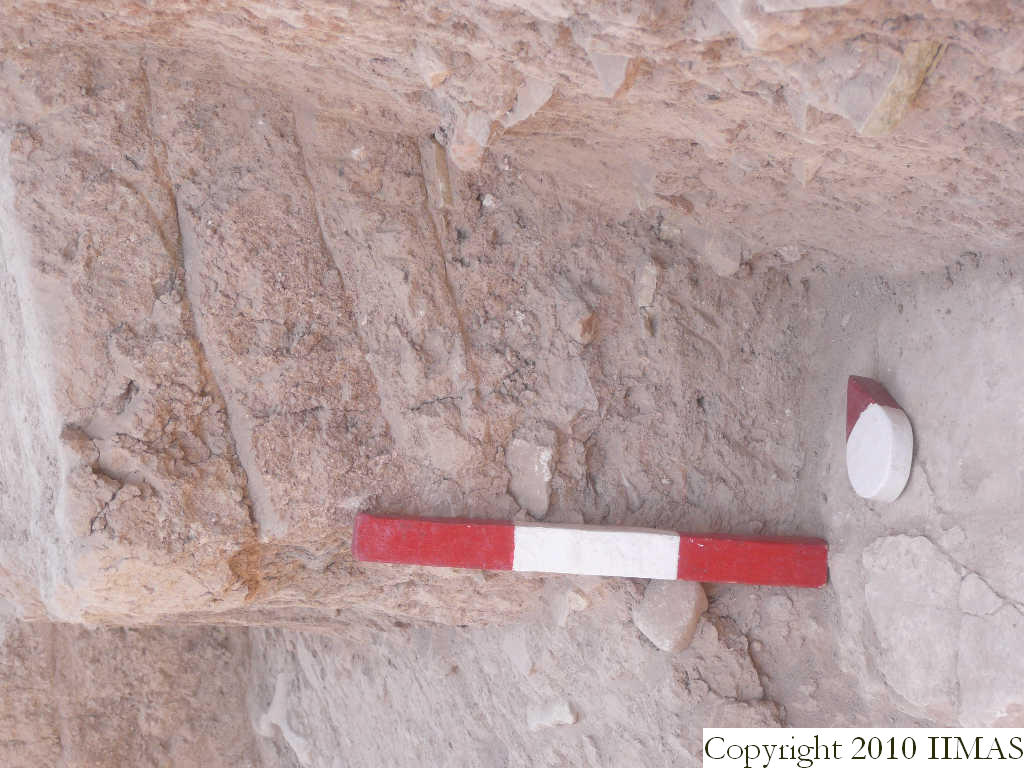

v179a
2009-08-06 jN [Input: T810SE1.j]

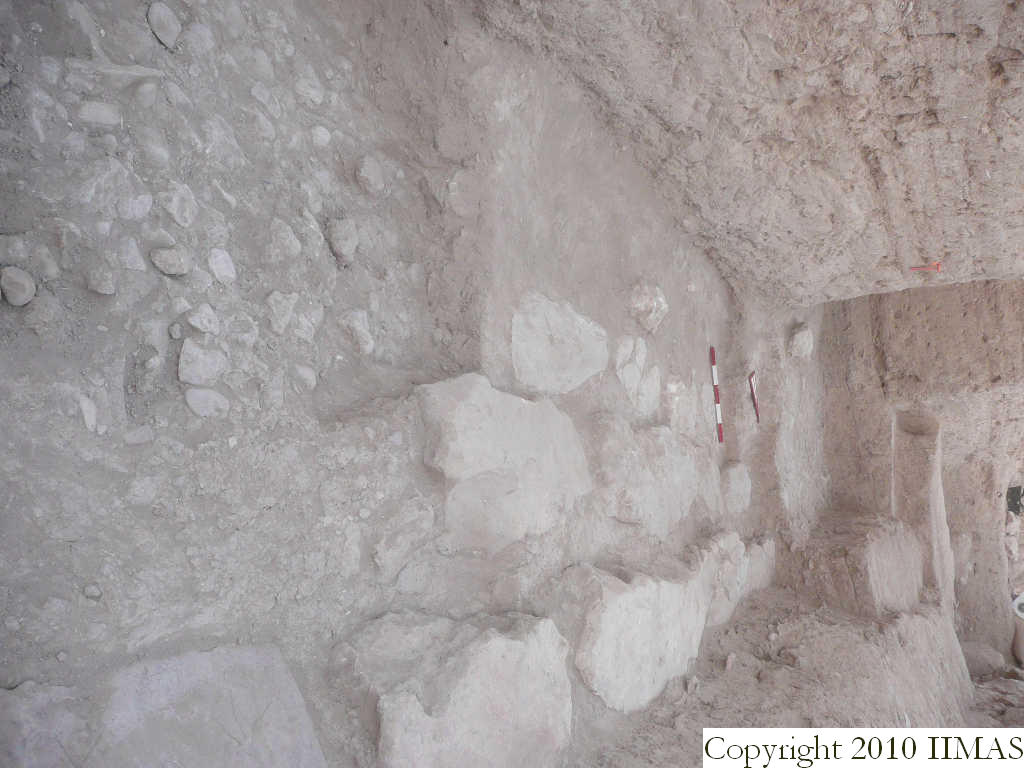

v180
2009-08-08 jN [Input: T810SE1.j]

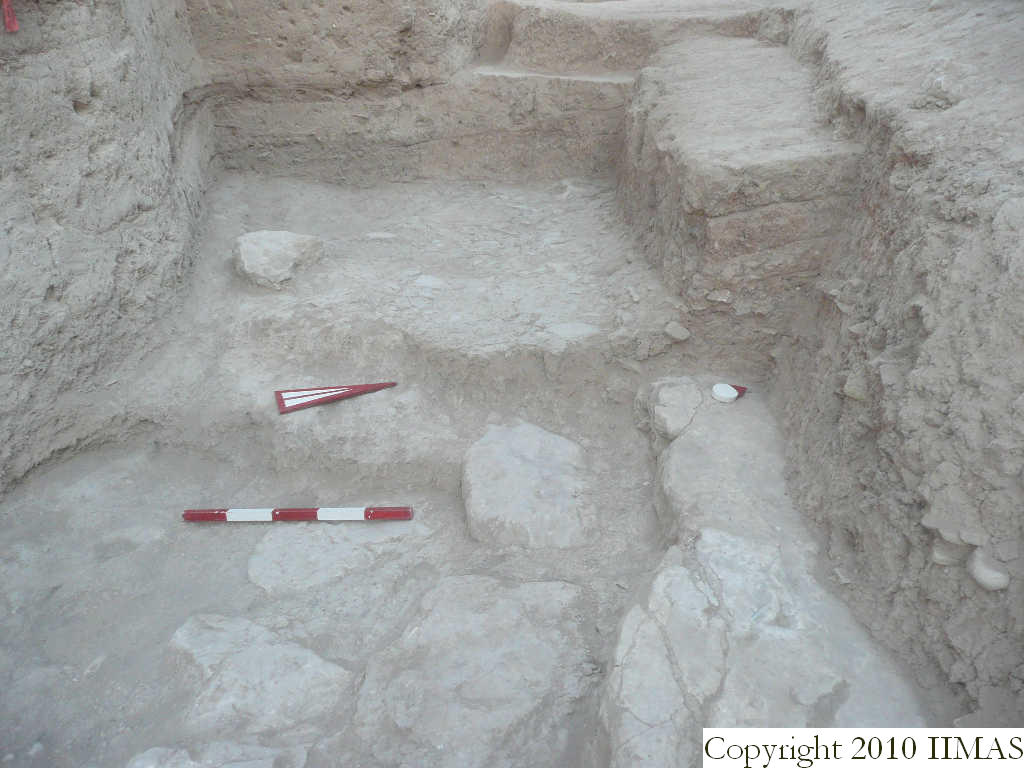

v180a
2009-08-08 jN [Input: T810SE1.j]

v180b
2009-08-08 jN [Input: T810SE1.j]

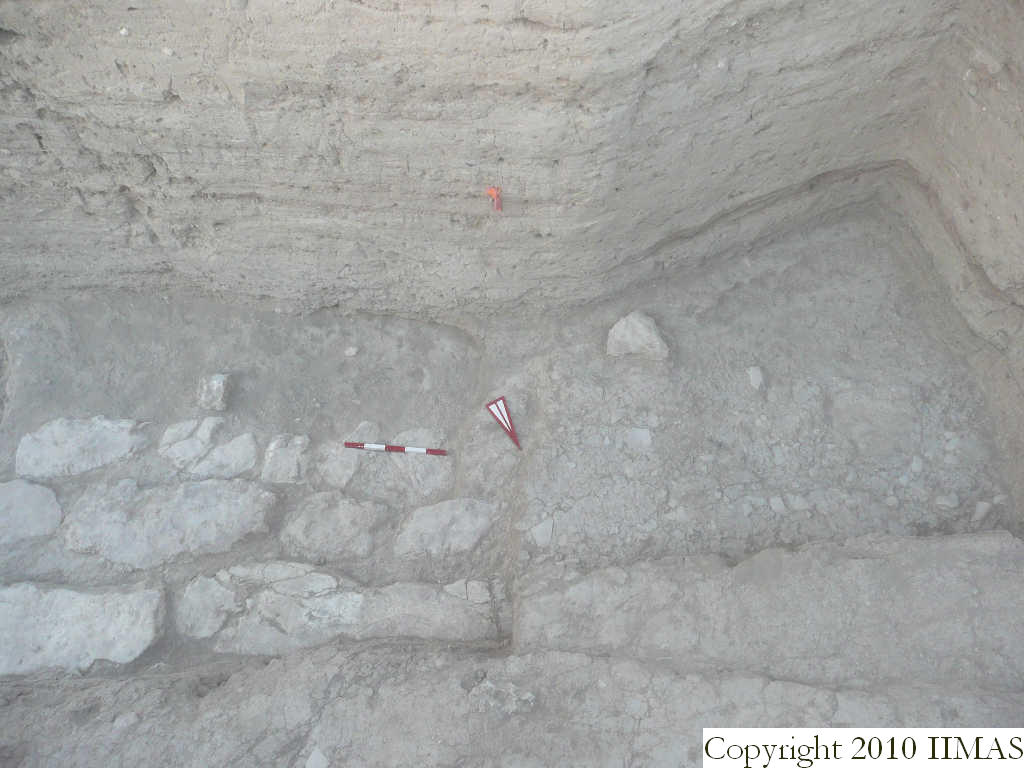

v180c
2009-08-08 jN [Input: T810SE1.j]

v182
2009-08-09 jN [Input: T810SE1.j]

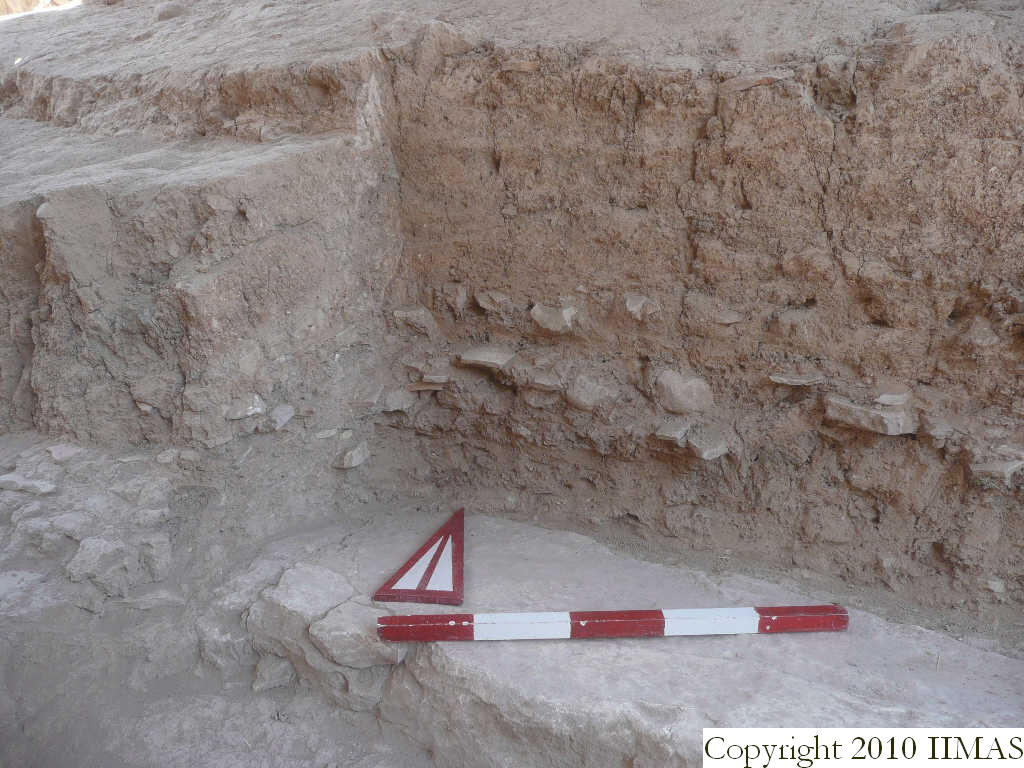

v182a
2009-08-09 jN [Input: T810SE1.j]

v183
2009-08-09 jW [Input: T810SE1.j]

v183b
2009-08-09 jW [Input: T810SE1.j]

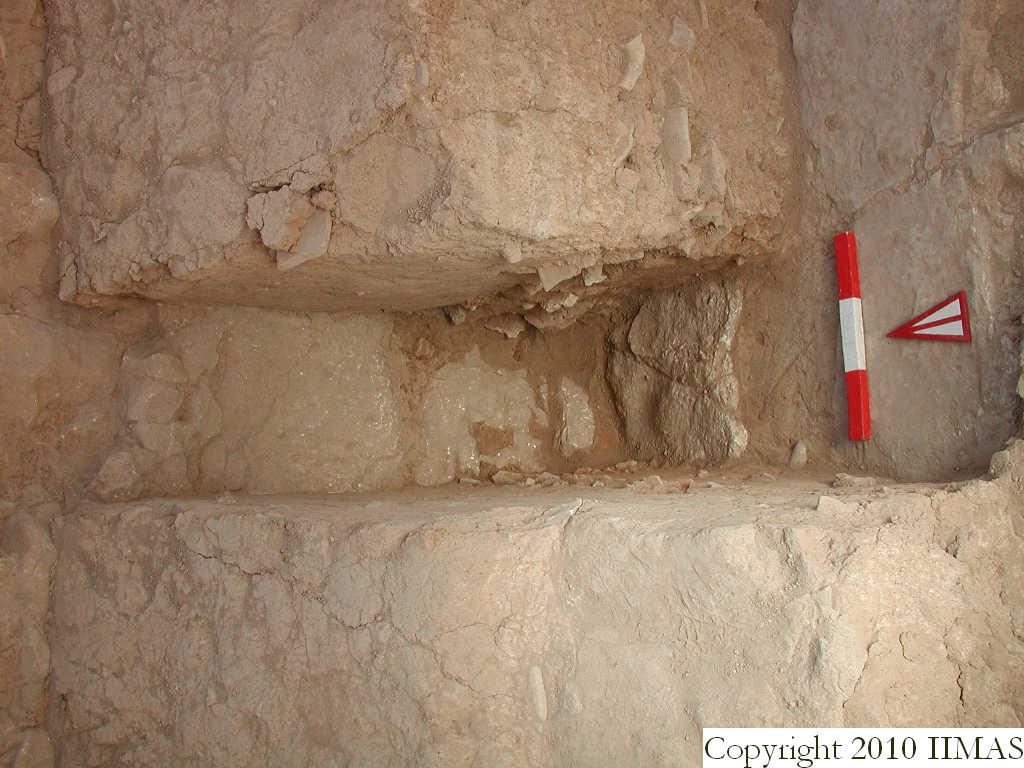

v190
2009-08-11 eA [Input: T819JN.j]

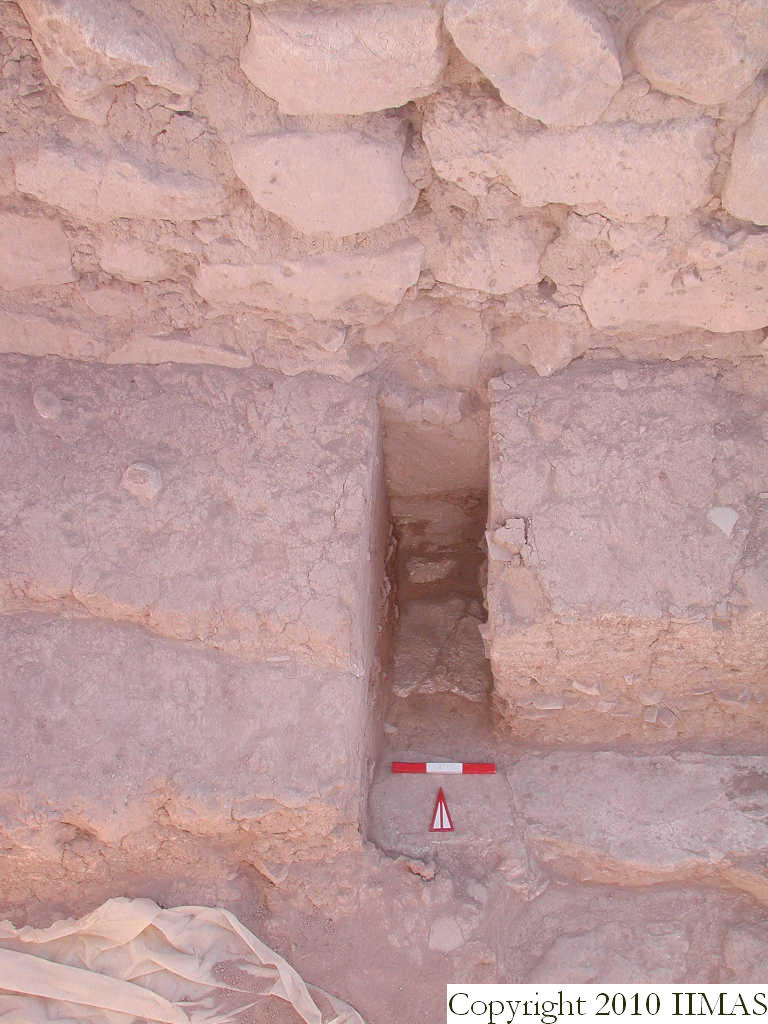

v190a
2009-08-11 eA [Input: T819JN.j]

v197
2009-08-15 jN [Input: T819JN.j]

v197a
2009-08-15 jN [Input: T819JN.j]

v197b
2009-08-15 jN [Input: T819JN.j]

v199
2009-08-16 jN [Input: T819JN.j]

v199a
2009-08-16 jN [Input: T819JN.j]

v201
2009-08-17 jN [Input: T819JN.j]

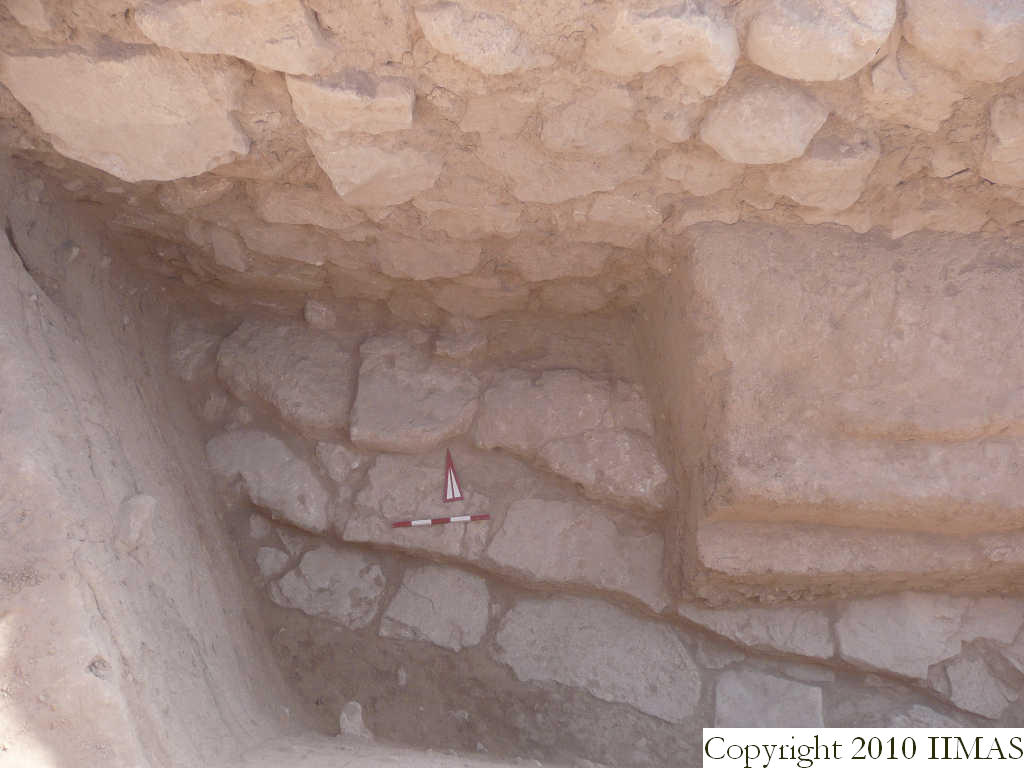

v201a
2009-08-17 jN [Input: T819JN.j]

v201b
2009-08-17 jN [Input: T819JN.j]

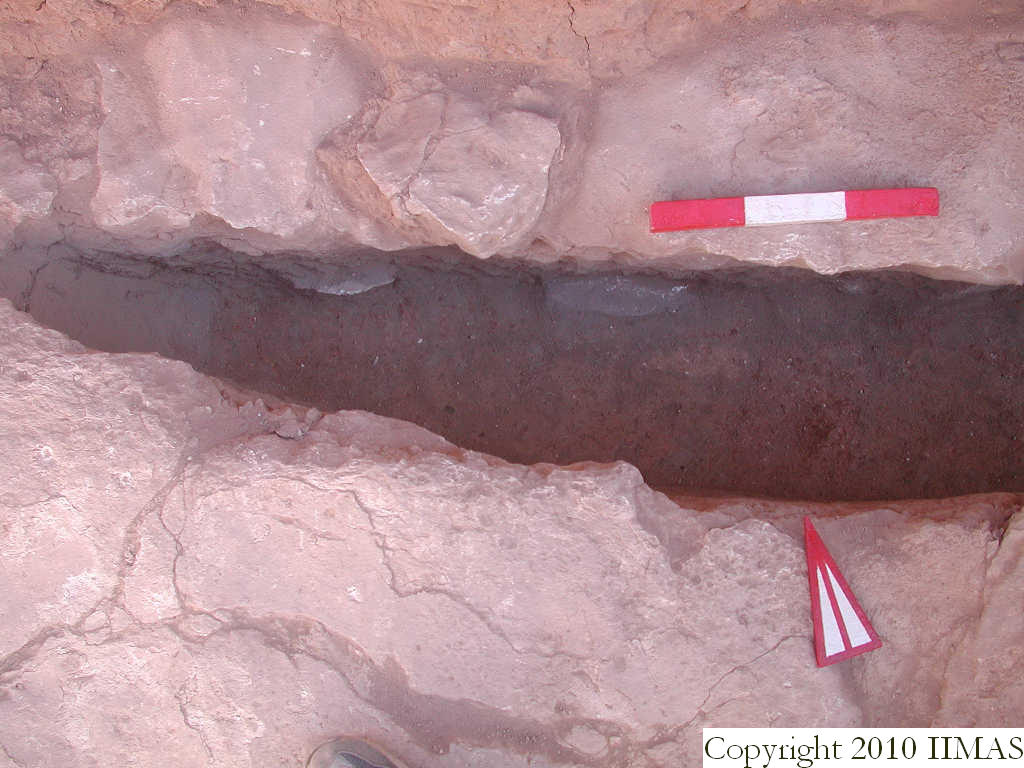

v211
2009-08-26 jN [Input: T830JN.j]

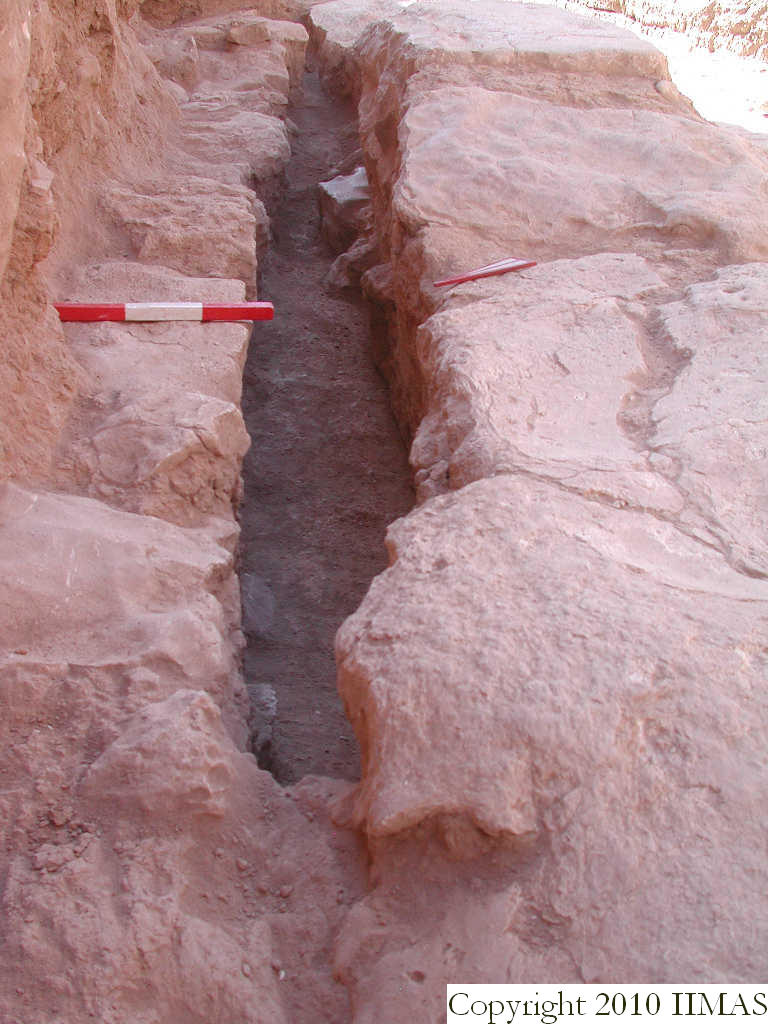

v211a
2009-08-26 jN [Input: T830JN.j]

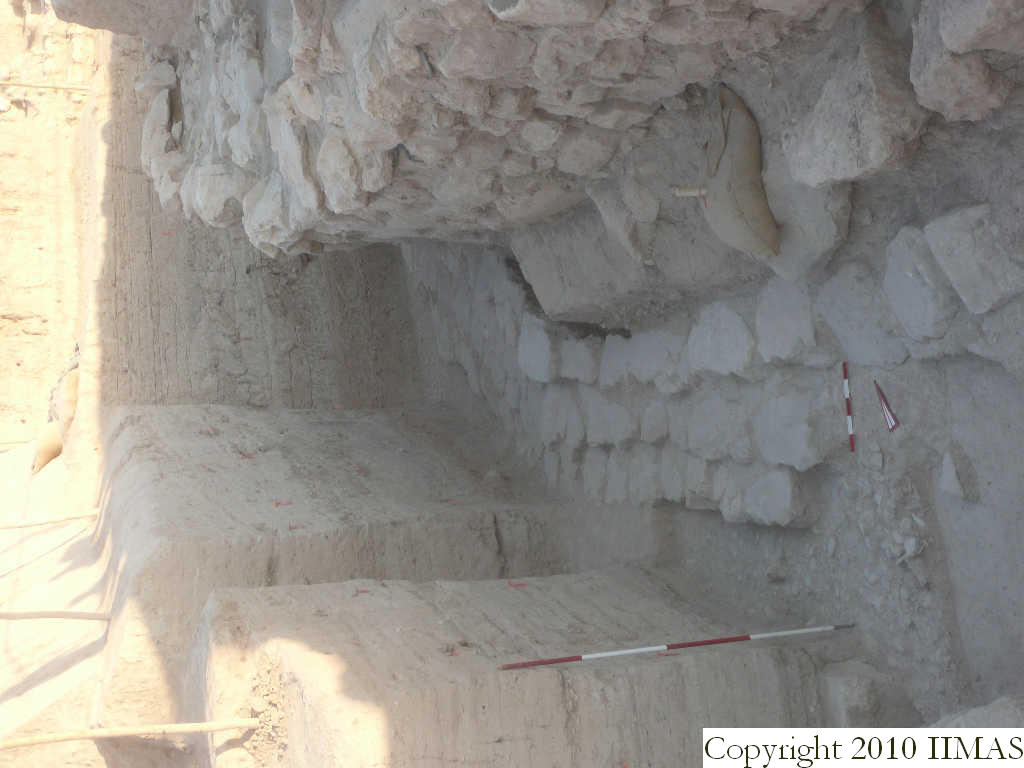

v213
2009-08-30 jN [Input: T901JN.j]

v213a
2009-08-30 jN [Input: T901JN.j]

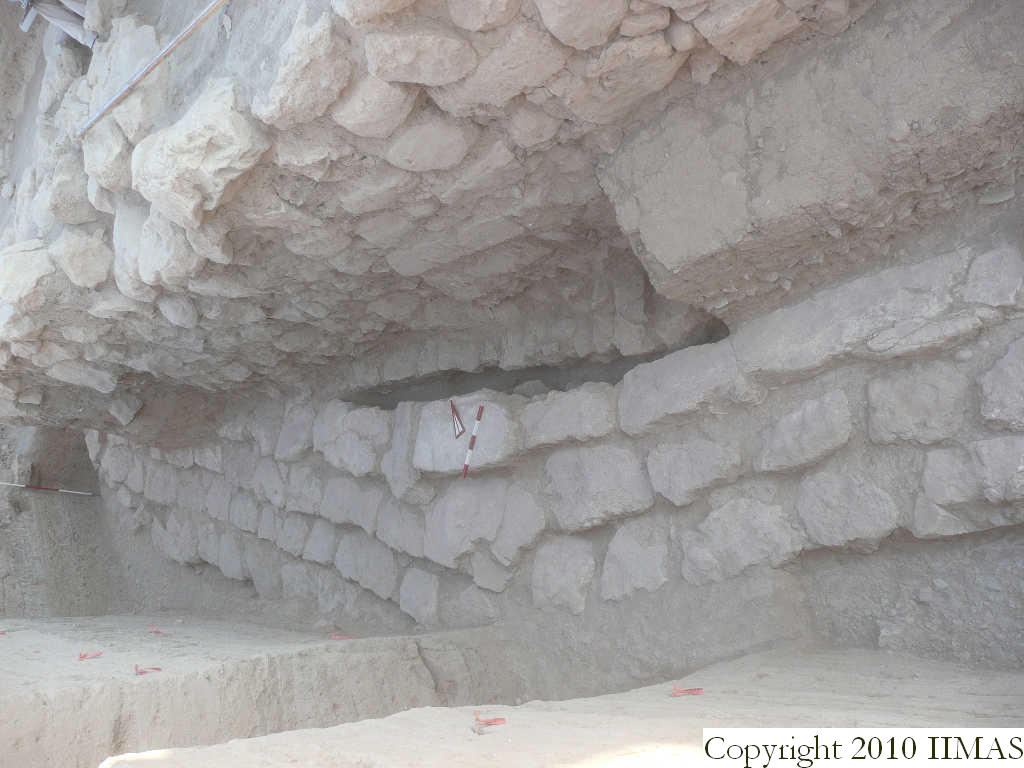

v214
2009-08-30 jN [Input: T901JN.j]

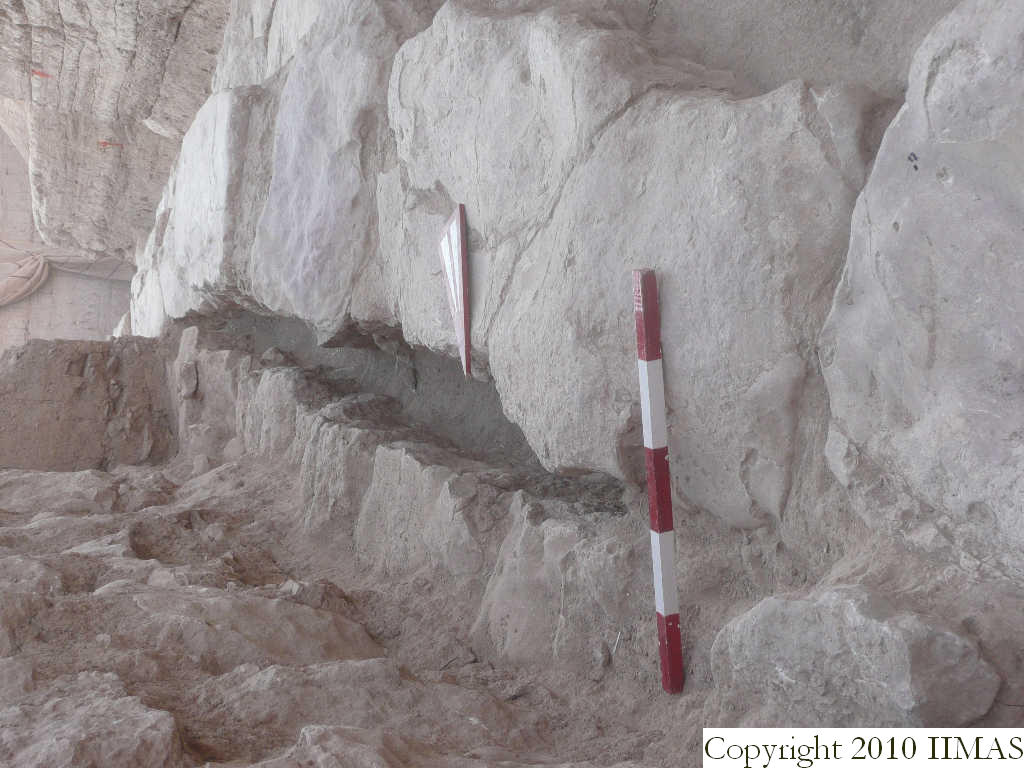

v214a
2009-08-30 jN [Input: T901JN.j]

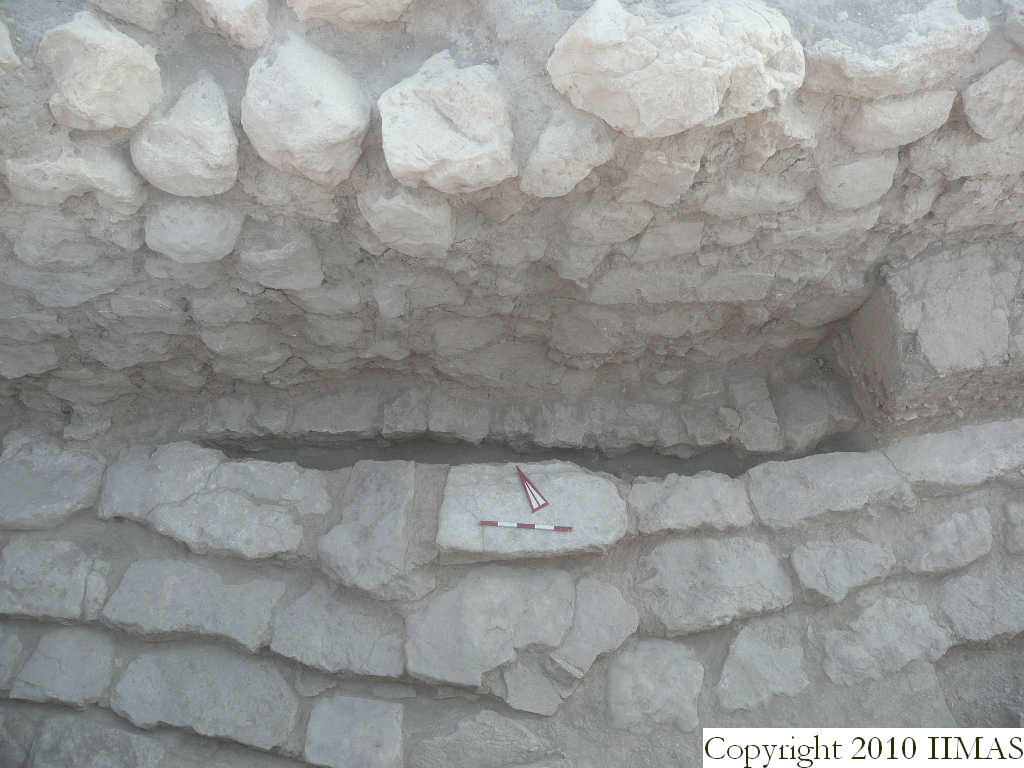

v214b
2009-08-30 jN [Input: T901JN.j]

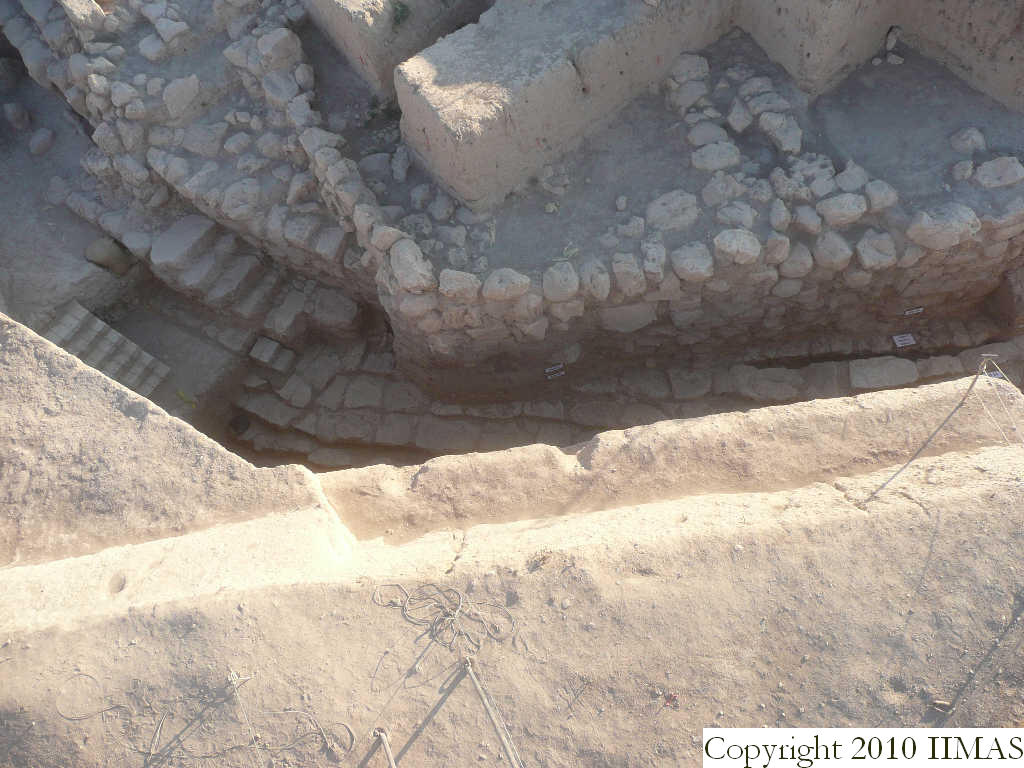

v226
2010-08-12 jW [Input: U812JW.j]

v226b
2010-08-12 jW [Input: U812JW.j]
